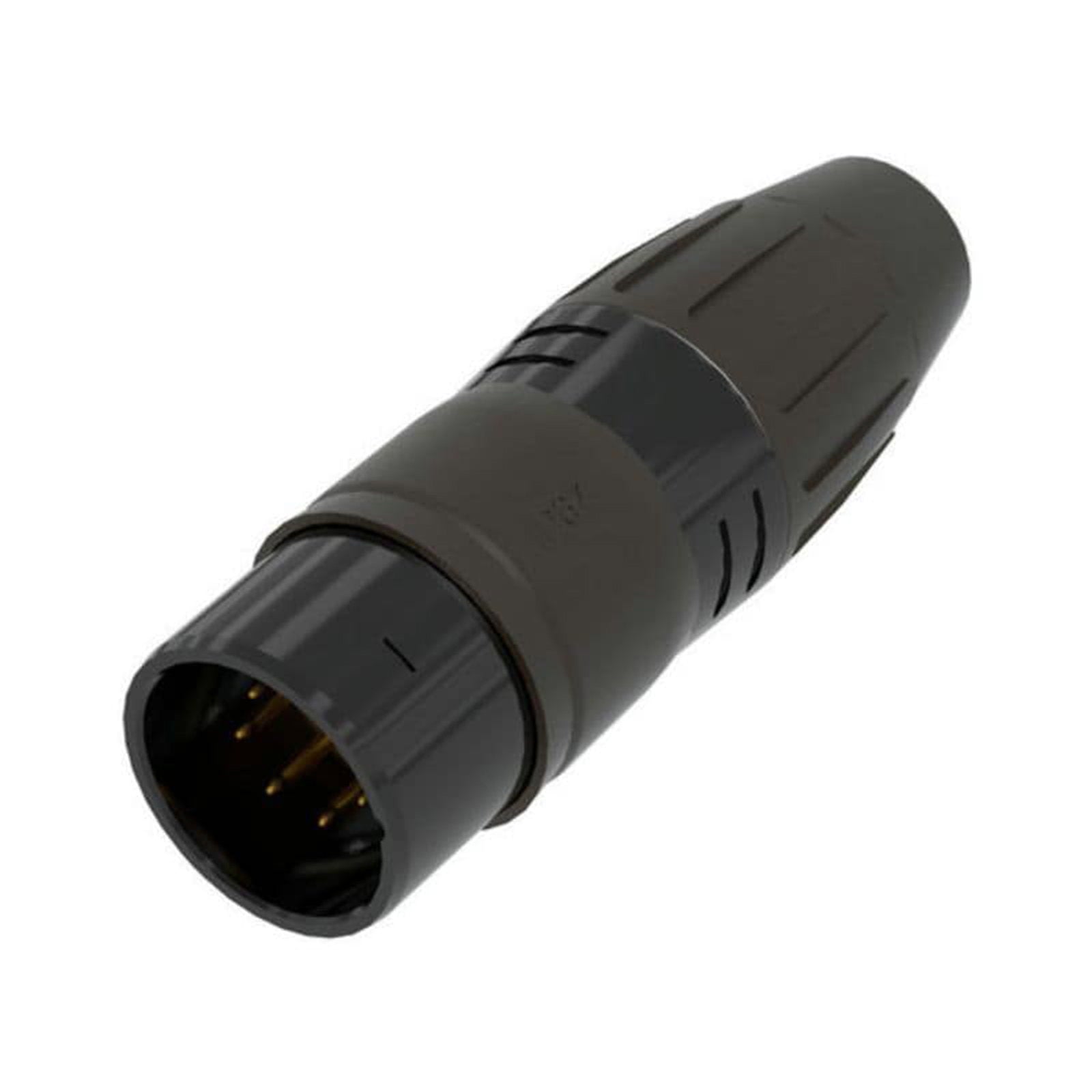

The Seetronic SCWM5‑B‑67 is a rugged IP67-rated 5-pin XLR male cable connector with a black-finished zinc die-cast housing gold-plated contacts and a polyurethane boot with integrated strain relief. Built for professional audio lighting and industrial use it supports up to 7.5 A per contact and provides full protection against dust and water immersion—ideal for demanding outdoor and broadcast environments.

• IP67-rated: sealed against dust ingress and full immersion
• Black-finished zinc die-cast housing with internal threads
• Gold-plated copper-alloy contacts; ≤ 3 mΩ contact resistance
• Low capacitance ≤ 7 pF for high-quality signal integrity
• Rated for 7.5 A per contact and < 50 V operating voltage
• Secure latch-lock mechanism prevents accidental disconnection
• Polyurethane boot with POM strain relief for optimal cable protection
• Supports cables 5–8 mm OD; conductor up to 1.0 mm² (18 AWG)
• Durability: ≥ 1000 mating cycles; temperature range: –30 °C to +80 °C

• Connector Type: 5‑pin XLR male cable-mounted (W-Series IP67)
• Rated Current: 7.5 A per contact
• Rated Voltage: < 50 V
• Contact Resistance: ≤ 3 mΩ
• Capacitance: ≤ 7 pF
• Dielectric Strength: 1500 V DC
• Insulation Resistance: > 10 GΩ
• Insertion/Withdrawal Force: ≤ 20 N
• Mechanical Life: ≥ 1000 mating cycles
• Cable Compatibility: 5–8 mm OD; up to 1.0 mm² (18 AWG) conductor
• Materials: Housing – black zinc alloy Contacts – gold-plated Cu alloy Boot – polyurethane Strain Relief – POM
• Flame Rating: UL 94 HB
• Operating Temperature: –30 °C to +80 °C
• Protection: IP67 (sealed when mated)
• Certifications: IEC 61076‑2‑103 IEC 68‑2‑20
