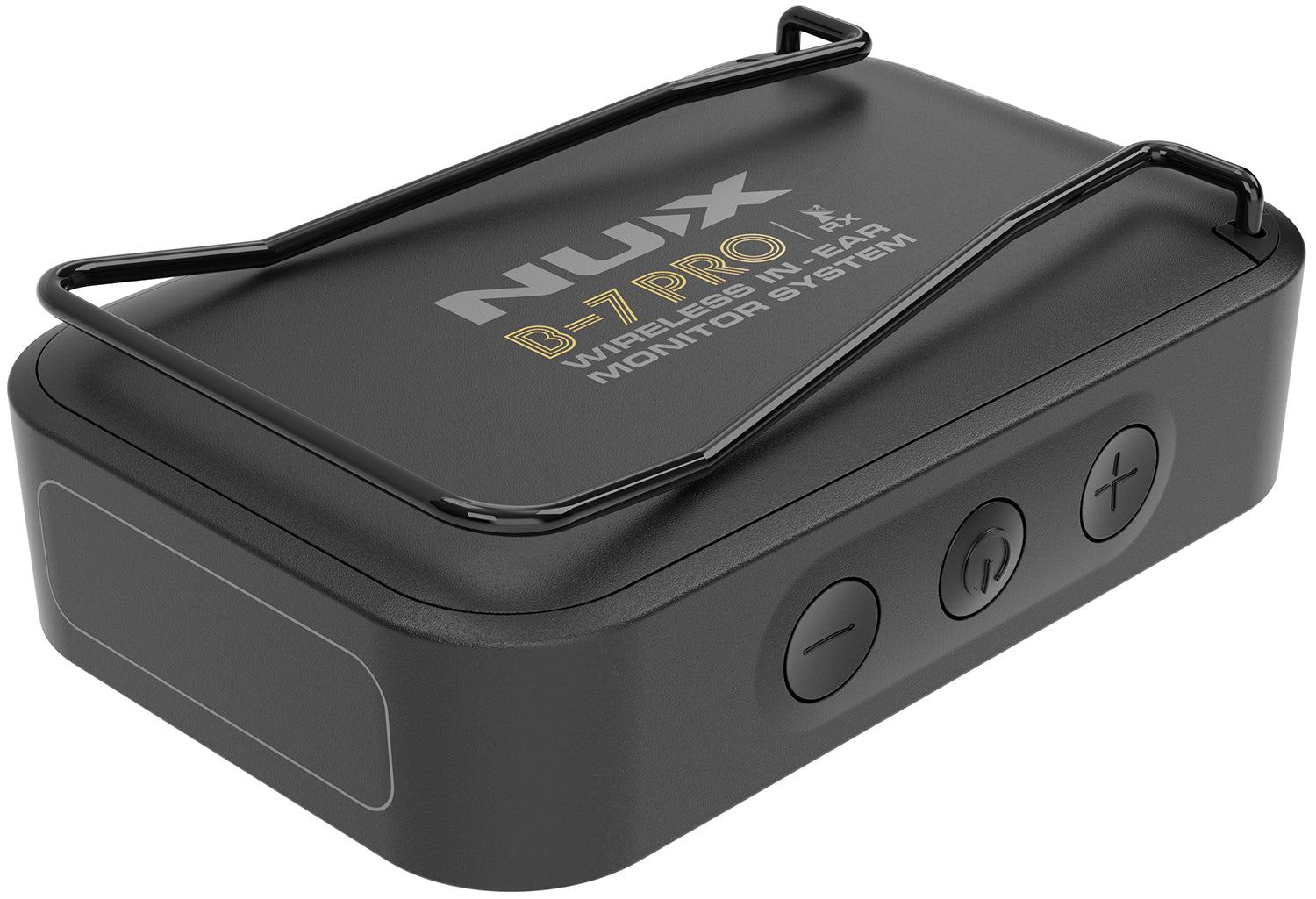

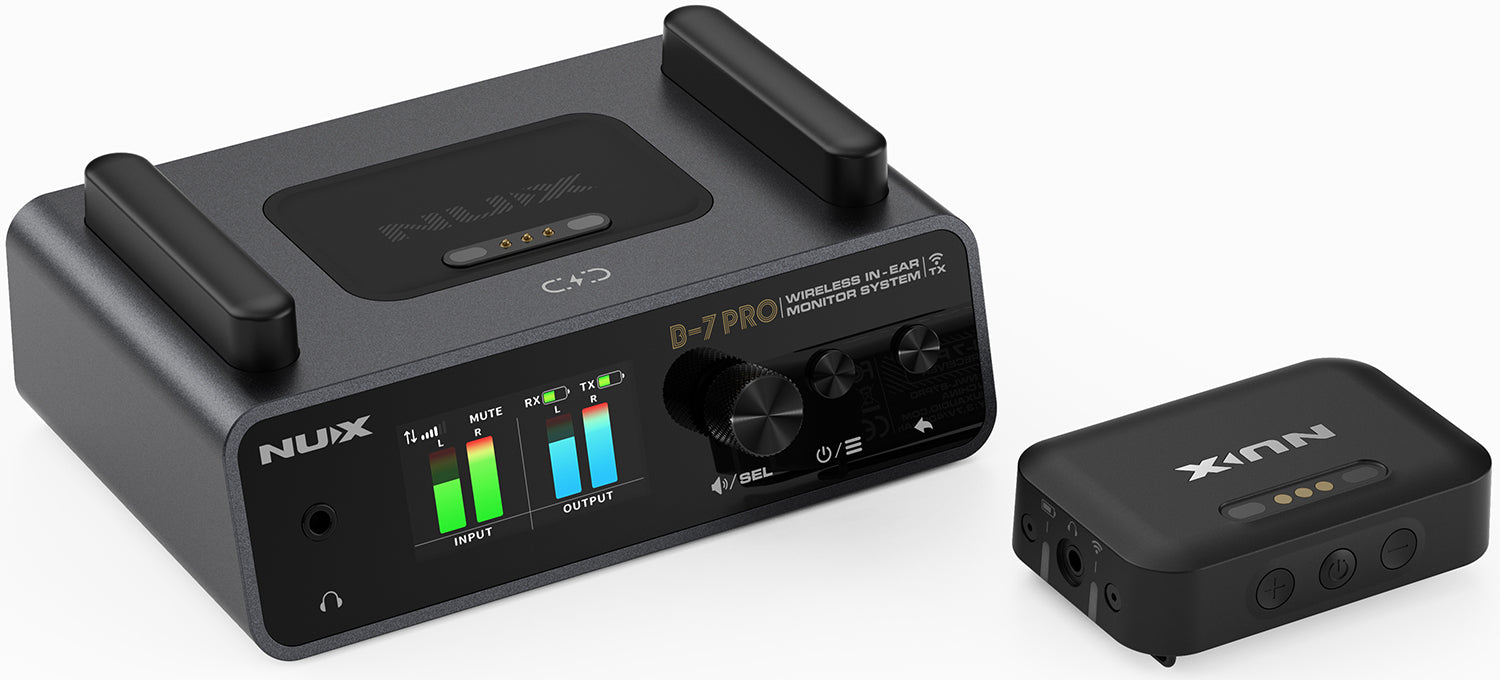

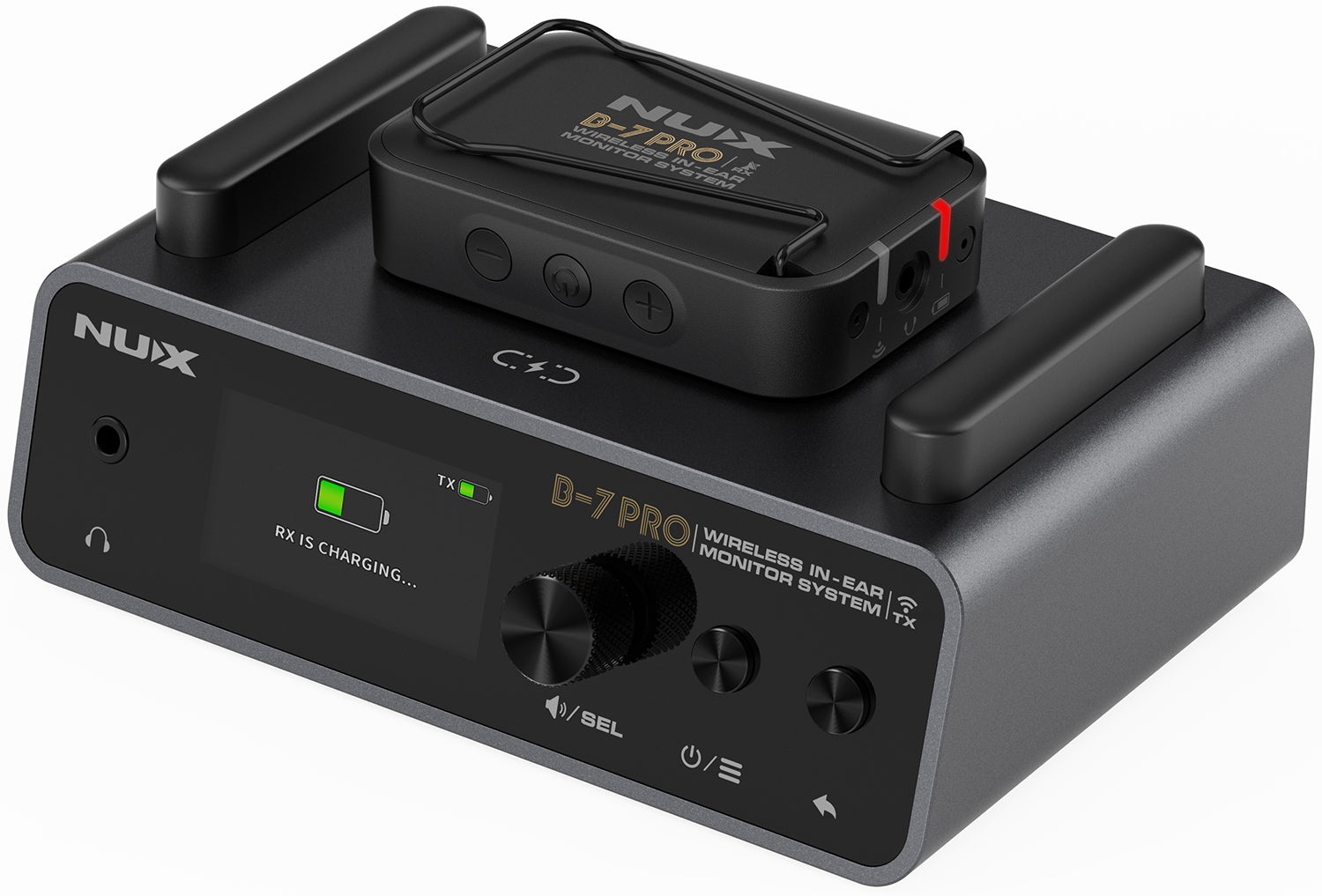

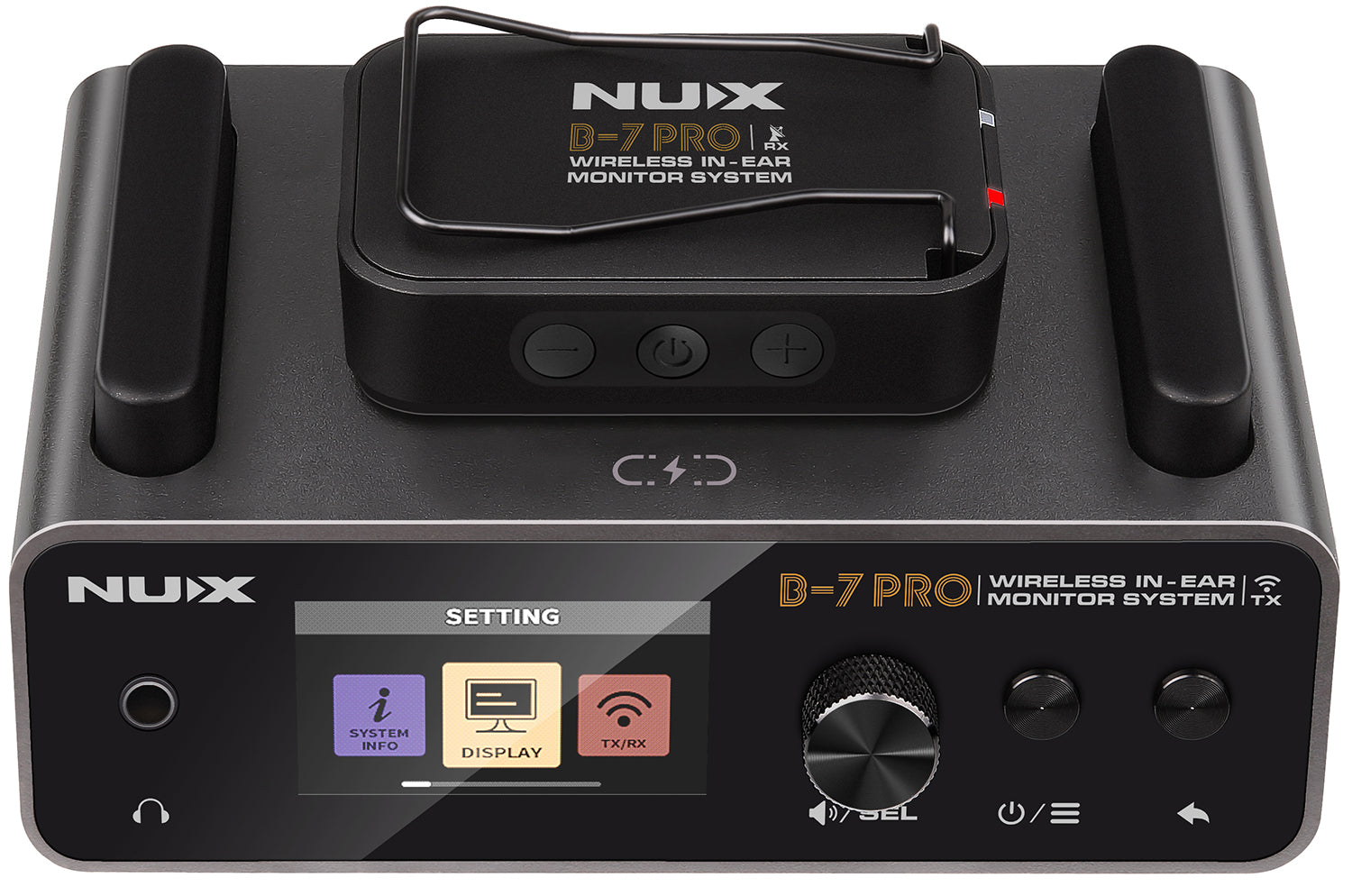

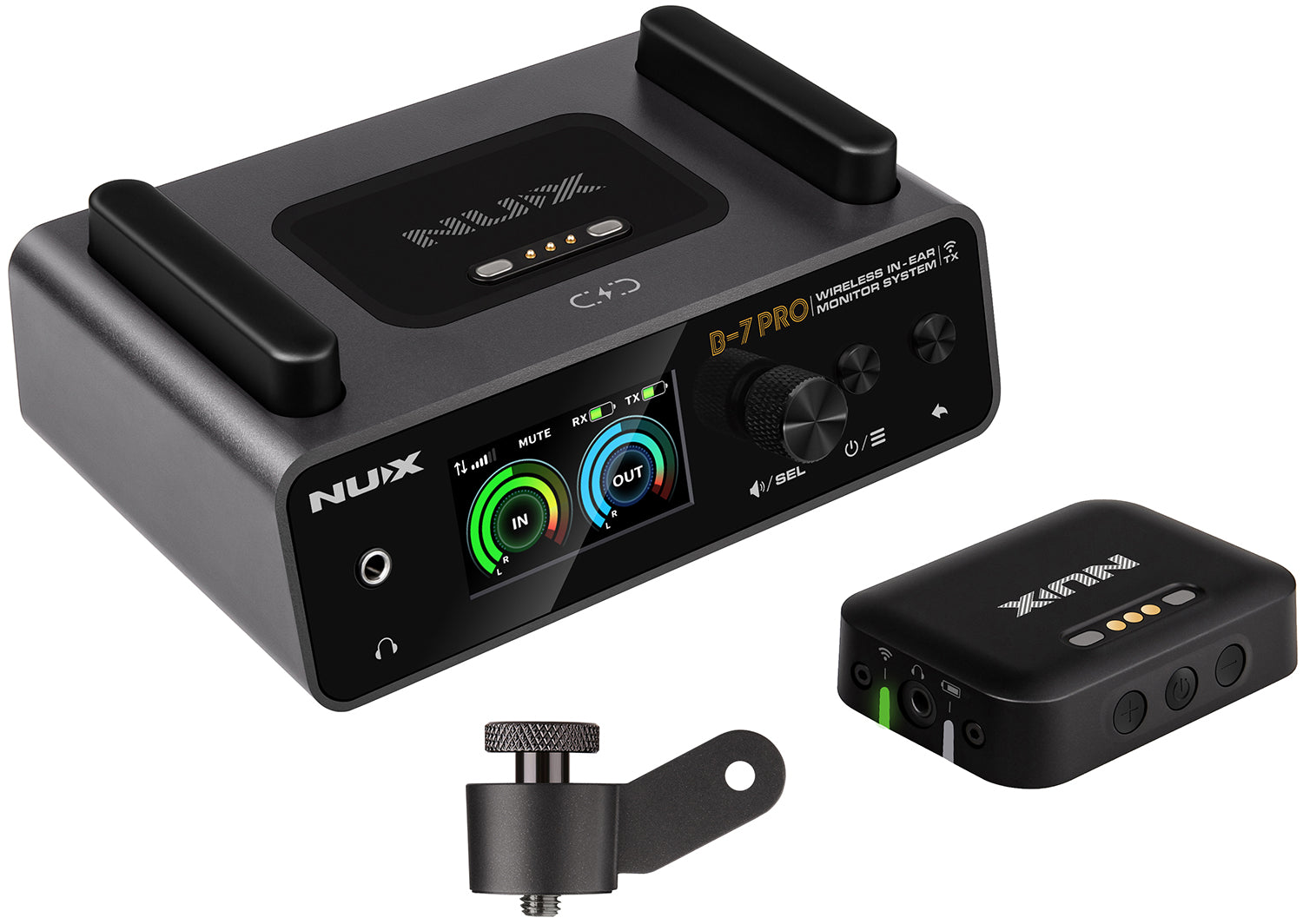

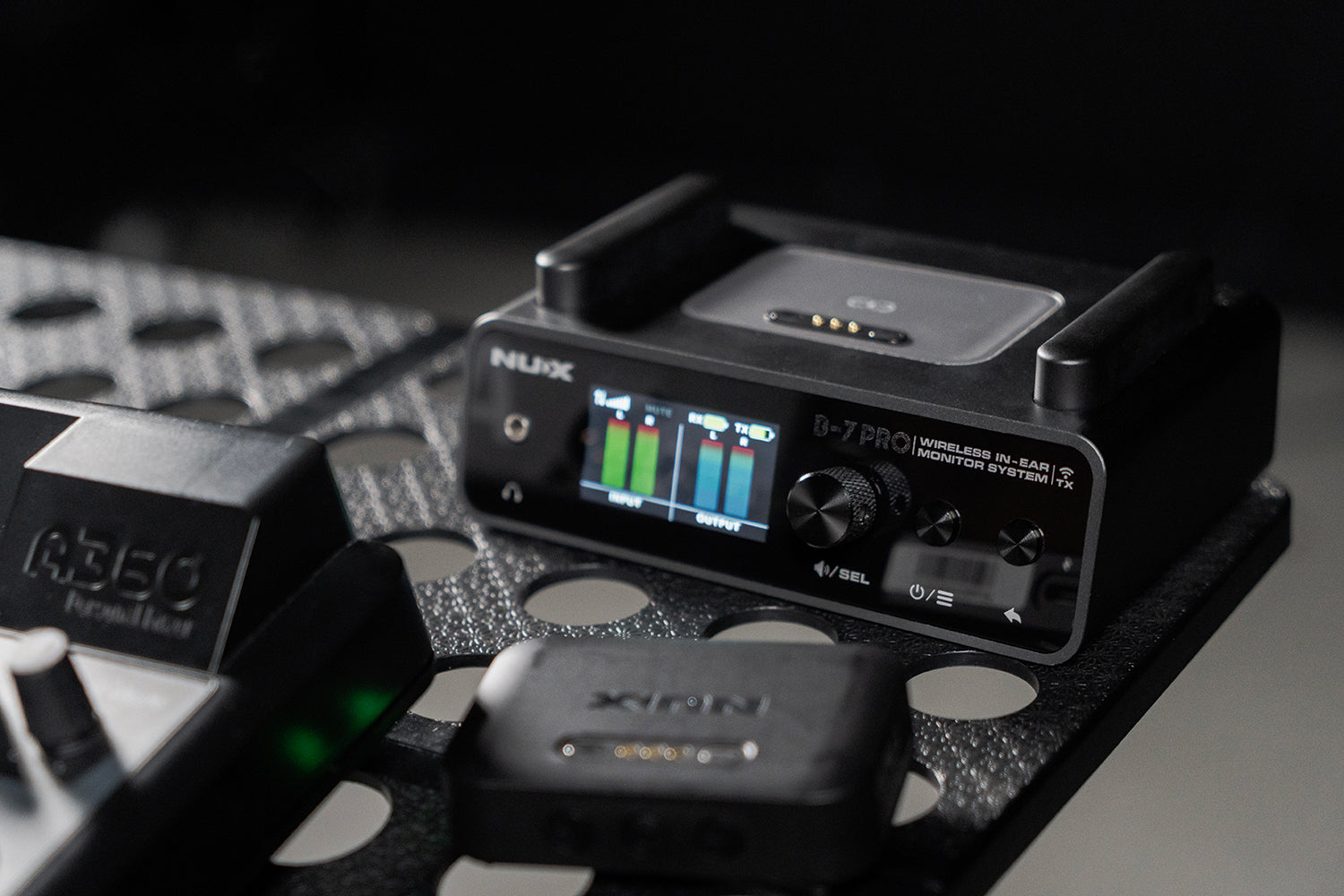

B-7 Pro is a professional wireless in-ear monitoring system operating in the 2.4GHz band. A fully digital signal path delivers high quality stereo audio with minimal latency and a range of up to 50m. The receiver (RX) can be clip-mounted to clothing or a guitar strap and can be re-charged from the main transmitter (TX) or via USB-C. The TX is itself rechargeable or can operate directly from the supplied 9Vdc power adaptor and can even double as a USB audio interface for recording to a PC or Mac computer. Onboard the TX is a full colour display showing signal and battery status for both TX and RX units and serves a settings menu for adjusting signal levels, display and transmission preferences. In addition to balanced left & right signal inputs, there is a stereo Aux input and a wired Phones output. A screw adaptor is also provided to enable the transmitter to connect with standard action camera clamps if preferred for mounting to a stand or fixture. In summary, the B-7 Pro offers the latest wireless technology with unique features to deliver reliable high-quality monitoring for even the most demanding of performers.
Internal rechargeable batteries (TX and RX)
3 settings for latency vs stability
Automatic pairing procedure
Power supply:9Vdc 1200mA (adaptor supplied)
Batteries:Li-polymer 3.7V 3000mAh (TX), 400mAh (Rx)

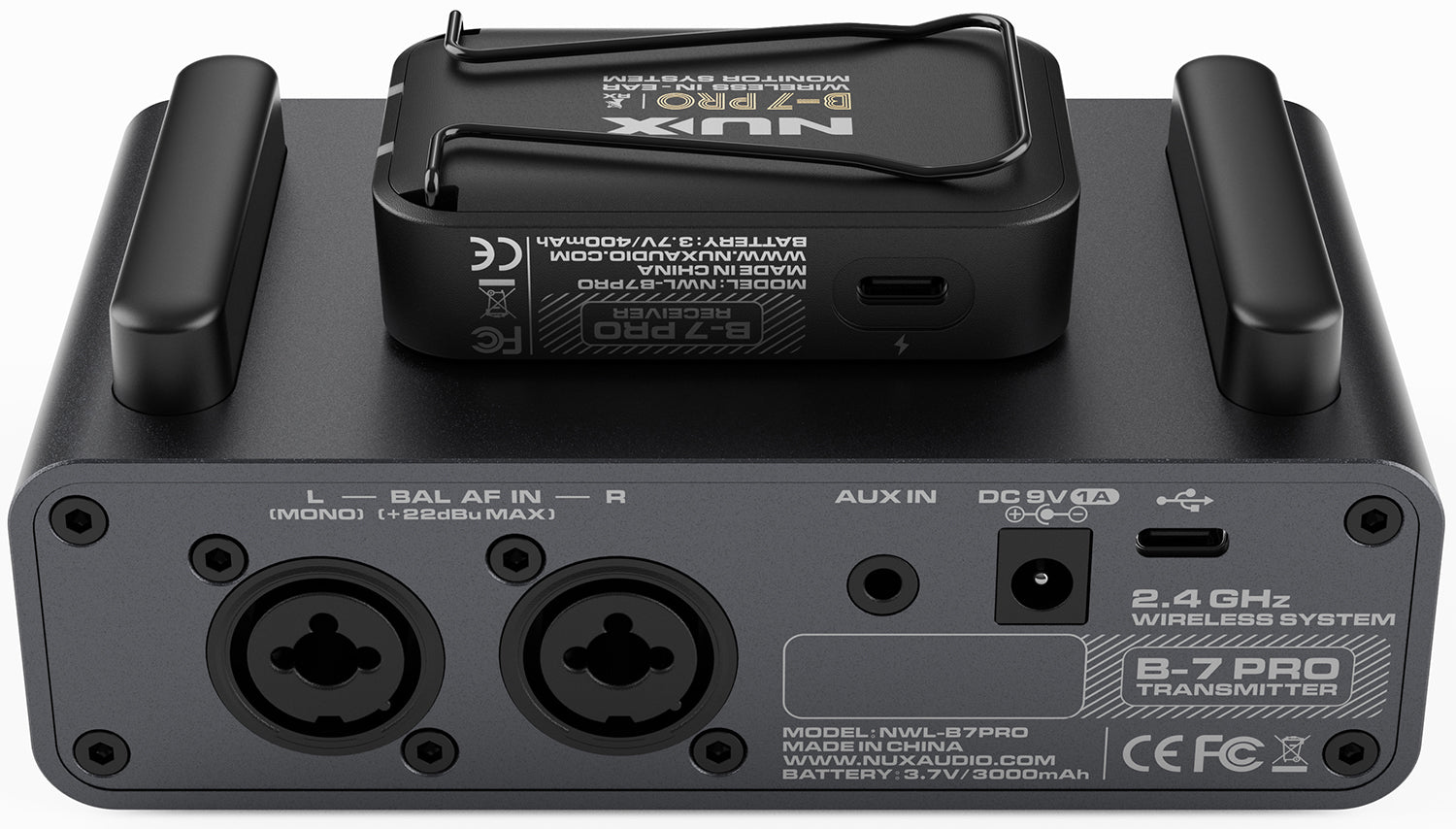

Connections: Transmitter:L+R XLR/jack, Aux 3.5mm, Phones 3.5mm, USB-C (data), DC jack

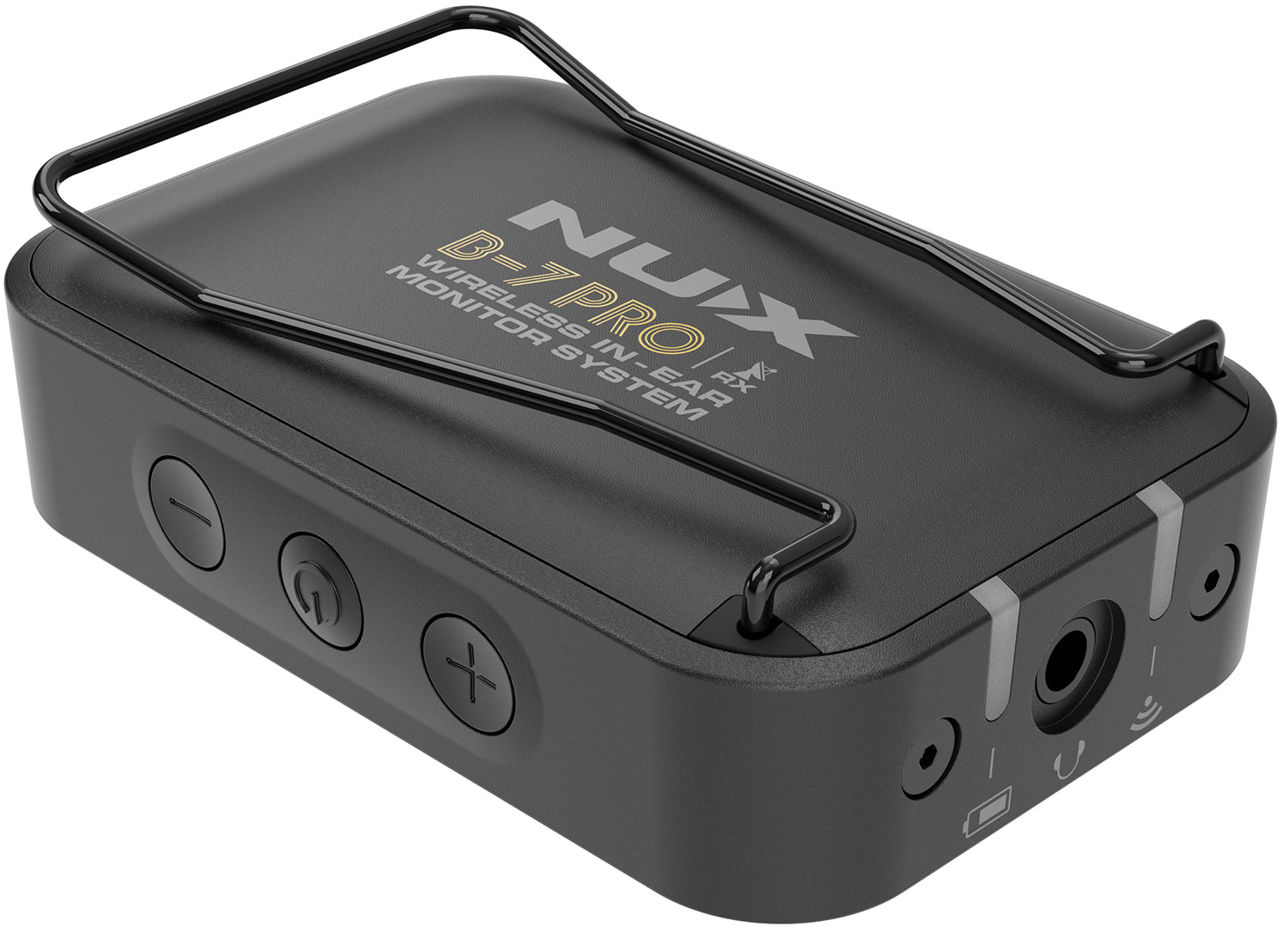

Connections: beltpack receiver:Headphones out 3.5mm (13ohm min.), USB-C (charge)
Carrier frequencies:2400-2483.5MHz (frequency hopping)
RF output power:10mW E.I.R.P max.
Sampling format:24-bit, 48kHz
Frequency response:20Hz - 20kHz
Latency:7.33 - 10.85 - 14.33ms (fast-default-safe modes)
Input impedance:20k Ohm balanced, 10k Ohm unbalanced
Auxiliary input:2.1Vrms (8.7dBu) max.
Input level:9.8Vrms (22dBu) max.
Headphone : impedance:13 Ohms min.
Headphone output:57mW max. per channel (THD >1%, 16 Ohm, 1kHz)
Channel separation:-105dB
THD:<0.01% typical
Dynamic range:110dB (A-weighted)
Output level:-86dB to +12dB (adjustable + mute)
Auto power off:10min with no connection
Range:50m max.
Dimensions
Specifications
Up to 6 hours operation per chargeInternal rechargeable batteries (TX and RX)
3 settings for latency vs stability
Automatic pairing procedure
Power supply:9Vdc 1200mA (adaptor supplied)
Batteries:Li-polymer 3.7V 3000mAh (TX), 400mAh (Rx)
Connections: Transmitter:L+R XLR/jack, Aux 3.5mm, Phones 3.5mm, USB-C (data), DC jack
Connections: beltpack receiver:Headphones out 3.5mm (13ohm min.), USB-C (charge)
Carrier frequencies:2400-2483.5MHz (frequency hopping)
RF output power:10mW E.I.R.P max.
Sampling format:24-bit, 48kHz
Frequency response:20Hz - 20kHz
Latency:7.33 - 10.85 - 14.33ms (fast-default-safe modes)
Input impedance:20k Ohm balanced, 10k Ohm unbalanced
Auxiliary input:2.1Vrms (8.7dBu) max.
Input level:9.8Vrms (22dBu) max.
Headphone : impedance:13 Ohms min.
Headphone output:57mW max. per channel (THD >1%, 16 Ohm, 1kHz)
Channel separation:-105dB
THD:<0.01% typical
Dynamic range:110dB (A-weighted)
Output level:-86dB to +12dB (adjustable + mute)
Auto power off:10min with no connection
Range:50m max.
Dimensions
NU-X B-7 PRO In-ear Monitor System
Brand: NU-X
SKU: 171.827UK
Regular price
£319.99
Pickup available at Venutec
Usually ready in 24 hours
NU-X B-7 PRO In-ear Monitor System
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
