The BNC feed through coupler offers a true 75 Ω design for serial and digital (HD & UHD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use.

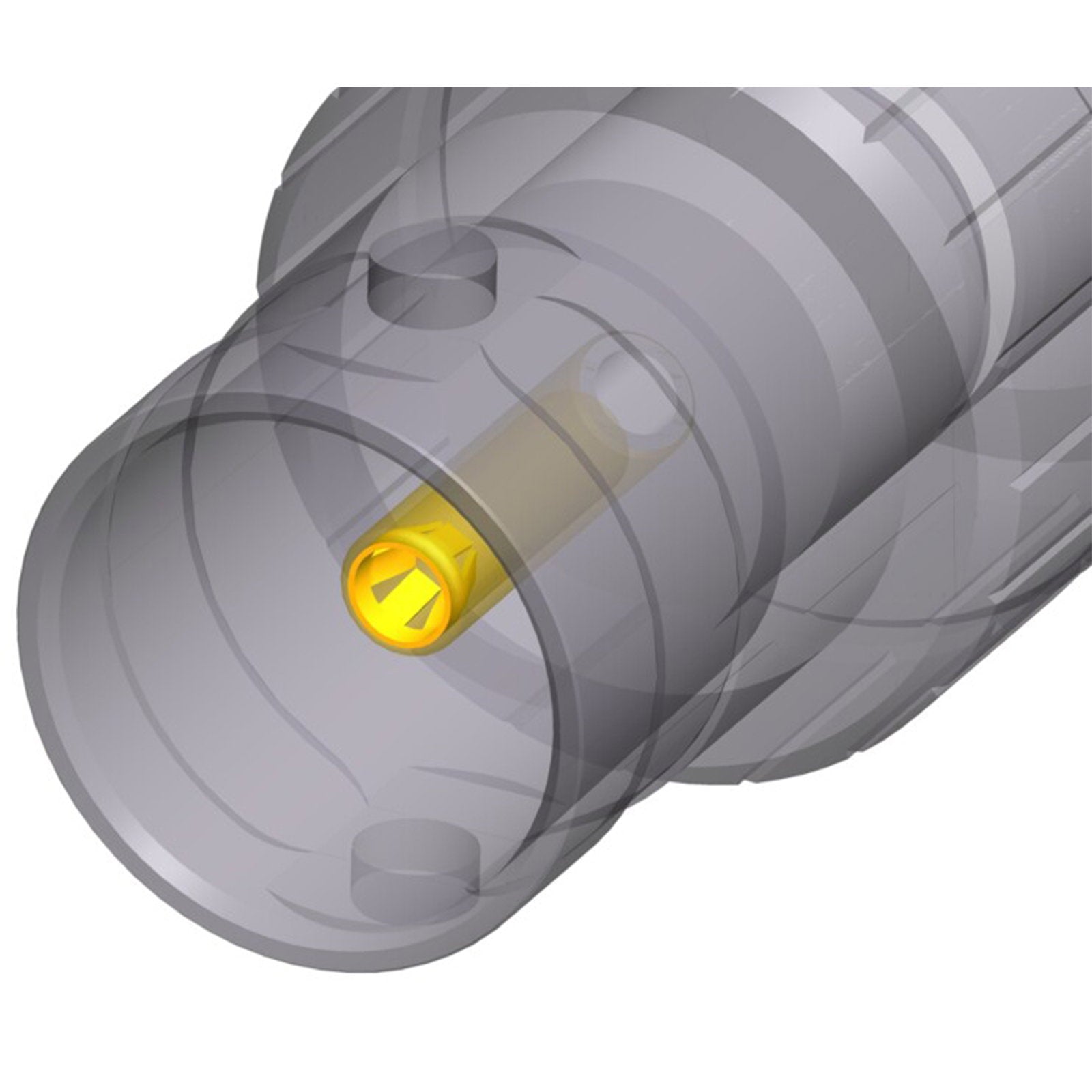

Manufacturers Part Code: NBB75FA Gold plated cage type centre contact True 75 Ω design meets the stringent HD & UHD requirements Closed contact design - extremely robust Gold plated cage type clip - best possible shielding and lowest contact resistance Signal Types: HD SDI Video AES/EBU Composit YUV RGB RGBH RGBHV
Connection Type: BNC 75Ω Gender: Female Impedance: 75Ω (true impedance design) Signal Types Supported: HD SDI Video AES/EBU Composite YUV RGB RGBH RGBHV Rated Voltage: <50V Contact Resistance: ≤3mΩ (inner) ≤2mΩ (outer) VSWR / Return Loss: ≤1.03 / >37dB up to 1GHz; ≤1.05 / >32dB up to 2GHz; ≤1.08 / >28dB up to 3GHz Dielectric Strength: 1.5kVdc Insulation Resistance: >5GΩ Insertion Force: <25N Mating Cycles: >1000 cycles Locking Mechanism: Bayonet Contact Material: Brass (CuZn39Pb3) Insert Material: PTFE Shell Material: Brass (CuZn39Pb3) Operating Temperature: -30°C to +85°C

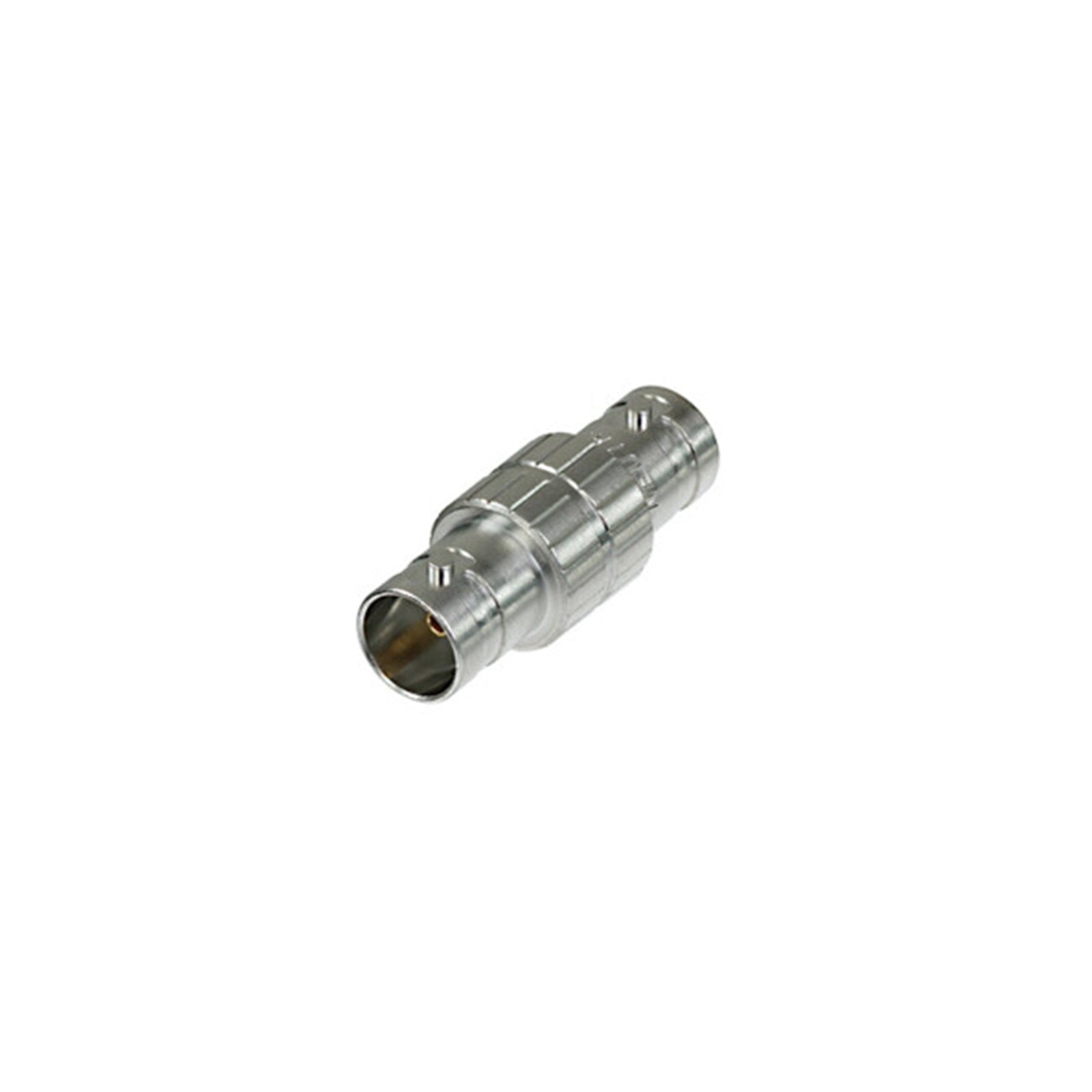

Neutrik BNC Feed Through Coupler NBB75FA
Brand: Neutrik
SKU: CONN312
Pickup available at Venutec
Usually ready in 24 hours
Neutrik BNC Feed Through Coupler NBB75FA
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
The BNC feed through coupler offers a true 75 Ω design for serial and digital (HD & UHD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use.
Manufacturers Part Code: NBB75FA Gold plated cage type centre contact True 75 Ω design meets the stringent HD & UHD requirements Closed contact design - extremely robust Gold plated cage type clip - best possible shielding and lowest contact resistance Signal Types: HD SDI Video AES/EBU Composit YUV RGB RGBH RGBHV
Connection Type: BNC 75Ω Gender: Female Impedance: 75Ω (true impedance design) Signal Types Supported: HD SDI Video AES/EBU Composite YUV RGB RGBH RGBHV Rated Voltage: <50V Contact Resistance: ≤3mΩ (inner) ≤2mΩ (outer) VSWR / Return Loss: ≤1.03 / >37dB up to 1GHz; ≤1.05 / >32dB up to 2GHz; ≤1.08 / >28dB up to 3GHz Dielectric Strength: 1.5kVdc Insulation Resistance: >5GΩ Insertion Force: <25N Mating Cycles: >1000 cycles Locking Mechanism: Bayonet Contact Material: Brass (CuZn39Pb3) Insert Material: PTFE Shell Material: Brass (CuZn39Pb3) Operating Temperature: -30°C to +85°C
