The rearTWIST HD BNC cable connector offers a true 75Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers colour coding.
'rearTWIST Principle' locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507) Ideal for recessed bulkheads where access to the 'head' of the connector might be an issue these connectors turn from the back and not the front True 75Ω design meets the stringent HDTV/DVD requirements Leading area: Avoids tilting due to side forces to protect contacts from deformation - Guarantees a lifetime of min. 1000 mating cycles! Snug-fit centre pin insert provides tactile feedback Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies Excellent cable protection and retention Precise Swiss machined brass parts for outstanding durability Note: Boots not supplied with NBNC75BLP7-D Optional accessories include colour coded boots in 10 standard colours crimp tool and dies
Rated voltage: <50V Impedance: 75Ω Temperature range: -30°C to +85°C Cable outer diameter: 6.3mm Crimp size: Pin: 1.6mm (square) Shield: 6.47mm (hex) Suitable cables: Belden 8241 CAE KX6A Canare LV-61S Cordial CVI (CVM) 06-37 CommScope 5563 Draka 0.6/3.7 Draka 0.6L/3.7 Proel HPC 805 RG59B/U Sommer 600-0051 (MLS) Sommer 600-0054 (MLS) Klotz V06/37 Nexans HF 75 06/37 2YCY Percon VK95
'rearTWIST Principle' locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507) Ideal for recessed bulkheads where access to the 'head' of the connector might be an issue these connectors turn from the back and not the front True 75Ω design meets the stringent HDTV/DVD requirements Leading area: Avoids tilting due to side forces to protect contacts from deformation - Guarantees a lifetime of min. 1000 mating cycles! Snug-fit centre pin insert provides tactile feedback Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies Excellent cable protection and retention Precise Swiss machined brass parts for outstanding durability Note: Boots not supplied with NBNC75BLP7-D Optional accessories include colour coded boots in 10 standard colours crimp tool and dies
Rated voltage: <50V Impedance: 75Ω Temperature range: -30°C to +85°C Cable outer diameter: 6.3mm Crimp size: Pin: 1.6mm (square) Shield: 6.47mm (hex) Suitable cables: Belden 8241 CAE KX6A Canare LV-61S Cordial CVI (CVM) 06-37 CommScope 5563 Draka 0.6/3.7 Draka 0.6L/3.7 Proel HPC 805 RG59B/U Sommer 600-0051 (MLS) Sommer 600-0054 (MLS) Klotz V06/37 Nexans HF 75 06/37 2YCY Percon VK95

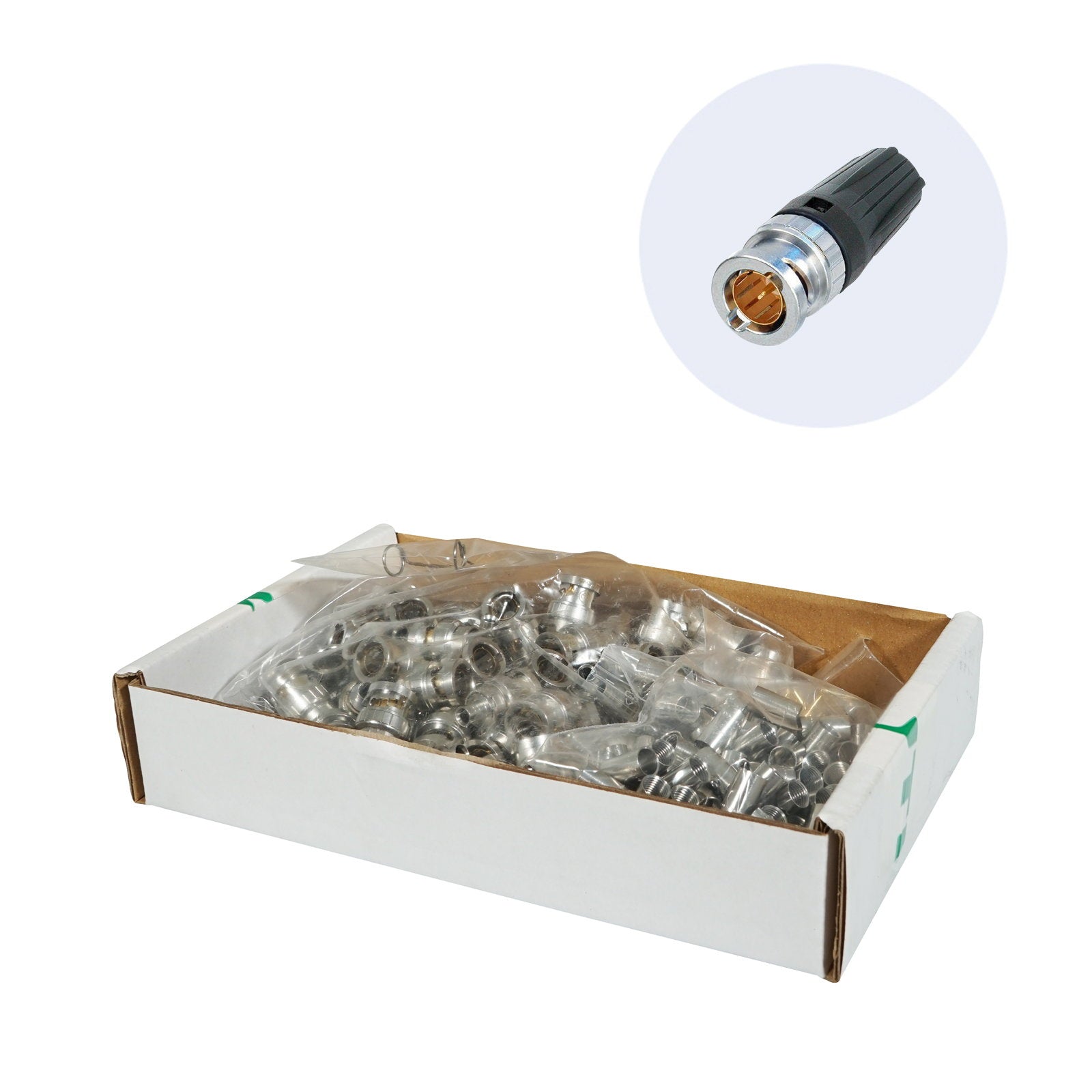

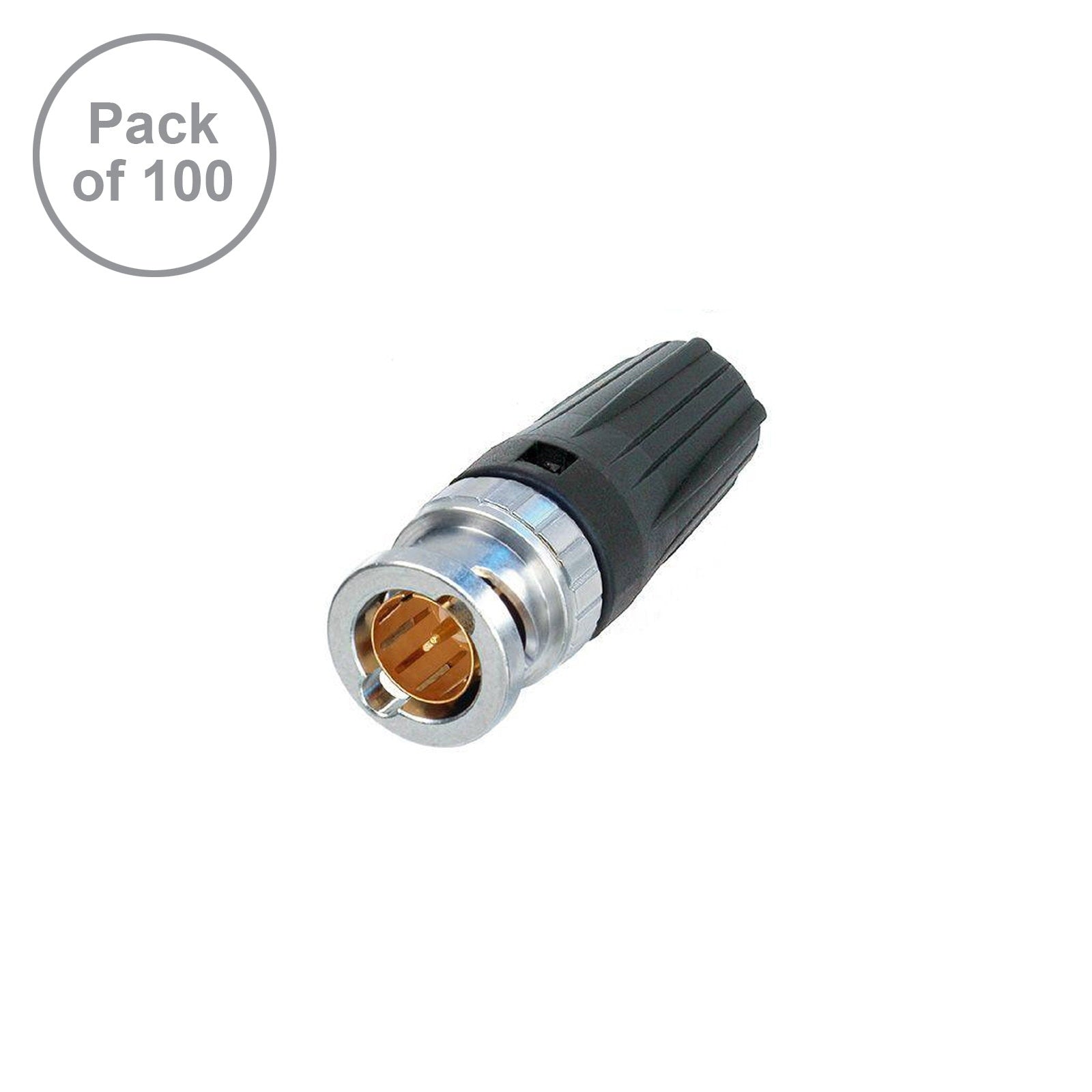

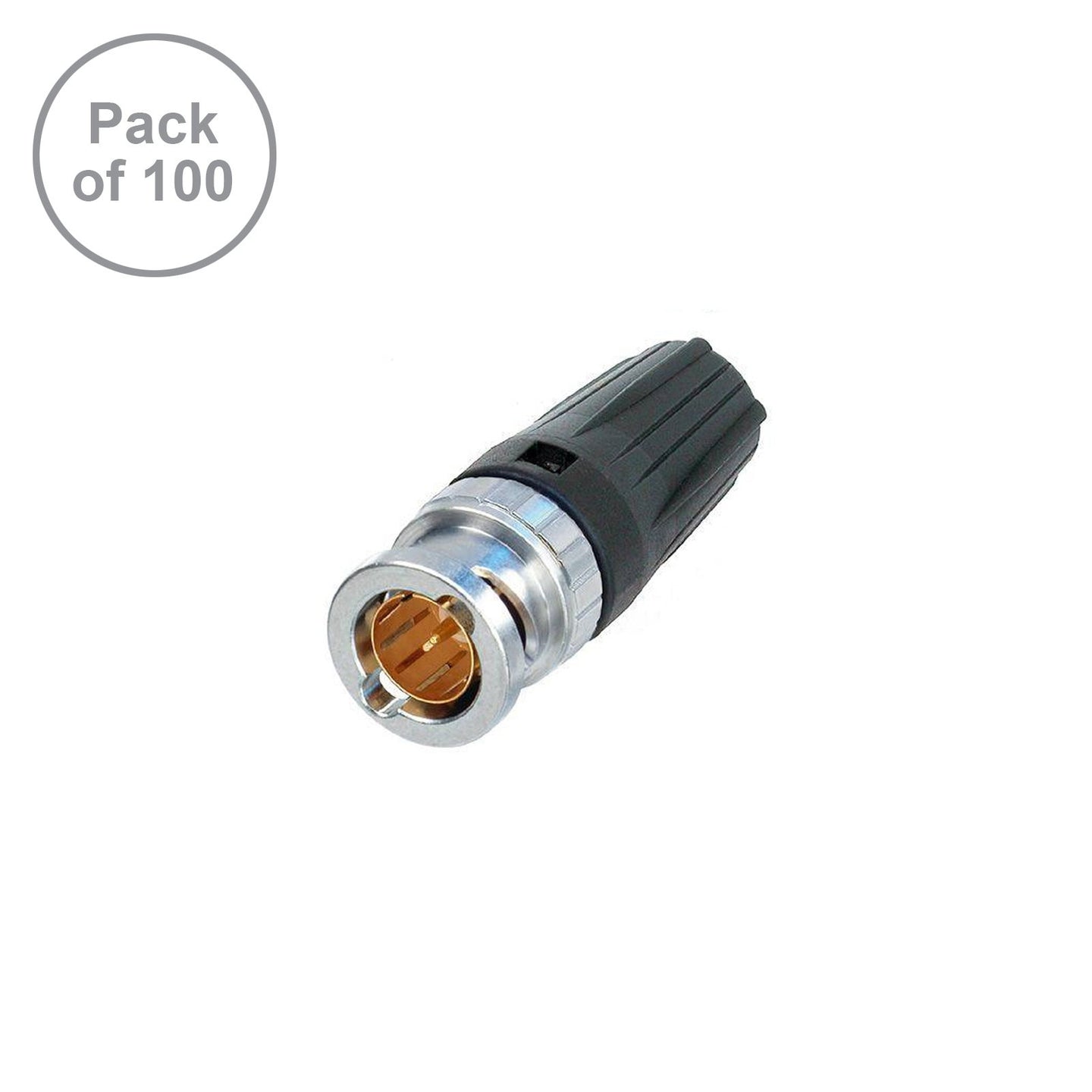

Neutrik BNC Connector rearTWIST Pack of 100 (NBNC75BLP7-D)
Brand: Neutrik
SKU: CONN300B
Regular price
£299.99
Pickup available at Venutec
Usually ready in 24 hours
Neutrik BNC Connector rearTWIST Pack of 100 (NBNC75BLP7-D)
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
The rearTWIST HD BNC cable connector offers a true 75Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers colour coding.
'rearTWIST Principle' locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507) Ideal for recessed bulkheads where access to the 'head' of the connector might be an issue these connectors turn from the back and not the front True 75Ω design meets the stringent HDTV/DVD requirements Leading area: Avoids tilting due to side forces to protect contacts from deformation - Guarantees a lifetime of min. 1000 mating cycles! Snug-fit centre pin insert provides tactile feedback Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies Excellent cable protection and retention Precise Swiss machined brass parts for outstanding durability Note: Boots not supplied with NBNC75BLP7-D Optional accessories include colour coded boots in 10 standard colours crimp tool and dies
Rated voltage: <50V Impedance: 75Ω Temperature range: -30°C to +85°C Cable outer diameter: 6.3mm Crimp size: Pin: 1.6mm (square) Shield: 6.47mm (hex) Suitable cables: Belden 8241 CAE KX6A Canare LV-61S Cordial CVI (CVM) 06-37 CommScope 5563 Draka 0.6/3.7 Draka 0.6L/3.7 Proel HPC 805 RG59B/U Sommer 600-0051 (MLS) Sommer 600-0054 (MLS) Klotz V06/37 Nexans HF 75 06/37 2YCY Percon VK95
'rearTWIST Principle' locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507) Ideal for recessed bulkheads where access to the 'head' of the connector might be an issue these connectors turn from the back and not the front True 75Ω design meets the stringent HDTV/DVD requirements Leading area: Avoids tilting due to side forces to protect contacts from deformation - Guarantees a lifetime of min. 1000 mating cycles! Snug-fit centre pin insert provides tactile feedback Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies Excellent cable protection and retention Precise Swiss machined brass parts for outstanding durability Note: Boots not supplied with NBNC75BLP7-D Optional accessories include colour coded boots in 10 standard colours crimp tool and dies
Rated voltage: <50V Impedance: 75Ω Temperature range: -30°C to +85°C Cable outer diameter: 6.3mm Crimp size: Pin: 1.6mm (square) Shield: 6.47mm (hex) Suitable cables: Belden 8241 CAE KX6A Canare LV-61S Cordial CVI (CVM) 06-37 CommScope 5563 Draka 0.6/3.7 Draka 0.6L/3.7 Proel HPC 805 RG59B/U Sommer 600-0051 (MLS) Sommer 600-0054 (MLS) Klotz V06/37 Nexans HF 75 06/37 2YCY Percon VK95
