Active DI box for converting high impedance instrument outputs to low impedance line signals for feeding directly into a mixing console. Internal buffer amplifier to boost the signal, avoiding losses in long cable runs and 3-way pad switch for level matching. Ground-Float-Lift selector enables signal ground isolation with or without RF/mains filtering.
Ground float option for ground lift with RF/mains filter
Ground lift option isolates signal ground without filter
3 pad settings for level matching

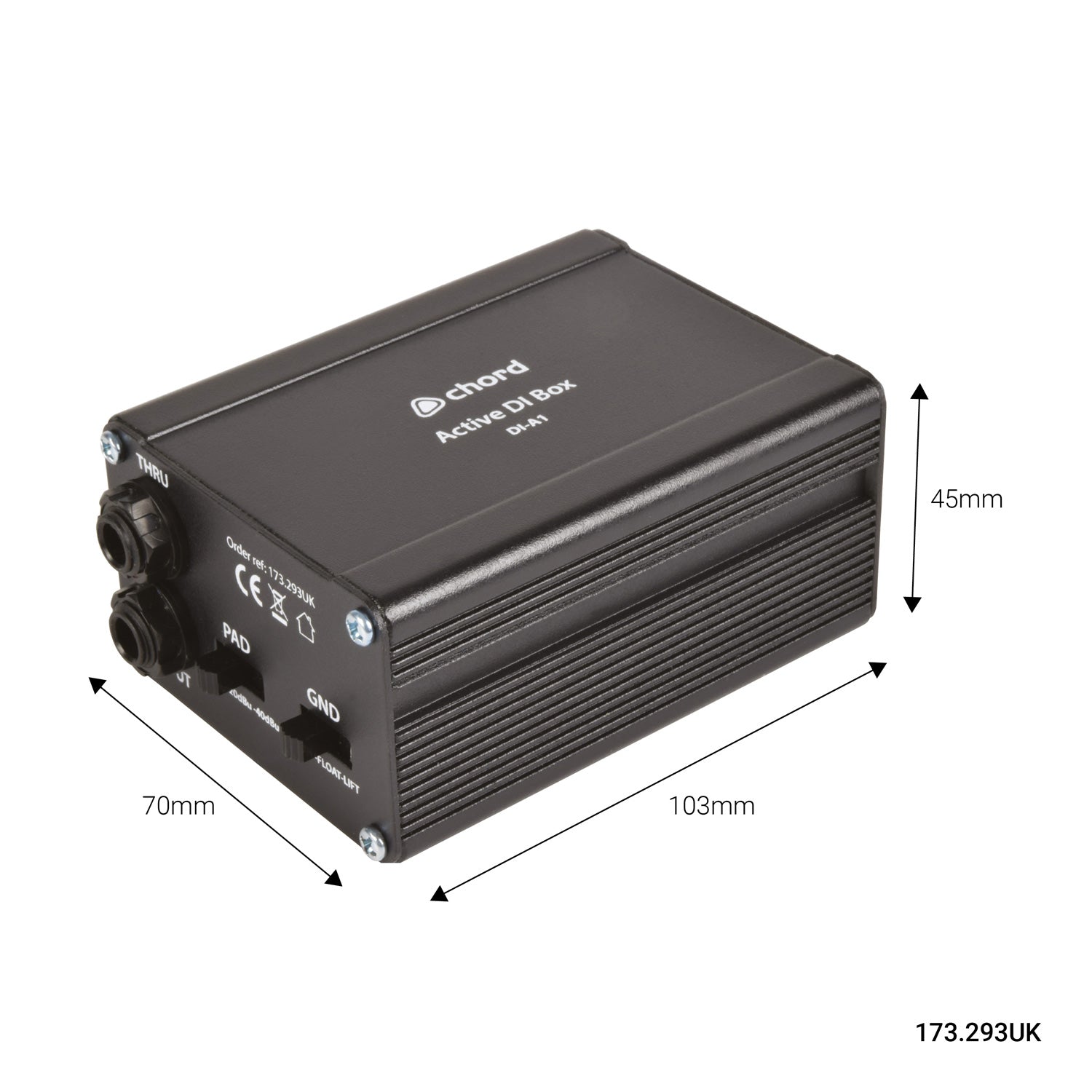

Dimensions:103 x 70 x 45mm
Weight:243g

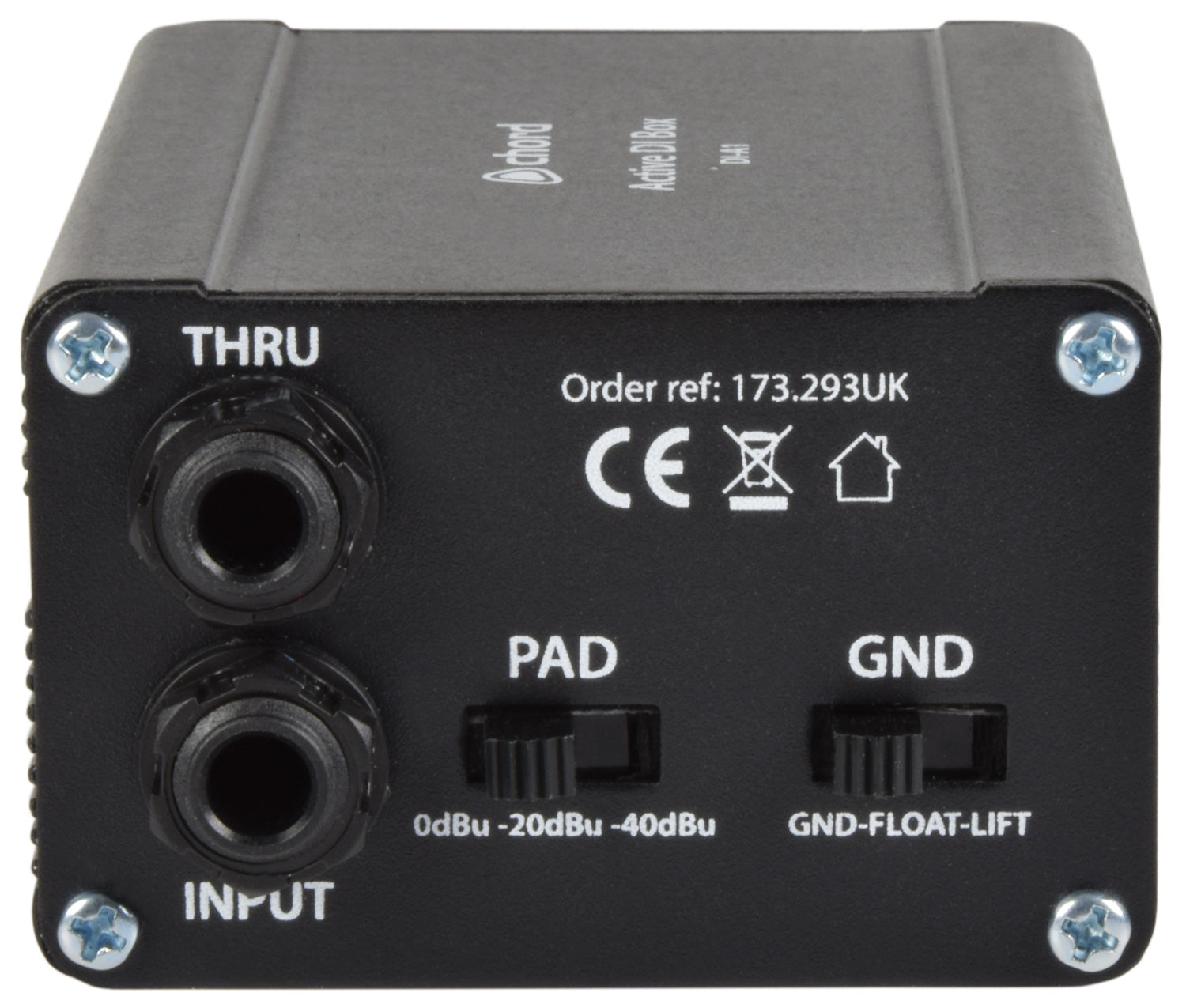

Input:6.3mm jack (unbalanced)

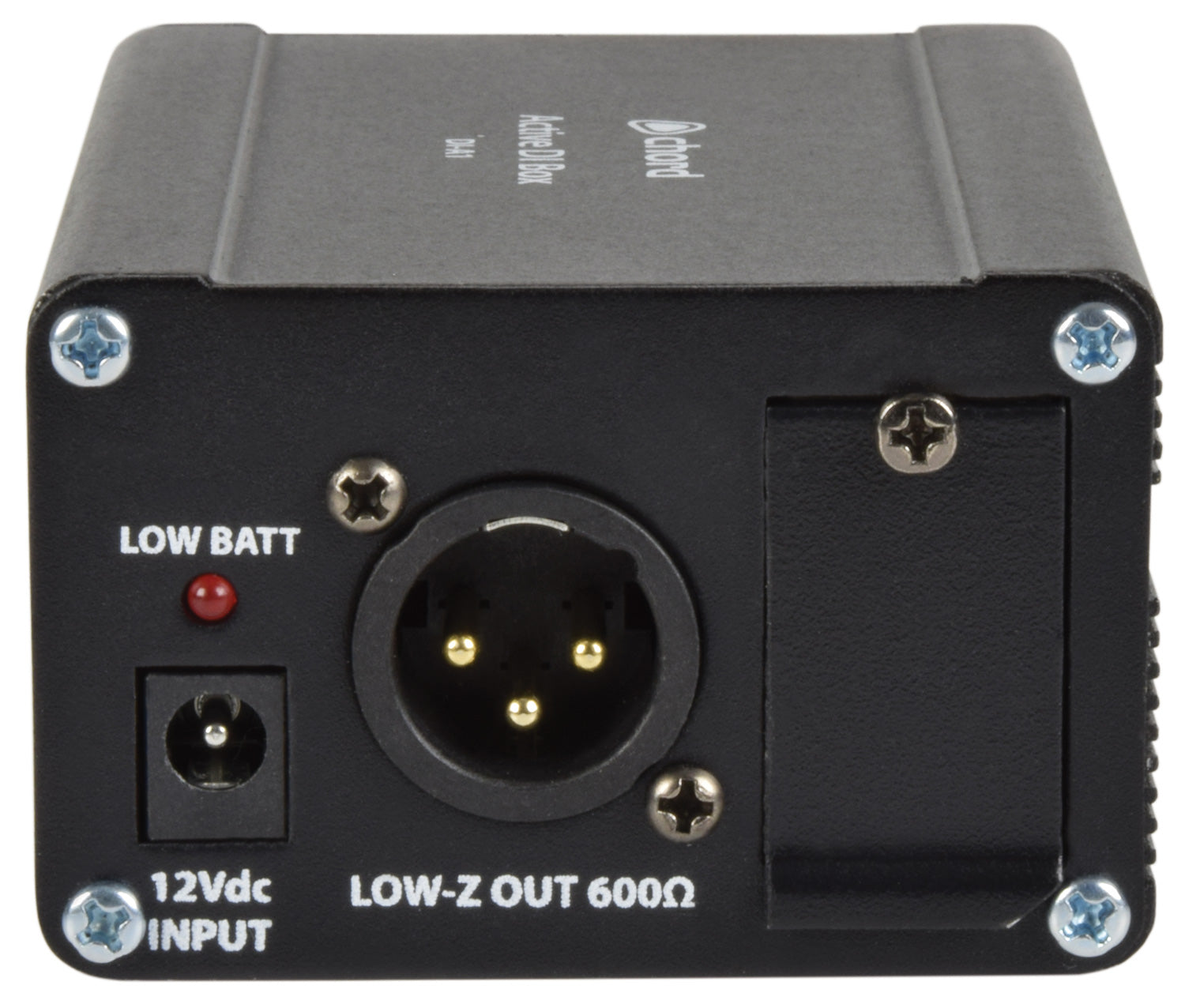

Outputs:XLRM (balanced), 6.3mm jack through (unbalanced)
Input impedance:>100k Ohms
Output impedance:600 Ohms
Controls:0/-20/-40dBu pad & Ground-Float-Lift switch
Power supply:9V battery (PP3 not supplied), 12Vdc adaptor (optional) or 9-52V phantom power
Specifications
Powered by 9-52V phantom power, optional 9V battery or 12Vdc adaptorGround float option for ground lift with RF/mains filter
Ground lift option isolates signal ground without filter
3 pad settings for level matching
Dimensions:103 x 70 x 45mm
Weight:243g
Input:6.3mm jack (unbalanced)
Outputs:XLRM (balanced), 6.3mm jack through (unbalanced)
Input impedance:>100k Ohms
Output impedance:600 Ohms
Controls:0/-20/-40dBu pad & Ground-Float-Lift switch
Power supply:9V battery (PP3 not supplied), 12Vdc adaptor (optional) or 9-52V phantom power

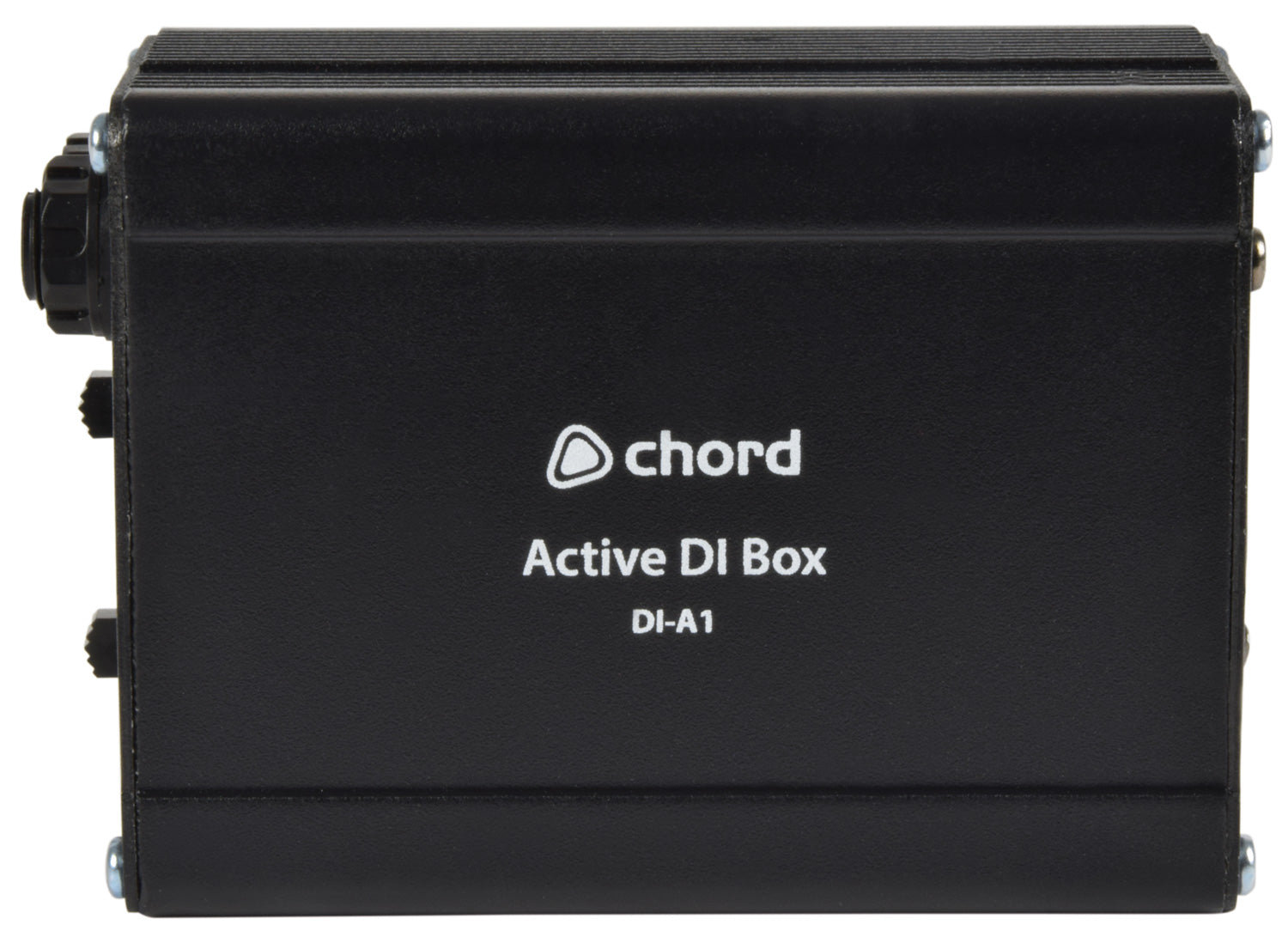

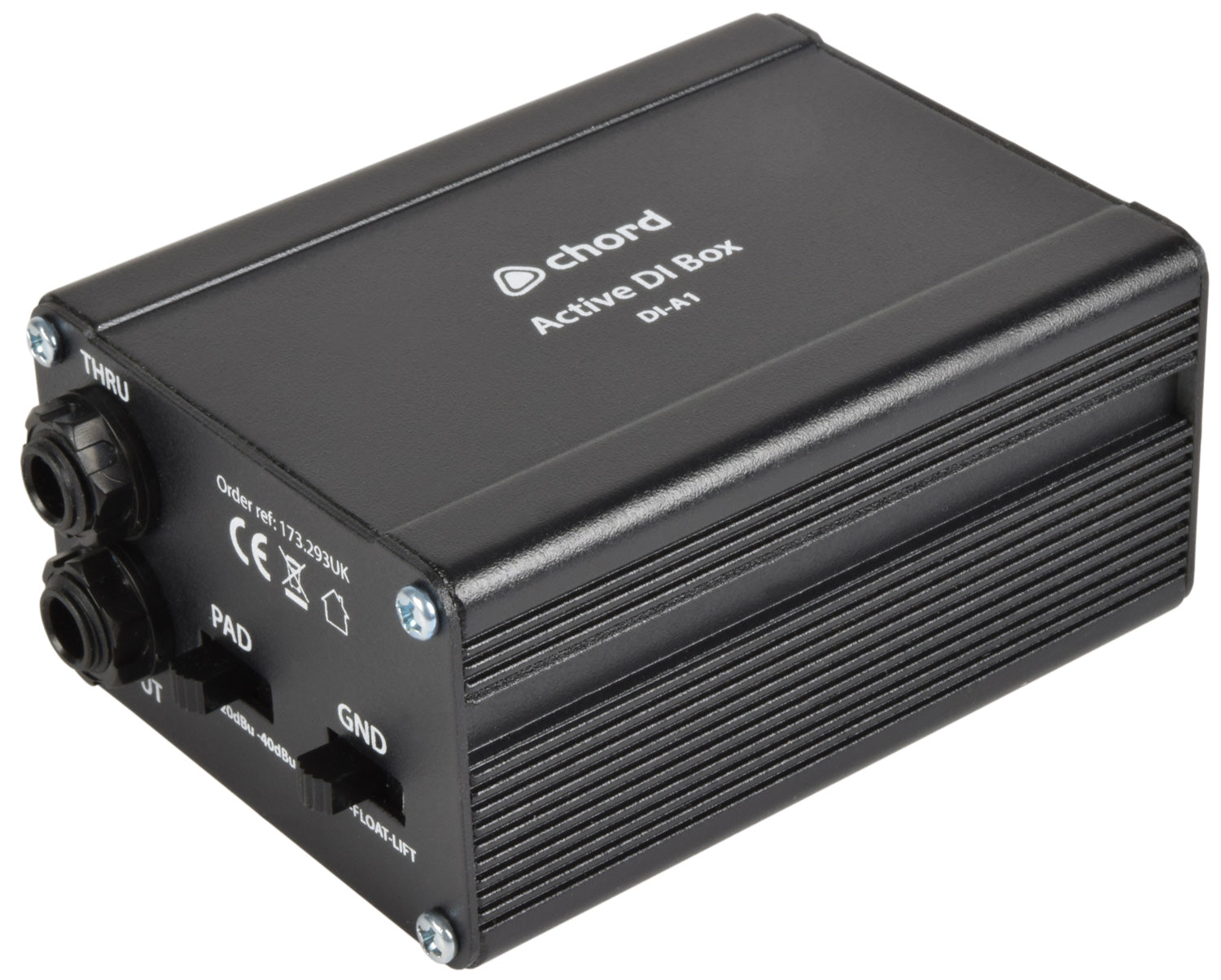

Chord Active Direct Injection Box
Brand: Chord
SKU: 173.293UK
Regular price
£19.99
