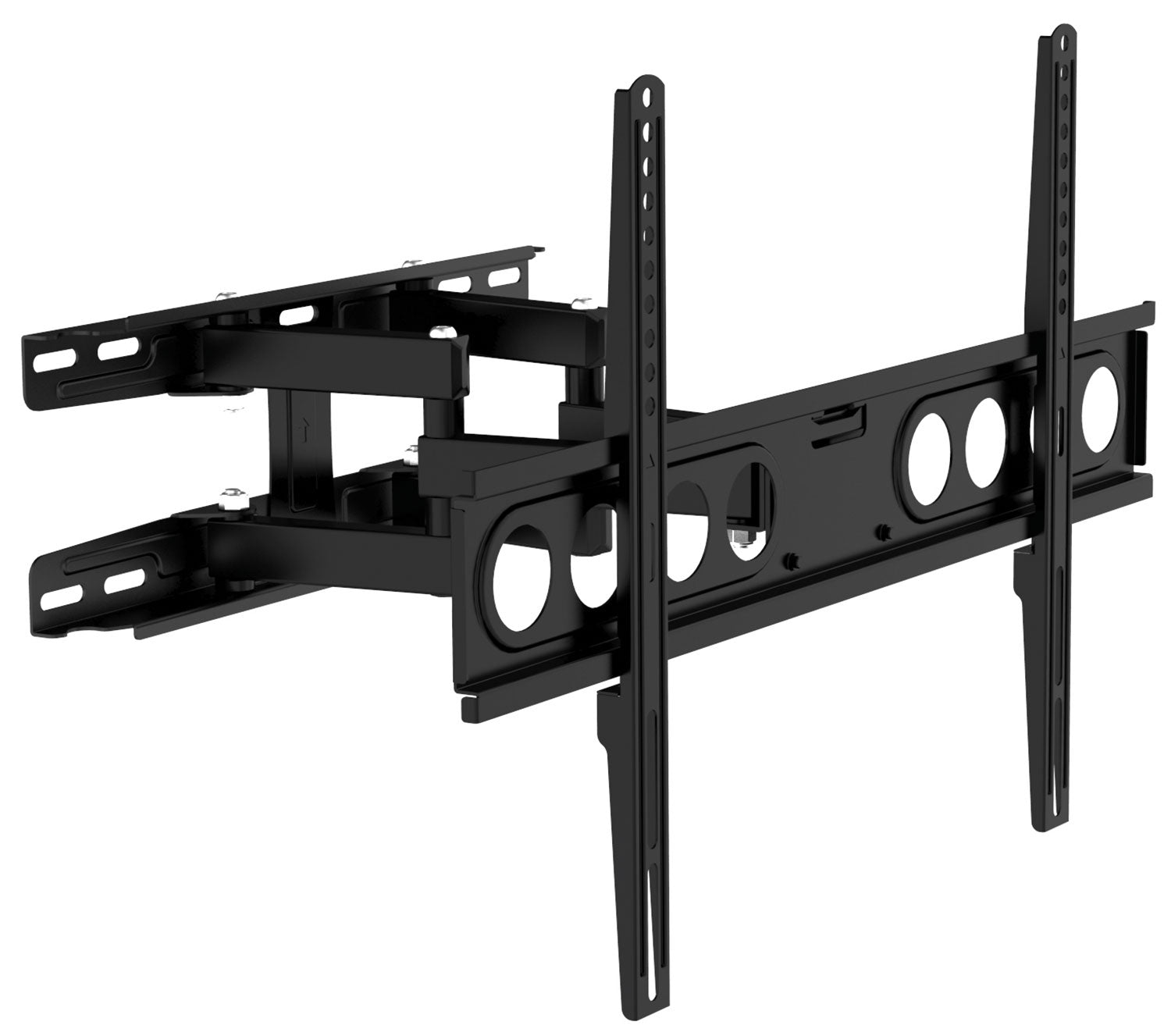

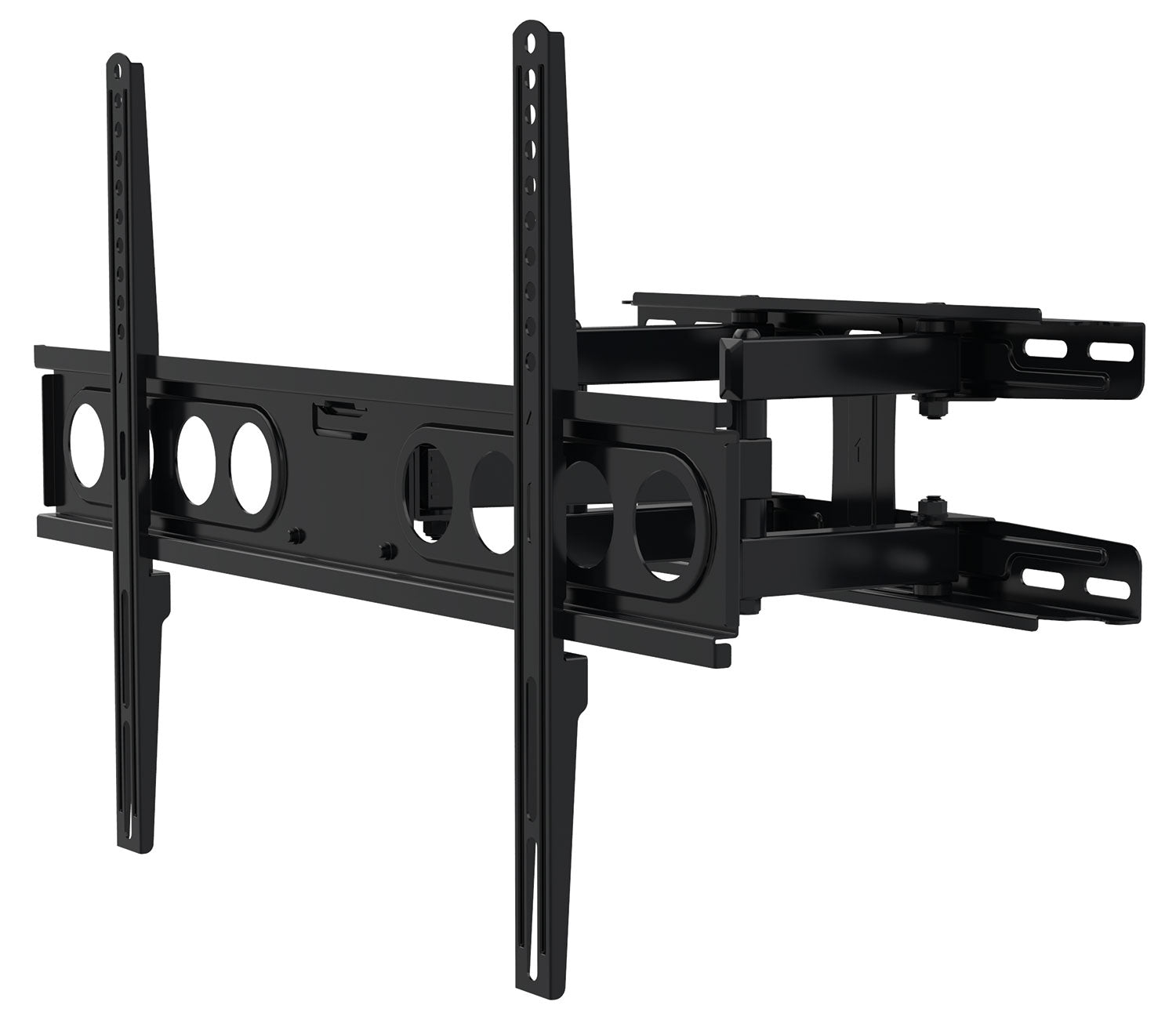

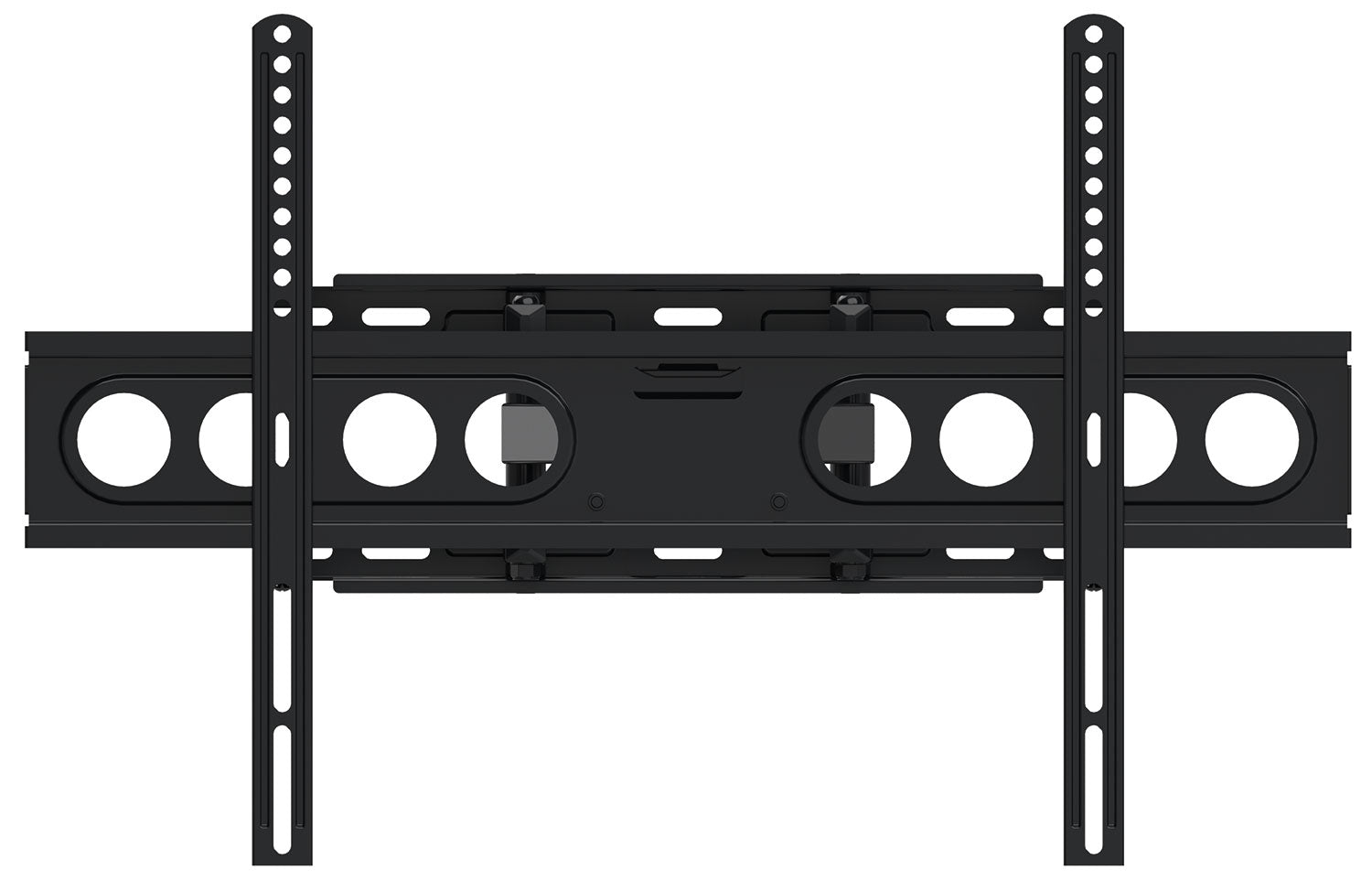

Full motion double arm design with a larger wall fixing plate for more secure installations on studded and concrete walls and compatible with TV's up to 35kg in weight and with VESA hole patterns up to 600 x 400. Easy to extend, tilt and swivel this versatile bracket provides the optimum viewing angle from any seat in the room and comes supplied with a wide range of fixings for many applications.

Specifications

Larger wall fixing plate for more secure installations on studded and concrete walls
Compatible with VESA hole patterns up to 600 x 400mm
-5° to 15° tilt mechanism
90° Swivel range
Wide range of fixings supplied
Maximum weight load 35kg
Screen size:32" to 75"
Max. VESA:600 x 400mm
Max. weight load:35kg
Distance from wall:68-340mm
Tilt range:-5° to 15°
Swivel:45° to -45°
Wall plate dimensions:430 x 158mm (W x H)
Dimensions:654 x 420mm (W x H)
Weight:3.66kg
