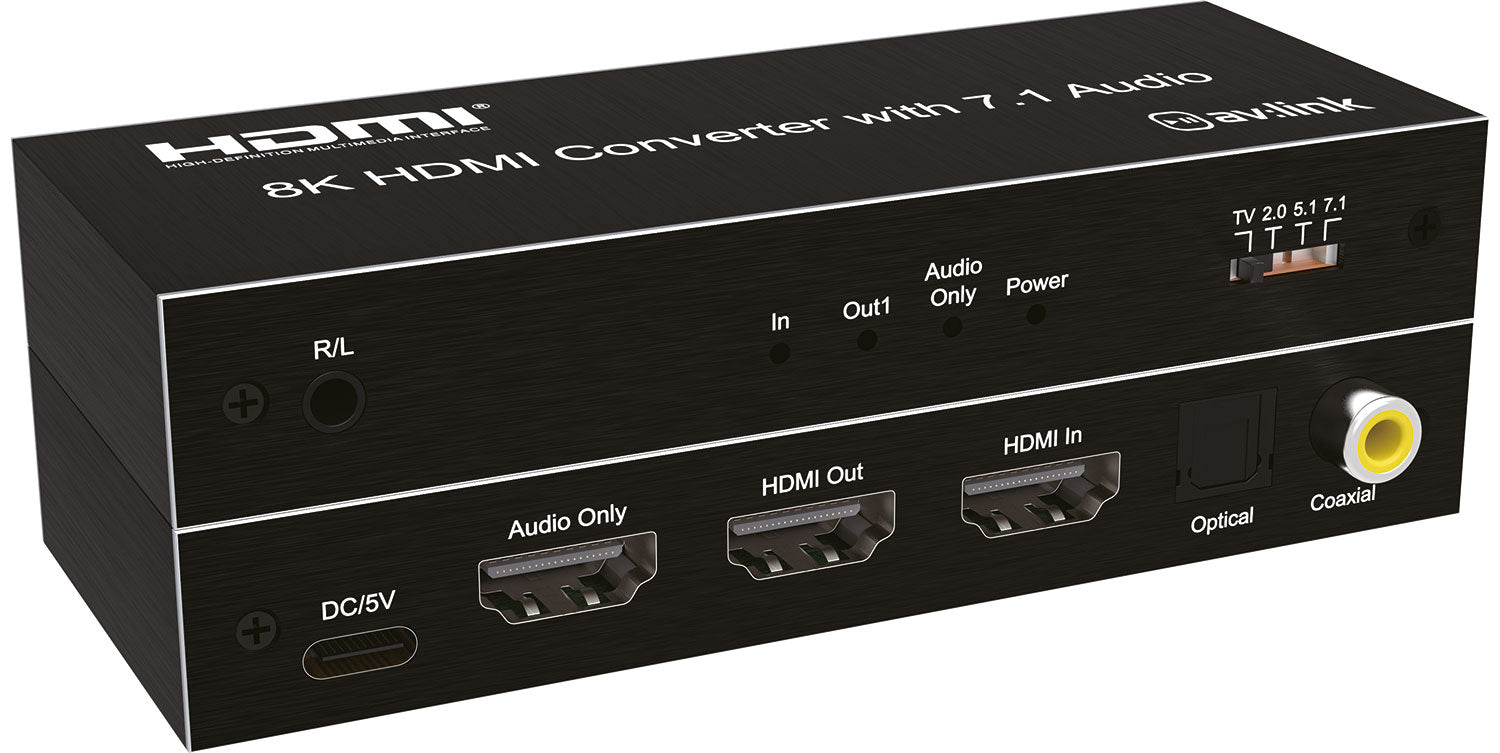

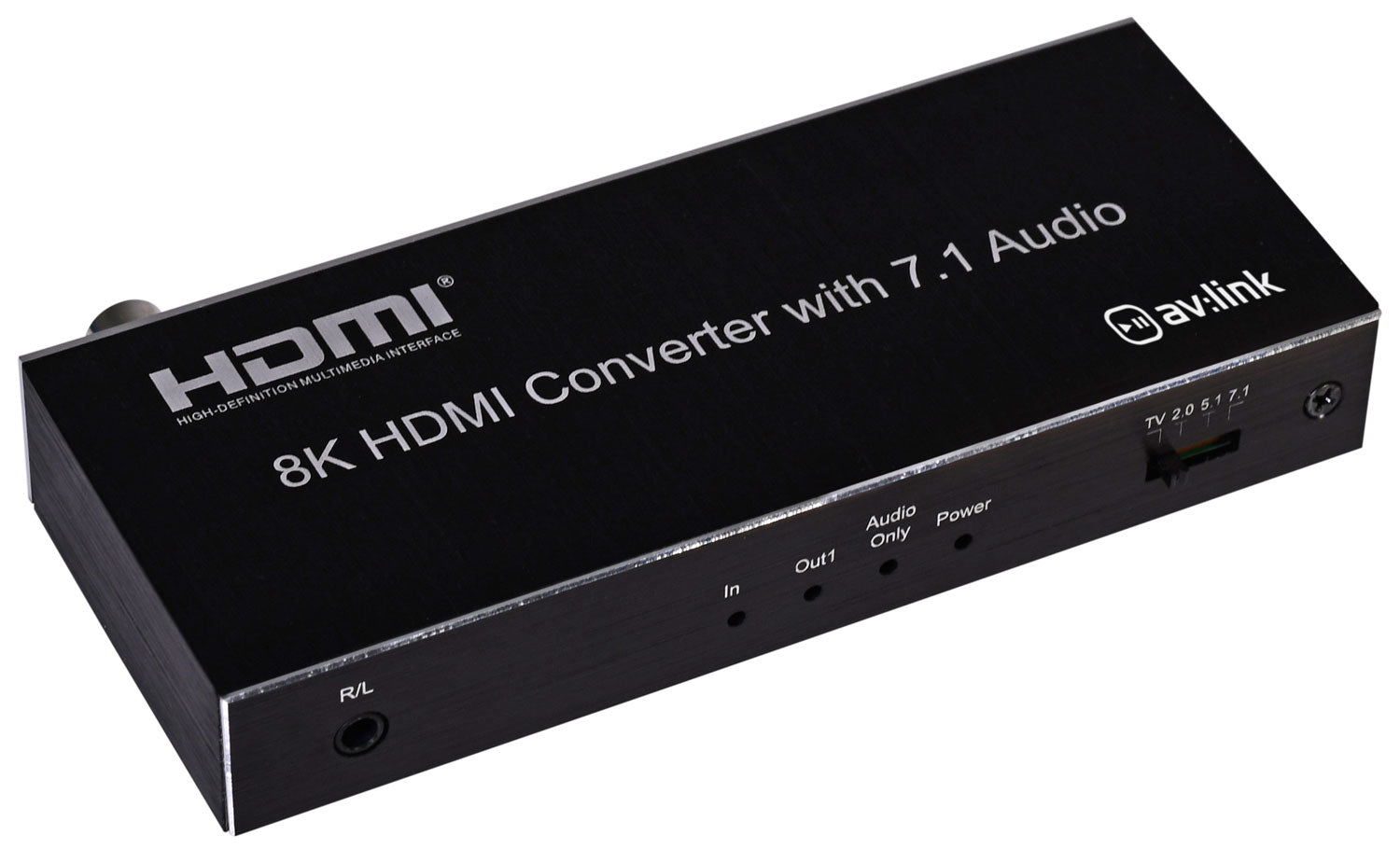

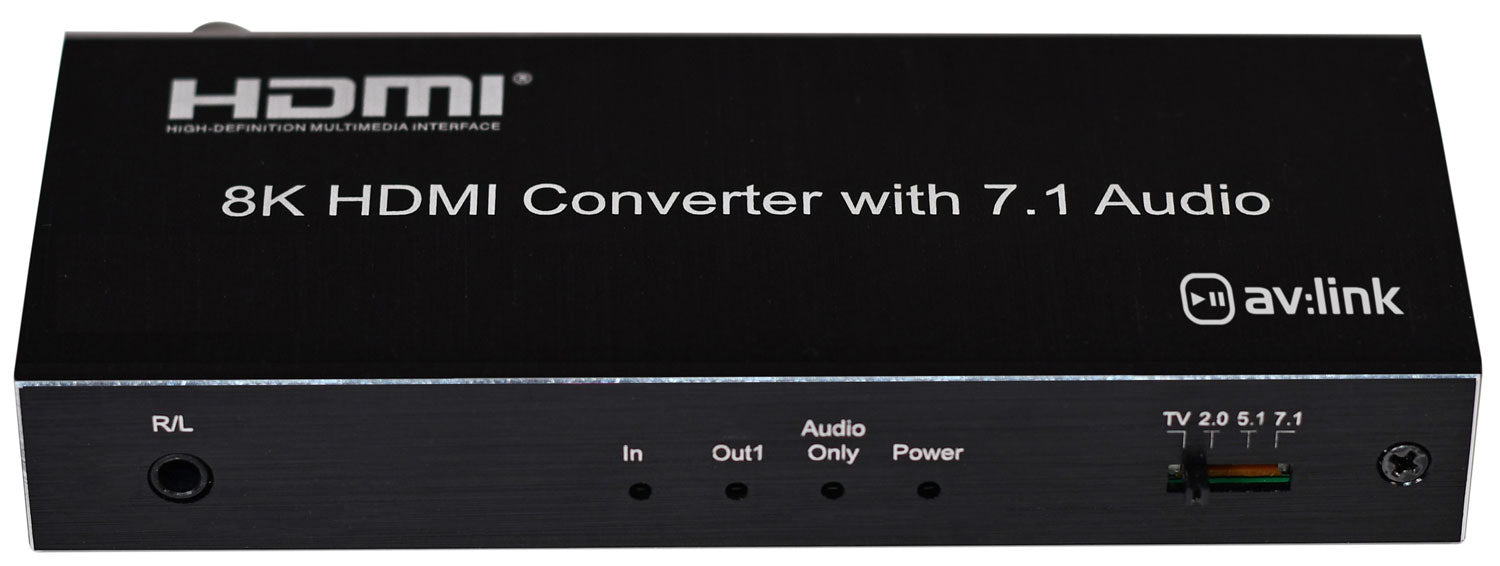

State of the art audio converter that extracts digital (HDMI, Toslink and Coaxial) and/or Analogue (3.5mm stereo) audio signals from a single 8K HDMI source device. With support for newer technologies including VRR, LPCM5.1/7.1 and Dolby Atmos this unit is ideal for audio separation from the latest PC's and games consoles.
Simple plug and play installation and instant synchronisation without delay
Supports HDMI input/output resolutions up to 7680×4320 @ 60Hz

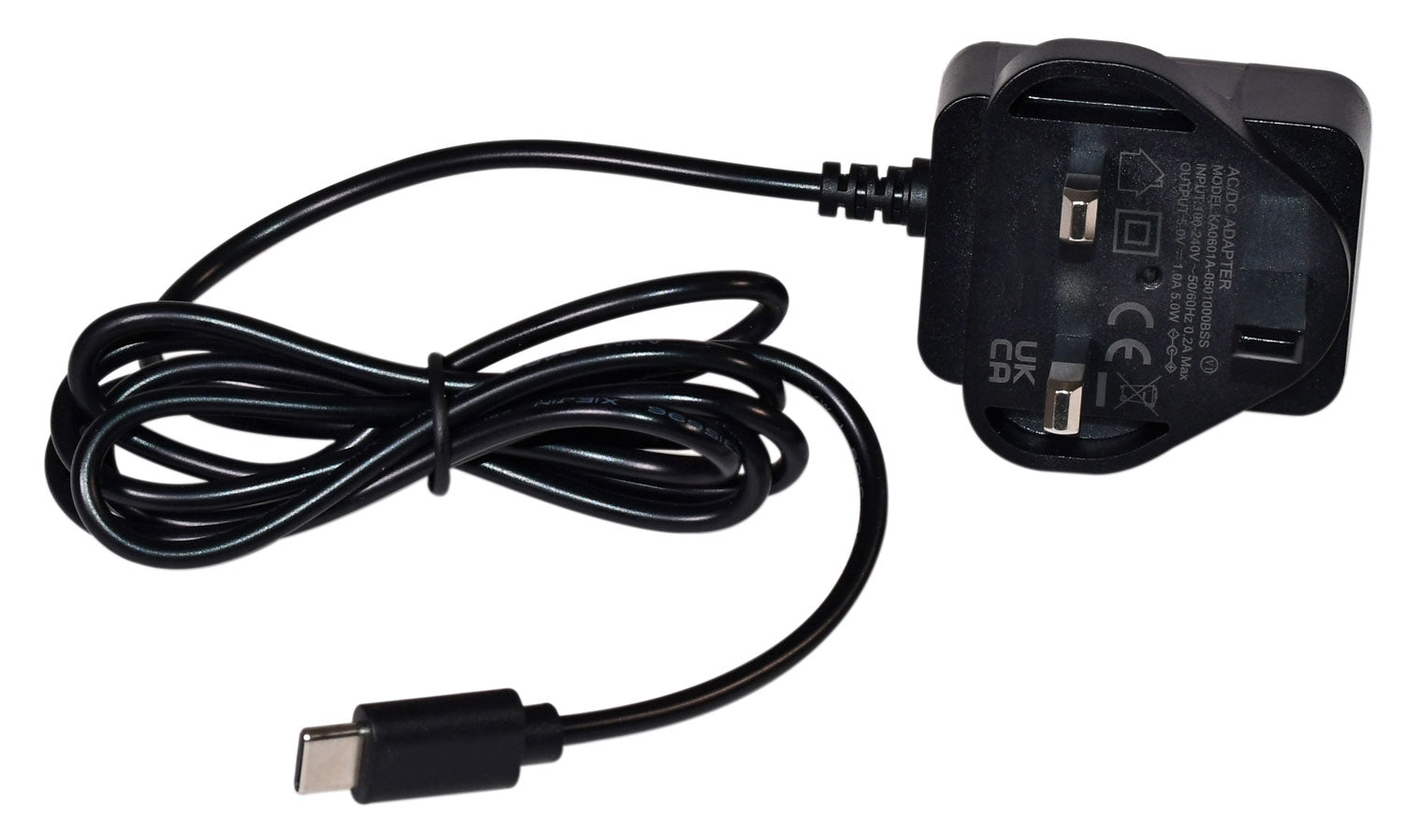

UK mains adaptor supplied (DC5V/1A)
Supports Variable Refresh Rate (VRR) and HDR10
Attractive brushed metal finish
Input connections:HDMI (8K), USB-C (DC/5V power input)

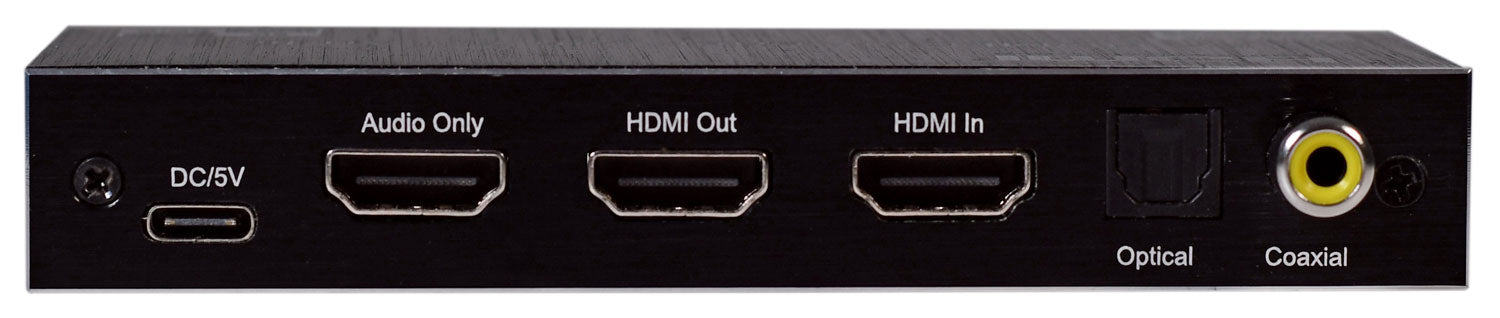

Output connections:HDMI (8K), HDMI (audio only), Optical (Toslink), Coaxial, 3.5mm (Stereo)
Video resolution:Up to 7680 × 4320 @ 60Hz
Max. baud rate:40Gbps
Audio output:HDMI: PCM2.0, LPCM5.1/7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X
Audio output:SPDIF/COAX: LPCM2.0/5.1, Dolby Digital 2.0/5.1, DTS2.0/5.1
Audio output:3.5mm Jack: Analogue stereo 2.0ch
Max. cable length:Input: 8K/60Hz≤3m, Output: 8K/60Hz≤5m
Power supply:Input AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Dimensions:121 x 57 x 19mm
Weight:118g
Video format:8/10/12 bit deep colour
Specifications
Extracts digital (HDMI, Toslink and Coaxial) and/or Analogue (3.5mm stereo) audio signals from a single HDMI source deviceSimple plug and play installation and instant synchronisation without delay
Supports HDMI input/output resolutions up to 7680×4320 @ 60Hz
UK mains adaptor supplied (DC5V/1A)
Supports Variable Refresh Rate (VRR) and HDR10
Attractive brushed metal finish
Input connections:HDMI (8K), USB-C (DC/5V power input)
Output connections:HDMI (8K), HDMI (audio only), Optical (Toslink), Coaxial, 3.5mm (Stereo)
Video resolution:Up to 7680 × 4320 @ 60Hz
Max. baud rate:40Gbps
Audio output:HDMI: PCM2.0, LPCM5.1/7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X
Audio output:SPDIF/COAX: LPCM2.0/5.1, Dolby Digital 2.0/5.1, DTS2.0/5.1
Audio output:3.5mm Jack: Analogue stereo 2.0ch
Max. cable length:Input: 8K/60Hz≤3m, Output: 8K/60Hz≤5m
Power supply:Input AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Dimensions:121 x 57 x 19mm
Weight:118g
Video format:8/10/12 bit deep colour
AV:Link 8K HDMI Audio Extractor
Brand: AV:Link
SKU: 128.518UK
Regular price
£59.00
