ADJ’s Vision Series video panels offer the highest quality LED binning and bright clear output. All models (except VS3IP) are front and rear serviceable. Each model has 4 individual mini modules for quick and easy servicing. All models (except VS3IP) are built on the same frame allowing panels with different resolutions to be used together. The Vision Series (VS2 VS VS5) panels use the same rigging bar and all fit into the same road case. All models have moveable corner protects that safe guard the corners while they are not connected. There are magnets on the top and bottom of the panels that allow users to temporary connect two panels together let go of the panels then securely latch them on the rear. This allows for a single user to install a full wall of panels.

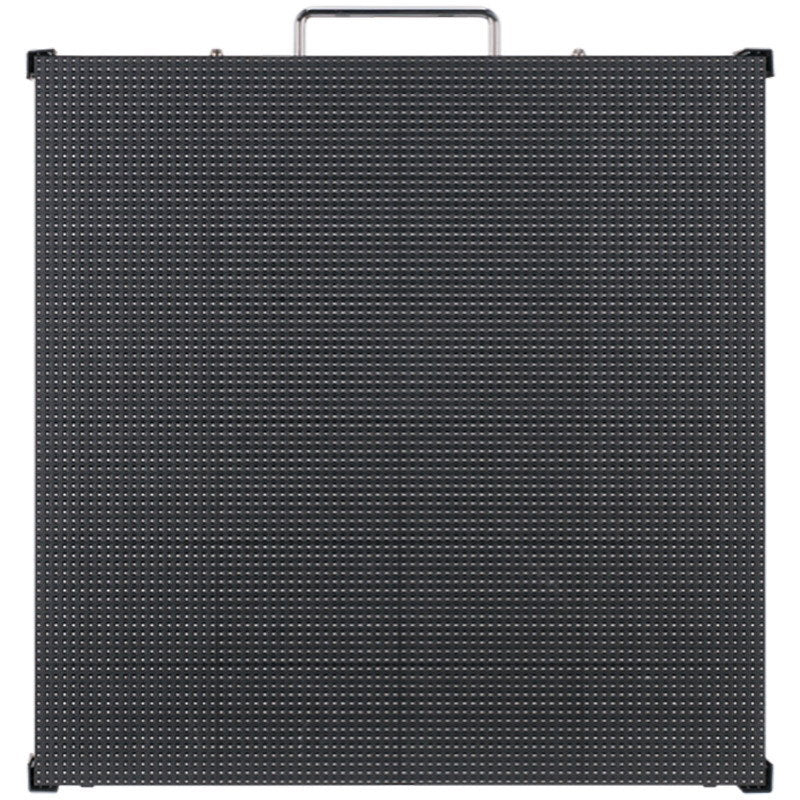

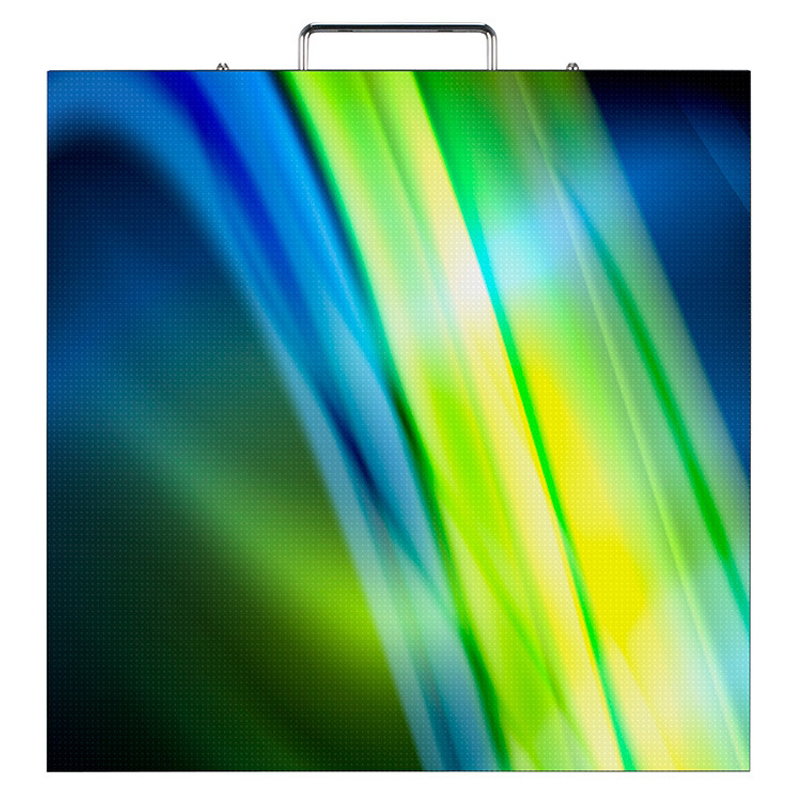

The VS3 is a high-resolution video panel with a pixel pitch of 3.91mm with a configuration of a 3-in-1 RGB SMD2121 LED and a brightness of 1000 NITS. There are 4 LED modules per panel. This allows for easy serviceability. The VS3 connections include Locking Power In/Out and Locking RJ45 In/Out. Each panel features the Novastar A5s receiving card built-in. Hang up or stack up to 20 VS Series Video Panels vertically with the VSRB1 rigging bar.

ADJ offers accessories such as video processors cabling rigging bars flight cases.

Specifications:

Source

• Light Source: RGB SMD2121 LEDs

• Pixel Density : 128 x 128 pixels 65536 per square meter

• Average LED lifetime/MTBF : 50000 hrs./5000 hrs.

• Pixel Pitch: 3.91mm

• Gaps < 0.5mm

Optics

• Brightness: 1000 NITS

• View Angle: Horizontal 160°/Vertical 140°

• Gray Scale / Display Colour: ≥14-bit / 256

• Brightness Adjustment: 0~100% 100 Levels

• Contrast Ratio: 5000:1

• Processing: 14-bit

Control

• Built-In Novastar Receiving Card

• LED Refresh Rate: 3840Hz

• Control Distance: Ethernet Cable <100m or Fiber Optic >120m

• Optional Novastar Sending Cards and Accessories available

Colours

• RGB

Construction

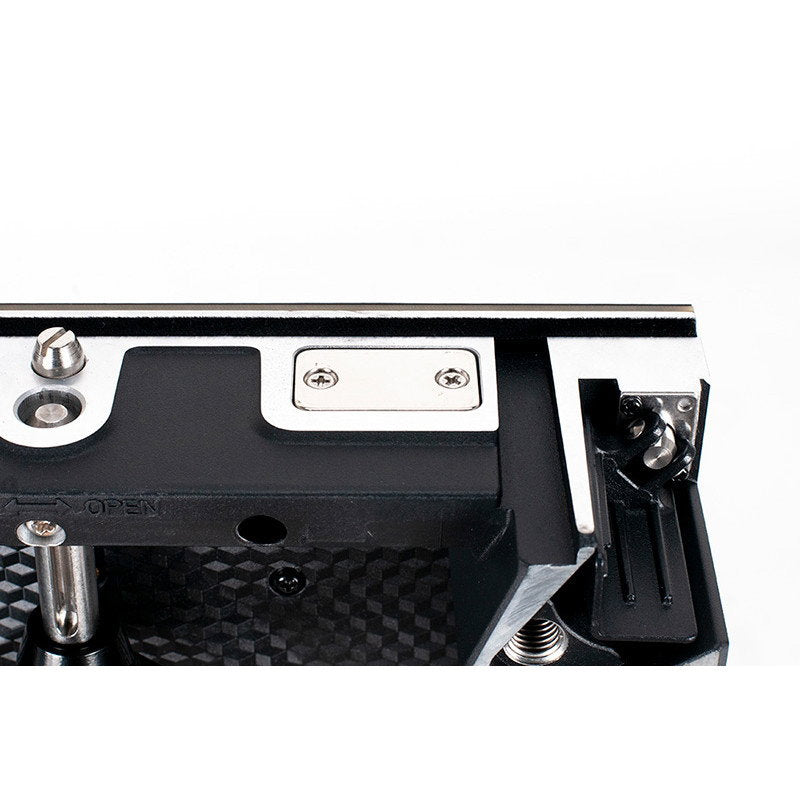

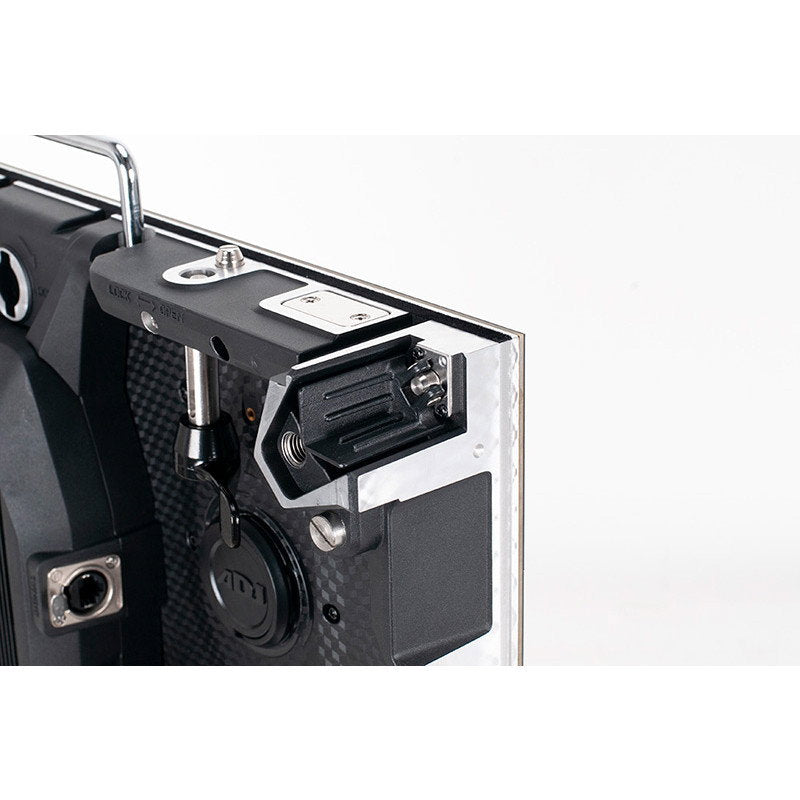

• Magnetic Aluminium Frame with built-in corner protectors

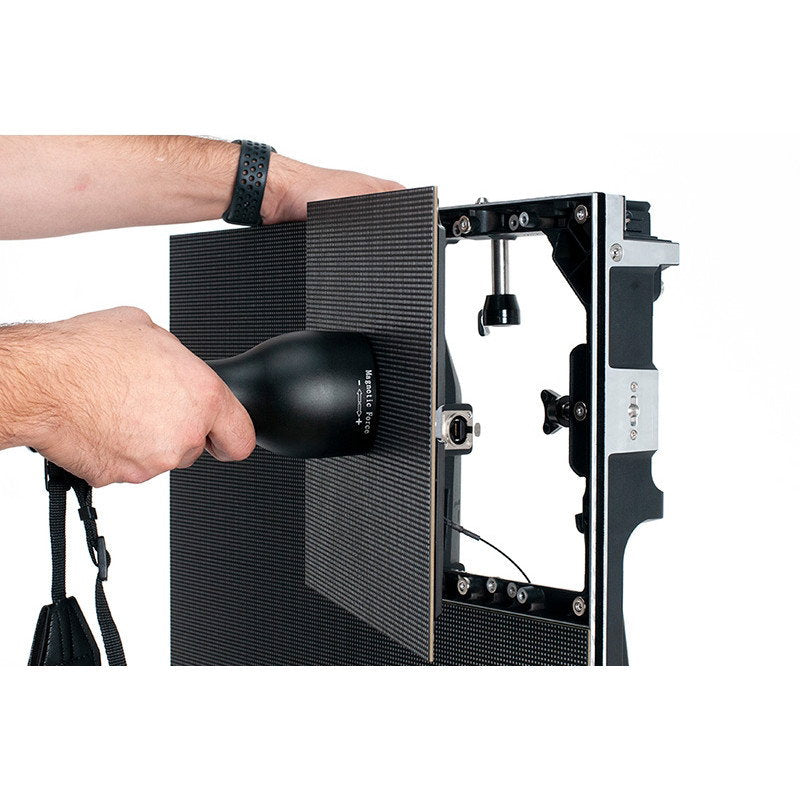

• Module Quantity: 4 magnetic module design

• Module Size : 250 x 250mm Front & Rear serviceable

• IP Rating: IP20

Electrical

• Multivoltage 100-240V 50/60Hz

• Max Power Consumption: 170W/panel

• Average Power Consumption: 68W/panel

• Operational temperature: -20 to +40 degrees

• Operational humidity: 10% — 90% (no condensation)

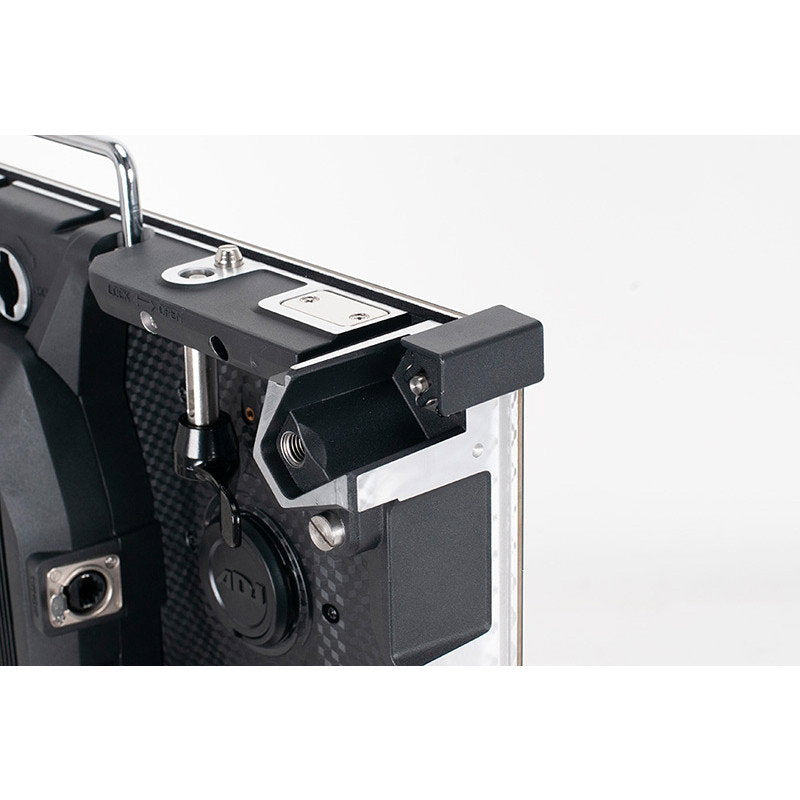

Connections

• Locking RJ45 In/Out connections

• Locking Power In/Out connections

Dimensions & Weight

• Dimensions (LxWxH): 500 x 69.6 x 500mm

• Weight: 77 kg.

Manufacturer Part Number: 1226300151 Dimensions (L x W x H): 7.0 x 50.0 x 50.0cm

ADJ VS3

Brand: ADJ

SKU: ADJ1226300151
