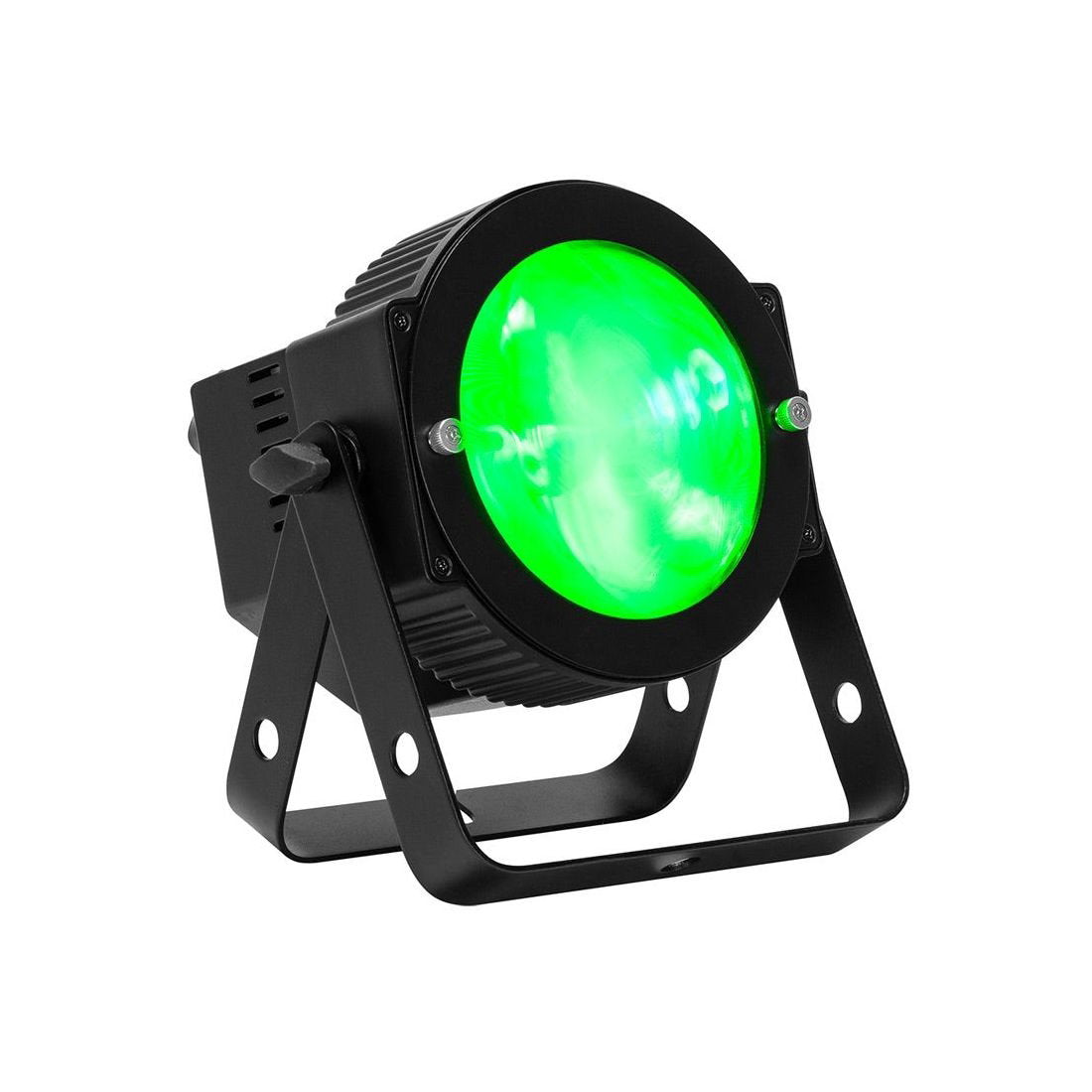

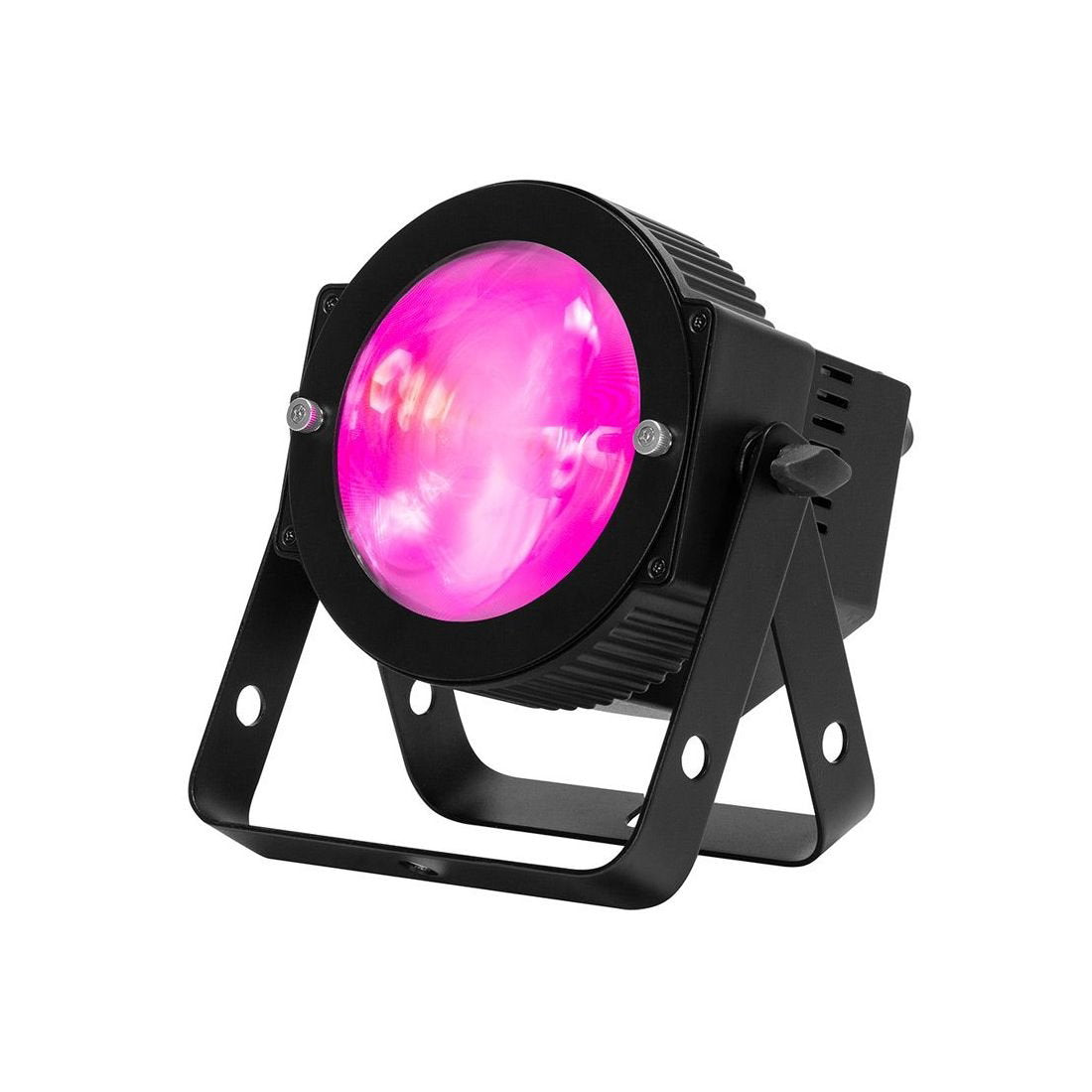

The ADJ Dotz Par RBGL offers lighting designers a brilliant even wash of light using the highly efficient Chip On Board (C.O.B.) with red green blue and lime LED chips. With the addition of lime the Dotz Par RGBL offers a high CRI output advanced colour mixing plus linear colour temperature colour 2700K to 6500K) with built-in preset colour temperatures. Additionally the fixture has 16-Bit fine colour control with 64 built-in colour macros and a beam output of 30-degrees.
The Dotz Par RGBL has a small footprint and is light in weight making it idea for temporary event production or installation into small stages churches nightclubs or anywhere entertainment lighting is required. The 4-button DMX display allows for easy navigating into the fixtures flexible functions. There are 6 operational modes 6 dimmer curve modes 4 selectable dim curves and supports DMX and RDM protocols.
The fixture has locking power in and out sockets to daisy chain power plus 5-pin DMX in/out sockets. The supplied scissor yoke allows for flexible use allowing the fixture to be hung in the air or set on the ground.
SPECIFICATIONS
Source:
Light Source: 16x 3.5-Watt RGBL C.O.B. LED (4x Red 4x Green 4x Blue & 4x Lime) 20000 Hours Rated LifePhotometric Data:
18° Beam Angle (With included lens) 29.7° Field Angle (With included lens) CRI: 85.3 CRI R9: 79.1 Lux: 957 (@ 3m Full On) Lumens: 1102Effects:
Linear Colour Temperature Control (2700K to 6500K) Preset Colour Temperatures 16-Bit Fine Colour Control (Red Green Blue & Lime) 64 built-in Colour MacrosControl:

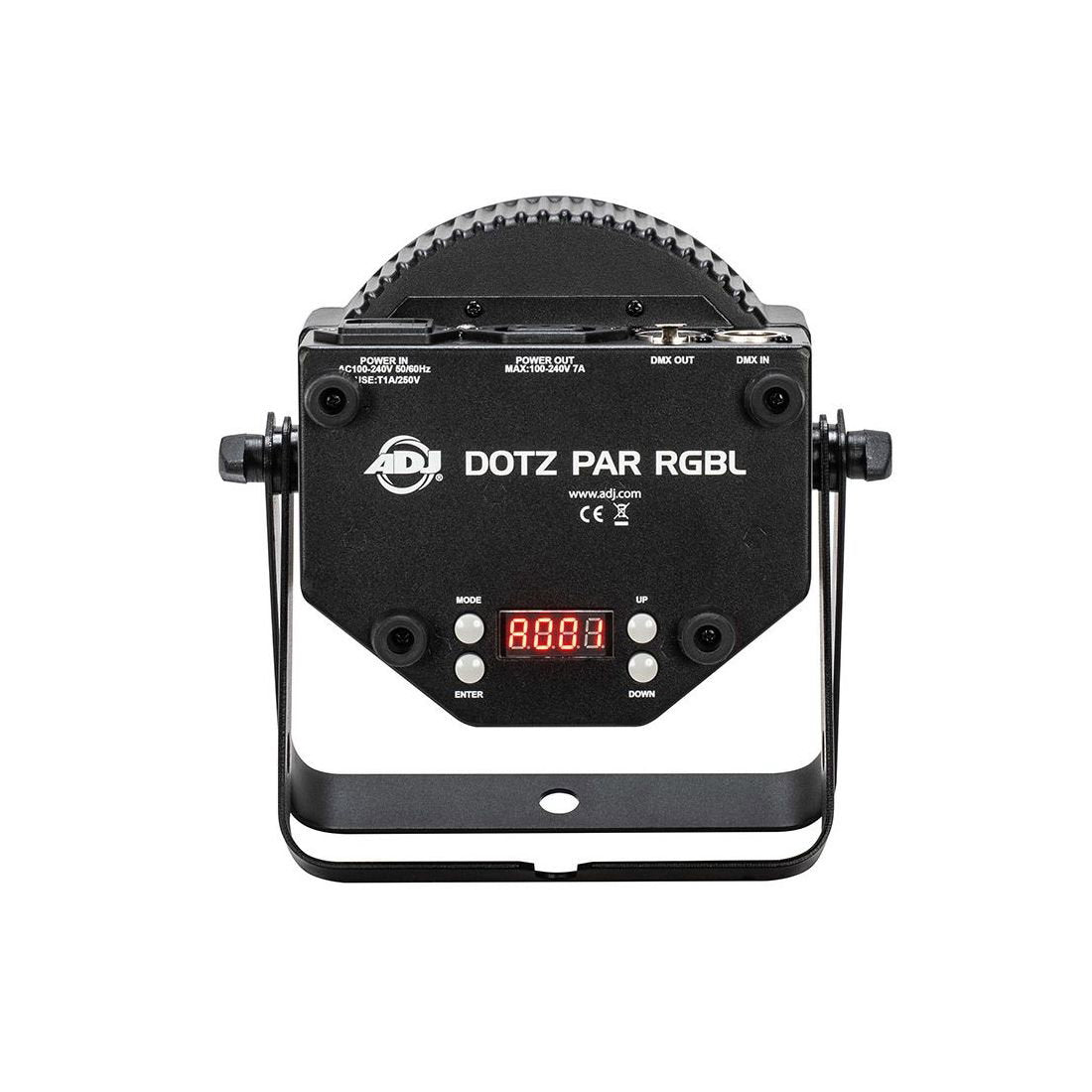

4-button DMX digital display on rear panel 6 Operational modes: Static Colour Mode RGBL Dimmer Mode Program Mode Sound Active Mode Wireless RF and DMX Controlled Supports RDM (Remote Device Management) With Wired Digital Communication Network 6 selectable Dimming Modes (Standard Stage TV Architectural Theatre & Stage 2) 4 selectable Dim Curves (Linear Square Inv. Squa S-Curve) 1200Hz LED Refresh Rate LED pulse and strobe effect Electronic Dimming: 0 - 100%Construction / Connections:
Plastic construction IEC Locking In/Out Power connectors Indoor 5-pin XLR DMX In/Out sockets Scissor YokeElectrical/Thermal:
Multi-voltage operation: AC 100-240V 50/60Hz Max Power Link: 57 @230V. Max power consumption: 36W Fuse protected: T1A/250V (5*20mm)Dimensions & Weight:
Length: 131.8mm Width: 209mm Height: 221.44mm Weight: 2kgApprovals/Ratings:
CE IP20Included Accessories:
(1) Power Cord
(1) Lens Kit
Specifications are subject to change without notice
Manufacturer Part Number: 1223200107
ADJ Dotz Par RGBL
Brand: ADJ
SKU: ADJ1223200107
Regular price
£163.99
Pickup available at Venutec
Usually ready in 24 hours
ADJ Dotz Par RGBL
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
