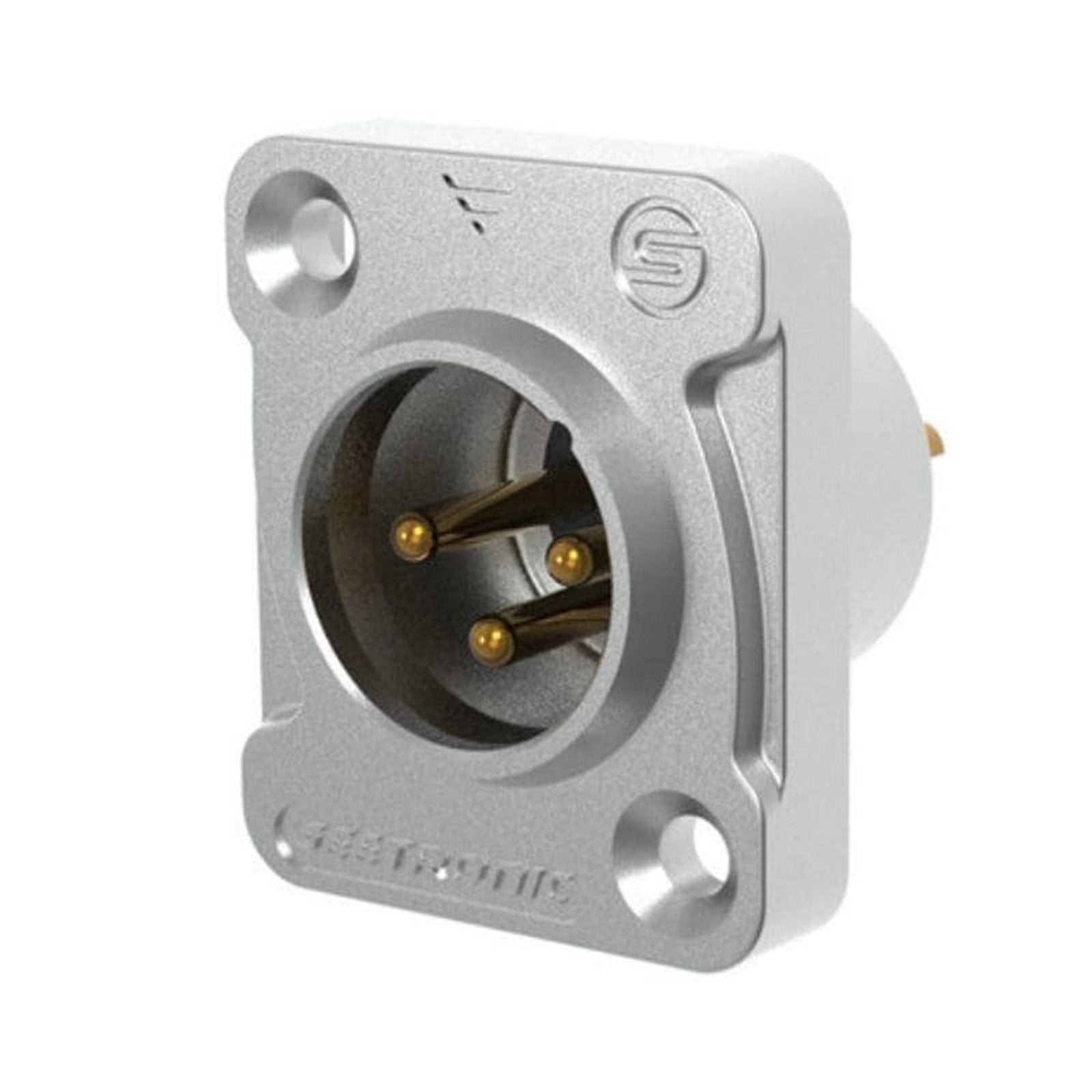

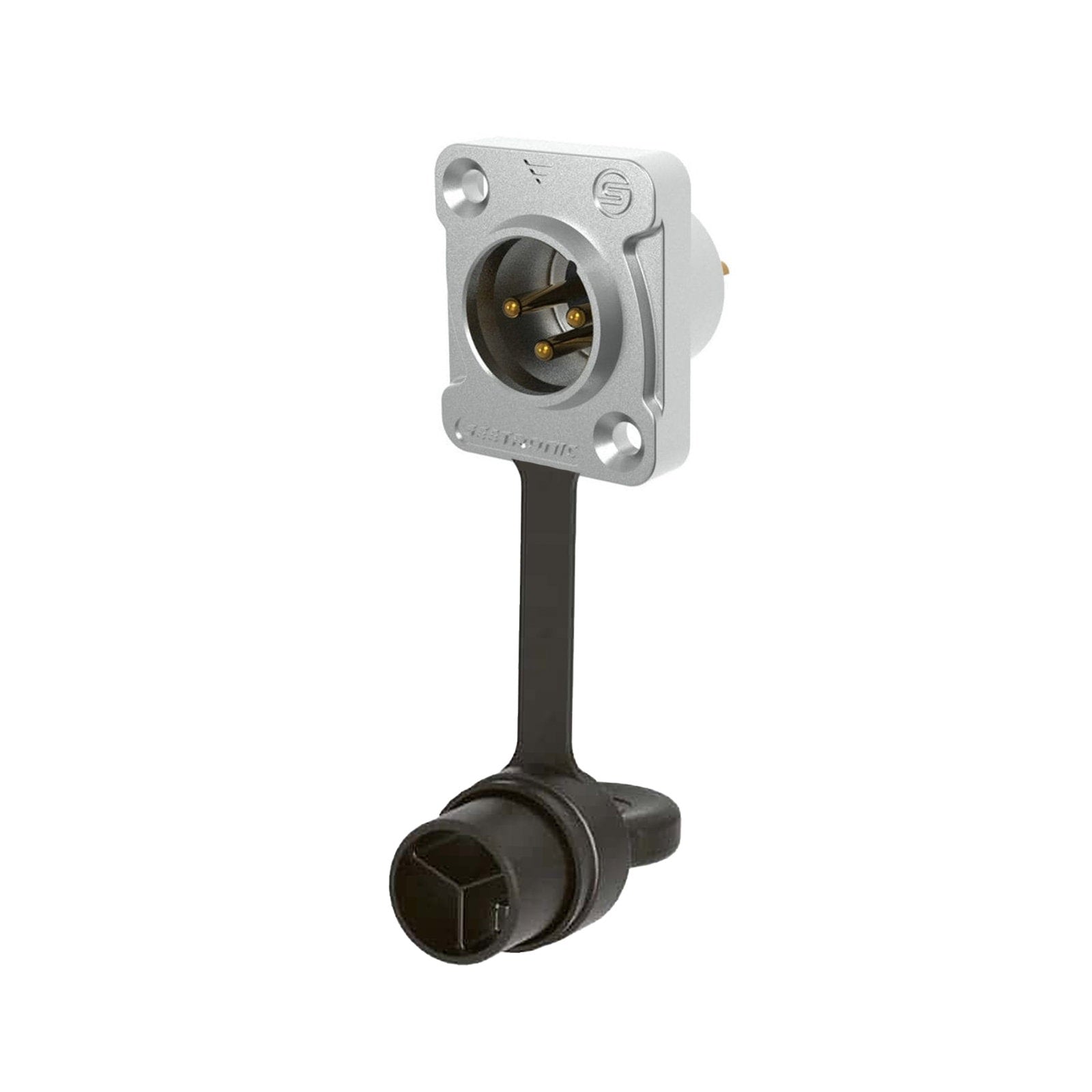

The Seetronic J3F2C‑W‑67 is a high-performance IP67-rated 3-pin male XLR chassis connector engineered for use in demanding outdoor broadcast and industrial environments. Built with a rugged zinc-alloy D-shaped shell gold-plated contacts and an airtight rear seal rated to 0.2 MPa it provides reliable signal integrity and environmental protection. Ideal for DMX lighting audio and control applications in the harshest conditions.

• IP67-rated for full protection against dust and water when mated or capped
• Durable zinc-alloy D-shell for front-panel mounting
• Gold-plated copper alloy contacts; ≤ 5 mΩ contact resistance
• Rated current: 16 A per contact; voltage: < 50 V
• Rear airtight sealing withstands 0.2 MPa pressure
• Mechanical life exceeds 1000 mating cycles
• Operating temperature: –30 °C to +80 °C; UL94 HB flame rating
• Standards compliant: IEC 61076‑2‑103 IEC 68‑2‑20

• Connector Type: 3‑pin male XLR chassis socket (panel-mount)
• Contact Resistance: ≤ 5 mΩ
• Capacitance: ≤ 4 pF
• Dielectric Strength: 1500 V DC
• Insulation Resistance: > 10 GΩ
• Rated Current: 16 A per contact
• Rated Voltage: < 50 V
• Insertion/Withdrawal Force: ≤ 20 N
• Mechanical Durability: > 1000 mating cycles
• Materials: Housing – zinc alloy (black) Contacts – gold-plated Cu alloy Insert – PA
• Operating Temp: –30 °C to +80 °C
• Protection: IP67 (sealed when capped or mated)
• Certifications: UL94 HB IEC 61076‑2‑103 IEC 68‑2‑20
