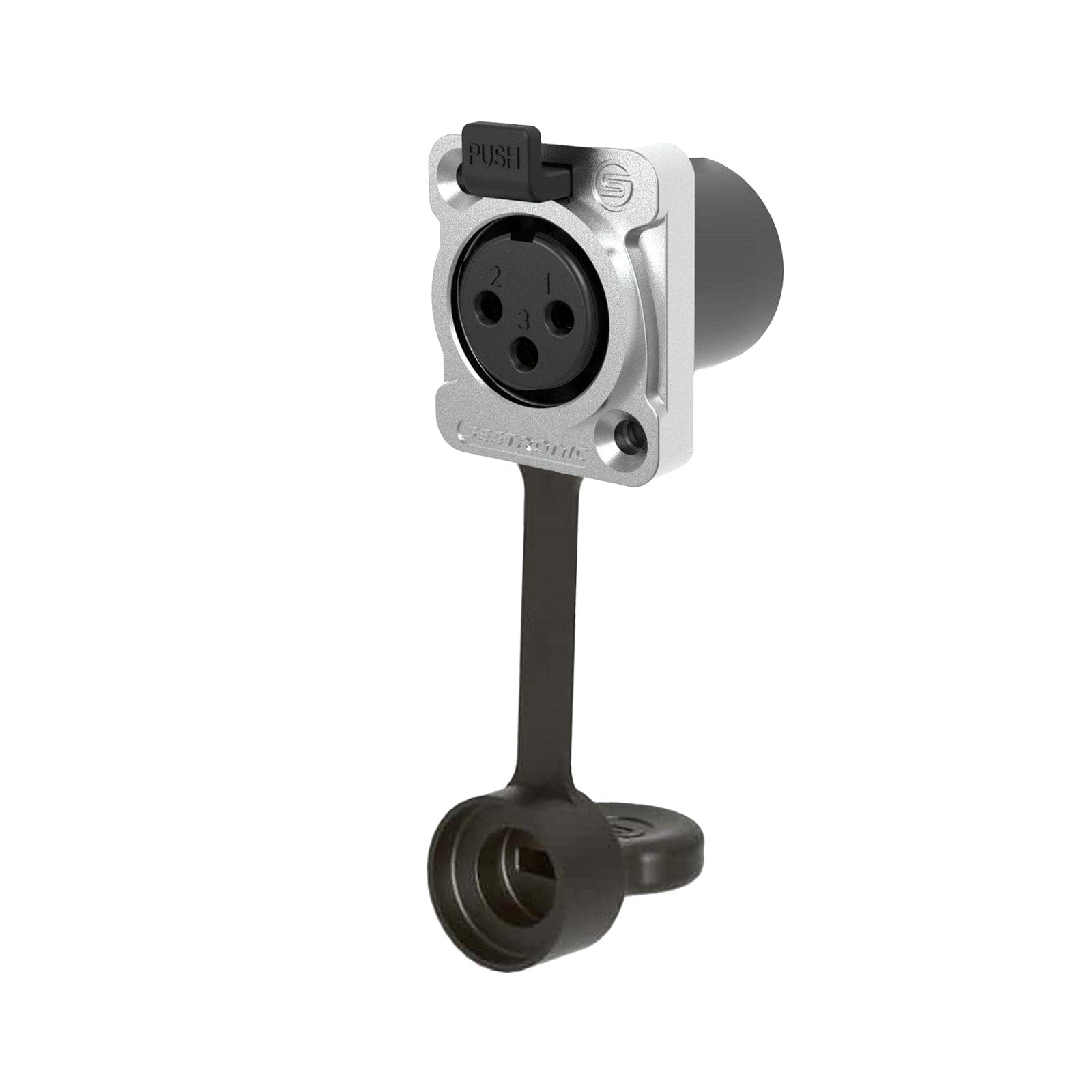

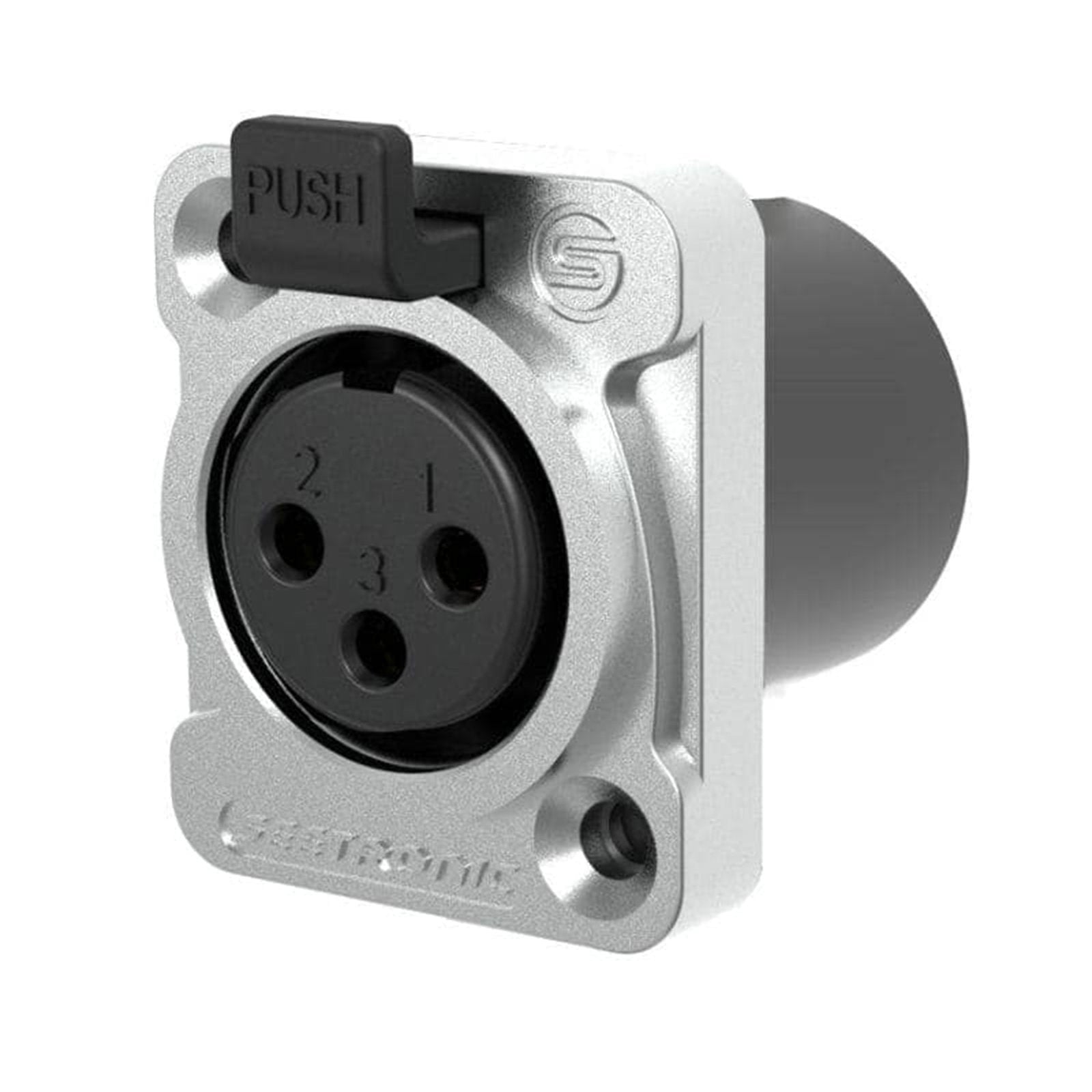

The Seetronic K3F2C‑W‑67 is a professional-grade IP67-rated 3-pin XLR female chassis connector engineered for reliable performance in harsh outdoor broadcast and industrial environments. Featuring a robust zinc-alloy D-shaped housing gold-plated contacts and an air-tight rear seal rated to 0.2 MPa it offers superior protection against dust and moisture. Ideal for lighting DMX and audio signal distribution in demanding applications.

• IP67-rated when used with matching plug/cap for dust and immersion protection
• Zinc-alloy body with sealed chassis design (0.2 MPa air-tight test)
• Gold-plated Cu-alloy contacts; contact resistance ≤ 5 mΩ
• Rated current per contact: 16 A; voltage < 50 V
• Durable mechanical life with over 1000 mating cycles
• Operating temp: −30 °C to +80 °C; UL94 HB flame-retardant housing
• Fully compliant with IEC 61076‑2‑103 and IEC 68‑2‑20 standards

• Connector Type: 3‑pin female XLR chassis socket
• Contact Resistance: ≤ 5 mΩ
• Capacitance: ≤ 4 pF
• Dielectric Strength: 1500 V DC
• Insulation Resistance: > 10 GΩ
• Rated Current: 16 A per contact
• Rated Voltage: < 50 V
• Insertion/Withdrawal Force: ≤ 20 N
• Mechanical Life: > 1000 mating cycles
• Materials: Housing – zinc alloy (black) Contacts – gold-plated Cu-alloy Insert – PA
• Operating Temperature: –30 °C to +80 °C
• Protection Class: IP67 (front and rear sealed)
• Certifications: UL94 HB IEC 61076‑2‑103 IEC 68‑2‑20
