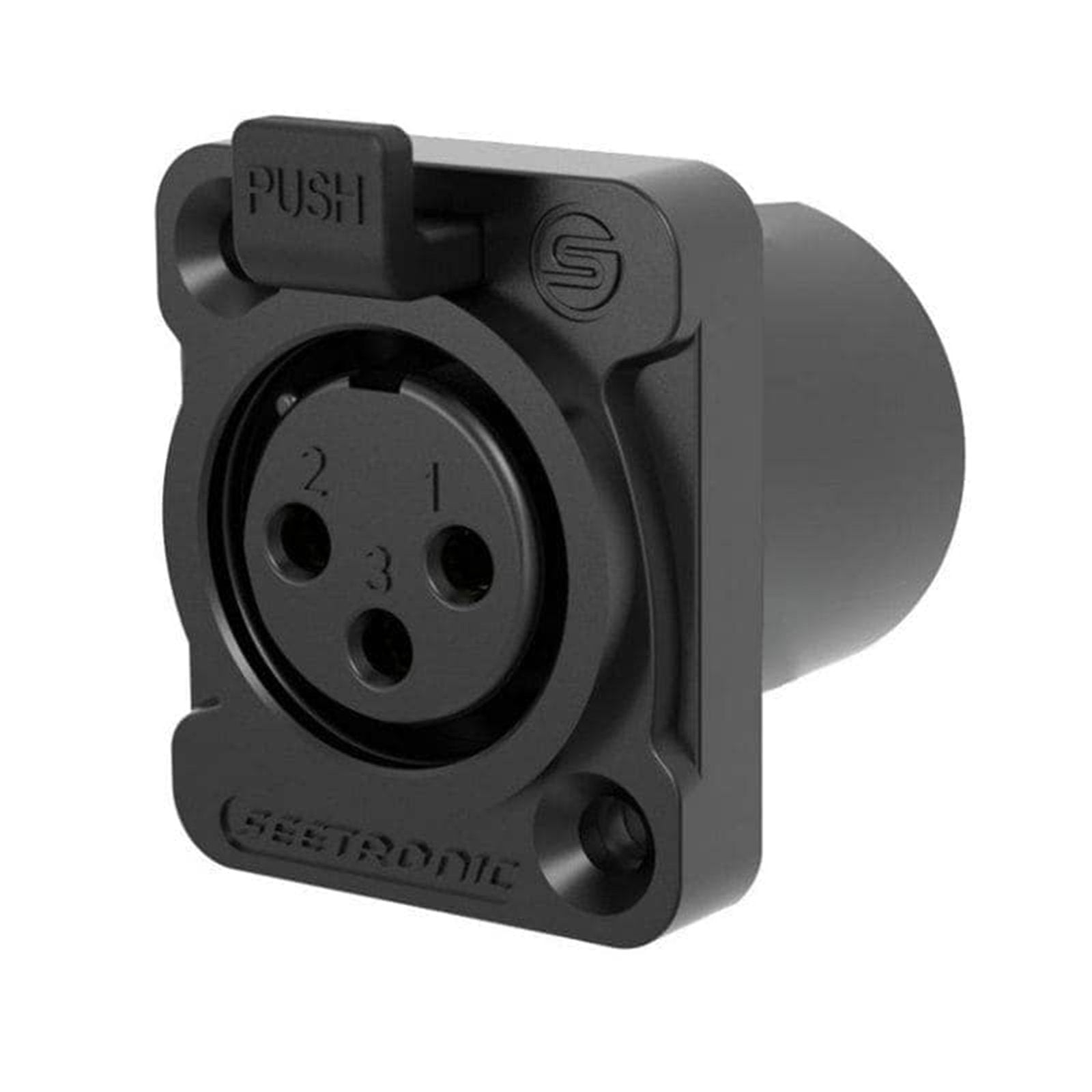

The Seetronic K3F2C‑W‑B‑67 is a high-grade IP67-rated 3-pin XLR female chassis connector featuring a sealed black zinc-alloy body that withstands water pressure up to 0.2 MPa. With gold-plated Cu-alloy contacts supporting up to 16 A this robust socket is ideal for outdoor broadcast and lighting applications requiring secure sealed audio connections.

• IP67-rated when used with matching plug/cap for dust and immersion protection
• Black zinc-alloy body with sealed chassis design (0.2 MPa air-tight test)
• Gold-plated Cu-alloy contacts; contact resistance ≤ 5 mΩ
• Rated current per contact: 16 A; voltage < 50 V
• Durable mechanical life with over 1000 mating cycles
• Operating temp: −30 °C to +80 °C; UL94 HB flame-retardant housing
• Fully compliant with IEC 61076‑2‑103 and IEC 68‑2‑20 standards

• Connector Type: 3‑pin female XLR chassis
• Contact Resistance: ≤ 5 mΩ; Capacitance: ≤ 4 pF
• Dielectric Strength: 1500 V DC; Insulation Resistance: > 10 GΩ
• Rated Current: 16 A; Rated Voltage: < 50 V
• Insertion Force: ≤ 20 N; Mechanical Durability: > 1000 cycles
• Materials: Zinc-alloy shell gold-plated contacts PA insert
• Temperature: −30 °C to +80 °C; Protection: IP67 sealed chassis
• Flame: UL94 HB; Standards: IEC 61076‑2‑103 IEC 68‑2‑20
