D-type XLR chassis connector designed to fit into industry standard panel cut-outs the waterproof series from Seetronic were launched as one of the first IP65 XLRs available on the market. The Zinc alloy die-cast shell offers a stable connection platform for interconnection with most brands of standard XLR connectors. Designed for DMX signal input and output in outdoor conditions.
5-pin Chassis socket (female) Black plated zinc alloy die-cast shell Gold plated contacts Short axial size space saving and lightweight Standard D-type installation size to be installed both from the front of the panel Supplied with rubber gasket / sealing cap IP rating: IP65 when mated
Contact resistance: ≤5mΩ Insulation resistance: 10GΩ Rated voltage: 50Vac Lifetime: ≤1000 times cycles Insertion and extraction force: ≤20Nm
5-pin Chassis socket (female) Black plated zinc alloy die-cast shell Gold plated contacts Short axial size space saving and lightweight Standard D-type installation size to be installed both from the front of the panel Supplied with rubber gasket / sealing cap IP rating: IP65 when mated
Contact resistance: ≤5mΩ Insulation resistance: 10GΩ Rated voltage: 50Vac Lifetime: ≤1000 times cycles Insertion and extraction force: ≤20Nm

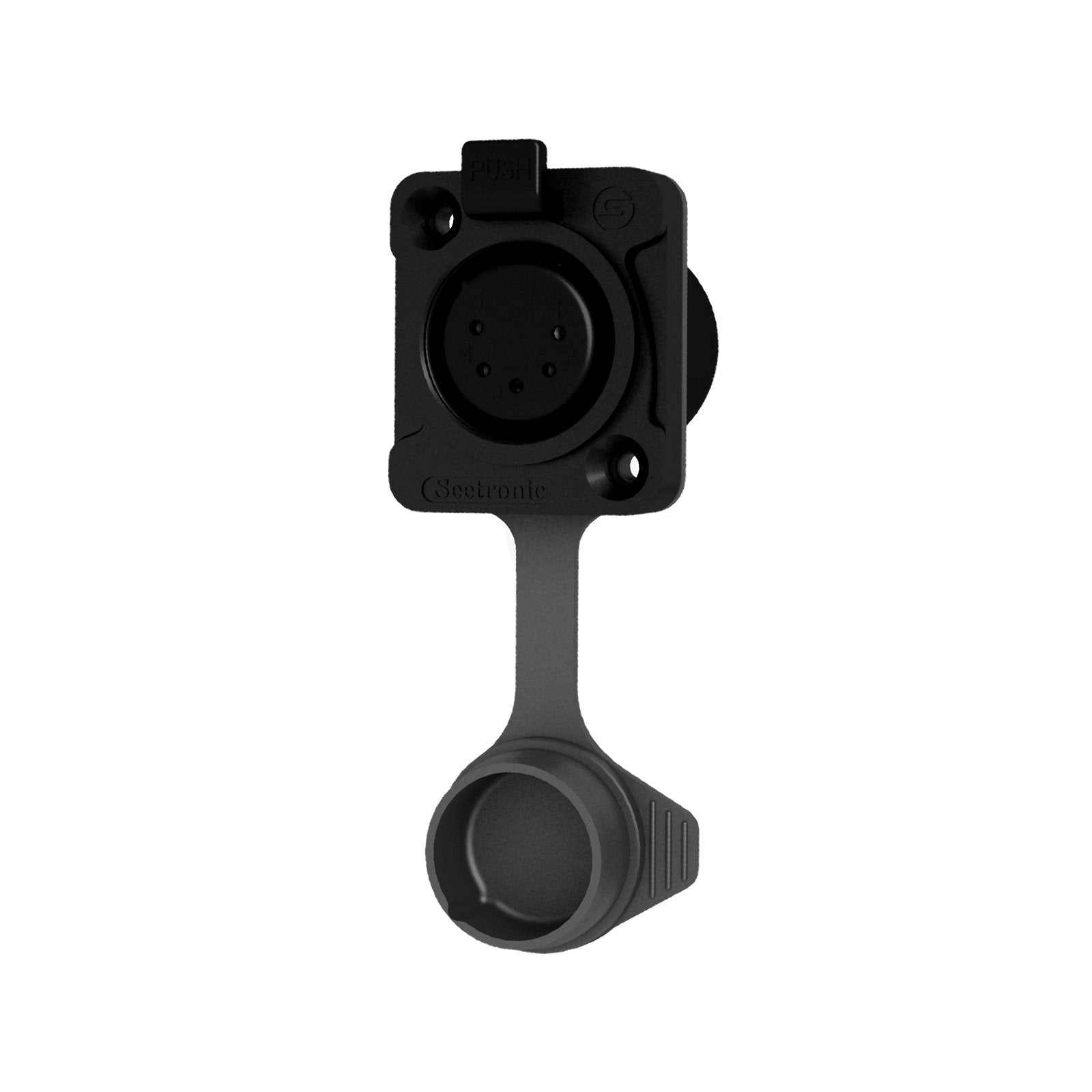

Seetronic XLR IP65 5-Pin Chassis Socket Black (K5F2C-W-B-01)
Brand: Seetronic
SKU: CONN1056
Regular price
£6.99
Pickup available at Venutec
Usually ready in 24 hours
Seetronic XLR IP65 5-Pin Chassis Socket Black (K5F2C-W-B-01)
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
D-type XLR chassis connector designed to fit into industry standard panel cut-outs the waterproof series from Seetronic were launched as one of the first IP65 XLRs available on the market. The Zinc alloy die-cast shell offers a stable connection platform for interconnection with most brands of standard XLR connectors. Designed for DMX signal input and output in outdoor conditions.
5-pin Chassis socket (female) Black plated zinc alloy die-cast shell Gold plated contacts Short axial size space saving and lightweight Standard D-type installation size to be installed both from the front of the panel Supplied with rubber gasket / sealing cap IP rating: IP65 when mated
Contact resistance: ≤5mΩ Insulation resistance: 10GΩ Rated voltage: 50Vac Lifetime: ≤1000 times cycles Insertion and extraction force: ≤20Nm
5-pin Chassis socket (female) Black plated zinc alloy die-cast shell Gold plated contacts Short axial size space saving and lightweight Standard D-type installation size to be installed both from the front of the panel Supplied with rubber gasket / sealing cap IP rating: IP65 when mated
Contact resistance: ≤5mΩ Insulation resistance: 10GΩ Rated voltage: 50Vac Lifetime: ≤1000 times cycles Insertion and extraction force: ≤20Nm
