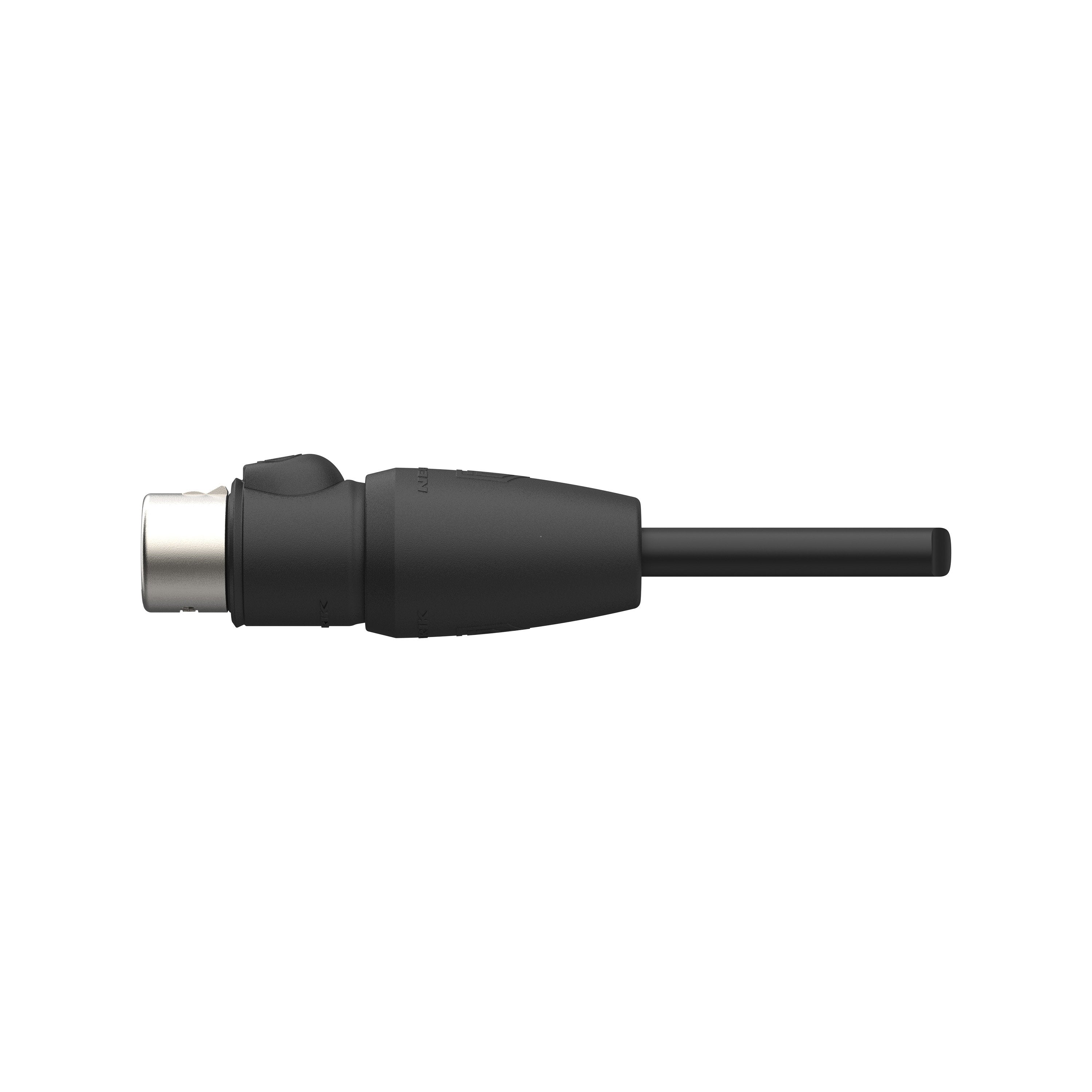

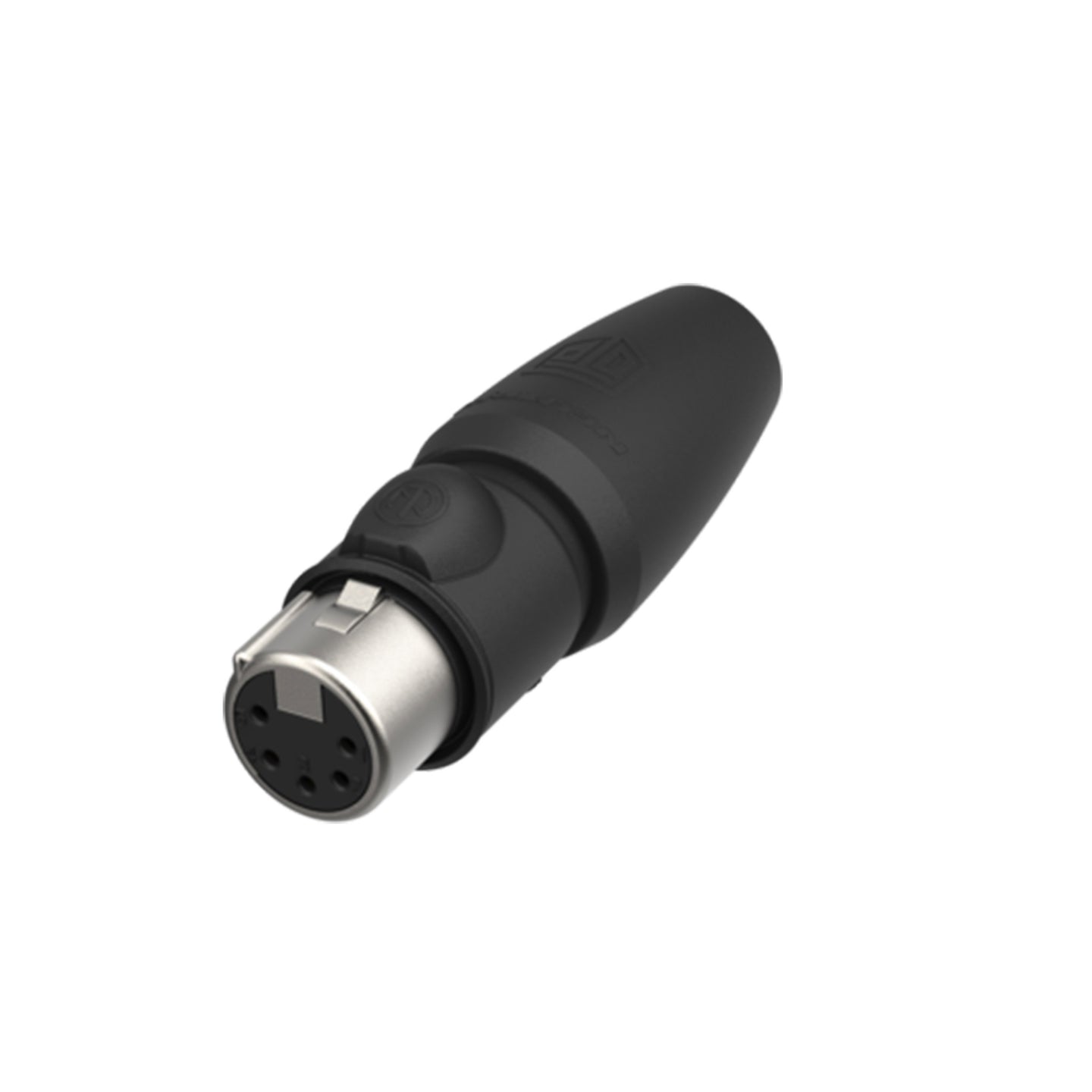

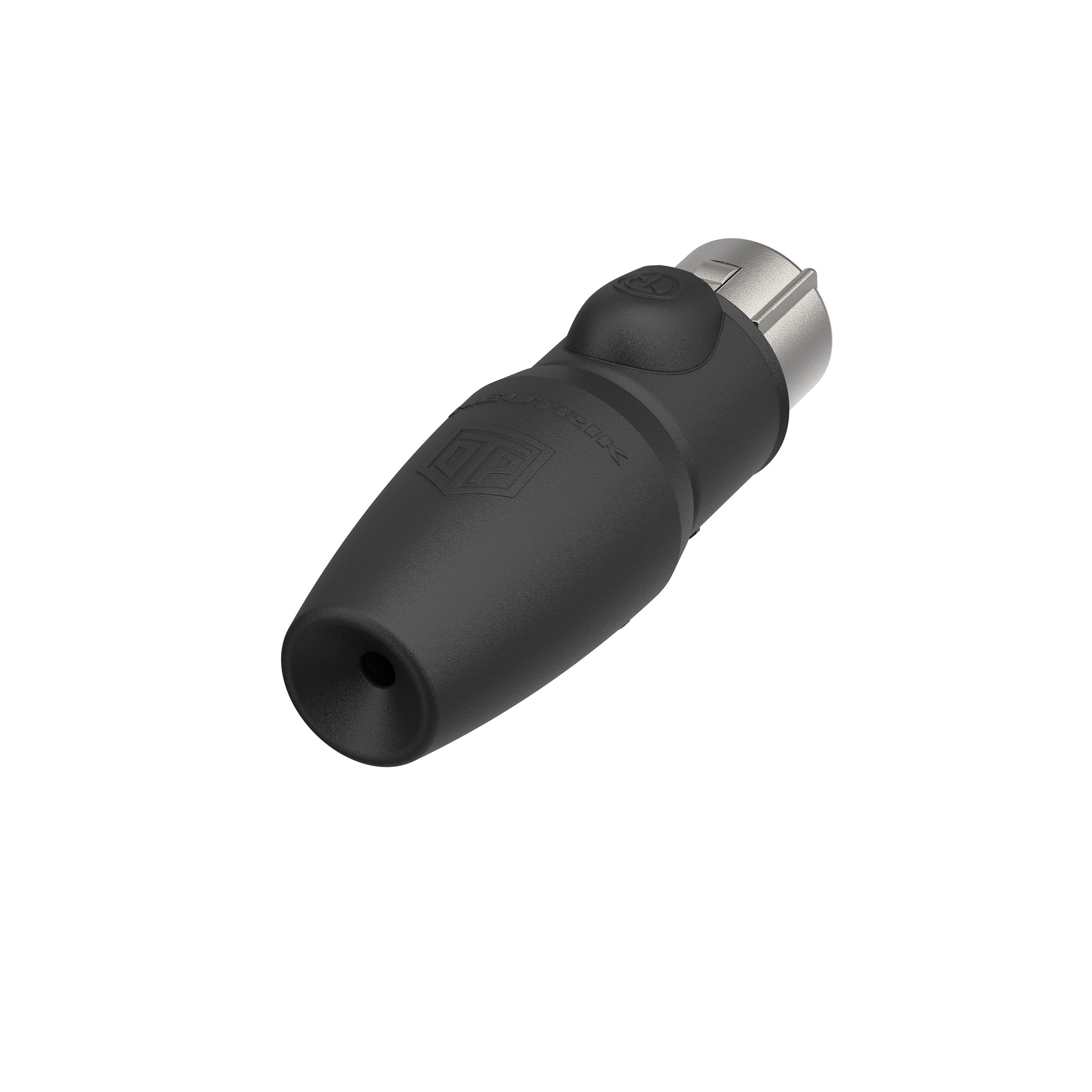

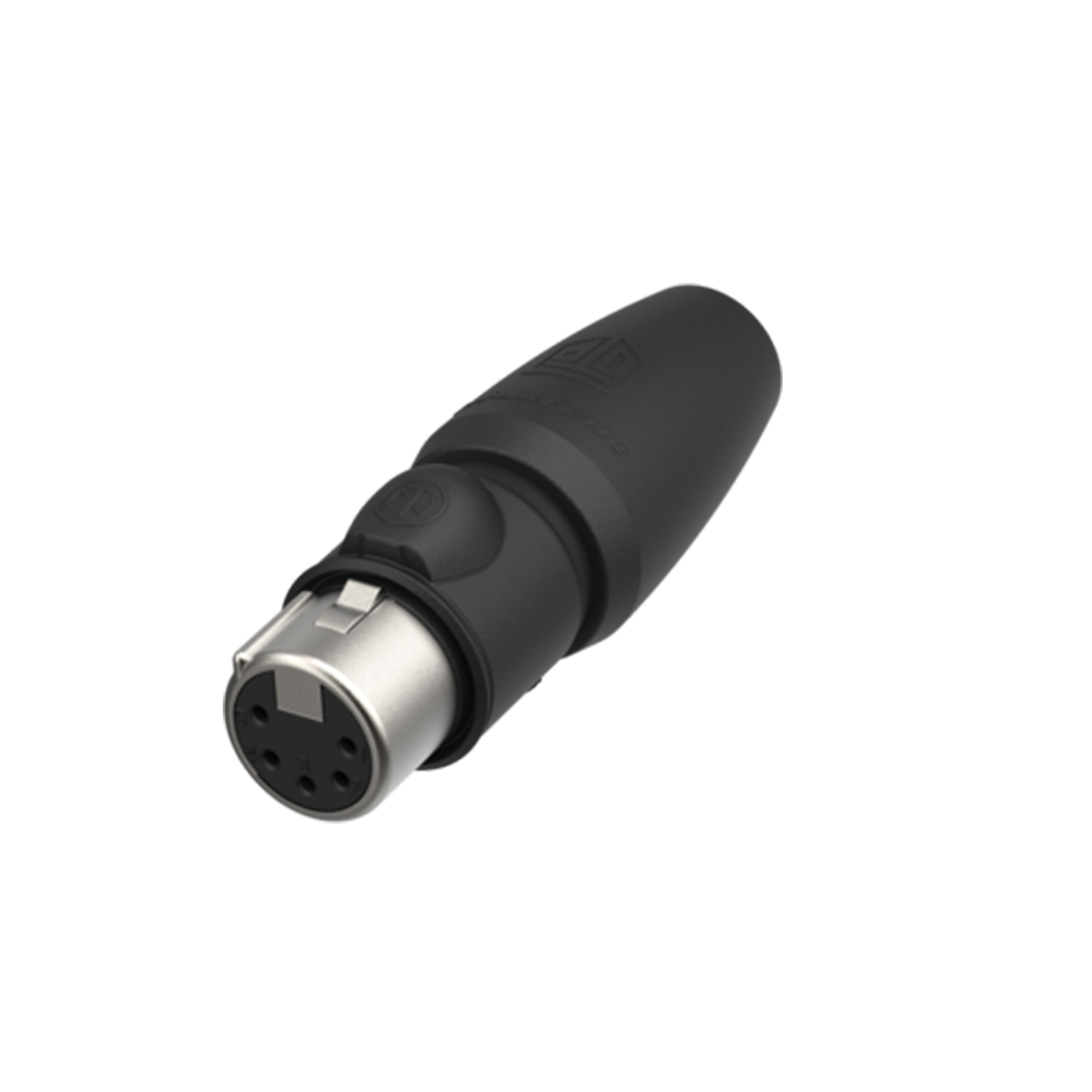

The Neutrik NC5FX1-TOP-14 is a 5-pole female XLR cable connector designed for demanding outdoor applications. As part of the True Outdoor Protection (TOP) series it offers IP65-rated protection when mated with compatible connectors ensuring reliable performance in harsh environments. This connector is ideal for professional audio and lighting setups requiring robust and weather-resistant connections.
True Outdoor Protection (TOP): IP65-rated when mated with compatible connectors Durable zinc diecast shell for long-lasting durability UV-resistant materials withstand prolonged sun exposure Gold-plated contacts for optimal conductivity and corrosion resistance Chuck-type strain relief system for secure cable retention
Contact resistance: ≤ 3 mΩ Dielectric strength: 1.5 kVdc Insulation resistance: > 10 GΩ (initial) Rated current per contact: 16 A Rated voltage: < 50 V Cable outer diameter compatibility: 8.0 – 10.0 mm Operating temperature range: -30 °C to +80 °C Mating cycles: > 1000
True Outdoor Protection (TOP): IP65-rated when mated with compatible connectors Durable zinc diecast shell for long-lasting durability UV-resistant materials withstand prolonged sun exposure Gold-plated contacts for optimal conductivity and corrosion resistance Chuck-type strain relief system for secure cable retention
Contact resistance: ≤ 3 mΩ Dielectric strength: 1.5 kVdc Insulation resistance: > 10 GΩ (initial) Rated current per contact: 16 A Rated voltage: < 50 V Cable outer diameter compatibility: 8.0 – 10.0 mm Operating temperature range: -30 °C to +80 °C Mating cycles: > 1000
Neutrik XLR 5-Pin Female Socket NC5FX1-TOP-14
Brand: Neutrik
SKU: CONN569
Regular price
£14.99
Pickup available at Venutec
Usually ready in 24 hours
Neutrik XLR 5-Pin Female Socket NC5FX1-TOP-14
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
The Neutrik NC5FX1-TOP-14 is a 5-pole female XLR cable connector designed for demanding outdoor applications. As part of the True Outdoor Protection (TOP) series it offers IP65-rated protection when mated with compatible connectors ensuring reliable performance in harsh environments. This connector is ideal for professional audio and lighting setups requiring robust and weather-resistant connections.
True Outdoor Protection (TOP): IP65-rated when mated with compatible connectors Durable zinc diecast shell for long-lasting durability UV-resistant materials withstand prolonged sun exposure Gold-plated contacts for optimal conductivity and corrosion resistance Chuck-type strain relief system for secure cable retention
Contact resistance: ≤ 3 mΩ Dielectric strength: 1.5 kVdc Insulation resistance: > 10 GΩ (initial) Rated current per contact: 16 A Rated voltage: < 50 V Cable outer diameter compatibility: 8.0 – 10.0 mm Operating temperature range: -30 °C to +80 °C Mating cycles: > 1000
True Outdoor Protection (TOP): IP65-rated when mated with compatible connectors Durable zinc diecast shell for long-lasting durability UV-resistant materials withstand prolonged sun exposure Gold-plated contacts for optimal conductivity and corrosion resistance Chuck-type strain relief system for secure cable retention
Contact resistance: ≤ 3 mΩ Dielectric strength: 1.5 kVdc Insulation resistance: > 10 GΩ (initial) Rated current per contact: 16 A Rated voltage: < 50 V Cable outer diameter compatibility: 8.0 – 10.0 mm Operating temperature range: -30 °C to +80 °C Mating cycles: > 1000
