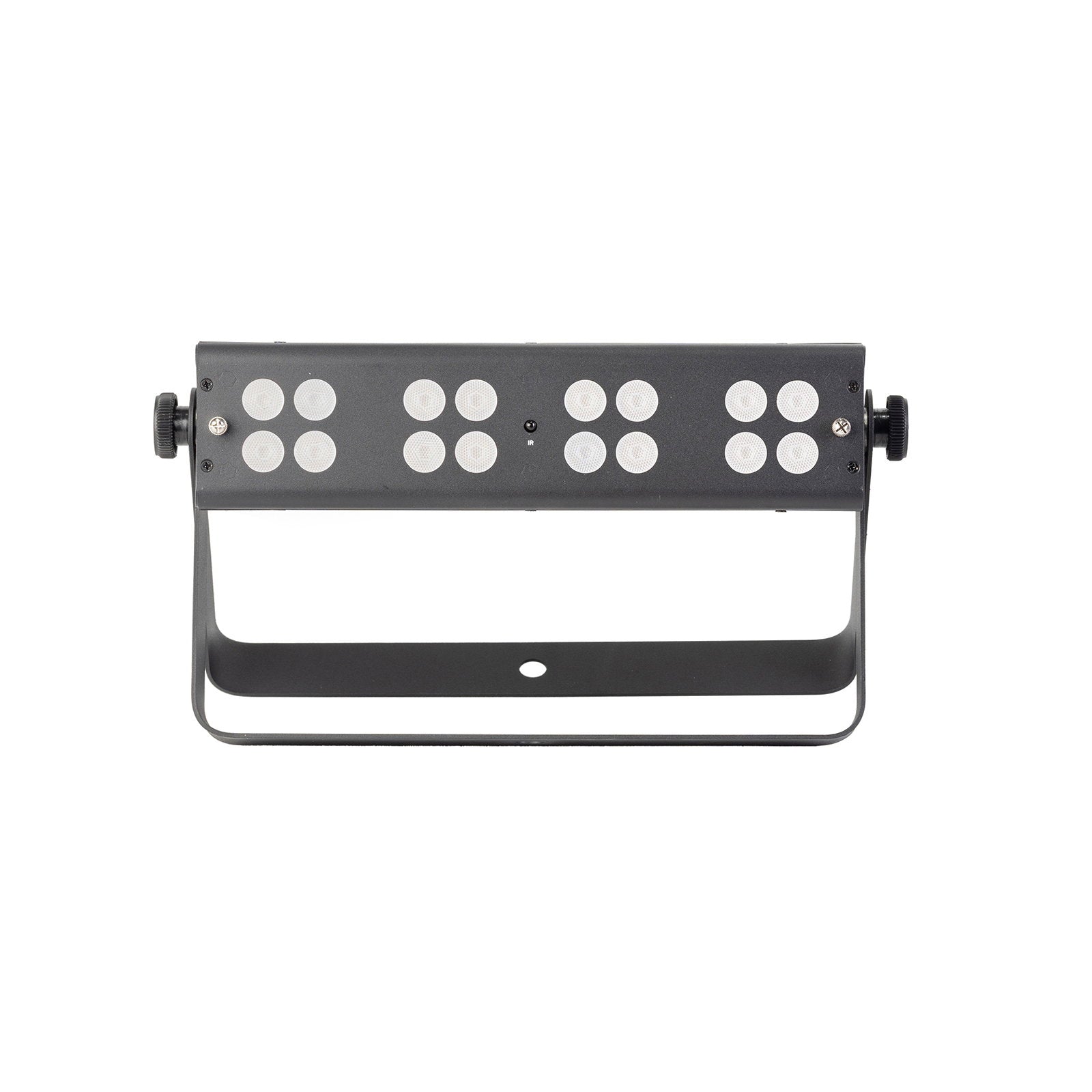

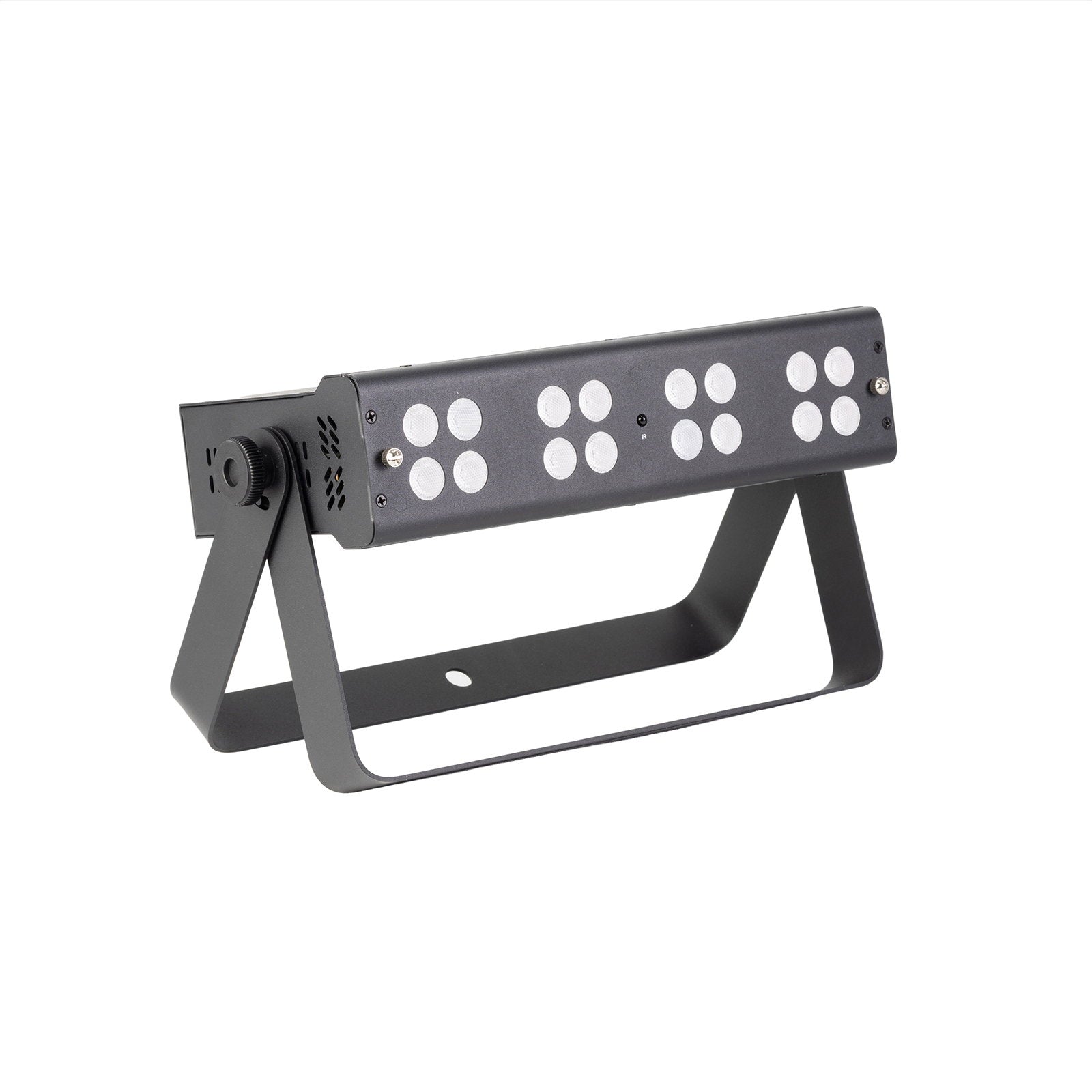

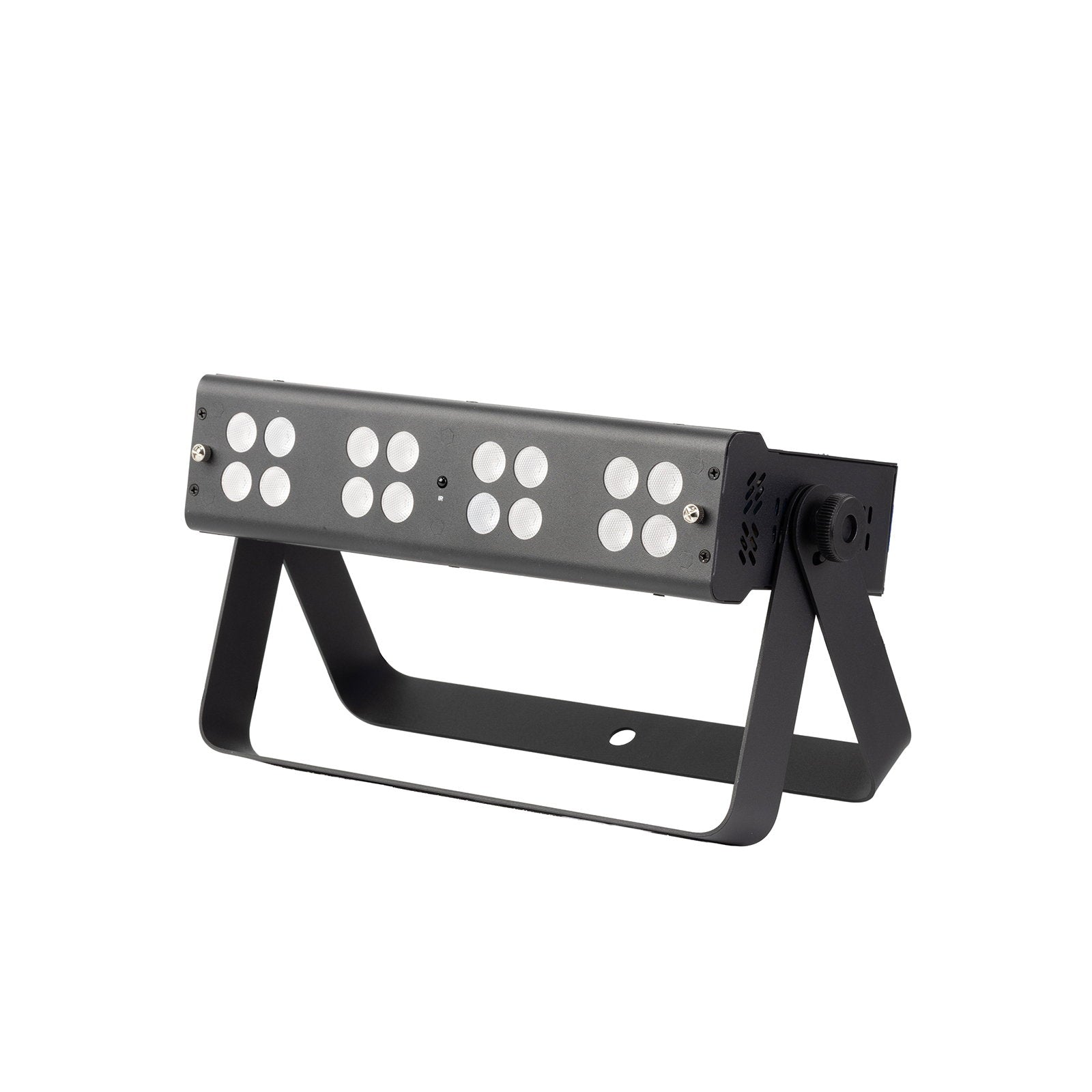

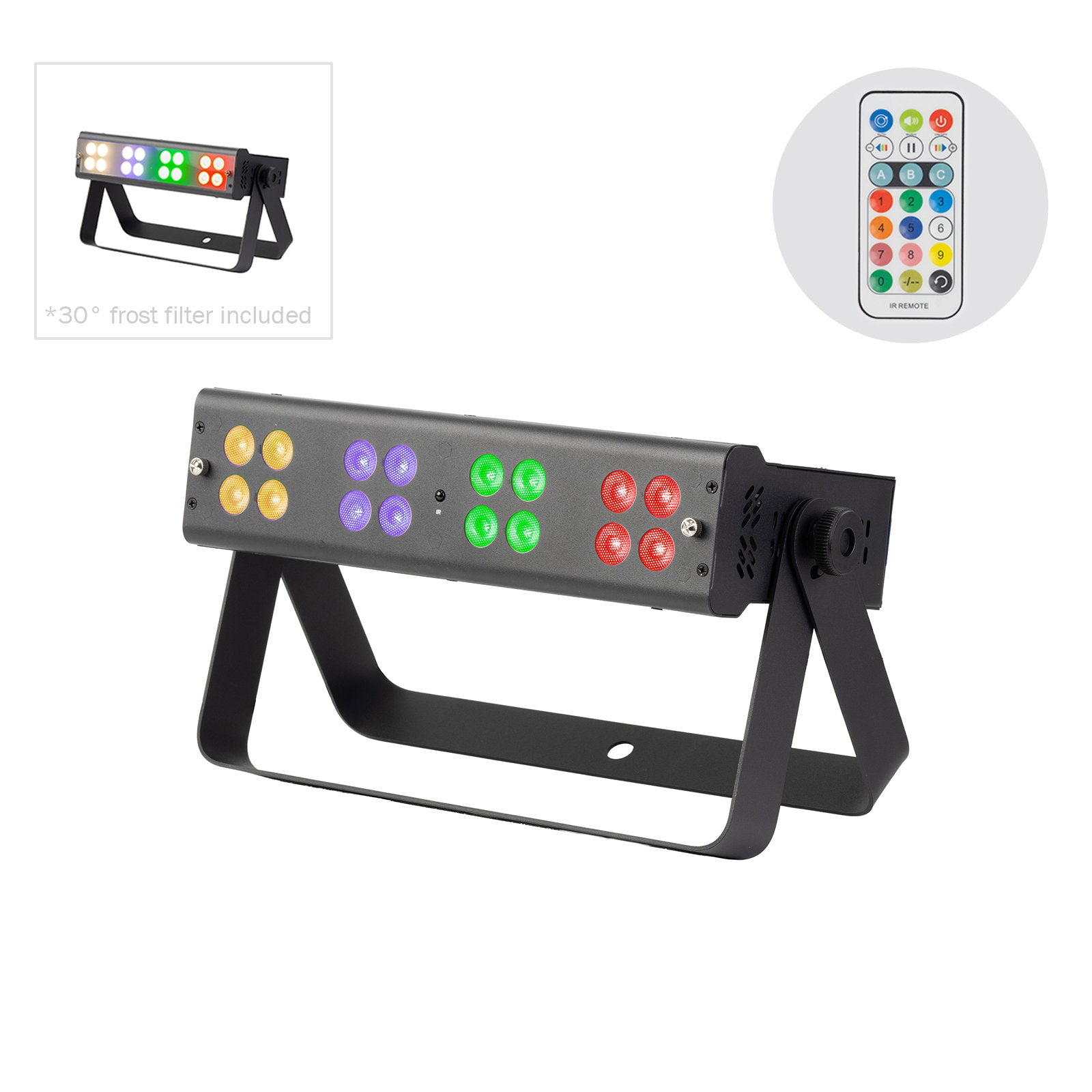

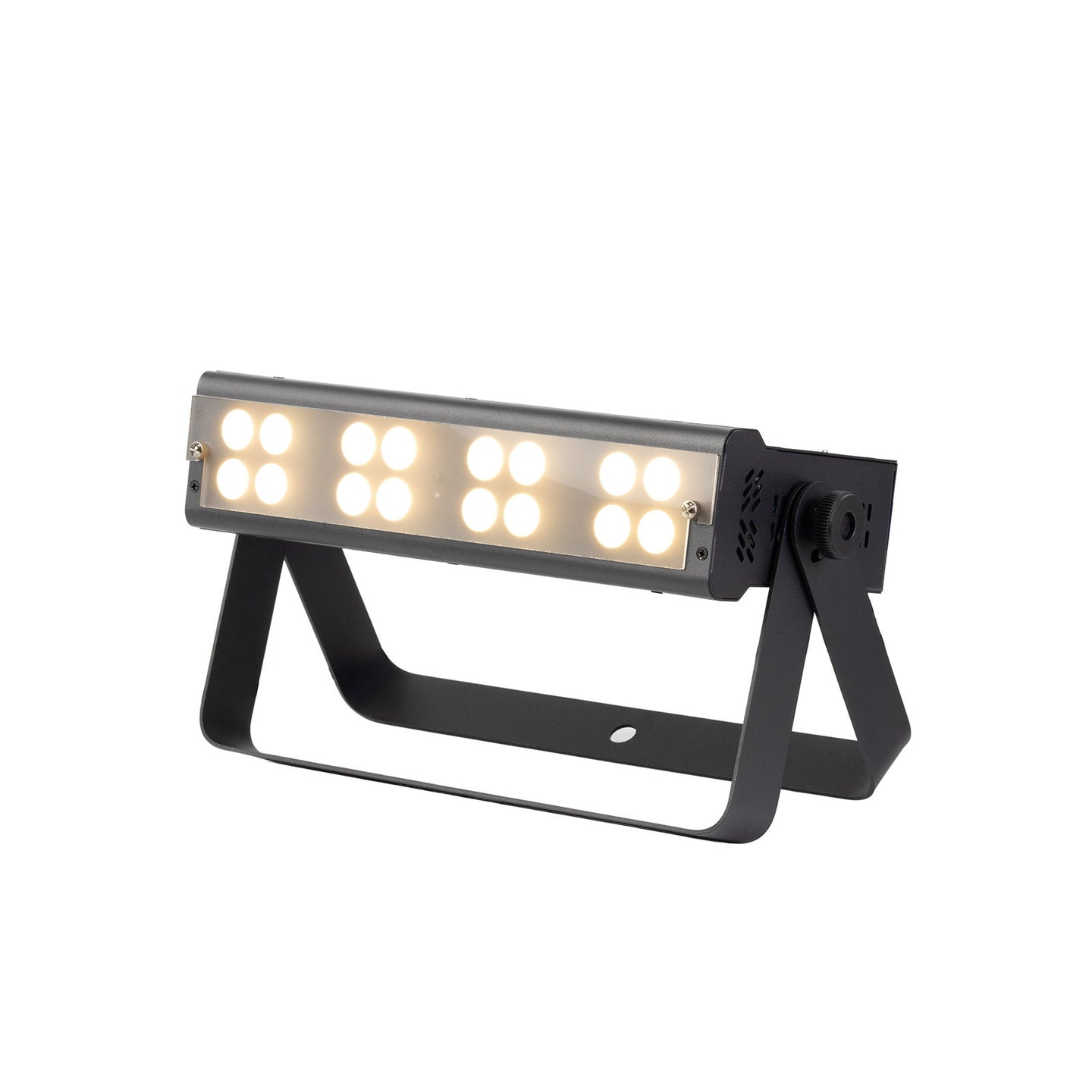

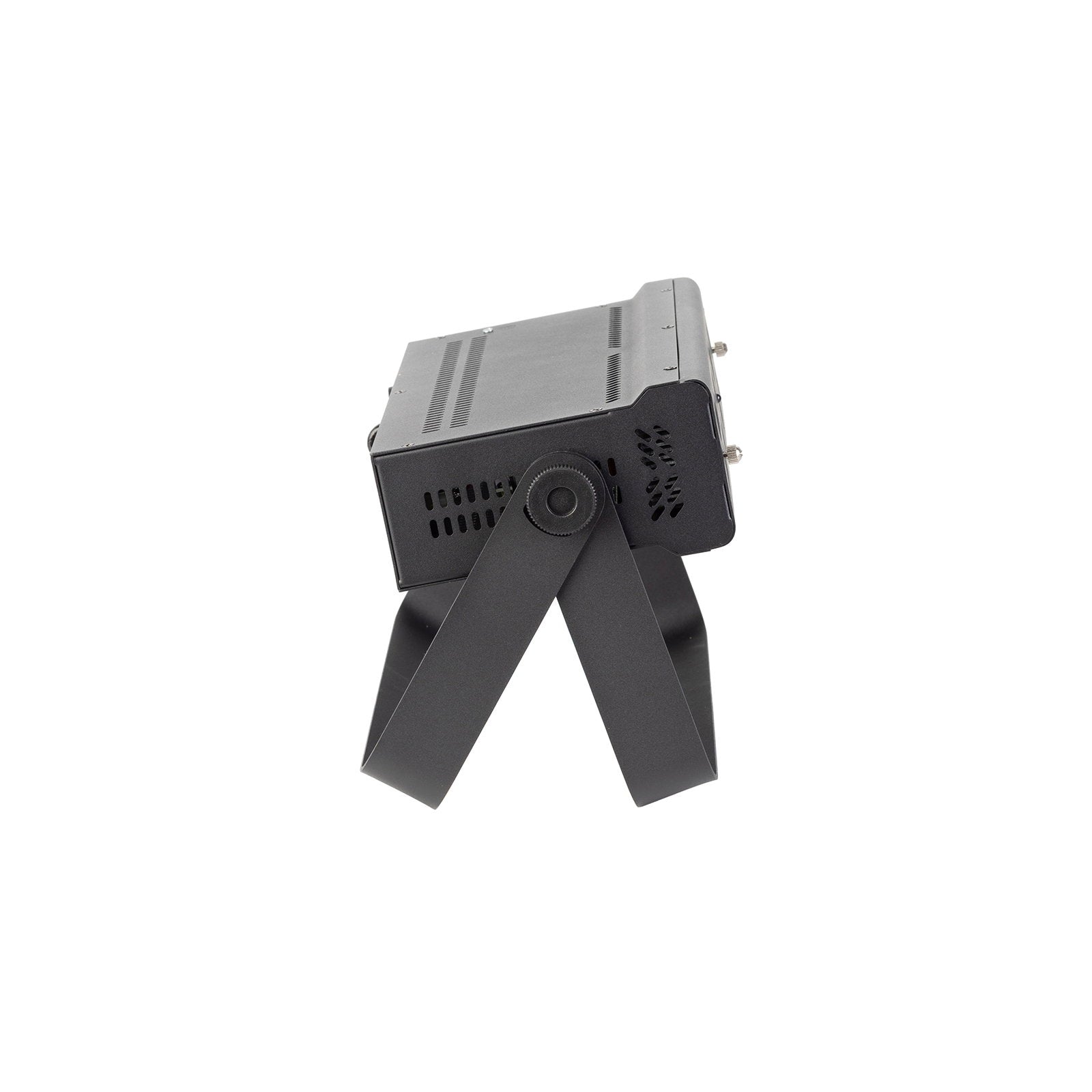

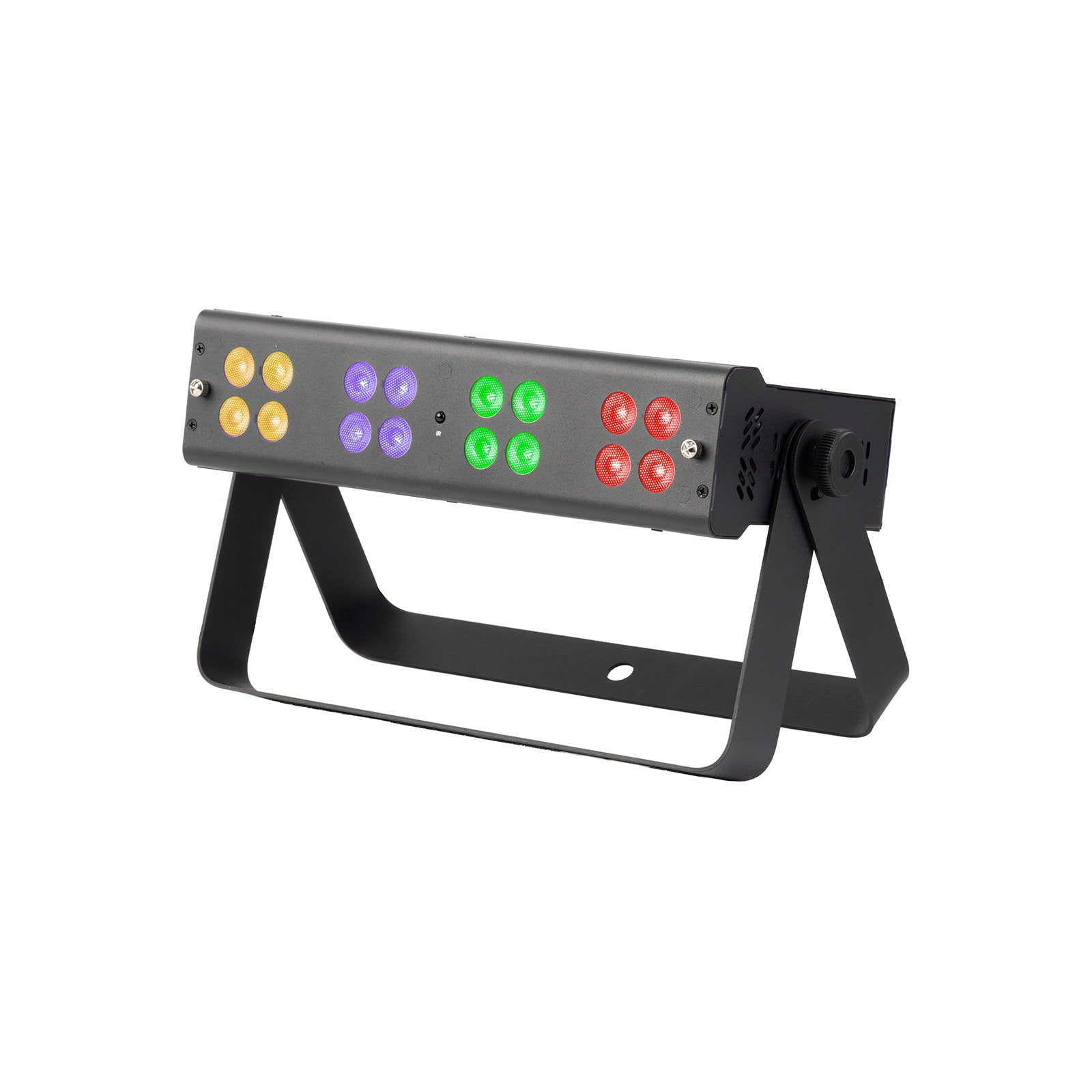

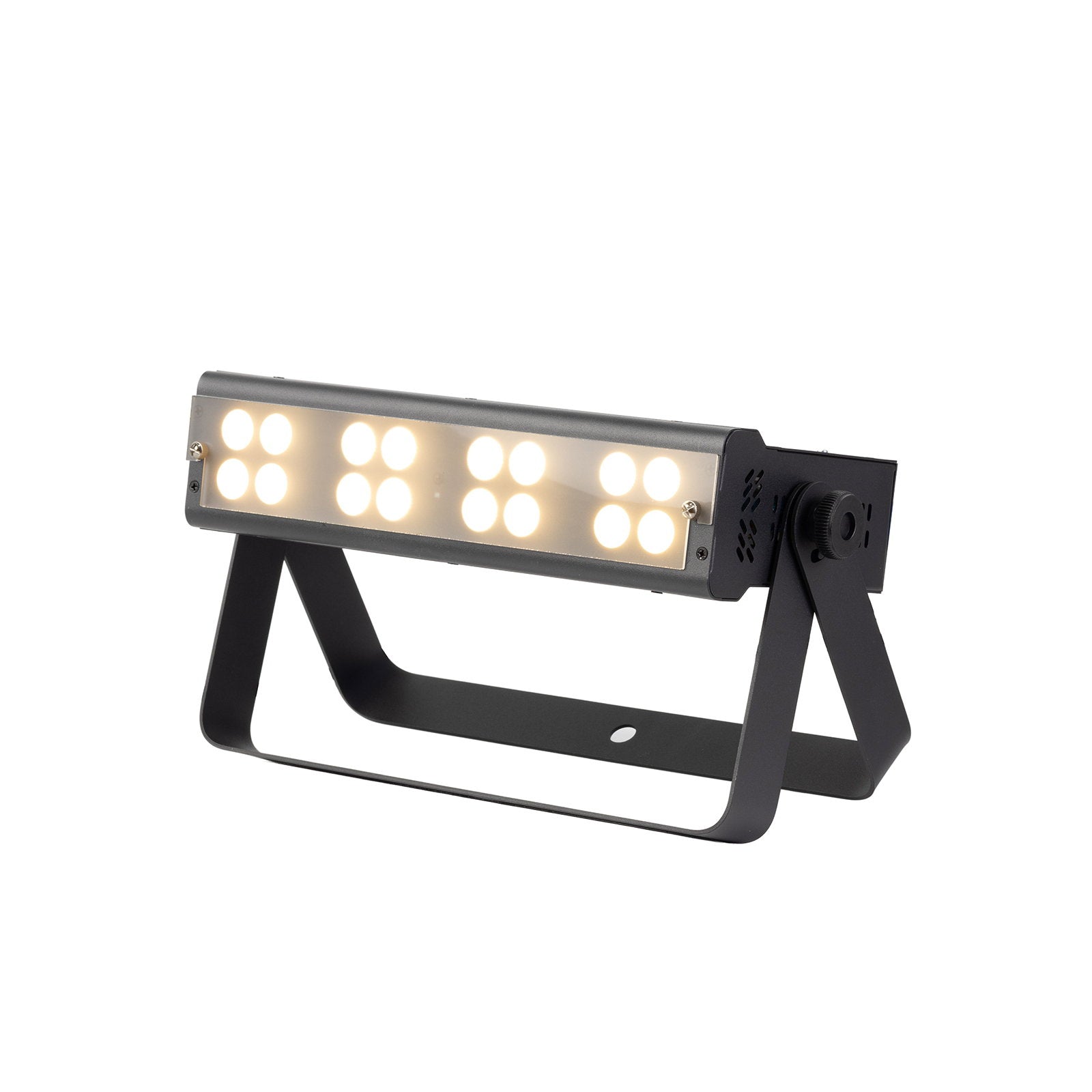

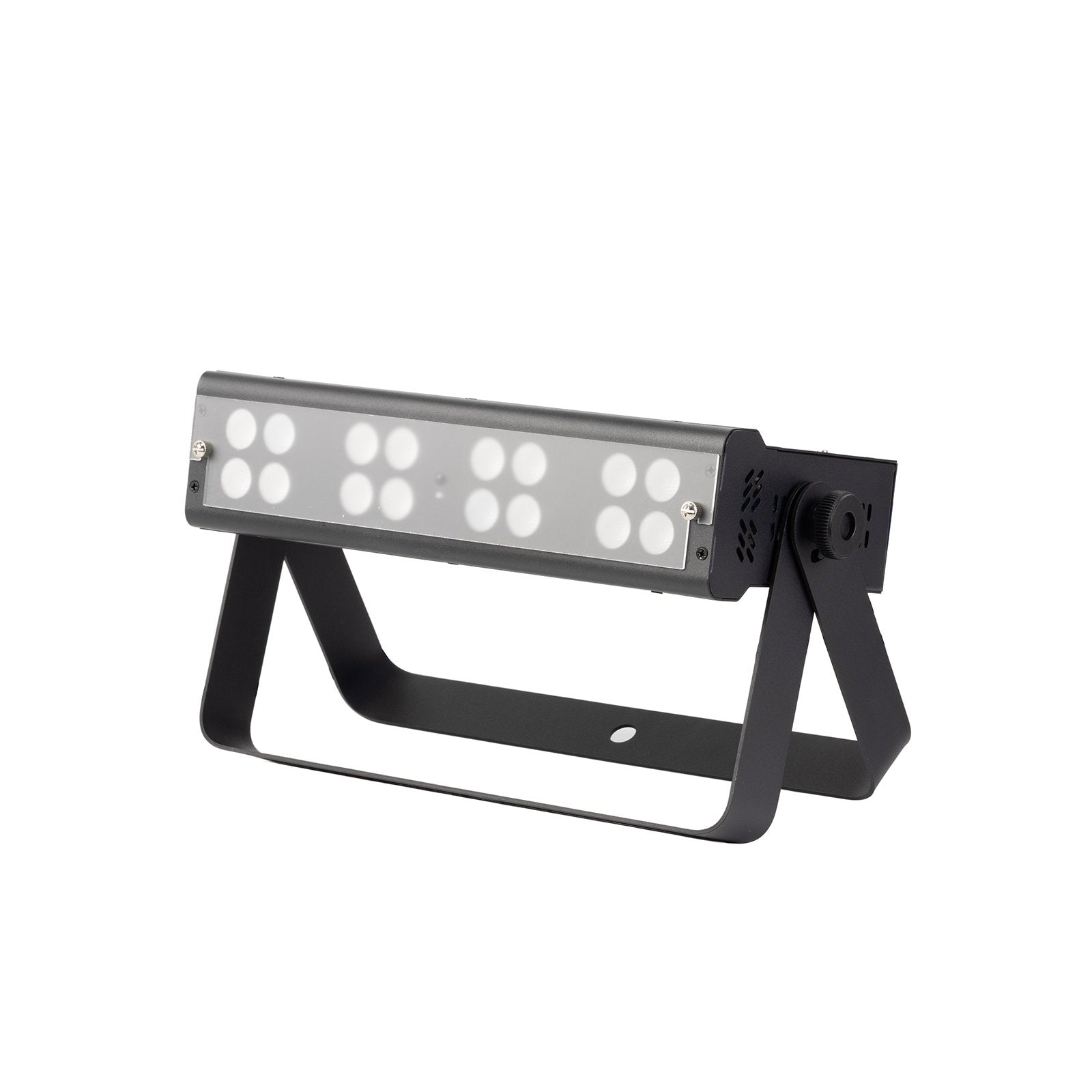

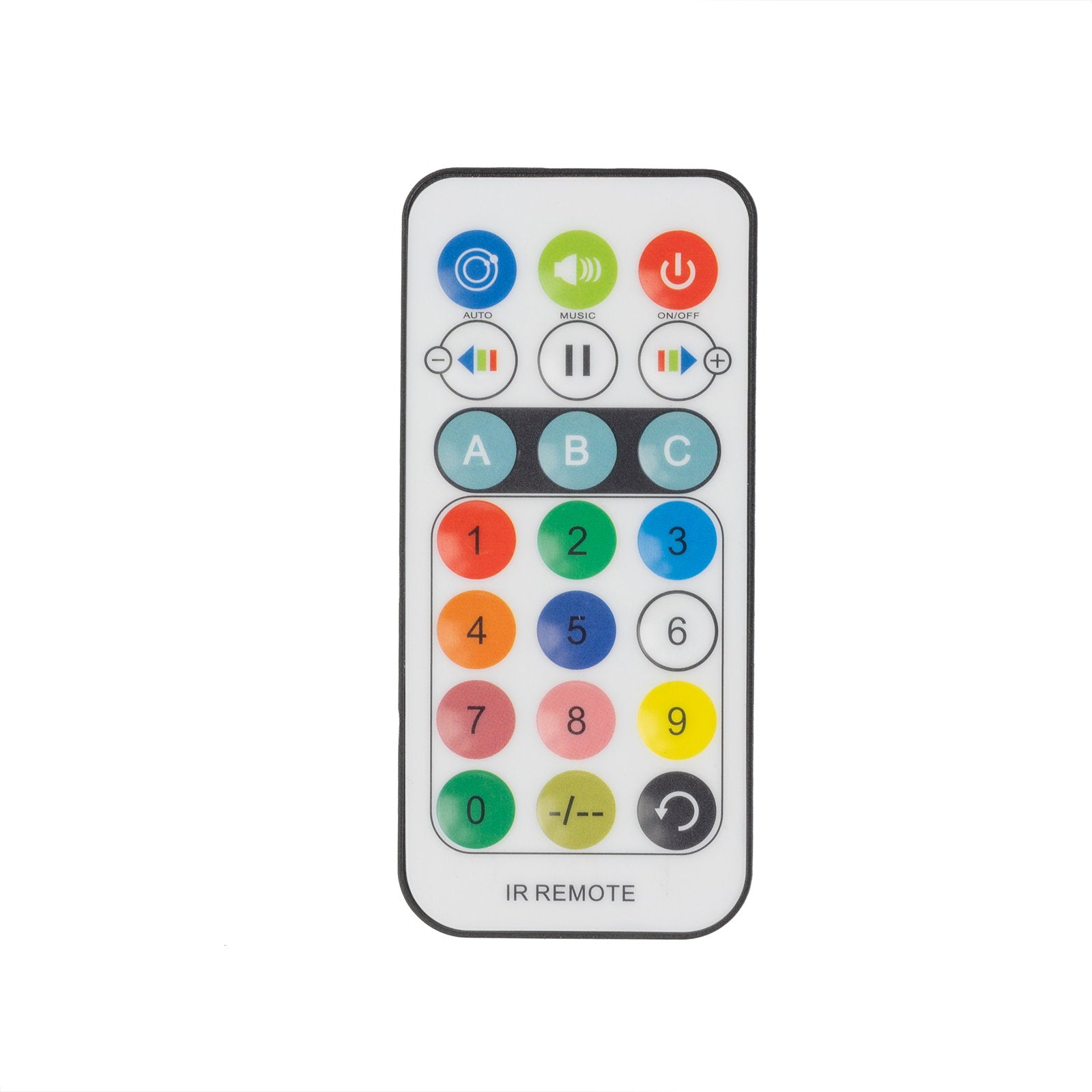

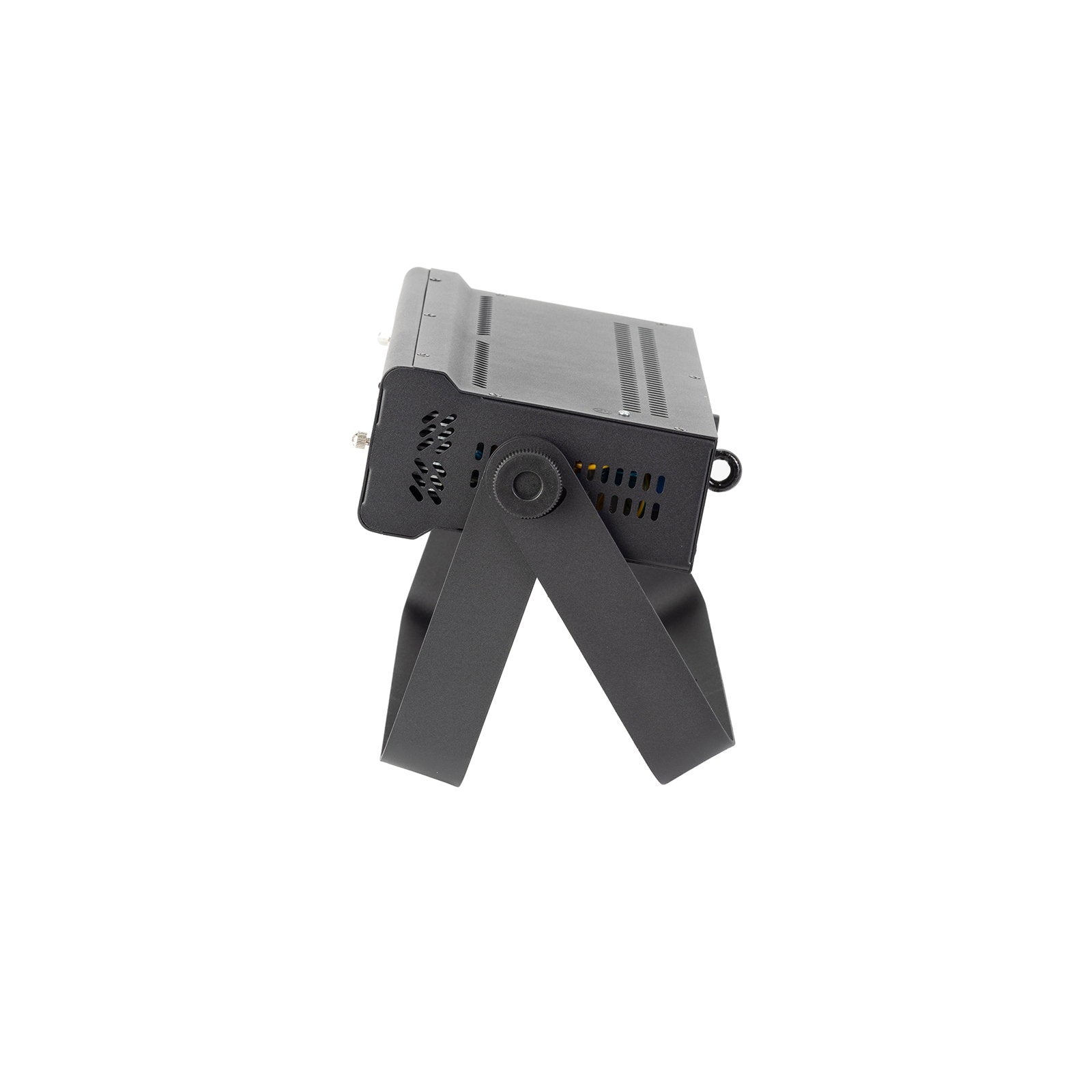

Packed with sixteen 4W RGBWW LEDs the Equinox Quad Blox delivers bold vibrant colour with seamless blending and a removable frost filter for smooth washes. It features a variety of built-in shows accessible via the onboard menu or an included IR remote facilitating straightforward plug-and-play operation. For advanced users multiple DMX modes provide individual control over each segment and the unit is compatible with W-DMX USB for wireless connectivity. The Quad Blox comes equipped with a dual bracket allowing for flexible rigging or floor-standing setups.

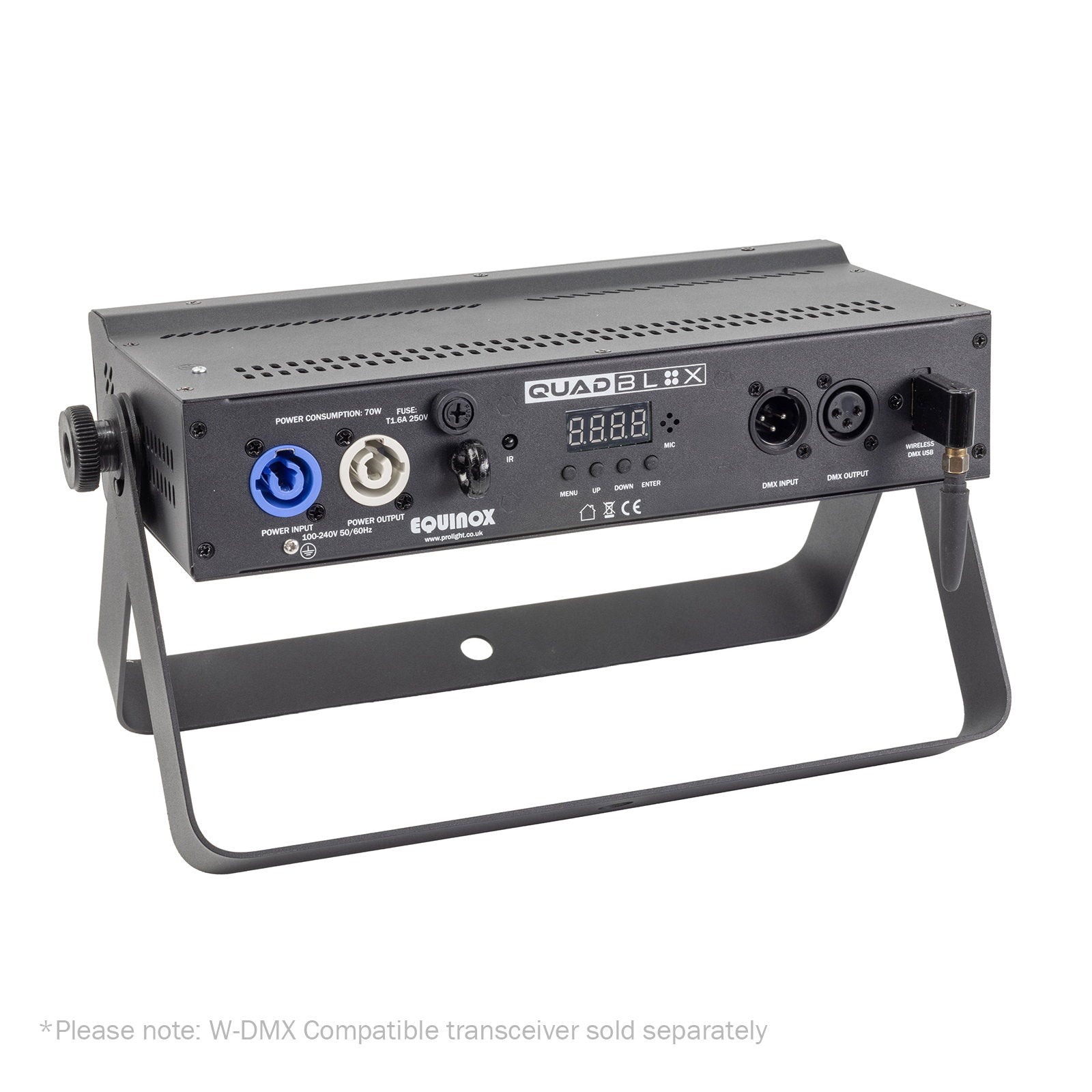

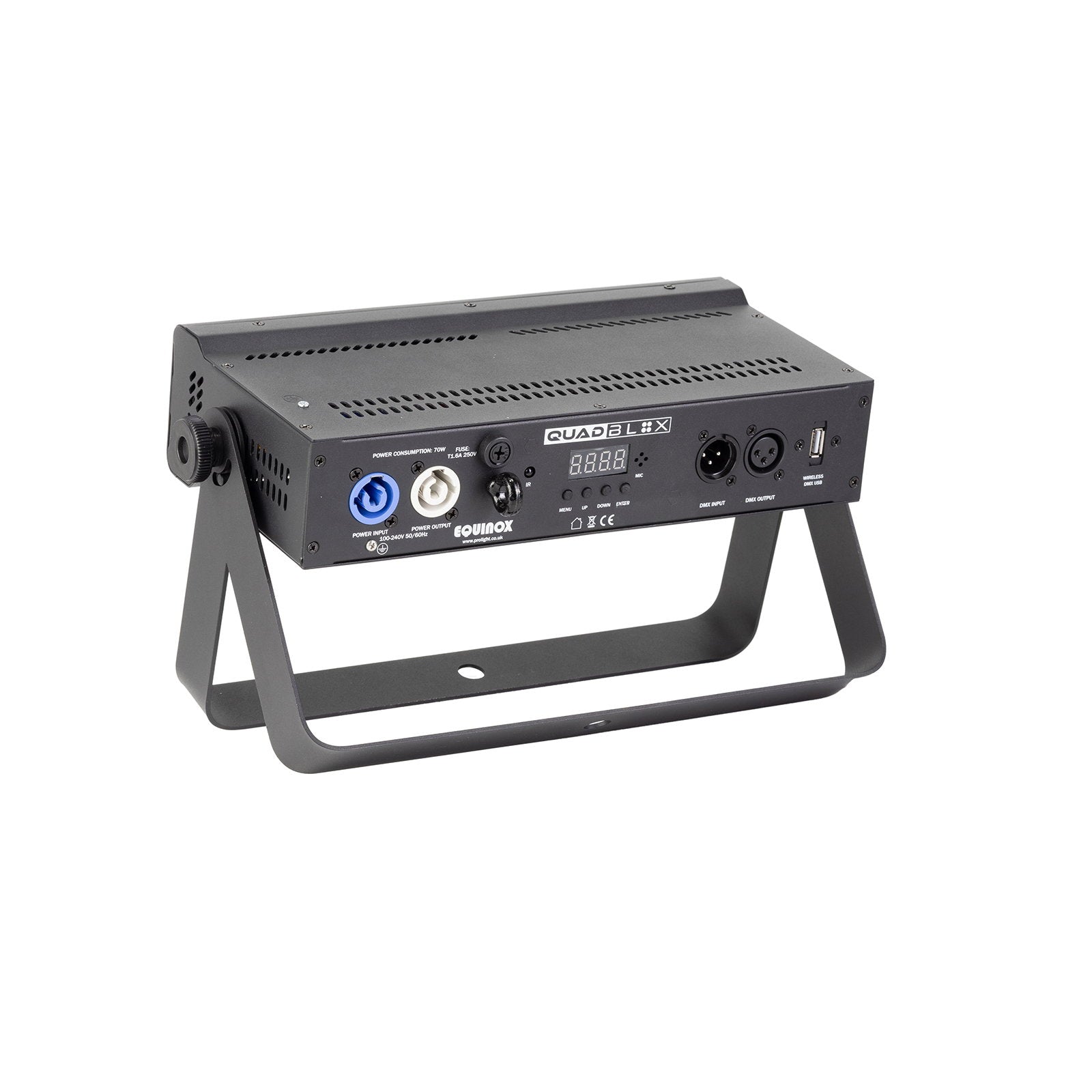

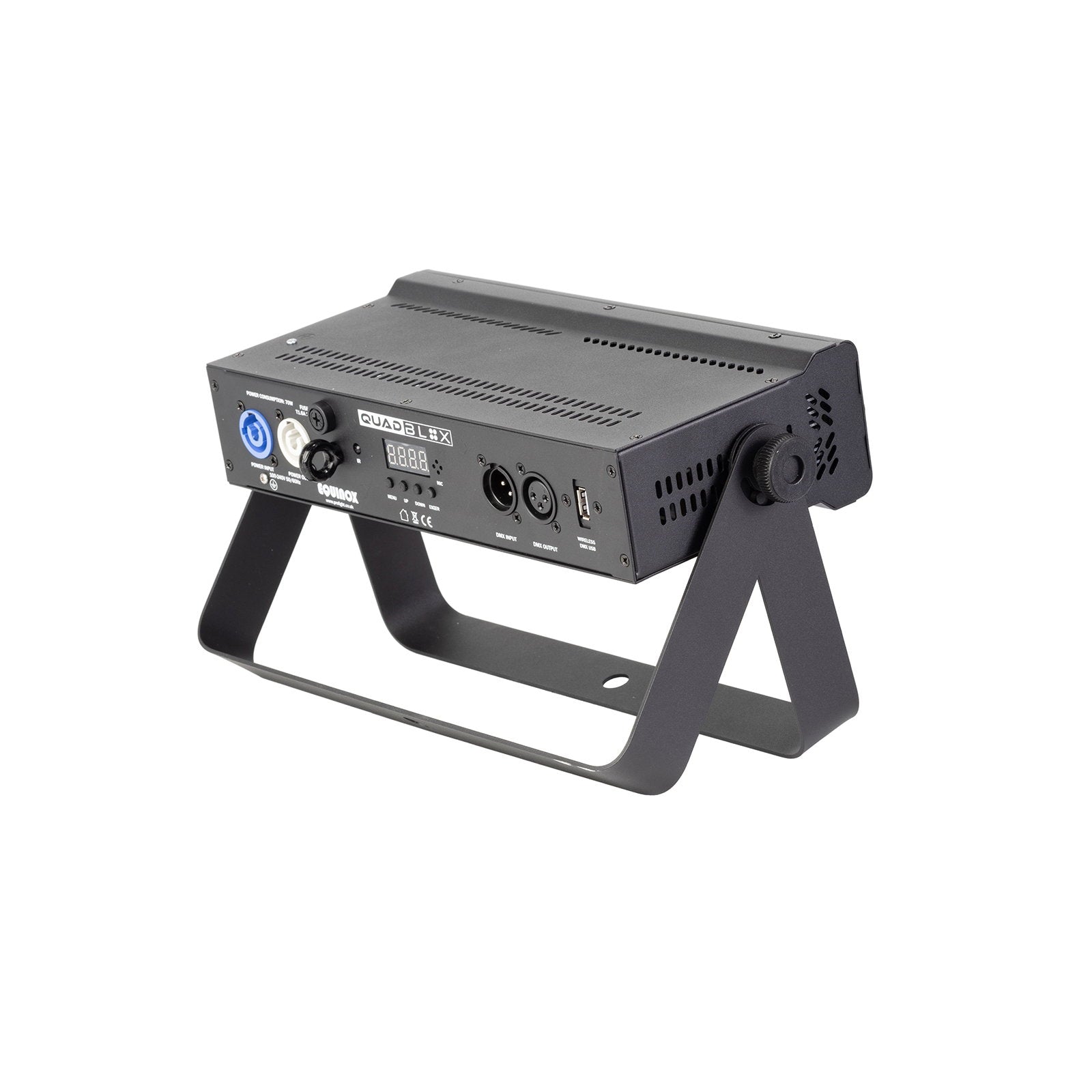

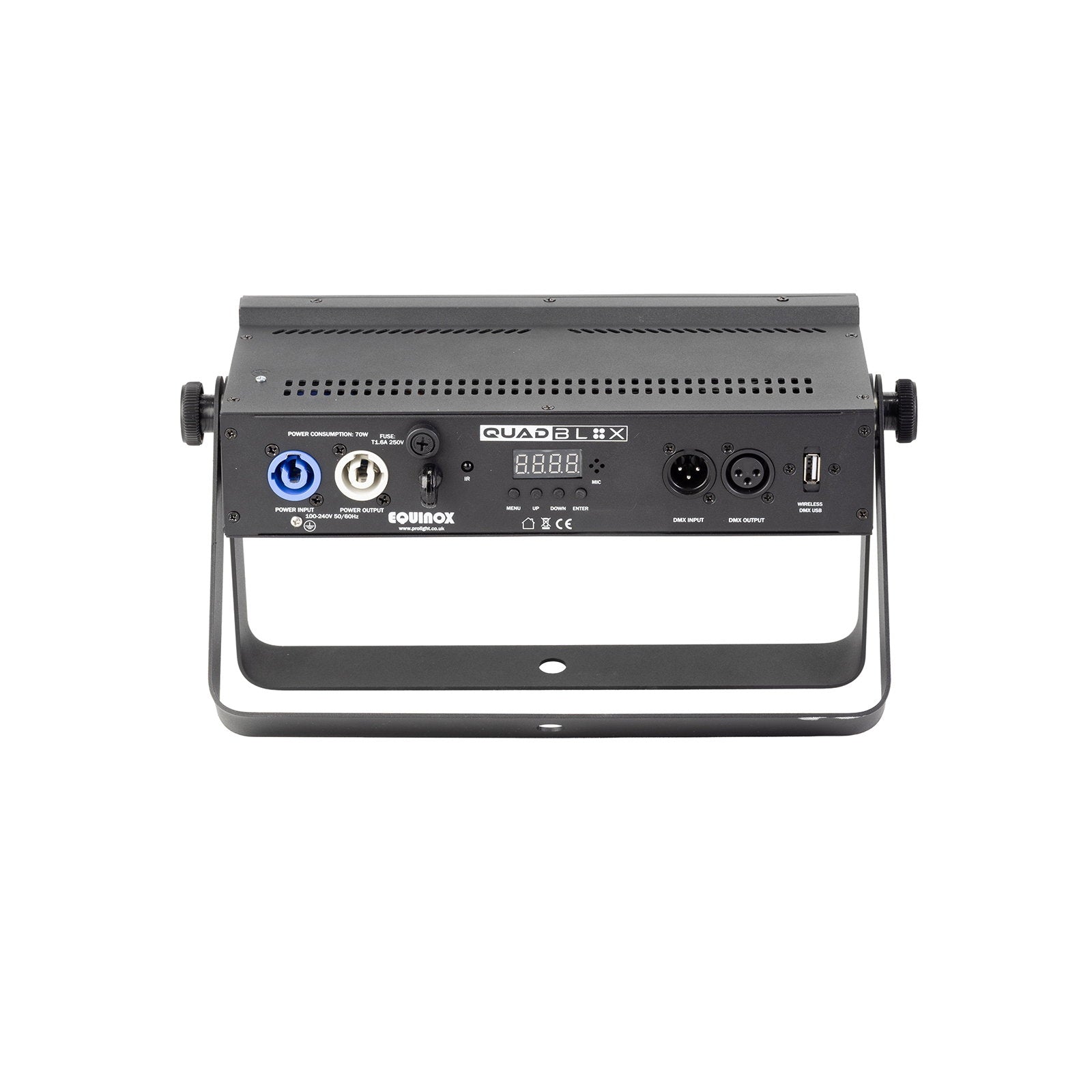

16 x 4W quad-colour LEDs (RGBWW) Beam angle: 20° 1605 Lux @ 2m (full on) 30° frost filter included Pixel zone mapping (4 segment) Refresh rate: 1200Hz Selectable DMX channels: 4/6/9/16/18/20 W DMX USB compatibility for wireless primary/secondary or DMX control Auto static colour sound active manual & primary/secondary modes 0–100% dimming Variable strobe Bracket allows for multiple rigging or floor standing applications 4 button menu with LED display PowerTwist input/output 3-pin XLR input/output Convection cooled Supplied with IR remote
Power consumption: 70W Power supply: 100~240V 50/60Hz Fuse: T1.6A 250V Dimensions: 186.5 x 335 x 171.5mm Weight: 2.6kg
16 x 4W quad-colour LEDs (RGBWW) Beam angle: 20° 1605 Lux @ 2m (full on) 30° frost filter included Pixel zone mapping (4 segment) Refresh rate: 1200Hz Selectable DMX channels: 4/6/9/16/18/20 W DMX USB compatibility for wireless primary/secondary or DMX control Auto static colour sound active manual & primary/secondary modes 0–100% dimming Variable strobe Bracket allows for multiple rigging or floor standing applications 4 button menu with LED display PowerTwist input/output 3-pin XLR input/output Convection cooled Supplied with IR remote
Power consumption: 70W Power supply: 100~240V 50/60Hz Fuse: T1.6A 250V Dimensions: 186.5 x 335 x 171.5mm Weight: 2.6kg
Equinox Quad Blox
Brand: Equinox
SKU: EQLED458
Regular price
£132.99
Pickup available at Venutec
Usually ready in 24 hours
Equinox Quad Blox
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
Packed with sixteen 4W RGBWW LEDs the Equinox Quad Blox delivers bold vibrant colour with seamless blending and a removable frost filter for smooth washes. It features a variety of built-in shows accessible via the onboard menu or an included IR remote facilitating straightforward plug-and-play operation. For advanced users multiple DMX modes provide individual control over each segment and the unit is compatible with W-DMX USB for wireless connectivity. The Quad Blox comes equipped with a dual bracket allowing for flexible rigging or floor-standing setups.
16 x 4W quad-colour LEDs (RGBWW) Beam angle: 20° 1605 Lux @ 2m (full on) 30° frost filter included Pixel zone mapping (4 segment) Refresh rate: 1200Hz Selectable DMX channels: 4/6/9/16/18/20 W DMX USB compatibility for wireless primary/secondary or DMX control Auto static colour sound active manual & primary/secondary modes 0–100% dimming Variable strobe Bracket allows for multiple rigging or floor standing applications 4 button menu with LED display PowerTwist input/output 3-pin XLR input/output Convection cooled Supplied with IR remote
Power consumption: 70W Power supply: 100~240V 50/60Hz Fuse: T1.6A 250V Dimensions: 186.5 x 335 x 171.5mm Weight: 2.6kg
16 x 4W quad-colour LEDs (RGBWW) Beam angle: 20° 1605 Lux @ 2m (full on) 30° frost filter included Pixel zone mapping (4 segment) Refresh rate: 1200Hz Selectable DMX channels: 4/6/9/16/18/20 W DMX USB compatibility for wireless primary/secondary or DMX control Auto static colour sound active manual & primary/secondary modes 0–100% dimming Variable strobe Bracket allows for multiple rigging or floor standing applications 4 button menu with LED display PowerTwist input/output 3-pin XLR input/output Convection cooled Supplied with IR remote
Power consumption: 70W Power supply: 100~240V 50/60Hz Fuse: T1.6A 250V Dimensions: 186.5 x 335 x 171.5mm Weight: 2.6kg
