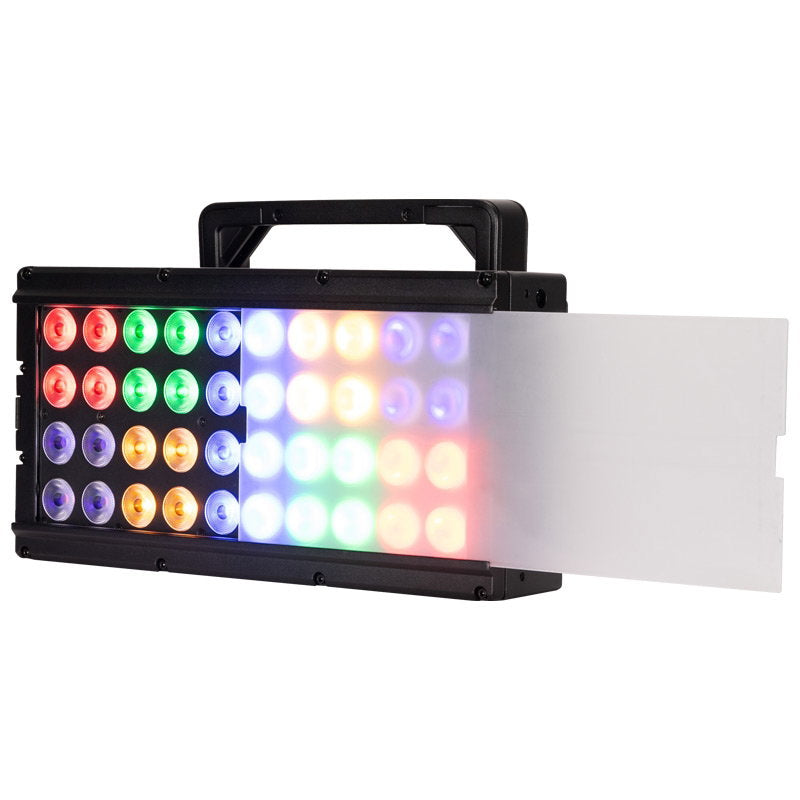

The ADJ 40 HEX Panel IP is a versatile IP65-rated fixture designed for both indoor and outdoor use as a wash light blinder or colour strobe. It is equipped with 40 × 20W HEX LEDs (6-in-1: RGBAL+UV) and features 10 independently controllable sections with Pixel Zone Control. Its durable all-metal black housing is IP65-rated offering protection against dust sand moisture and liquids. A magnetic removable filter frame allows for the addition of a diffusion filter to adjust the beam angle.

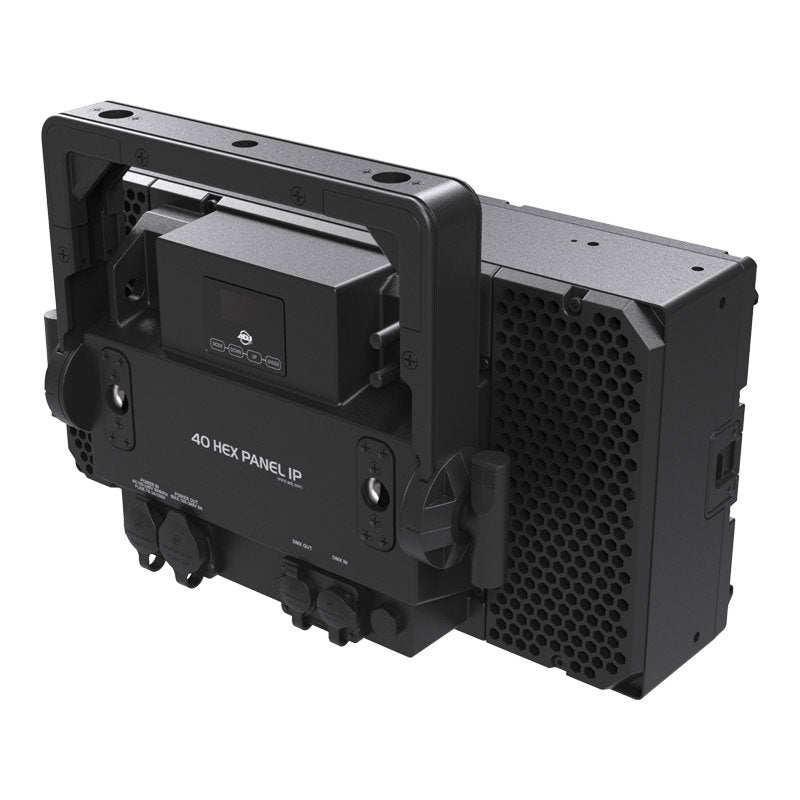

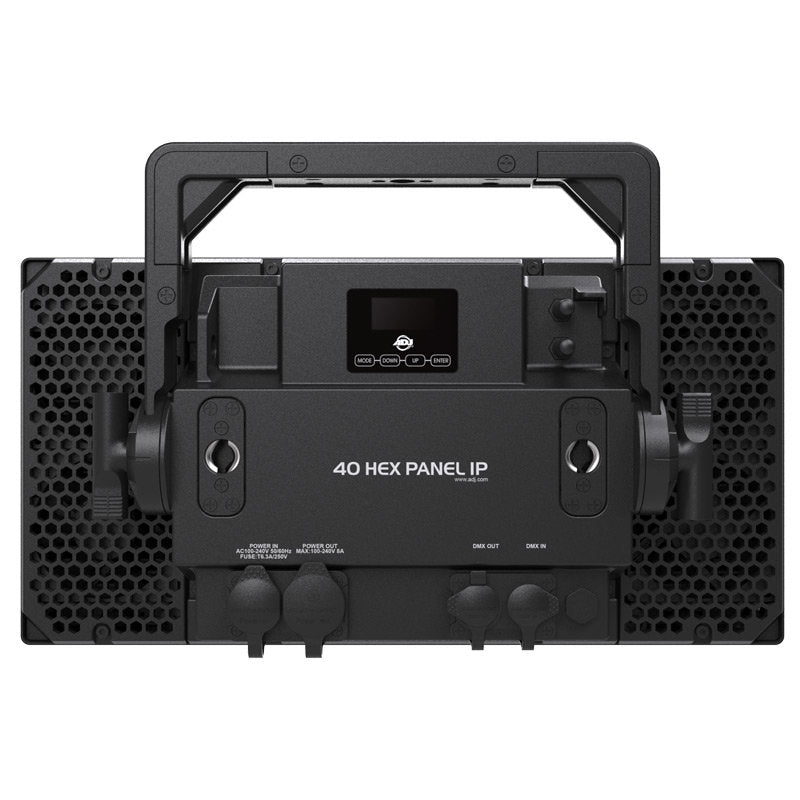

The rear panel includes IP65-rated 5-pin DMX In/Out and power locking In/Out connections enabling seamless daisy chaining of power and data. Both the DMX and power ports are shielded with rubber protective covers. An intuitive OLED display with touch-sensitive buttons provides easy access to the fixture’s functions.
Perfect for film and broadcast use the 40 HEX Panel IP is flicker-free and offers multiple DMX control modes dimming options and LED refresh rate settings. The built-in Aria X2 wireless management system allows over-the-air firmware and software updates.
Light Source:
LED: 40x 20W HEX (6-In-1) RGBAL+UV LEDs (50000 hr.) Beam Angle: X = 28.61° Y = 23.72° Field Angle: X = 50.82° Y = 44.95° Lumens: 19590Features:
IP65 rated - protects from dust sand moisture water Aria X2 Management System All-metal construction with black housing Includes heavy-duty bracket Flicker free for film and broadcast Linear variable white temperature controlConstruction:
Display: OLED display with function buttons All-metal heavy-duty housing built to last in outdoor or touring applicationsControl:
24 DMX Control Modes; 6ch 1G / 12Ch 1G / 15Ch 1G / 16Ch 1G / 20Ch 1G / 24Ch 1G / 12Ch 2G / 20Ch 2G / 24Ch 2G / 27Ch 2G / 29Ch 2G / 36Ch 2G / 30Ch 5G / 40Ch 5G / 60Ch 5G / 63Ch 5G / 68Ch 5G / 72Ch 5G / 60Ch 10G / 70Ch 10G / 120Ch 10G / 123Ch 10G / 128Ch 10G & 132Ch 10G modes 4 Control Groups: 1 / 2 / 5 & 10 Groups 0-100% Dimming + smooth 16-bit Dimming 5 Dimming Curve Modes Control Mode: DMX512 RDM (Remote Device Management) LED Refresh Rate: Multiple settings With Wired Digital Communication NetworkConnections:
Data: IP65 Locking 5-pin DMX In/Out Power: IP65 Locking Power In/OutElectrical:
100-240V 50Hz/60Hz (Auto Sensing) Max Power Consumption: 492W @220V Max Power Link: 4pcs @230V Fuse Protected: T4A/250V Glass Fuse (5x20MM)Dimensions / Weight:
Dimensions (LxWxH): 417x296.8x212mm Weight: 11.15 kgWhat's Included:
1 x IP65 Locking Power Cable 1 x Frost Filter 1 x Safety CableOptional Accessories:
180mm Omega Bracket JPFXBLKF (Black Filter for Jolt Panel FX2 and Jolt Panel FXIP) JPFX1X60LF (1x60° Linear Effect Filter for Jolt Panel FX2 and Jolt Panel FXIP) JPFX60X1LF (60x1° Linear Effect Filter for Jolt Panel FX2 and Jolt Panel FXIP)Approvals and Ratings:
IP65Specifications are subject to change without notice.
Manufacturer Part Number: 1226100438
ADJ 40 Hex IP Panel
Brand: ADJ
SKU: ADJ1226100438
Regular price
£1,205.99
Pickup available at Venutec
Usually ready in 24 hours
ADJ 40 Hex IP Panel
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
The ADJ 40 HEX Panel IP is a versatile IP65-rated fixture designed for both indoor and outdoor use as a wash light blinder or colour strobe. It is equipped with 40 × 20W HEX LEDs (6-in-1: RGBAL+UV) and features 10 independently controllable sections with Pixel Zone Control. Its durable all-metal black housing is IP65-rated offering protection against dust sand moisture and liquids. A magnetic removable filter frame allows for the addition of a diffusion filter to adjust the beam angle.
The rear panel includes IP65-rated 5-pin DMX In/Out and power locking In/Out connections enabling seamless daisy chaining of power and data. Both the DMX and power ports are shielded with rubber protective covers. An intuitive OLED display with touch-sensitive buttons provides easy access to the fixture’s functions.
Perfect for film and broadcast use the 40 HEX Panel IP is flicker-free and offers multiple DMX control modes dimming options and LED refresh rate settings. The built-in Aria X2 wireless management system allows over-the-air firmware and software updates.
Light Source:
LED: 40x 20W HEX (6-In-1) RGBAL+UV LEDs (50000 hr.) Beam Angle: X = 28.61° Y = 23.72° Field Angle: X = 50.82° Y = 44.95° Lumens: 19590Features:
IP65 rated - protects from dust sand moisture water Aria X2 Management System All-metal construction with black housing Includes heavy-duty bracket Flicker free for film and broadcast Linear variable white temperature controlConstruction:
Display: OLED display with function buttons All-metal heavy-duty housing built to last in outdoor or touring applicationsControl:
24 DMX Control Modes; 6ch 1G / 12Ch 1G / 15Ch 1G / 16Ch 1G / 20Ch 1G / 24Ch 1G / 12Ch 2G / 20Ch 2G / 24Ch 2G / 27Ch 2G / 29Ch 2G / 36Ch 2G / 30Ch 5G / 40Ch 5G / 60Ch 5G / 63Ch 5G / 68Ch 5G / 72Ch 5G / 60Ch 10G / 70Ch 10G / 120Ch 10G / 123Ch 10G / 128Ch 10G & 132Ch 10G modes 4 Control Groups: 1 / 2 / 5 & 10 Groups 0-100% Dimming + smooth 16-bit Dimming 5 Dimming Curve Modes Control Mode: DMX512 RDM (Remote Device Management) LED Refresh Rate: Multiple settings With Wired Digital Communication NetworkConnections:
Data: IP65 Locking 5-pin DMX In/Out Power: IP65 Locking Power In/OutElectrical:
100-240V 50Hz/60Hz (Auto Sensing) Max Power Consumption: 492W @220V Max Power Link: 4pcs @230V Fuse Protected: T4A/250V Glass Fuse (5x20MM)Dimensions / Weight:
Dimensions (LxWxH): 417x296.8x212mm Weight: 11.15 kgWhat's Included:
1 x IP65 Locking Power Cable 1 x Frost Filter 1 x Safety CableOptional Accessories:
180mm Omega Bracket JPFXBLKF (Black Filter for Jolt Panel FX2 and Jolt Panel FXIP) JPFX1X60LF (1x60° Linear Effect Filter for Jolt Panel FX2 and Jolt Panel FXIP) JPFX60X1LF (60x1° Linear Effect Filter for Jolt Panel FX2 and Jolt Panel FXIP)Approvals and Ratings:
IP65Specifications are subject to change without notice.
Manufacturer Part Number: 1226100438
