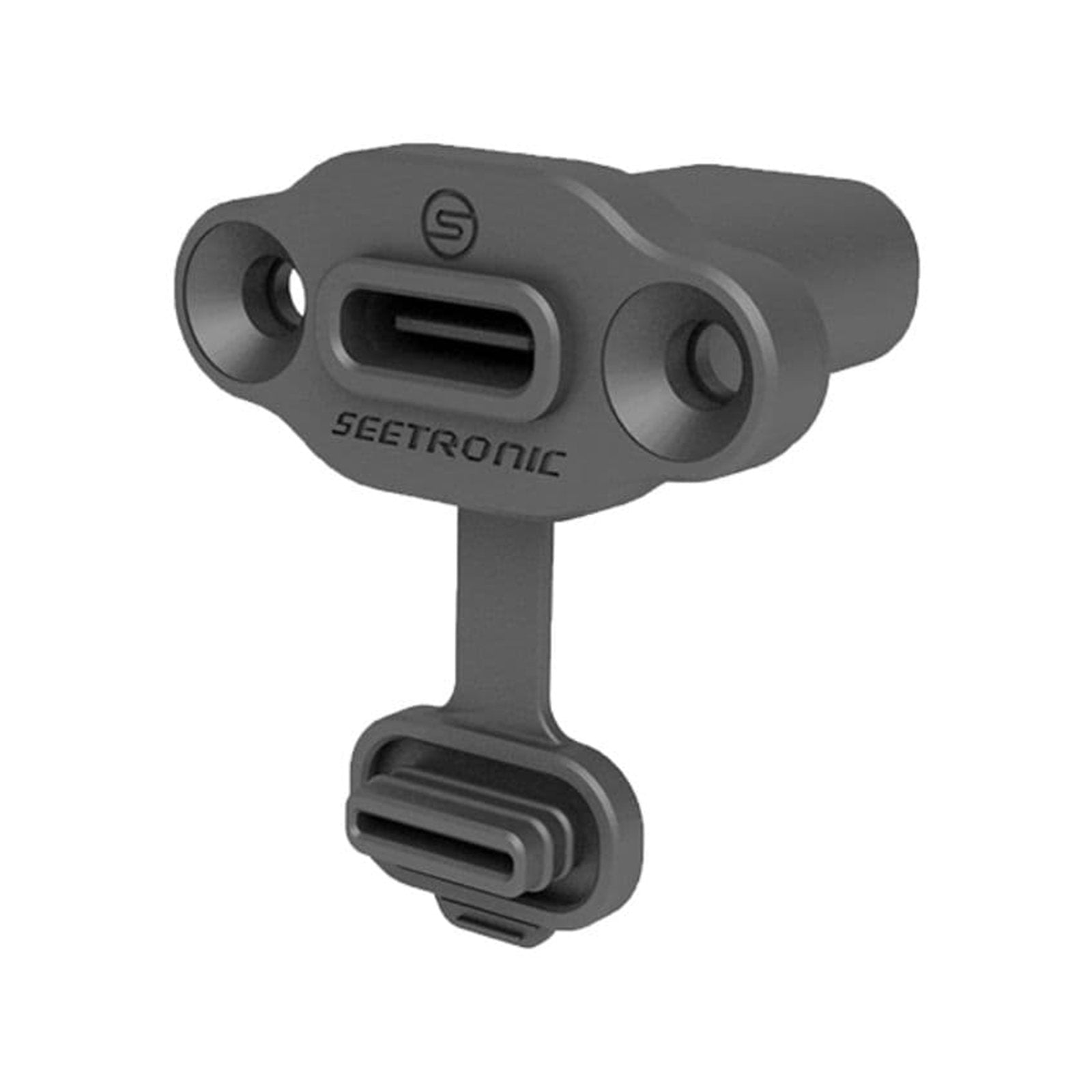

The Seetronic SCCMCDF-01 is a robust IP65-rated USB-C female-to-female panel-mount socket designed for professional AV industrial and outdoor installations. Featuring dual 24-pin full core ports 5A current rating and USB 3.1 compliance it ensures high-speed data transfer fast charging and long-term durability.
USB-C female-to-female socket with dual 24-pin full core ports IP65 waterproof and airproof rated Supports 5A current for fast charging and reliable power delivery Compact durable design for professional installations Compliant with USB 3.1 standard for high-speed data transfer Rated for >10000 mating cycles
Connection Type: USB-C Socket Gender: Female Contacts: 24 Rated Contact Current: 5A Contact Resistance: ≤ 50 mΩ Service Life: >10000 mating cycles Contact Material: Copper alloy Contact Plating: Gold (Au) Housing Material: Polyamide (PA) UL 94-V0 Temperature Range: -40°C to +80°C Standards: USB 3.1 compliant Ingress Protection: IP65 (when properly installed)
USB-C female-to-female socket with dual 24-pin full core ports IP65 waterproof and airproof rated Supports 5A current for fast charging and reliable power delivery Compact durable design for professional installations Compliant with USB 3.1 standard for high-speed data transfer Rated for >10000 mating cycles
Connection Type: USB-C Socket Gender: Female Contacts: 24 Rated Contact Current: 5A Contact Resistance: ≤ 50 mΩ Service Life: >10000 mating cycles Contact Material: Copper alloy Contact Plating: Gold (Au) Housing Material: Polyamide (PA) UL 94-V0 Temperature Range: -40°C to +80°C Standards: USB 3.1 compliant Ingress Protection: IP65 (when properly installed)
Seetronic USB 3.0 Type-C Feedthrough IP65 SCCMCDF-01
Brand: Seetronic
SKU: CONN1463
Regular price
£5.99
Pickup available at Venutec
Usually ready in 24 hours
Seetronic USB 3.0 Type-C Feedthrough IP65 SCCMCDF-01
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
The Seetronic SCCMCDF-01 is a robust IP65-rated USB-C female-to-female panel-mount socket designed for professional AV industrial and outdoor installations. Featuring dual 24-pin full core ports 5A current rating and USB 3.1 compliance it ensures high-speed data transfer fast charging and long-term durability.
USB-C female-to-female socket with dual 24-pin full core ports IP65 waterproof and airproof rated Supports 5A current for fast charging and reliable power delivery Compact durable design for professional installations Compliant with USB 3.1 standard for high-speed data transfer Rated for >10000 mating cycles
Connection Type: USB-C Socket Gender: Female Contacts: 24 Rated Contact Current: 5A Contact Resistance: ≤ 50 mΩ Service Life: >10000 mating cycles Contact Material: Copper alloy Contact Plating: Gold (Au) Housing Material: Polyamide (PA) UL 94-V0 Temperature Range: -40°C to +80°C Standards: USB 3.1 compliant Ingress Protection: IP65 (when properly installed)
USB-C female-to-female socket with dual 24-pin full core ports IP65 waterproof and airproof rated Supports 5A current for fast charging and reliable power delivery Compact durable design for professional installations Compliant with USB 3.1 standard for high-speed data transfer Rated for >10000 mating cycles
Connection Type: USB-C Socket Gender: Female Contacts: 24 Rated Contact Current: 5A Contact Resistance: ≤ 50 mΩ Service Life: >10000 mating cycles Contact Material: Copper alloy Contact Plating: Gold (Au) Housing Material: Polyamide (PA) UL 94-V0 Temperature Range: -40°C to +80°C Standards: USB 3.1 compliant Ingress Protection: IP65 (when properly installed)
