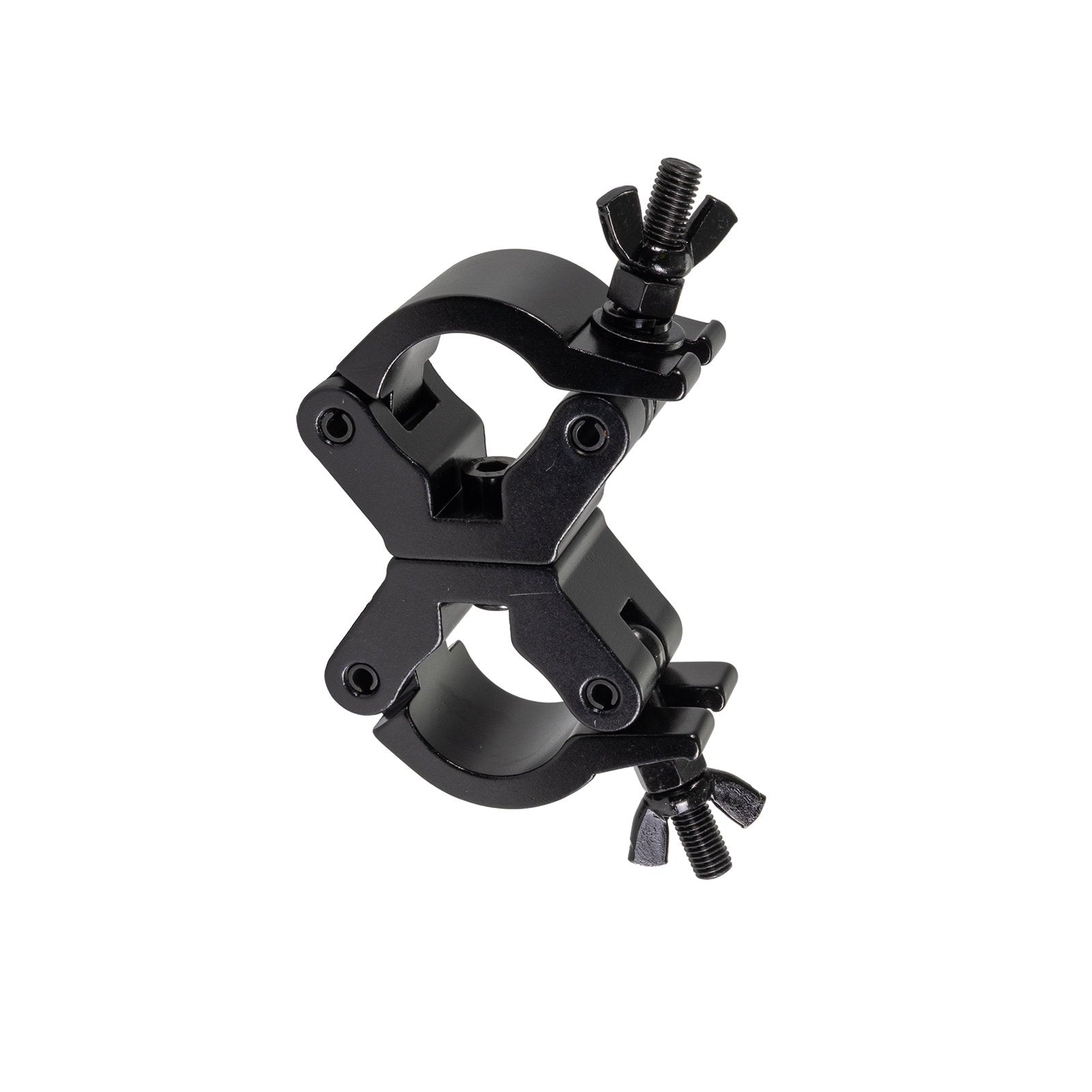

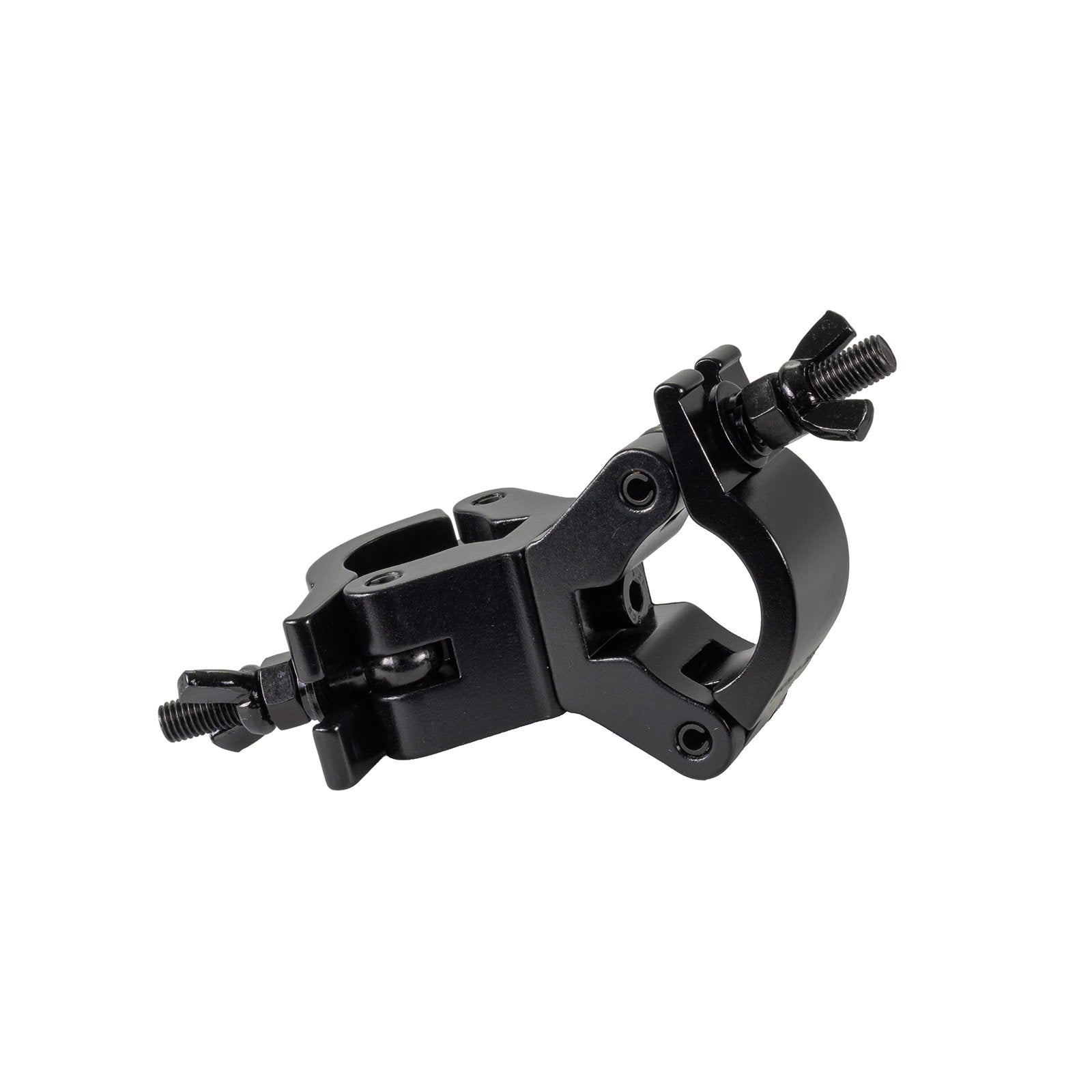

With a width of 50mm the Global Truss 8223-B Stage Black Swivel Coupler is ideal for applications requiring increased load capacity and is compatible with tubes measuring 48–51mm in diameter. The coupler offers a load capacity of 750kg while ensuring maximum freedom of movement thanks to its swivelling connection.
For tubes 48–51mm in diameter WLL: 750kg Width: 50mm Black anodised finish M12 wing-nut clasp 6061-T6 aluminium construction
Material: Aluminium 6061-T6 Conforms to: DIN EN 13814:2004 Dimensions (L×W×H): 210 × 120 × 50mm Weight: 1.2kg
Global Truss Swivel Coupler Stage Black 48-51/50Ø 750Kg (8223-B)
Brand: Global Truss
SKU: GL3071
Pickup available at Venutec
Usually ready in 24 hours
Global Truss Swivel Coupler Stage Black 48-51/50Ø 750Kg (8223-B)
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
With a width of 50mm the Global Truss 8223-B Stage Black Swivel Coupler is ideal for applications requiring increased load capacity and is compatible with tubes measuring 48–51mm in diameter. The coupler offers a load capacity of 750kg while ensuring maximum freedom of movement thanks to its swivelling connection.
For tubes 48–51mm in diameter WLL: 750kg Width: 50mm Black anodised finish M12 wing-nut clasp 6061-T6 aluminium construction
Material: Aluminium 6061-T6 Conforms to: DIN EN 13814:2004 Dimensions (L×W×H): 210 × 120 × 50mm Weight: 1.2kg
