These cables are intended for use in the wiring of switch control metering relay and instrument panels of power distribution switchgear and internal connections. They are intended for use at alternating voltages not exceeding 600V to earth and direct voltages not exceeding 1000V to earth. When installed in the equipment they are suitable for wiring circuits for which the prescribed alternating test voltage does not exceed 4kV RMS for 1 minute. By being approved to three international standards Tri-Rated cable is suitable for equipment installations required to meet both North American and European wiring regulations and codes of practice.
Made in Britain Manufactured to: BS 6231 Type CK Underwriters Laboratory Listed This cable is recognised by CSA and UL as resistant to oil at temperatures up to 60° Spread of Flame: Tested to BS EN 60332-1-2 VW-1 and FT-1 Temperature range: UL and CSA recognised as heat resisting with a maximum conductor operating temperature of 105°C. BS6231 specifies a maximum operating temperature of 90°C for continuous use - Annex A of BS6231 explains how under certain conditions these cables can operate at up to 105°C
Cross section: 2.5mm² Max. current rating open air: 30A Nominal stranding of conductor: 50/0.25mm Nominal overall diameter: 3.7mmØ Weight per m: 0.033kg
Made in Britain Manufactured to: BS 6231 Type CK Underwriters Laboratory Listed This cable is recognised by CSA and UL as resistant to oil at temperatures up to 60° Spread of Flame: Tested to BS EN 60332-1-2 VW-1 and FT-1 Temperature range: UL and CSA recognised as heat resisting with a maximum conductor operating temperature of 105°C. BS6231 specifies a maximum operating temperature of 90°C for continuous use - Annex A of BS6231 explains how under certain conditions these cables can operate at up to 105°C
Cross section: 2.5mm² Max. current rating open air: 30A Nominal stranding of conductor: 50/0.25mm Nominal overall diameter: 3.7mmØ Weight per m: 0.033kg

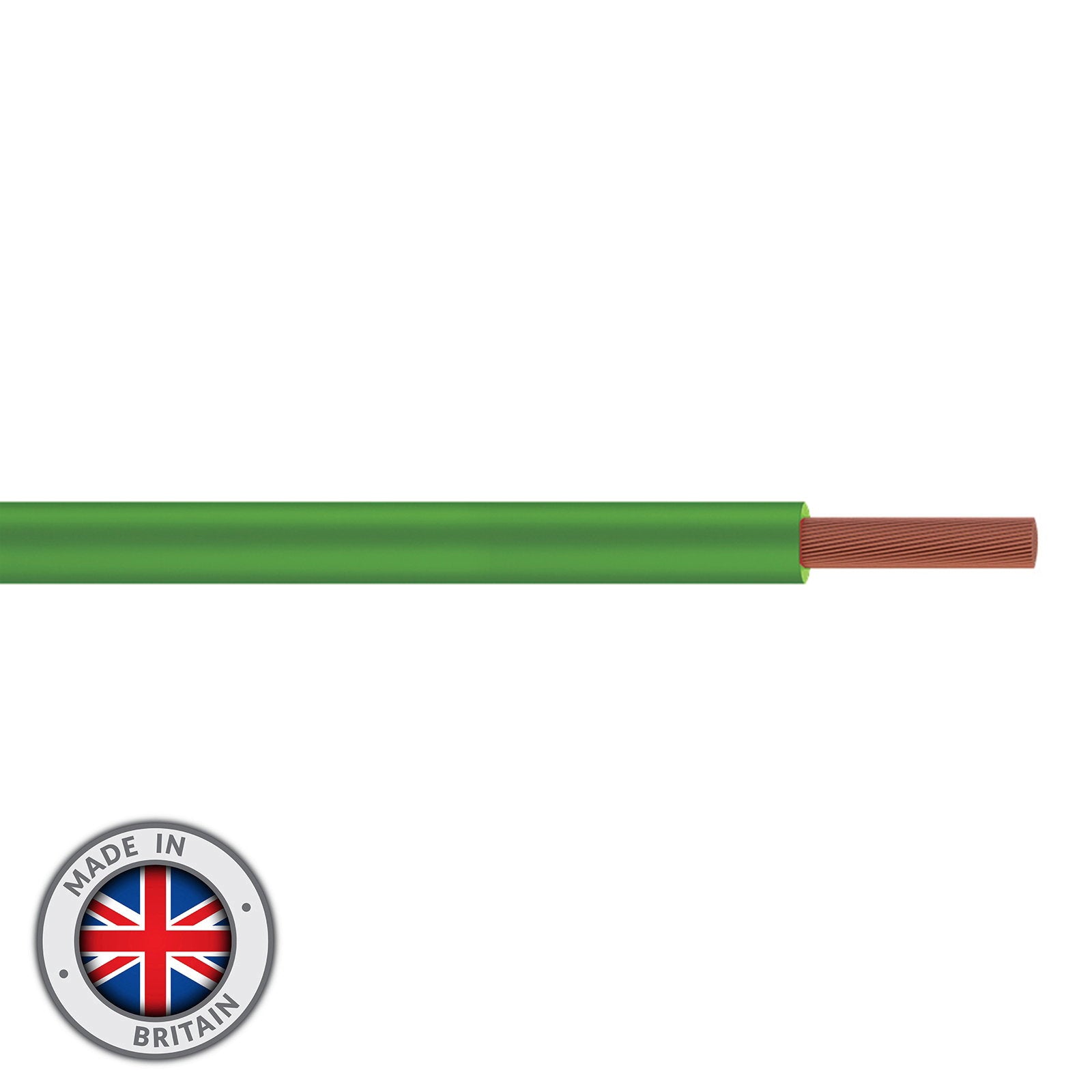

Elumen8 Tri-Rated Switchgear Wire 2.5mm 100m Green
Brand: Elumen8
SKU: CABL1917
Regular price
£64.99
Pickup available at Venutec
Usually ready in 24 hours
Elumen8 Tri-Rated Switchgear Wire 2.5mm 100m Green
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
These cables are intended for use in the wiring of switch control metering relay and instrument panels of power distribution switchgear and internal connections. They are intended for use at alternating voltages not exceeding 600V to earth and direct voltages not exceeding 1000V to earth. When installed in the equipment they are suitable for wiring circuits for which the prescribed alternating test voltage does not exceed 4kV RMS for 1 minute. By being approved to three international standards Tri-Rated cable is suitable for equipment installations required to meet both North American and European wiring regulations and codes of practice.
Made in Britain Manufactured to: BS 6231 Type CK Underwriters Laboratory Listed This cable is recognised by CSA and UL as resistant to oil at temperatures up to 60° Spread of Flame: Tested to BS EN 60332-1-2 VW-1 and FT-1 Temperature range: UL and CSA recognised as heat resisting with a maximum conductor operating temperature of 105°C. BS6231 specifies a maximum operating temperature of 90°C for continuous use - Annex A of BS6231 explains how under certain conditions these cables can operate at up to 105°C
Cross section: 2.5mm² Max. current rating open air: 30A Nominal stranding of conductor: 50/0.25mm Nominal overall diameter: 3.7mmØ Weight per m: 0.033kg
Made in Britain Manufactured to: BS 6231 Type CK Underwriters Laboratory Listed This cable is recognised by CSA and UL as resistant to oil at temperatures up to 60° Spread of Flame: Tested to BS EN 60332-1-2 VW-1 and FT-1 Temperature range: UL and CSA recognised as heat resisting with a maximum conductor operating temperature of 105°C. BS6231 specifies a maximum operating temperature of 90°C for continuous use - Annex A of BS6231 explains how under certain conditions these cables can operate at up to 105°C
Cross section: 2.5mm² Max. current rating open air: 30A Nominal stranding of conductor: 50/0.25mm Nominal overall diameter: 3.7mmØ Weight per m: 0.033kg
