4 pole speakON connector screw terminal assembly chuck type strain relief for cable diameters 6 to 12mm. Neutrik speakON connectors are the industry-standard for loudspeaker connections. This product series offers extremely reliable and robust cable connectors with a proven twist lock system. speakON cable connectors feature solid contacts with screw-type terminals including a stranded wire protection.
Manufacturers part code: NL4FXX-W-S Mates with 4-Pole chassis connectors Ergonomic design with slip-proof two-component moulded housing Up to 37A rms current rating Unique Neutrik locking bushing and strain relief for cable diameters 6mm to 12mm IEC 61984 certified thus accepted as a component of equipment acc. to IEC 62368-1 Superior NEUTRIK quality standard extremely robust and reliable Easy and reliable twist lock system Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing Improved kink protection by two-component bushing
IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1 Contact resistance: ≤2mΩs Dielectric strength: > 2.8 kVac (after mating cycles) Insulation resistance: > 10GΩs (initially) Cable O.D: 6-12mm Wire size (mm²): 1.5-4 mm² Temperature range: -33 °C to +80 °C Protection class: IP20
Manufacturers part code: NL4FXX-W-S Mates with 4-Pole chassis connectors Ergonomic design with slip-proof two-component moulded housing Up to 37A rms current rating Unique Neutrik locking bushing and strain relief for cable diameters 6mm to 12mm IEC 61984 certified thus accepted as a component of equipment acc. to IEC 62368-1 Superior NEUTRIK quality standard extremely robust and reliable Easy and reliable twist lock system Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing Improved kink protection by two-component bushing
IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1 Contact resistance: ≤2mΩs Dielectric strength: > 2.8 kVac (after mating cycles) Insulation resistance: > 10GΩs (initially) Cable O.D: 6-12mm Wire size (mm²): 1.5-4 mm² Temperature range: -33 °C to +80 °C Protection class: IP20

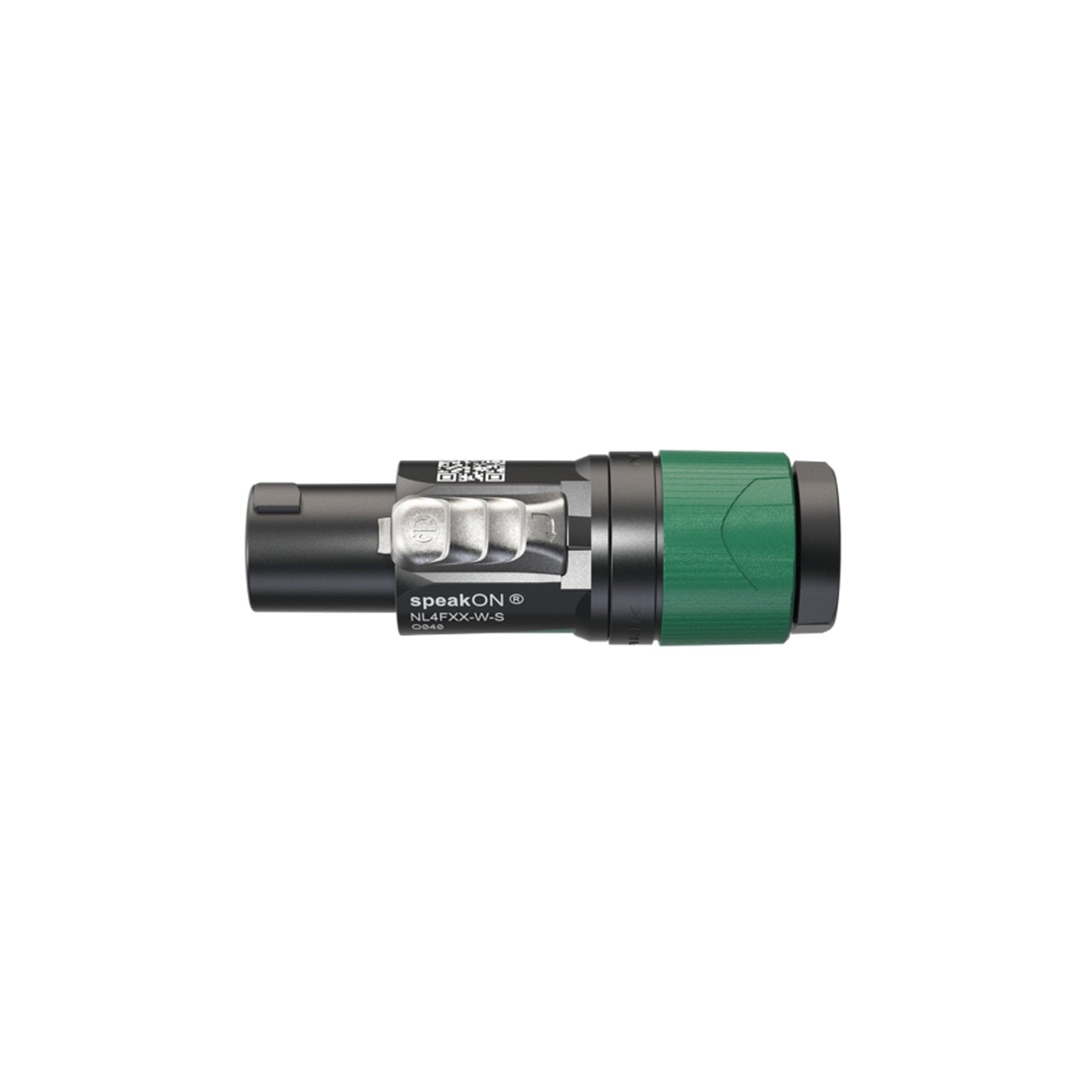

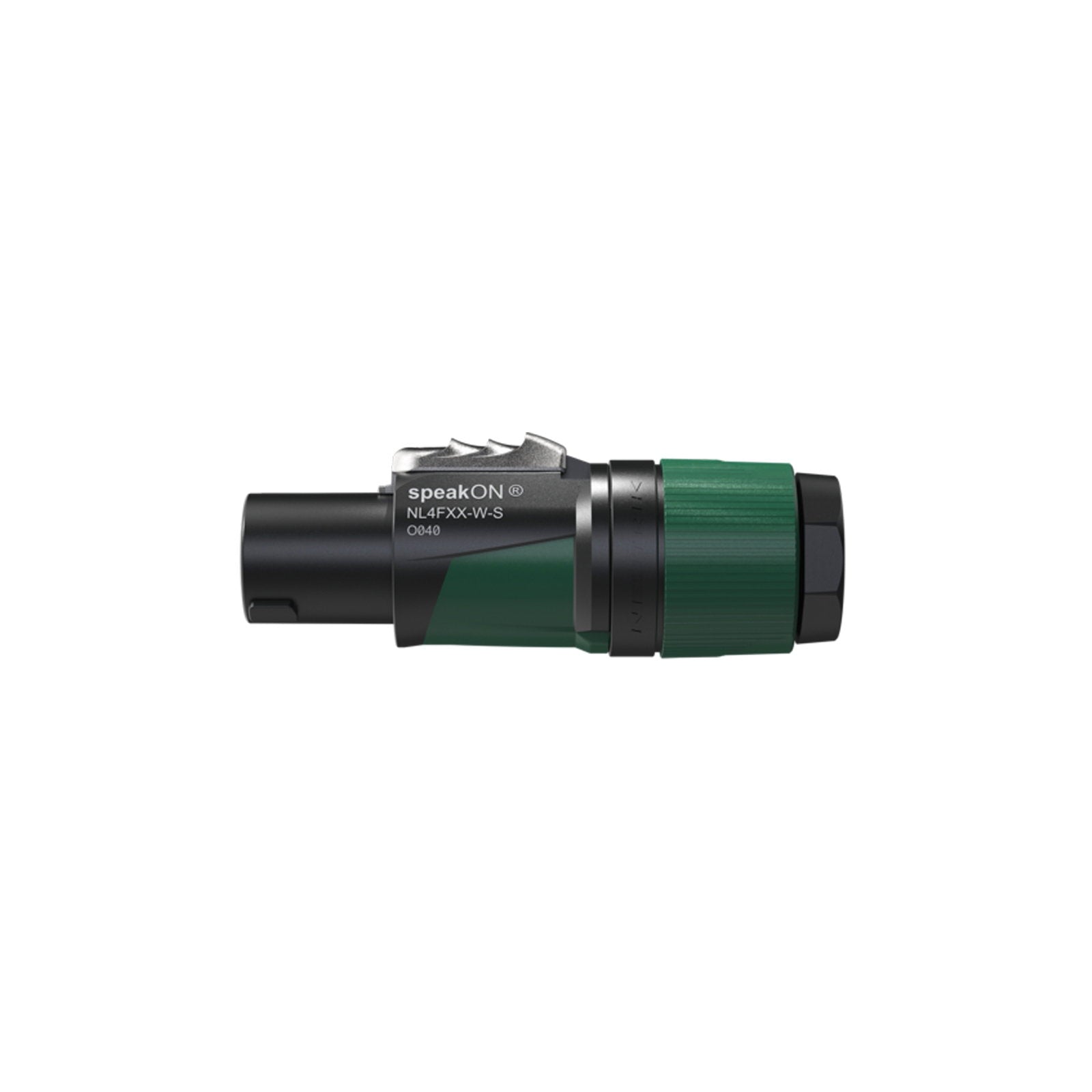

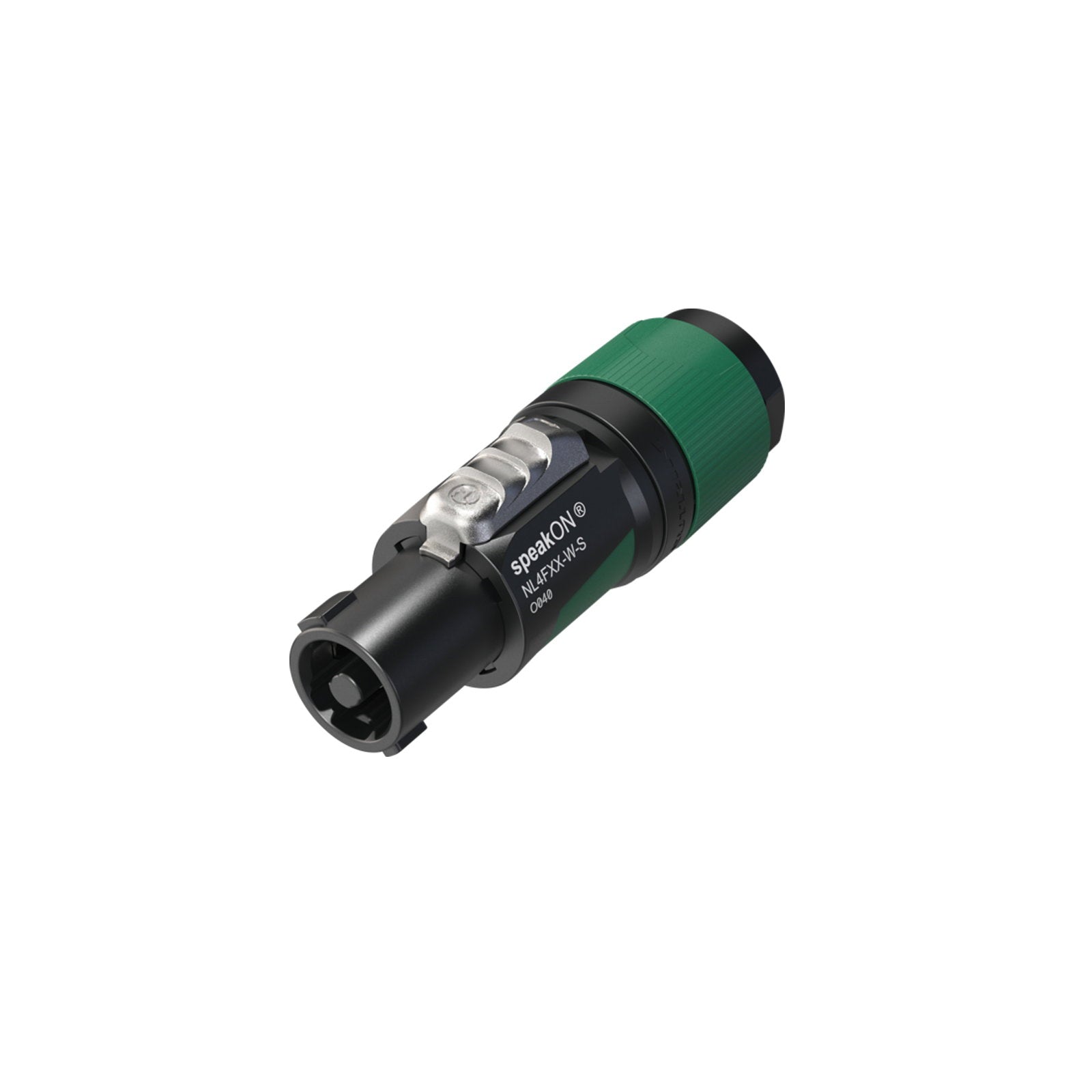

Neutrik speakON Cable Connector NL4FXX-W-S
Brand: Neutrik
SKU: CONN1241
Regular price
£7.99
Pickup available at Venutec
Usually ready in 24 hours
Neutrik speakON Cable Connector NL4FXX-W-S
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
4 pole speakON connector screw terminal assembly chuck type strain relief for cable diameters 6 to 12mm. Neutrik speakON connectors are the industry-standard for loudspeaker connections. This product series offers extremely reliable and robust cable connectors with a proven twist lock system. speakON cable connectors feature solid contacts with screw-type terminals including a stranded wire protection.
Manufacturers part code: NL4FXX-W-S Mates with 4-Pole chassis connectors Ergonomic design with slip-proof two-component moulded housing Up to 37A rms current rating Unique Neutrik locking bushing and strain relief for cable diameters 6mm to 12mm IEC 61984 certified thus accepted as a component of equipment acc. to IEC 62368-1 Superior NEUTRIK quality standard extremely robust and reliable Easy and reliable twist lock system Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing Improved kink protection by two-component bushing
IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1 Contact resistance: ≤2mΩs Dielectric strength: > 2.8 kVac (after mating cycles) Insulation resistance: > 10GΩs (initially) Cable O.D: 6-12mm Wire size (mm²): 1.5-4 mm² Temperature range: -33 °C to +80 °C Protection class: IP20
Manufacturers part code: NL4FXX-W-S Mates with 4-Pole chassis connectors Ergonomic design with slip-proof two-component moulded housing Up to 37A rms current rating Unique Neutrik locking bushing and strain relief for cable diameters 6mm to 12mm IEC 61984 certified thus accepted as a component of equipment acc. to IEC 62368-1 Superior NEUTRIK quality standard extremely robust and reliable Easy and reliable twist lock system Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing Improved kink protection by two-component bushing
IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1 Contact resistance: ≤2mΩs Dielectric strength: > 2.8 kVac (after mating cycles) Insulation resistance: > 10GΩs (initially) Cable O.D: 6-12mm Wire size (mm²): 1.5-4 mm² Temperature range: -33 °C to +80 °C Protection class: IP20
