The eLumen8 Showsafe range of UL certified Socapex connectors have been manufactured to deliver the highest levels of quality reliability and safety for chain hoist motor control connections. The super robust construction of the multi-pin devices ensures reliable operation for AV professionals. The rugged plug design has been tailored specifically for professional touring and stage lighting applications and all products are fully Socapex compatible. Showsafe 7-Pin plugs are sealed to IP67 protection when mated making them water and dust proof for festivals worldwide. The sand of Benicassim? The mud and rain of Glastonbury? No problem.
Model reference: P7-PM-S-BK-UL Panel/Chassis mount male plug UL approved to UL1977 standard 100% UK manufactured and assembled Amphenol Socapex compatible 7-Pin connectors are all rated at 25A Multi-point gold plated contacts Integral insulation sleeves
IP67 ingress protection when mated Temperature rating: -55°C to +125°C Voltage rating: 600VAC 700VDC max FMLB (first make last break) earth contacts ROHS compliant Dimensions (L x W): 45 x 40mm Weight: 0.11kg
Model reference: P7-PM-S-BK-UL Panel/Chassis mount male plug UL approved to UL1977 standard 100% UK manufactured and assembled Amphenol Socapex compatible 7-Pin connectors are all rated at 25A Multi-point gold plated contacts Integral insulation sleeves
IP67 ingress protection when mated Temperature rating: -55°C to +125°C Voltage rating: 600VAC 700VDC max FMLB (first make last break) earth contacts ROHS compliant Dimensions (L x W): 45 x 40mm Weight: 0.11kg

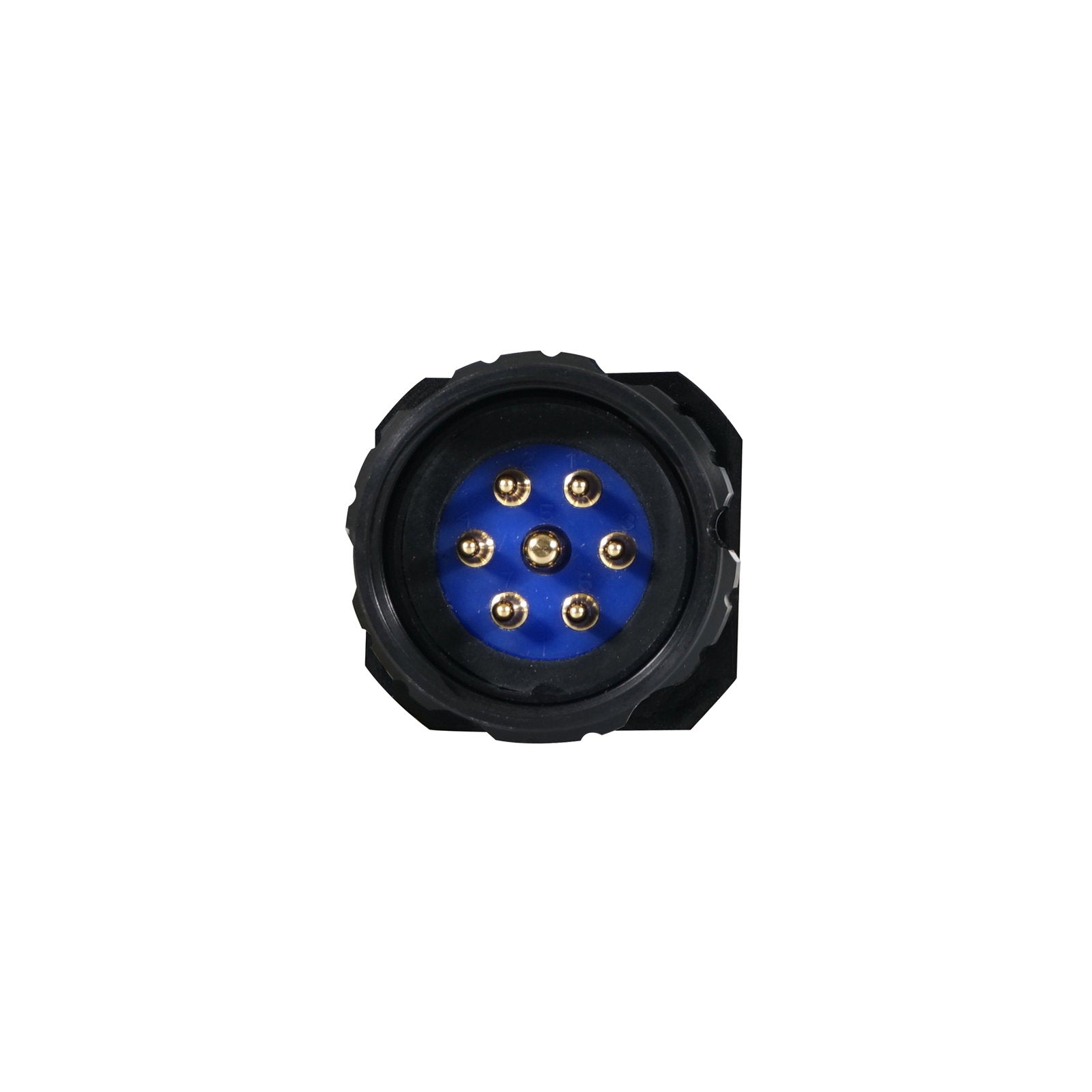

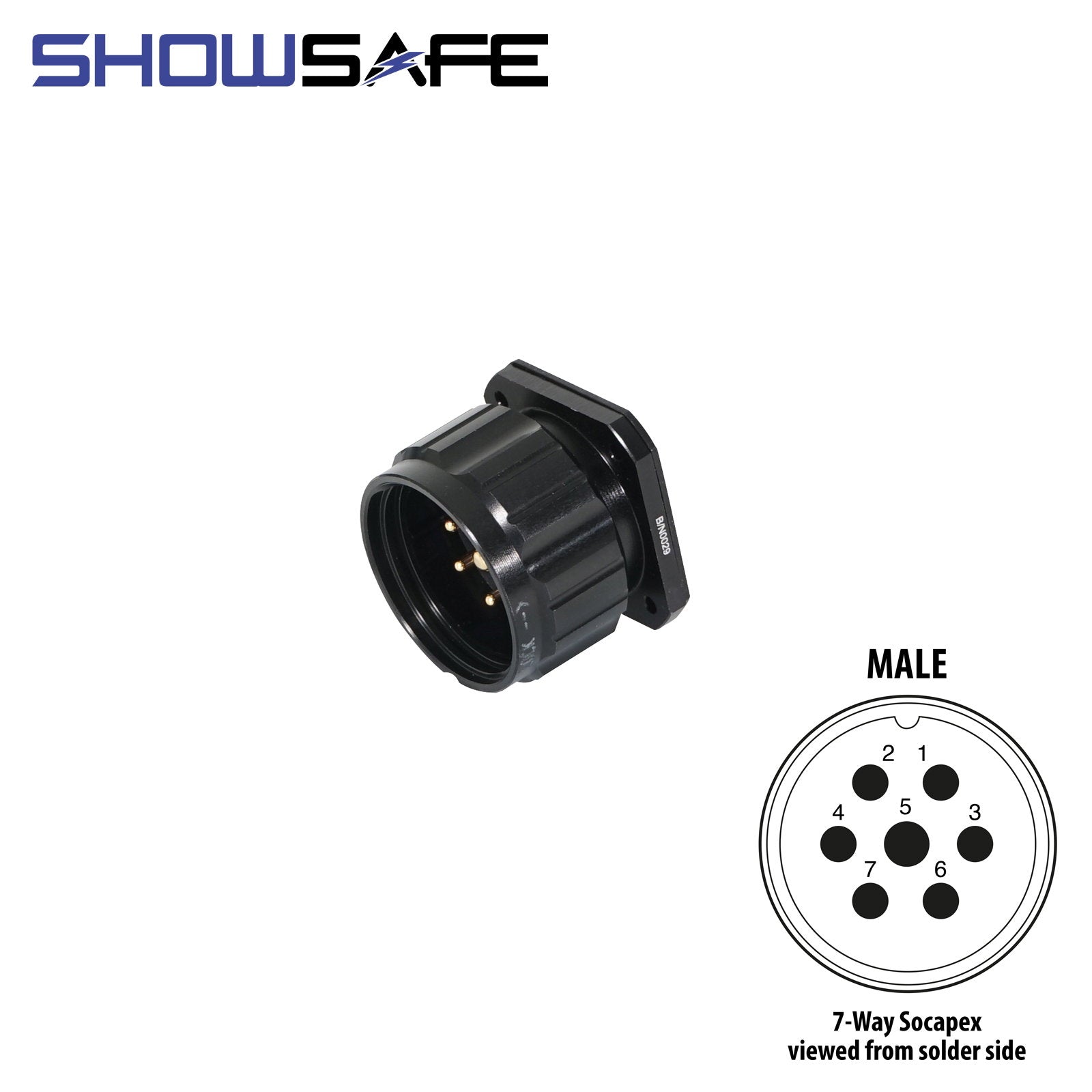

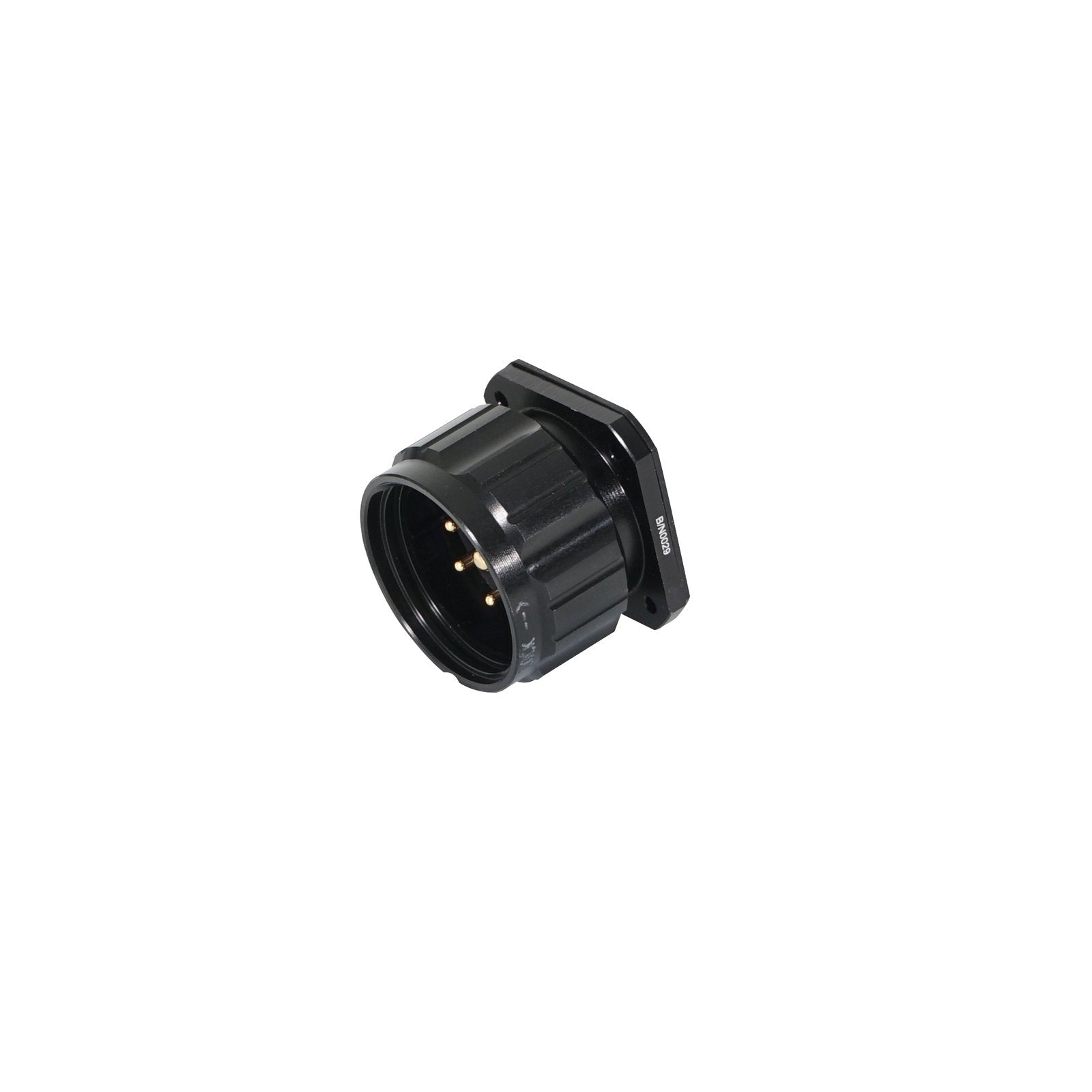

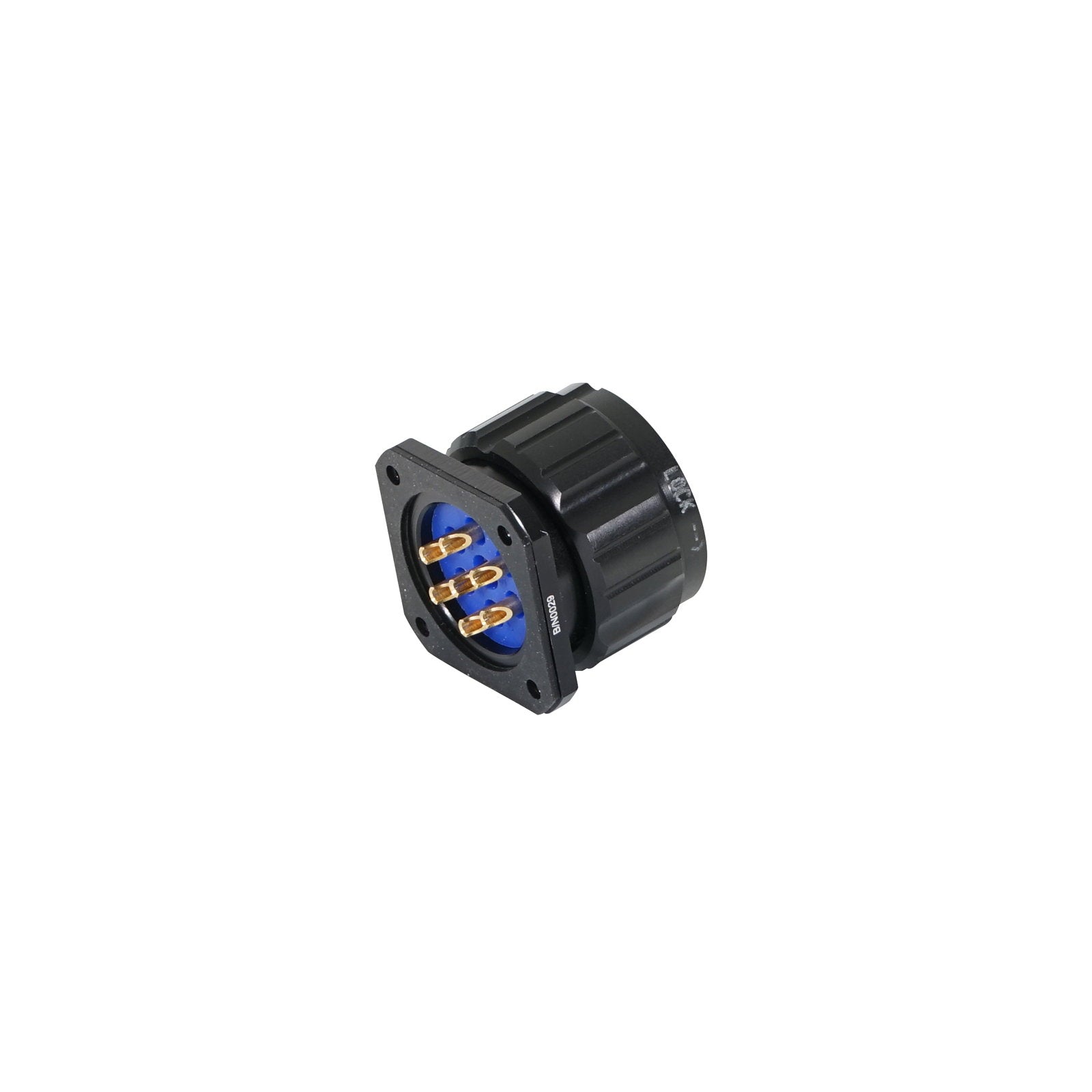

Elumen8 Socapex 7-Pin Panel Male Plug
Brand: Elumen8
SKU: CONN407
Regular price
£25.99
Pickup available at Venutec
Usually ready in 24 hours
Elumen8 Socapex 7-Pin Panel Male Plug
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
The eLumen8 Showsafe range of UL certified Socapex connectors have been manufactured to deliver the highest levels of quality reliability and safety for chain hoist motor control connections. The super robust construction of the multi-pin devices ensures reliable operation for AV professionals. The rugged plug design has been tailored specifically for professional touring and stage lighting applications and all products are fully Socapex compatible. Showsafe 7-Pin plugs are sealed to IP67 protection when mated making them water and dust proof for festivals worldwide. The sand of Benicassim? The mud and rain of Glastonbury? No problem.
Model reference: P7-PM-S-BK-UL Panel/Chassis mount male plug UL approved to UL1977 standard 100% UK manufactured and assembled Amphenol Socapex compatible 7-Pin connectors are all rated at 25A Multi-point gold plated contacts Integral insulation sleeves
IP67 ingress protection when mated Temperature rating: -55°C to +125°C Voltage rating: 600VAC 700VDC max FMLB (first make last break) earth contacts ROHS compliant Dimensions (L x W): 45 x 40mm Weight: 0.11kg
Model reference: P7-PM-S-BK-UL Panel/Chassis mount male plug UL approved to UL1977 standard 100% UK manufactured and assembled Amphenol Socapex compatible 7-Pin connectors are all rated at 25A Multi-point gold plated contacts Integral insulation sleeves
IP67 ingress protection when mated Temperature rating: -55°C to +125°C Voltage rating: 600VAC 700VDC max FMLB (first make last break) earth contacts ROHS compliant Dimensions (L x W): 45 x 40mm Weight: 0.11kg
