DQM series wireless microphones are quad UHF handheld systems designed for the professional user featuring a full width receiver for the ultimate in RF stability. They have a tuning bandwidth up to 9Mhz+2Mhz with 99 selectable frequencies on the 823-832Mhz CH65 and 863-865Mhz license-free CH70 bands. These systems offer crystal clear sound reproduction and rock-solid reliability along with outstanding vocal reproduction and stable wireless connectivity allowing freedom of movement on stage. Handheld transmitters feature ergonomic design with a rackmount housing to stand up to the rigours of the road. The flexibility of the handheld systems may be increased by purchasing the additional DQM belt pack kit.
UHF band Phase Lock Loop (PLL) offering stable RF transmission Preset frequency groups plus a user definable frequency group allows users to tune the operating frequency of each channel OLED display offers a wide viewing angle while remaining bright in darkened conditions Frequency Channel RF and AF signal strength meters Combined use jog wheel button operation for fast menu navigation 1U rack metal housing with integrated brackets include antenna cable interface for front-mount antenna Integrated antenna splitter for reduced RF interference Balanced XLR output for each channel plus unbalanced mixed output Automatic frequency SCAN function IR infrared frequency synchronisation via infrared interface Mute circuitry for reduced noise Flat frequency response: 50Hz-16KHz Dynamic cardioid handheld microphone capsule 1U full width rack mount receiver Up to 8 DQM transmitters can be used simultaneously when configured manually (one 800mhz and one 600mhz)
Audio output level: 400mV Dynamic range: 96dB Receiver specifications: Power supply: 14V DC (mains adaptor supplied) Dimensions (H x W x D): 45 x 482 x 260mm Weight: 2.3kg Handheld Transmitter: Battery configuration: 2 x 1.5V AA (not supplied) Dimensions (H x W x D): 250 x 45 x 45mm Weight: 0.4kg Included in the system: 1 x receiver 2 x removable antenna 2 x antenna extension cables 4 x handheld transmitters and 1 x 14V 1.2A mains PSU
UHF band Phase Lock Loop (PLL) offering stable RF transmission Preset frequency groups plus a user definable frequency group allows users to tune the operating frequency of each channel OLED display offers a wide viewing angle while remaining bright in darkened conditions Frequency Channel RF and AF signal strength meters Combined use jog wheel button operation for fast menu navigation 1U rack metal housing with integrated brackets include antenna cable interface for front-mount antenna Integrated antenna splitter for reduced RF interference Balanced XLR output for each channel plus unbalanced mixed output Automatic frequency SCAN function IR infrared frequency synchronisation via infrared interface Mute circuitry for reduced noise Flat frequency response: 50Hz-16KHz Dynamic cardioid handheld microphone capsule 1U full width rack mount receiver Up to 8 DQM transmitters can be used simultaneously when configured manually (one 800mhz and one 600mhz)
Audio output level: 400mV Dynamic range: 96dB Receiver specifications: Power supply: 14V DC (mains adaptor supplied) Dimensions (H x W x D): 45 x 482 x 260mm Weight: 2.3kg Handheld Transmitter: Battery configuration: 2 x 1.5V AA (not supplied) Dimensions (H x W x D): 250 x 45 x 45mm Weight: 0.4kg Included in the system: 1 x receiver 2 x removable antenna 2 x antenna extension cables 4 x handheld transmitters and 1 x 14V 1.2A mains PSU

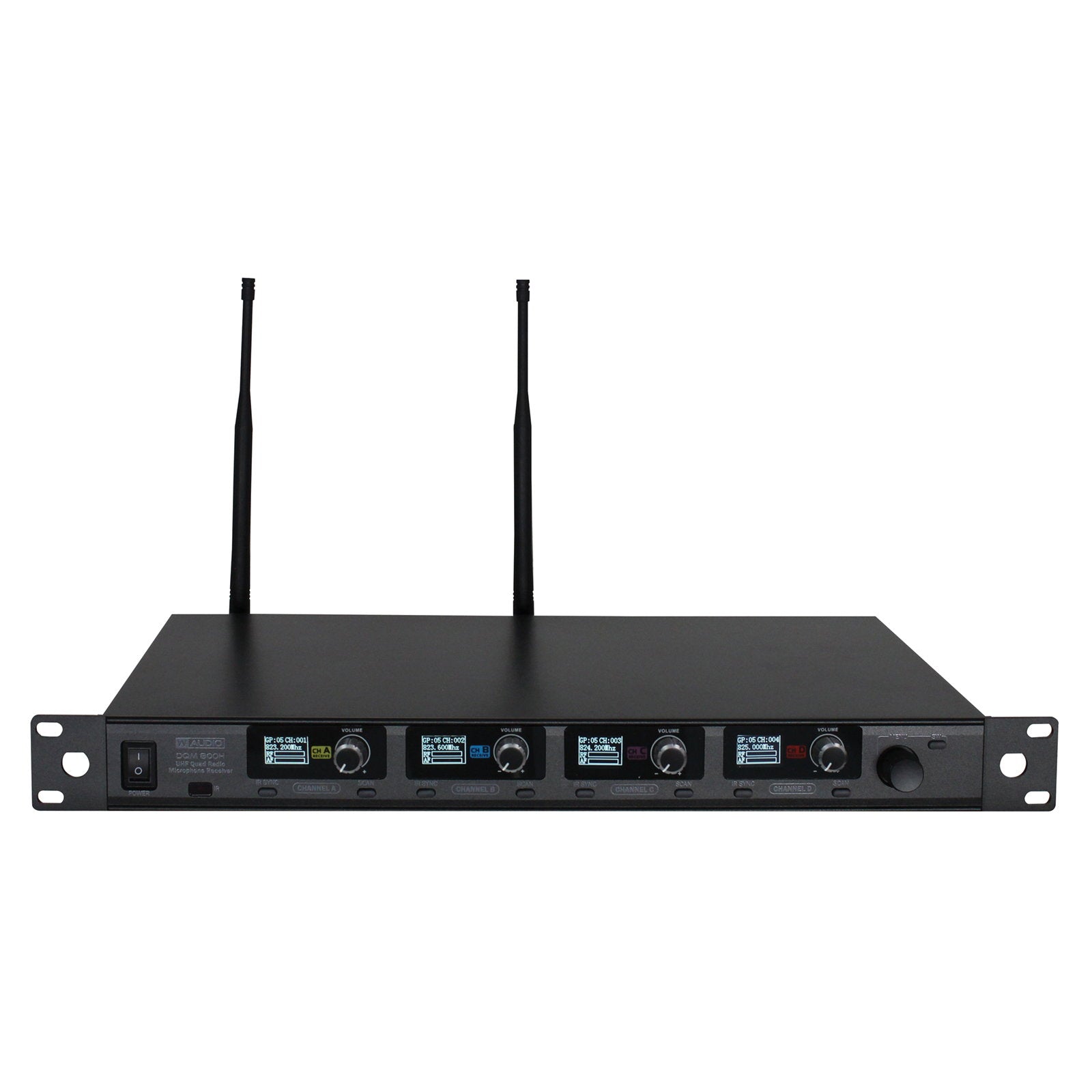

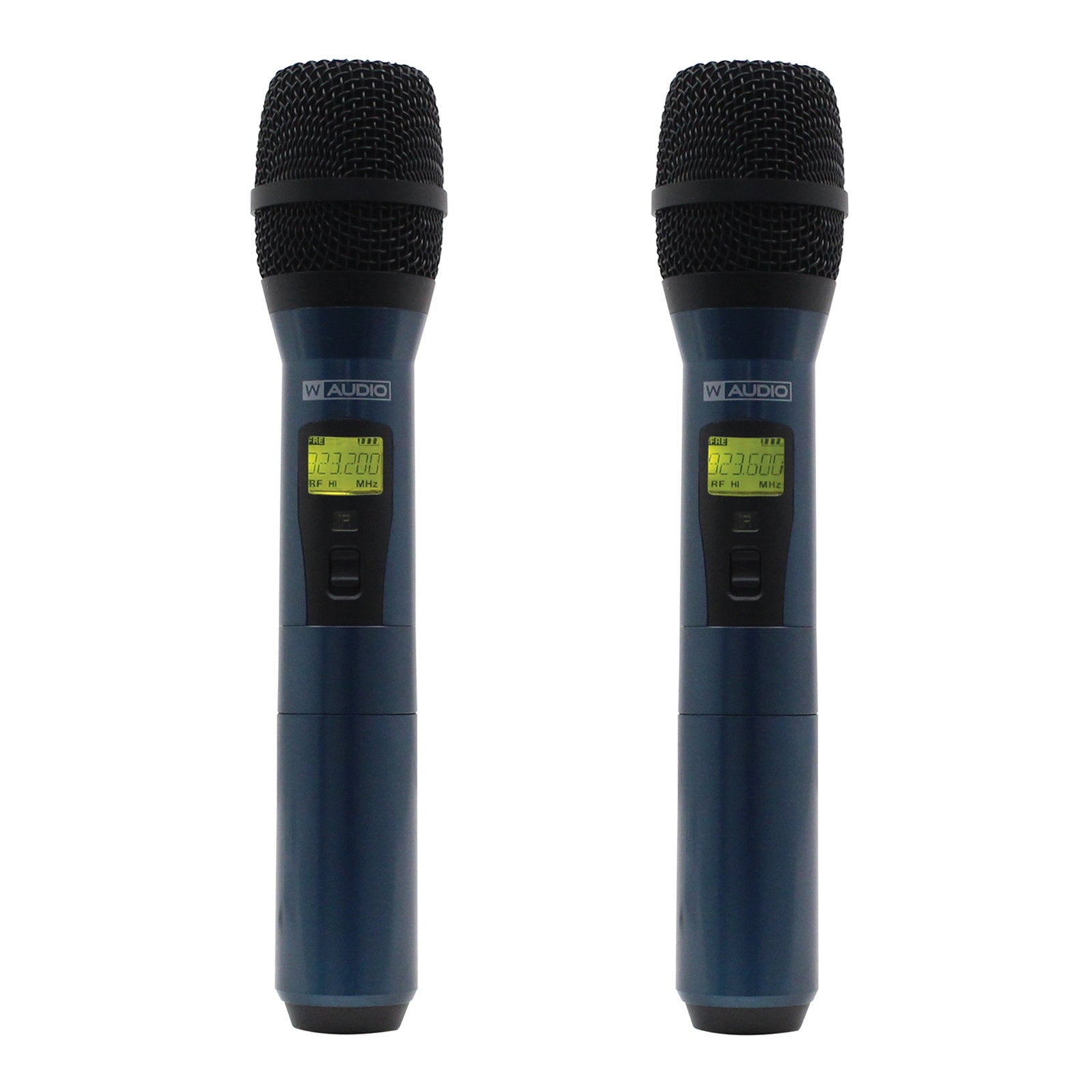

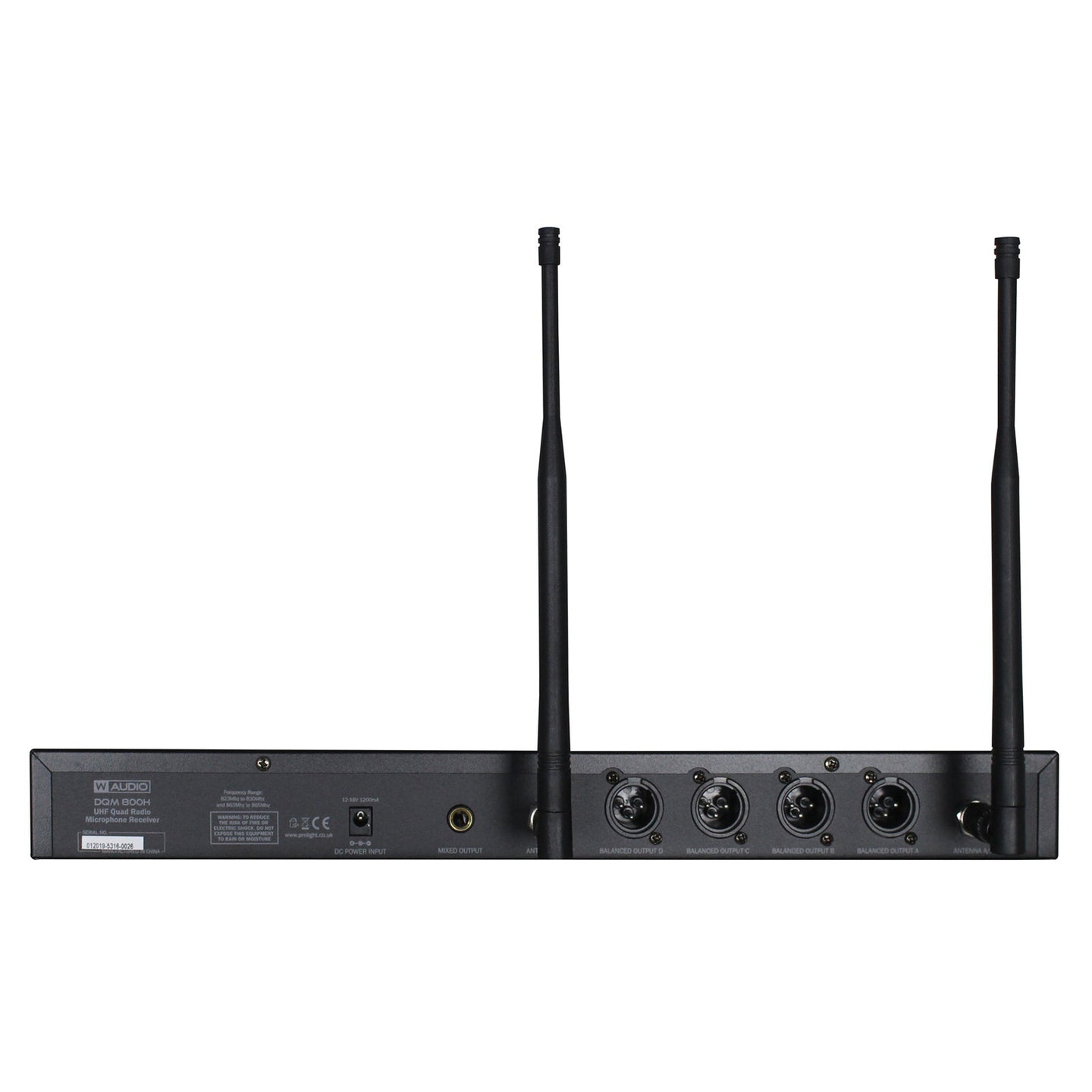

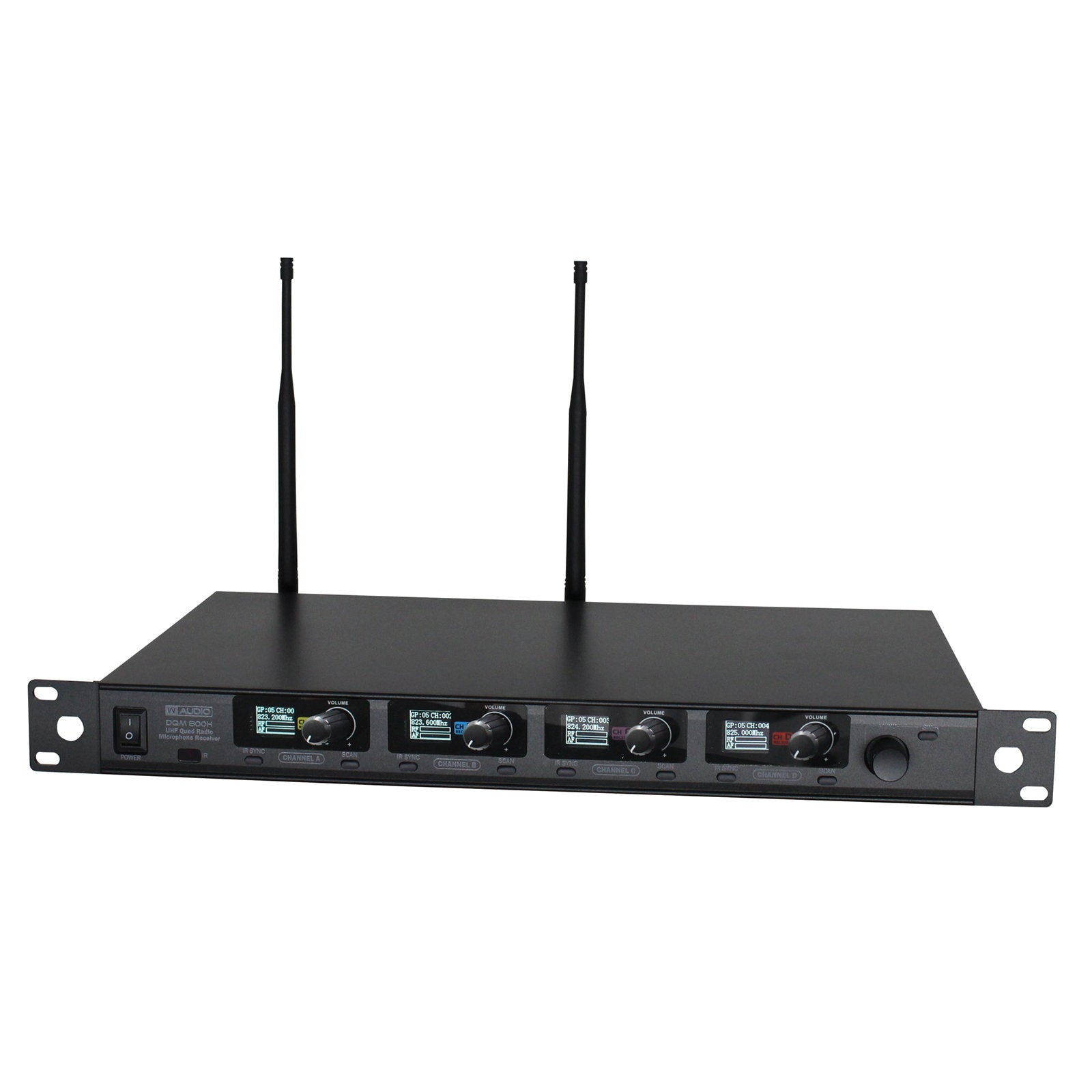

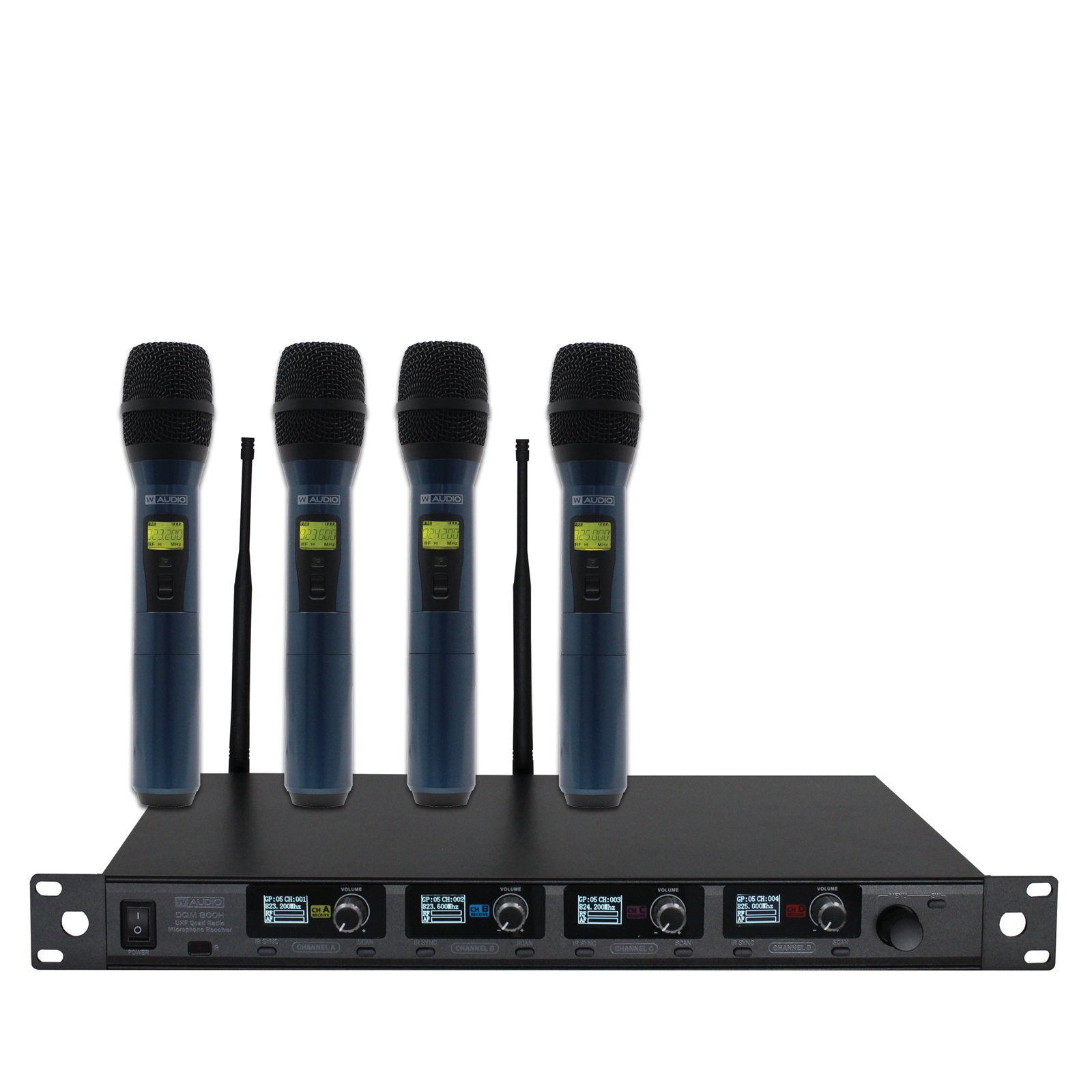

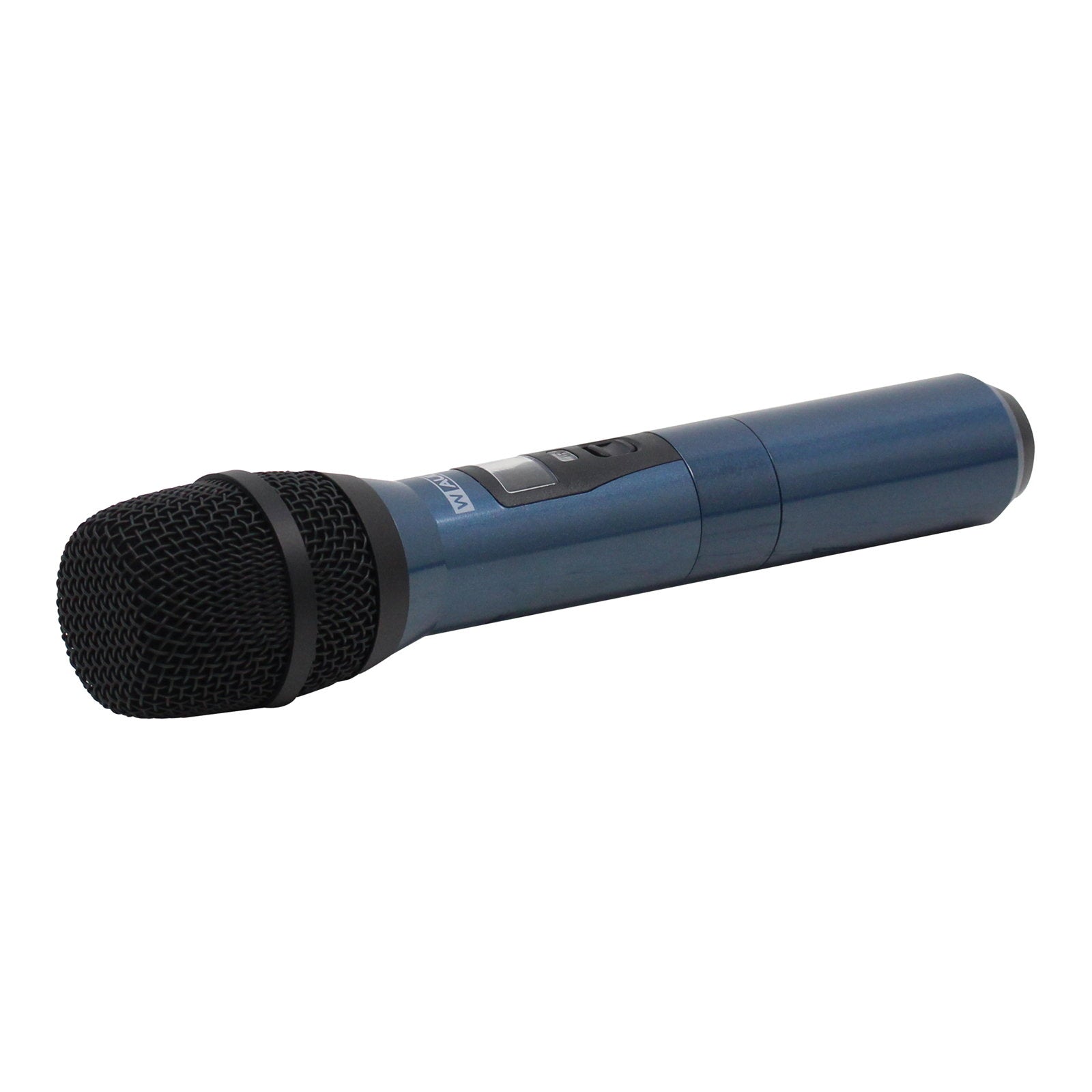

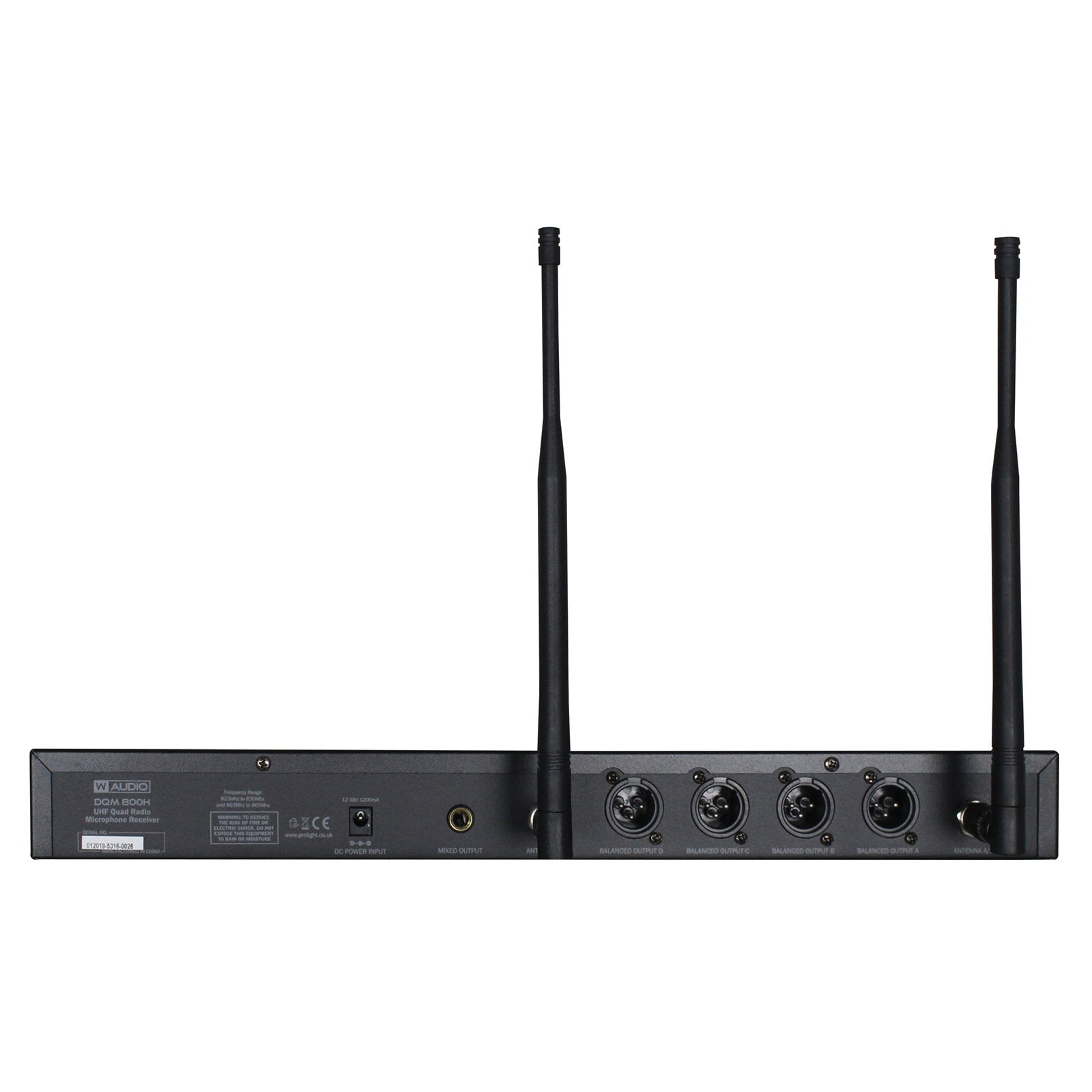

W Audio DQM 800H Quad Handheld UHF Radio Microphone System (823Mhz-865Mhz)
Brand: W Audio
SKU: MIC82
Regular price
£350.99
Pickup available at Venutec
Usually ready in 24 hours
W Audio DQM 800H Quad Handheld UHF Radio Microphone System (823Mhz-865Mhz)
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
DQM series wireless microphones are quad UHF handheld systems designed for the professional user featuring a full width receiver for the ultimate in RF stability. They have a tuning bandwidth up to 9Mhz+2Mhz with 99 selectable frequencies on the 823-832Mhz CH65 and 863-865Mhz license-free CH70 bands. These systems offer crystal clear sound reproduction and rock-solid reliability along with outstanding vocal reproduction and stable wireless connectivity allowing freedom of movement on stage. Handheld transmitters feature ergonomic design with a rackmount housing to stand up to the rigours of the road. The flexibility of the handheld systems may be increased by purchasing the additional DQM belt pack kit.
UHF band Phase Lock Loop (PLL) offering stable RF transmission Preset frequency groups plus a user definable frequency group allows users to tune the operating frequency of each channel OLED display offers a wide viewing angle while remaining bright in darkened conditions Frequency Channel RF and AF signal strength meters Combined use jog wheel button operation for fast menu navigation 1U rack metal housing with integrated brackets include antenna cable interface for front-mount antenna Integrated antenna splitter for reduced RF interference Balanced XLR output for each channel plus unbalanced mixed output Automatic frequency SCAN function IR infrared frequency synchronisation via infrared interface Mute circuitry for reduced noise Flat frequency response: 50Hz-16KHz Dynamic cardioid handheld microphone capsule 1U full width rack mount receiver Up to 8 DQM transmitters can be used simultaneously when configured manually (one 800mhz and one 600mhz)
Audio output level: 400mV Dynamic range: 96dB Receiver specifications: Power supply: 14V DC (mains adaptor supplied) Dimensions (H x W x D): 45 x 482 x 260mm Weight: 2.3kg Handheld Transmitter: Battery configuration: 2 x 1.5V AA (not supplied) Dimensions (H x W x D): 250 x 45 x 45mm Weight: 0.4kg Included in the system: 1 x receiver 2 x removable antenna 2 x antenna extension cables 4 x handheld transmitters and 1 x 14V 1.2A mains PSU
UHF band Phase Lock Loop (PLL) offering stable RF transmission Preset frequency groups plus a user definable frequency group allows users to tune the operating frequency of each channel OLED display offers a wide viewing angle while remaining bright in darkened conditions Frequency Channel RF and AF signal strength meters Combined use jog wheel button operation for fast menu navigation 1U rack metal housing with integrated brackets include antenna cable interface for front-mount antenna Integrated antenna splitter for reduced RF interference Balanced XLR output for each channel plus unbalanced mixed output Automatic frequency SCAN function IR infrared frequency synchronisation via infrared interface Mute circuitry for reduced noise Flat frequency response: 50Hz-16KHz Dynamic cardioid handheld microphone capsule 1U full width rack mount receiver Up to 8 DQM transmitters can be used simultaneously when configured manually (one 800mhz and one 600mhz)
Audio output level: 400mV Dynamic range: 96dB Receiver specifications: Power supply: 14V DC (mains adaptor supplied) Dimensions (H x W x D): 45 x 482 x 260mm Weight: 2.3kg Handheld Transmitter: Battery configuration: 2 x 1.5V AA (not supplied) Dimensions (H x W x D): 250 x 45 x 45mm Weight: 0.4kg Included in the system: 1 x receiver 2 x removable antenna 2 x antenna extension cables 4 x handheld transmitters and 1 x 14V 1.2A mains PSU
