A UHF wideband antenna splitter suitable for use with up to four radio microphone receivers. Dual 1:4 configuration for use with up to four diversity receivers allows the use of two W Audio RPA2 active antennae across multiple receivers reducing intermodulation and resultant RF signal dropout.

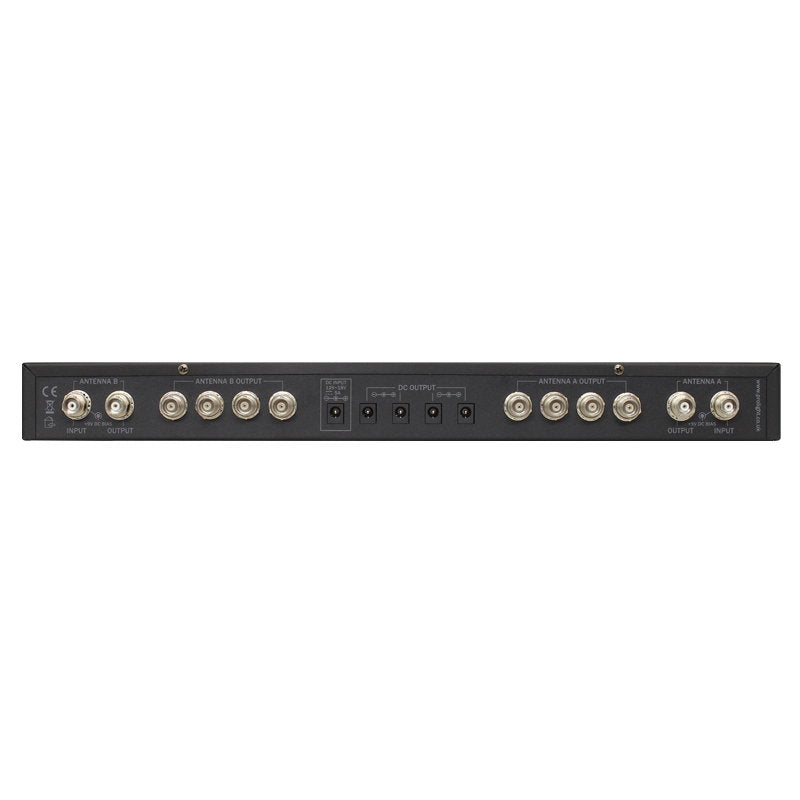

Loop thru function to allow system expansion Dual 1:4 configuration Wide band 400-1000Mhz operating frequency range DC power distribution BNC antenna connections 9V DC bias (100mA) output for use with active antenna On/off switch with LED power indication Supplied with 13A UK PSU (12V DC 5A) four 0.2m DC link cables ten 0.5m BNC cables and two 5.0m BNC cables
Power supply: DC 12-18V 5A (adaptor supplied) Dimensions (H x W x D): 50 x 480 x 240mm Weight: 2.3kg
Loop thru function to allow system expansion Dual 1:4 configuration Wide band 400-1000Mhz operating frequency range DC power distribution BNC antenna connections 9V DC bias (100mA) output for use with active antenna On/off switch with LED power indication Supplied with 13A UK PSU (12V DC 5A) four 0.2m DC link cables ten 0.5m BNC cables and two 5.0m BNC cables
Power supply: DC 12-18V 5A (adaptor supplied) Dimensions (H x W x D): 50 x 480 x 240mm Weight: 2.3kg

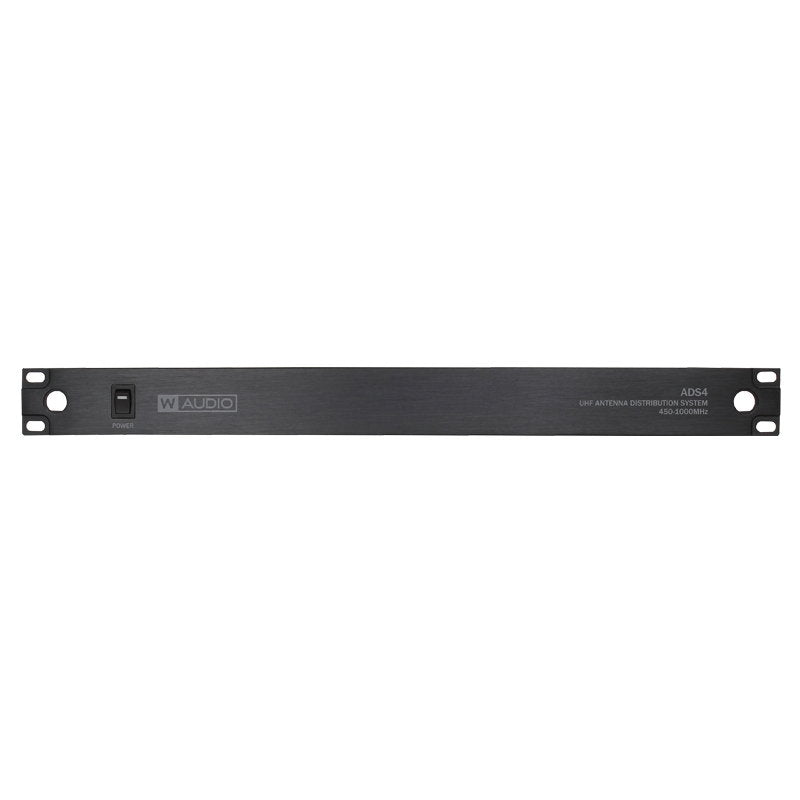

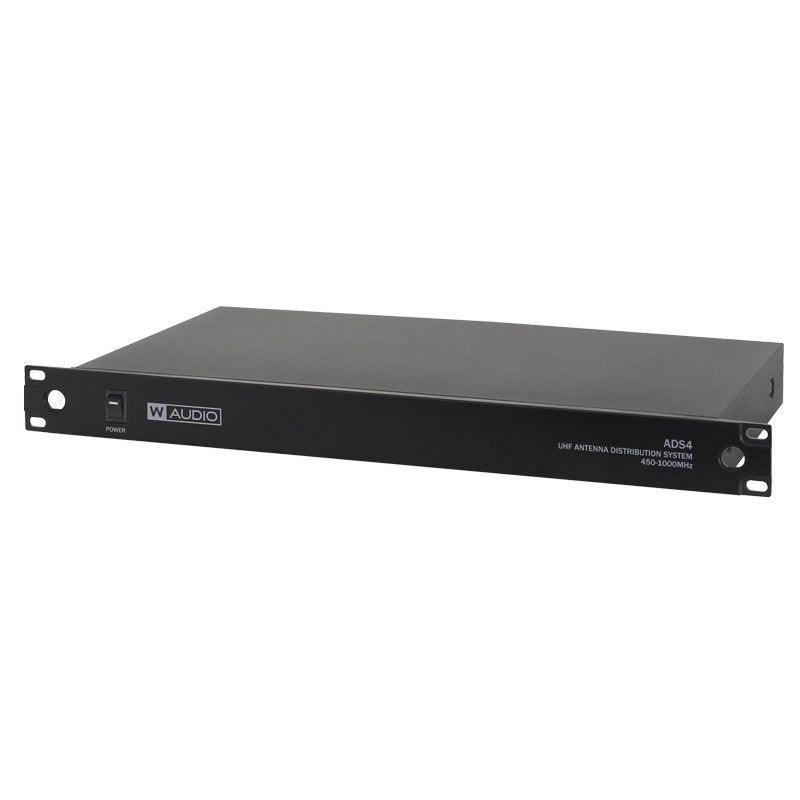

W Audio ADS4 UHF Antenna Distributor
Brand: W Audio
SKU: MIC130
Regular price
£189.99
Pickup available at Venutec
Usually ready in 24 hours
W Audio ADS4 UHF Antenna Distributor
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
A UHF wideband antenna splitter suitable for use with up to four radio microphone receivers. Dual 1:4 configuration for use with up to four diversity receivers allows the use of two W Audio RPA2 active antennae across multiple receivers reducing intermodulation and resultant RF signal dropout.
Loop thru function to allow system expansion Dual 1:4 configuration Wide band 400-1000Mhz operating frequency range DC power distribution BNC antenna connections 9V DC bias (100mA) output for use with active antenna On/off switch with LED power indication Supplied with 13A UK PSU (12V DC 5A) four 0.2m DC link cables ten 0.5m BNC cables and two 5.0m BNC cables
Power supply: DC 12-18V 5A (adaptor supplied) Dimensions (H x W x D): 50 x 480 x 240mm Weight: 2.3kg
Loop thru function to allow system expansion Dual 1:4 configuration Wide band 400-1000Mhz operating frequency range DC power distribution BNC antenna connections 9V DC bias (100mA) output for use with active antenna On/off switch with LED power indication Supplied with 13A UK PSU (12V DC 5A) four 0.2m DC link cables ten 0.5m BNC cables and two 5.0m BNC cables
Power supply: DC 12-18V 5A (adaptor supplied) Dimensions (H x W x D): 50 x 480 x 240mm Weight: 2.3kg
