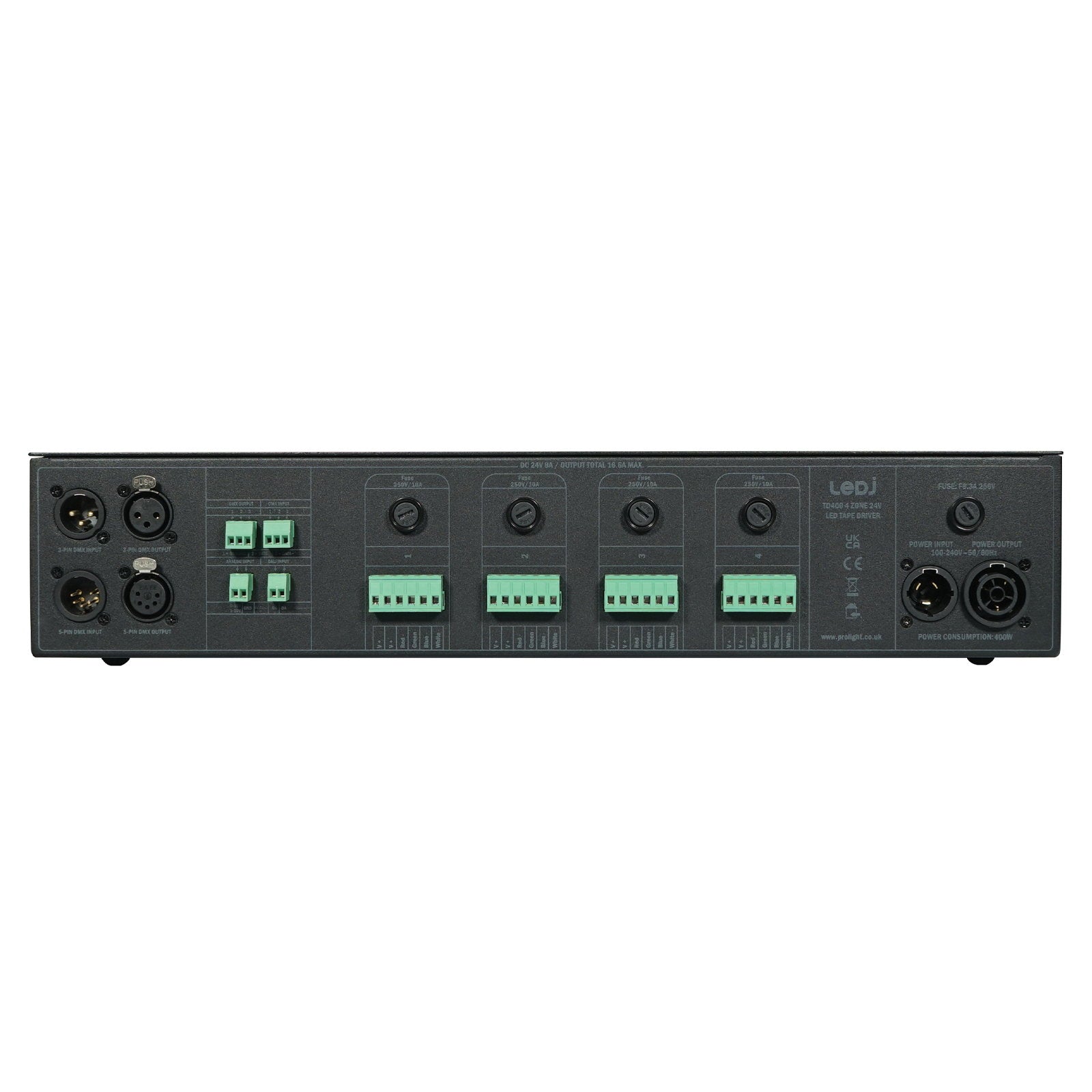

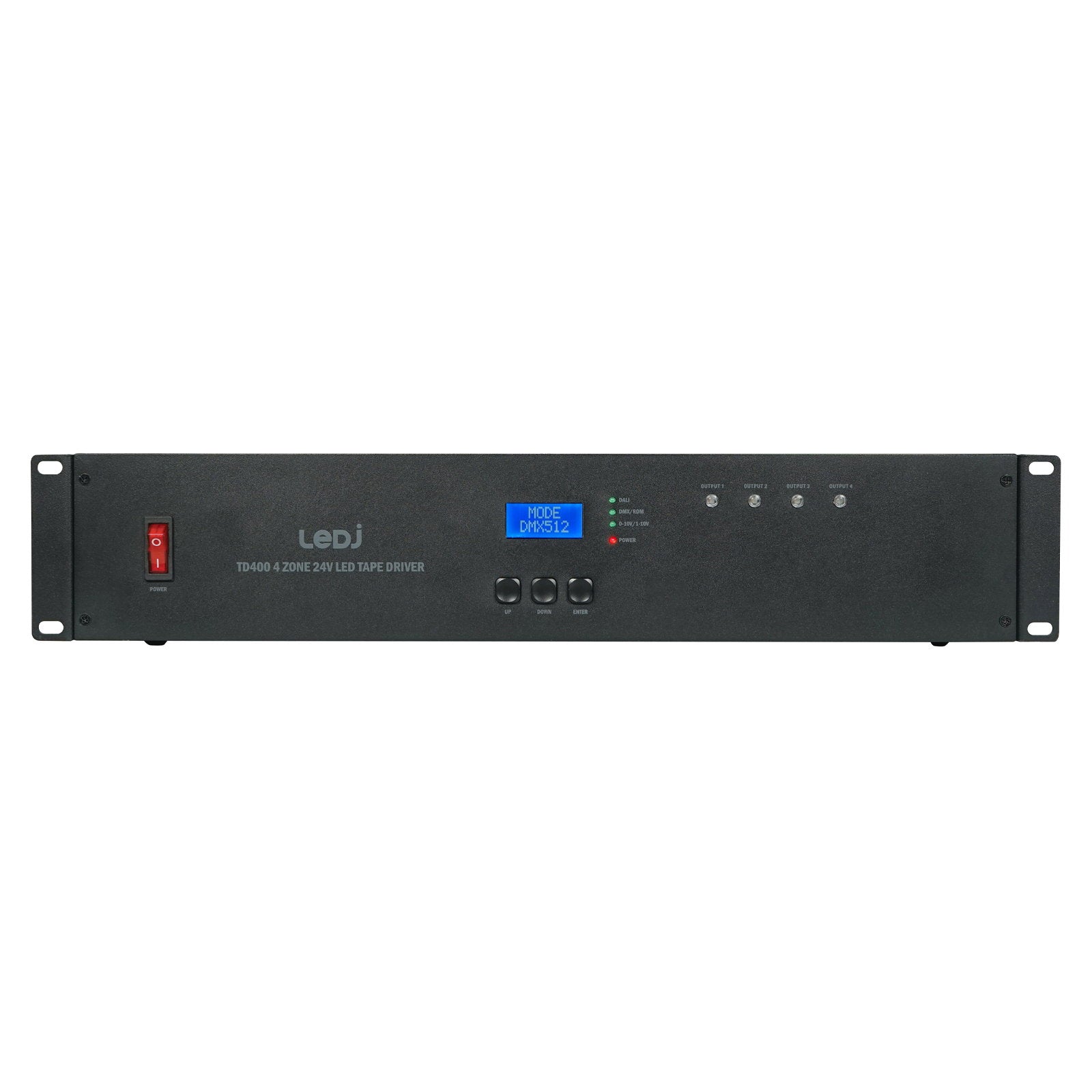

The TD400 is a multi protocol all-in-one solution for driving up to 400W of RGB/RGBW constant voltage LED flexible tape across four output zones. Housed within a 2U rackmount chassis with rack ears which can be removed and refitted as wall brackets. The front panel features a push button display LED mode indicators and LED RGB output indicators allowing the installer or user to glance at the front panel as a quick check of the colour selected on each zone.
4 button menu with LCD displayFour LED RGB output indicator LEDS DMX 0-10V DALI and stand alone (manual) control modes RDM (Remote Device Management) Fan cooled 2U 19" rack mount chassis Up to 10A per zone (fused) 16.6A overall RGB/RGBW drive current Four 6-way phoenix connector for LED drive output Fused outputs DMX input/output via phoenix connector 3-Pin XLR and 5-Pin XLR 0-10V analogue input via phoenix connector DALI input via phoenix connector powerCON TRUE1 input/output
Power consumption: 400W Power supply: 100~240V 50/60Hz Fuse: F6.35A Dimensions (H x W x D): 88 x 482 x 210mm Weight: 4.4kg
4 button menu with LCD display
Power consumption: 400W
LEDJ TD400 24V 4 Zone Flexible Tape Driver
Brand: LEDJ
SKU: FLEX050
Regular price
£645.99
Pickup available at Venutec
Usually ready in 24 hours
LEDJ TD400 24V 4 Zone Flexible Tape Driver
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
The TD400 is a multi protocol all-in-one solution for driving up to 400W of RGB/RGBW constant voltage LED flexible tape across four output zones. Housed within a 2U rackmount chassis with rack ears which can be removed and refitted as wall brackets. The front panel features a push button display LED mode indicators and LED RGB output indicators allowing the installer or user to glance at the front panel as a quick check of the colour selected on each zone.
4 button menu with LCD displayFour LED RGB output indicator LEDS DMX 0-10V DALI and stand alone (manual) control modes RDM (Remote Device Management) Fan cooled 2U 19" rack mount chassis Up to 10A per zone (fused) 16.6A overall RGB/RGBW drive current Four 6-way phoenix connector for LED drive output Fused outputs DMX input/output via phoenix connector 3-Pin XLR and 5-Pin XLR 0-10V analogue input via phoenix connector DALI input via phoenix connector powerCON TRUE1 input/output
Power consumption: 400W Power supply: 100~240V 50/60Hz Fuse: F6.35A Dimensions (H x W x D): 88 x 482 x 210mm Weight: 4.4kg
4 button menu with LCD display
Power consumption: 400W
