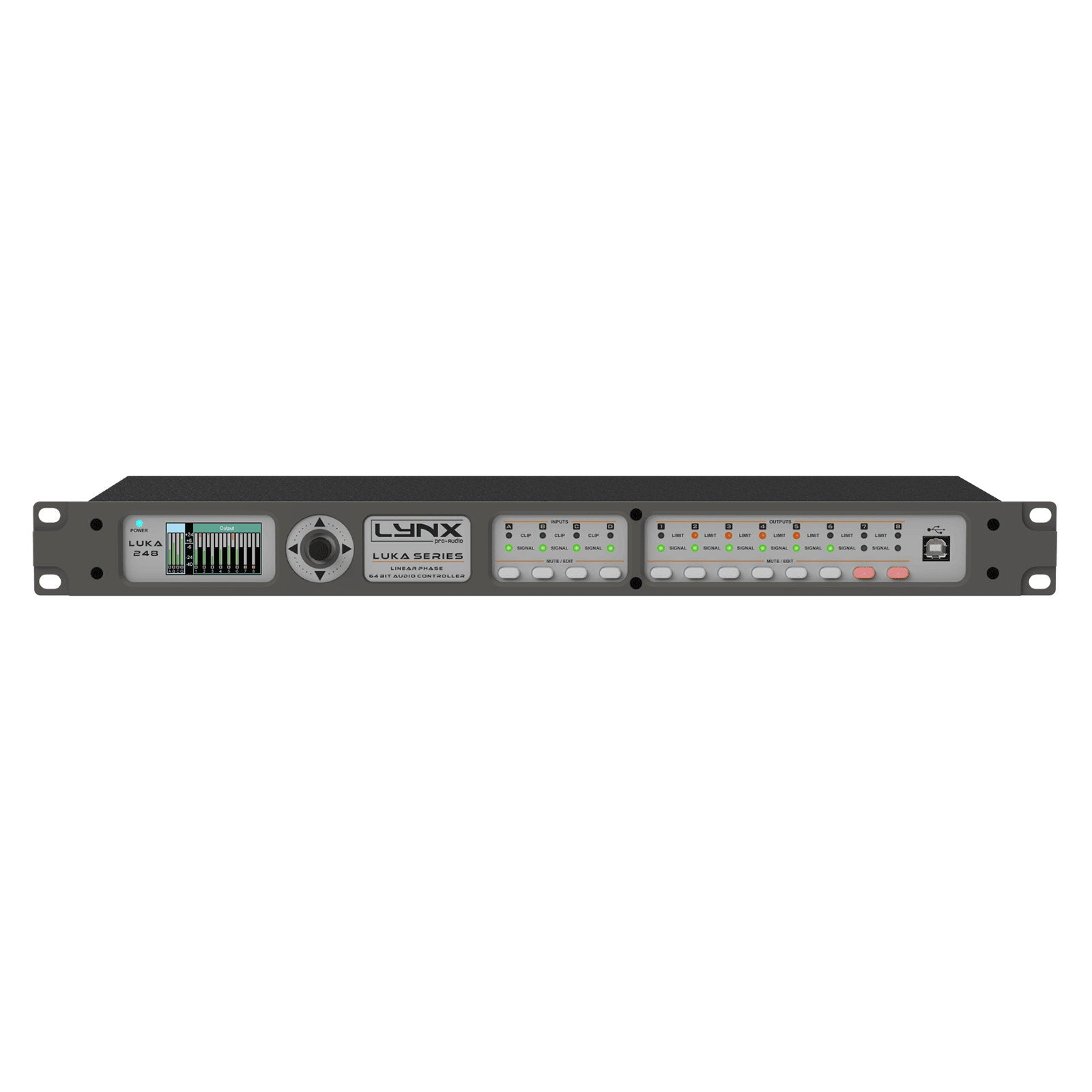

The Lynx Pro Audio LUKA-224 is a 2-input 4-output loudspeaker processor with 64-bit internal DSP 32-bit AD/DA converters AES3 digital input FIR filtering RMS & Peak limiters and full control via USB/Ethernet using OCS software. Designed for high-performance systems requiring precise routing matrixing and advanced loudspeaker protection.
2 analogue inputs + AES3 2-channel digital input 4 analogue outputs 64-bit internal DSP resolution 32-bit AD/DA converters (max +24 dBu) Dynamic range: 121 dB (inputs) 120 dB (outputs) FIR linear-phase processing: up to 1000 taps per output User EQ: High-Pass + 10 Parametric Mode EQ: High-Pass/Low-Pass + 10 Parametric Out EQ: High-Pass/Low-Pass + 12 Parametric + FIR custom PEQ filter types: Parametric Shelving High/Low HP/LP BP Reject AllPass (1st & 2nd order) RMS & Peak limiters per output Input matrix with Simple / Basic / Advanced routing Configurable backup-priority inputs Delay up to 206 ms (≈70 m) on inputs/outputs 999 user memories snapshots and speaker presets USB & Ethernet remote control via OCS software 320×170 IPS display + joystick encoder + mute/edit buttons
Inputs: 2× analogue balanced XLR AES3 digital (2-channel) Input impedance: 10kΩ balanced Outputs: 4× analogue balanced XLR Output impedance: 200Ω balanced Max. level: +24dBu (balanced) Audio range: 10Hz – 24kHz Latency: 1.17ms Power: 85–240V AC 20W consumption Dimensions: 483 × 45 × 200mm (1U) Weight: 3kg Software link: OCS control software
Lynx Pro-Audio Loudspeaker Processor 64 Bit 2 In 4 Out LUKA-224
Brand: Lynx Pro-Audio
SKU: LYNX070
Pickup available at Venutec
Usually ready in 24 hours
Lynx Pro-Audio Loudspeaker Processor 64 Bit 2 In 4 Out LUKA-224
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
The Lynx Pro Audio LUKA-224 is a 2-input 4-output loudspeaker processor with 64-bit internal DSP 32-bit AD/DA converters AES3 digital input FIR filtering RMS & Peak limiters and full control via USB/Ethernet using OCS software. Designed for high-performance systems requiring precise routing matrixing and advanced loudspeaker protection.
2 analogue inputs + AES3 2-channel digital input 4 analogue outputs 64-bit internal DSP resolution 32-bit AD/DA converters (max +24 dBu) Dynamic range: 121 dB (inputs) 120 dB (outputs) FIR linear-phase processing: up to 1000 taps per output User EQ: High-Pass + 10 Parametric Mode EQ: High-Pass/Low-Pass + 10 Parametric Out EQ: High-Pass/Low-Pass + 12 Parametric + FIR custom PEQ filter types: Parametric Shelving High/Low HP/LP BP Reject AllPass (1st & 2nd order) RMS & Peak limiters per output Input matrix with Simple / Basic / Advanced routing Configurable backup-priority inputs Delay up to 206 ms (≈70 m) on inputs/outputs 999 user memories snapshots and speaker presets USB & Ethernet remote control via OCS software 320×170 IPS display + joystick encoder + mute/edit buttons
Inputs: 2× analogue balanced XLR AES3 digital (2-channel) Input impedance: 10kΩ balanced Outputs: 4× analogue balanced XLR Output impedance: 200Ω balanced Max. level: +24dBu (balanced) Audio range: 10Hz – 24kHz Latency: 1.17ms Power: 85–240V AC 20W consumption Dimensions: 483 × 45 × 200mm (1U) Weight: 3kg Software link: OCS control software
