Phase 3s Powersafe single pole connectors are the highest rated safest and finest quality industrial plug available and are used by the power distribution events military and cable assembly industries worldwide. A set of Powersafe line connectors can easily terminate to copper cable using either industry standard crimp tools or set-screw contacts. The three phase power distribution range includes: Earth Neutral L1 L2 and L3 available in either source or drain format as 800A or 500A determined by cable size (240mm²-300mm² requires 800A plugs 25mm²-185mm² requires 500A plugs). They are the perfect safe alternative to Camlock connectors and fully compatible with Litton VEAM T4 400 and T6 660 amp powerlocks ITT Cannon and other manufacturers.
Made in Britain Manufacturers code: SPD-2-BK-T8 Type: 800A Panel Drain Female T8 Post L2 Black Mechanically keyed to eliminate the possibility of cross mating Secondary locking prevent unintentional uncoupling under load Finger-proof protection against electric shock IP2X Waterproof and dustproof to IP67 rated Colour coded for easy identification Innovative contact band allows higher rating (400A>500A 660A>800A) Contact band cannot come out High impact insulator (no glass used and flame retardant) Field installation no special tools required Integral cable strain relief Daisy chain capability facilitates flexible stock cable lengths Large cable range: 25mm²-300mm² (Please note: If you require Powersafe for power cables less than set screw 120mm² i.e. 95mm² 70mm² 50mm² 35mm² 25mm² you must purchase a reducer kit separately)
No of contacts: 1 Maximum continuous rating* Up to 800A Surge current: 75kA Short circuit rating up to: 35.5kA Contact termination: T8 threaded post Mating method: Bayonet lock Operating voltage: 1000V AC Max. rated voltage to tarth: 2kV AC / 3kV DC Minimum flashover: 9.5kV DC or AC Peak Insulation resistance: >5M ohms @ 500V DC Ingress protection**: IP67 Protection against electrical shock: IP2X Flammability: UL94-V0 Mating cycles: >500 Shell material: High temperature thermoplastic Contact plating: Silver * Subject to environmental factors and cable choice etc ** In accordance with EN60529
Made in Britain Manufacturers code: SPD-2-BK-T8 Type: 800A Panel Drain Female T8 Post L2 Black Mechanically keyed to eliminate the possibility of cross mating Secondary locking prevent unintentional uncoupling under load Finger-proof protection against electric shock IP2X Waterproof and dustproof to IP67 rated Colour coded for easy identification Innovative contact band allows higher rating (400A>500A 660A>800A) Contact band cannot come out High impact insulator (no glass used and flame retardant) Field installation no special tools required Integral cable strain relief Daisy chain capability facilitates flexible stock cable lengths Large cable range: 25mm²-300mm² (Please note: If you require Powersafe for power cables less than set screw 120mm² i.e. 95mm² 70mm² 50mm² 35mm² 25mm² you must purchase a reducer kit separately)
No of contacts: 1 Maximum continuous rating* Up to 800A Surge current: 75kA Short circuit rating up to: 35.5kA Contact termination: T8 threaded post Mating method: Bayonet lock Operating voltage: 1000V AC Max. rated voltage to tarth: 2kV AC / 3kV DC Minimum flashover: 9.5kV DC or AC Peak Insulation resistance: >5M ohms @ 500V DC Ingress protection**: IP67 Protection against electrical shock: IP2X Flammability: UL94-V0 Mating cycles: >500 Shell material: High temperature thermoplastic Contact plating: Silver * Subject to environmental factors and cable choice etc ** In accordance with EN60529

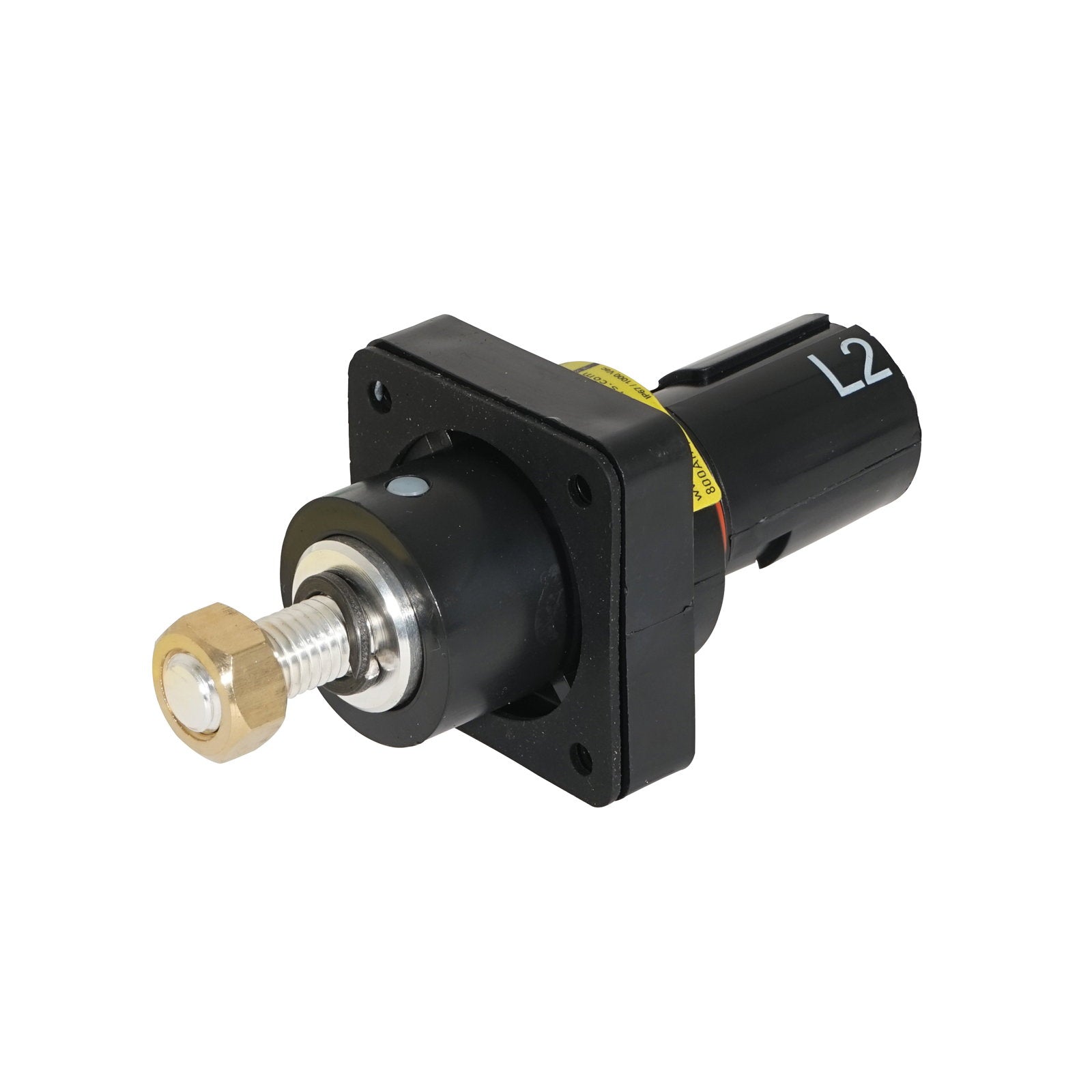

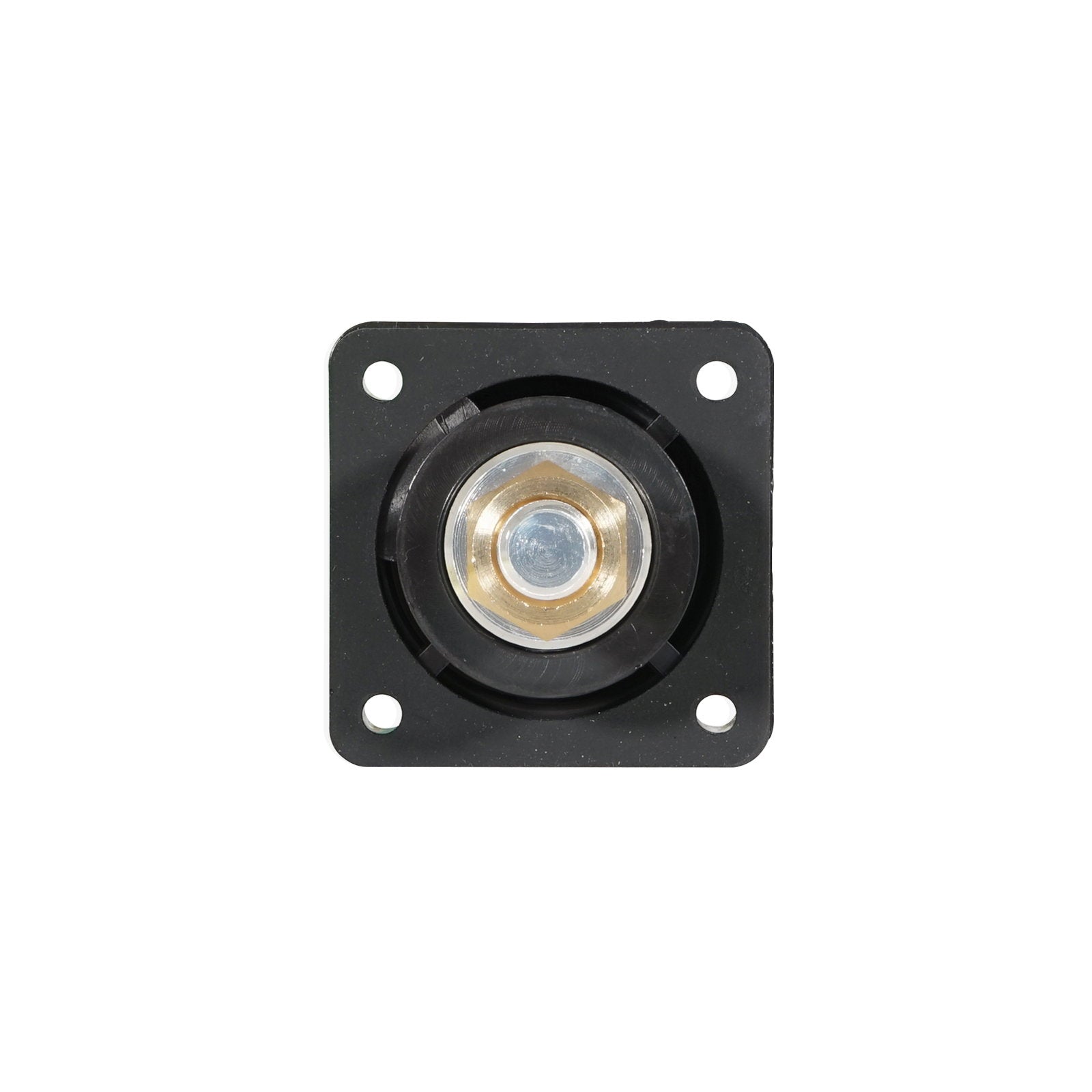

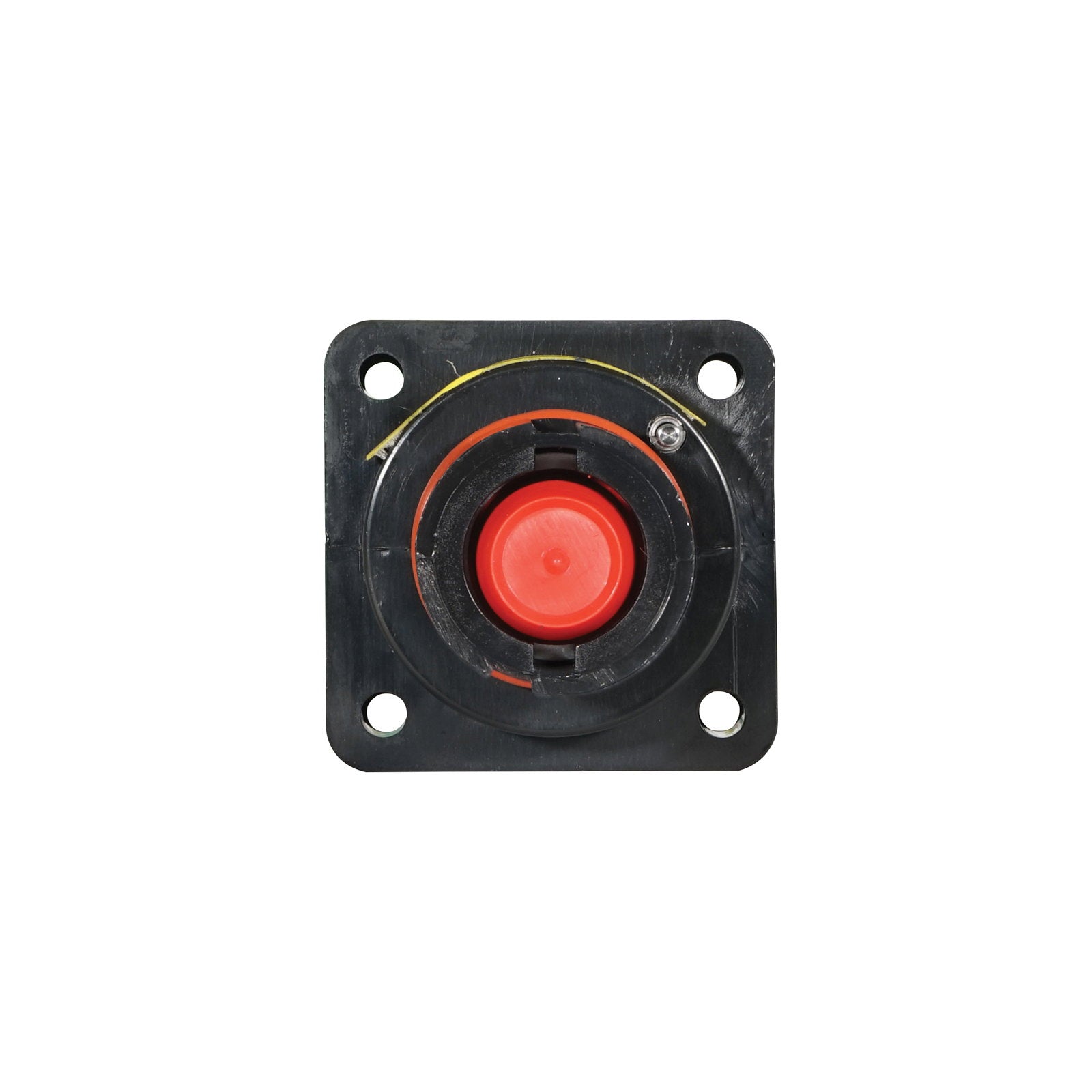

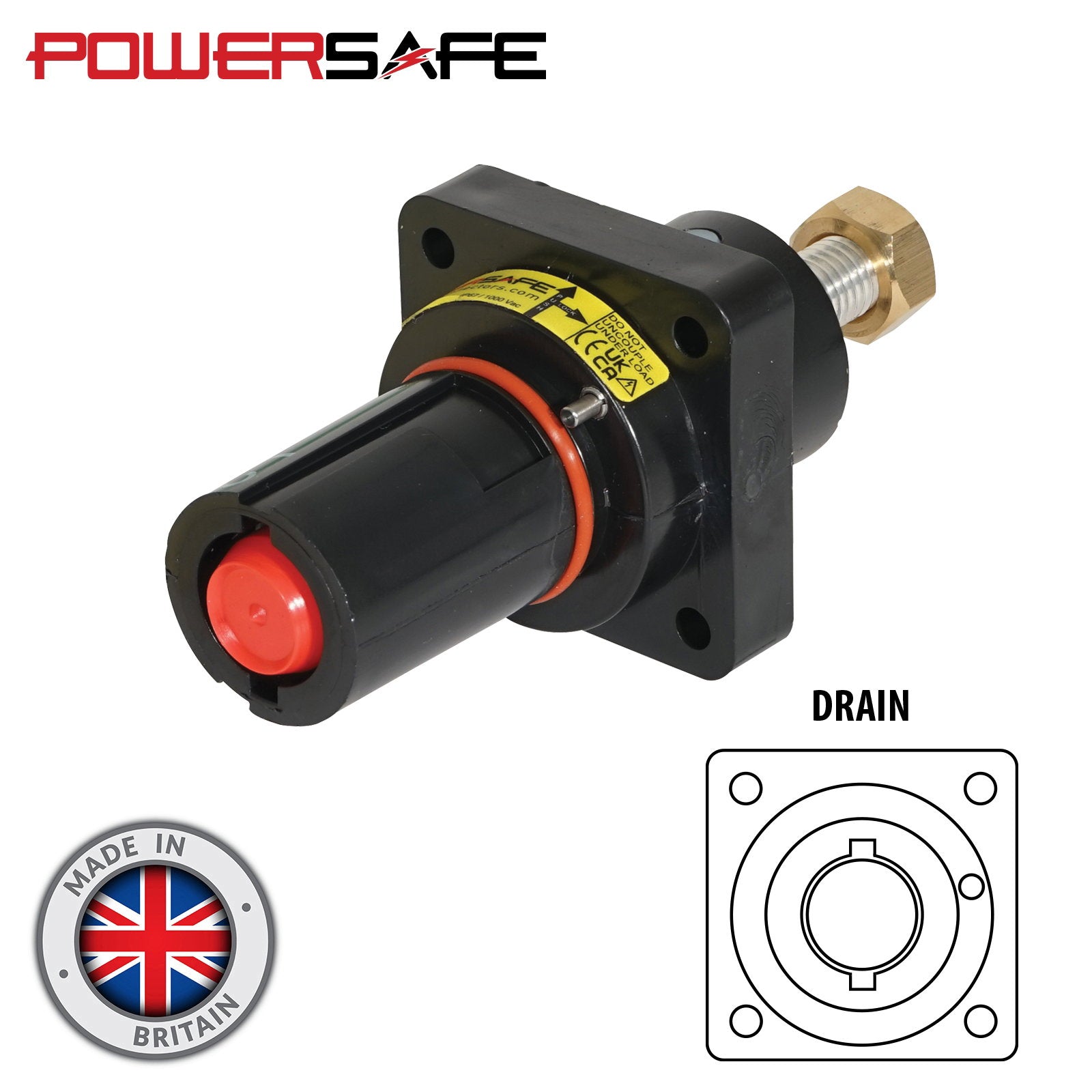

Elumen8 Powersafe 800A Panel Drain Female T8 Post L2 Black
Brand: Elumen8
SKU: CONN633
Regular price
£63.99
Pickup available at Venutec
Usually ready in 24 hours
Elumen8 Powersafe 800A Panel Drain Female T8 Post L2 Black
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
Phase 3s Powersafe single pole connectors are the highest rated safest and finest quality industrial plug available and are used by the power distribution events military and cable assembly industries worldwide. A set of Powersafe line connectors can easily terminate to copper cable using either industry standard crimp tools or set-screw contacts. The three phase power distribution range includes: Earth Neutral L1 L2 and L3 available in either source or drain format as 800A or 500A determined by cable size (240mm²-300mm² requires 800A plugs 25mm²-185mm² requires 500A plugs). They are the perfect safe alternative to Camlock connectors and fully compatible with Litton VEAM T4 400 and T6 660 amp powerlocks ITT Cannon and other manufacturers.
Made in Britain Manufacturers code: SPD-2-BK-T8 Type: 800A Panel Drain Female T8 Post L2 Black Mechanically keyed to eliminate the possibility of cross mating Secondary locking prevent unintentional uncoupling under load Finger-proof protection against electric shock IP2X Waterproof and dustproof to IP67 rated Colour coded for easy identification Innovative contact band allows higher rating (400A>500A 660A>800A) Contact band cannot come out High impact insulator (no glass used and flame retardant) Field installation no special tools required Integral cable strain relief Daisy chain capability facilitates flexible stock cable lengths Large cable range: 25mm²-300mm² (Please note: If you require Powersafe for power cables less than set screw 120mm² i.e. 95mm² 70mm² 50mm² 35mm² 25mm² you must purchase a reducer kit separately)
No of contacts: 1 Maximum continuous rating* Up to 800A Surge current: 75kA Short circuit rating up to: 35.5kA Contact termination: T8 threaded post Mating method: Bayonet lock Operating voltage: 1000V AC Max. rated voltage to tarth: 2kV AC / 3kV DC Minimum flashover: 9.5kV DC or AC Peak Insulation resistance: >5M ohms @ 500V DC Ingress protection**: IP67 Protection against electrical shock: IP2X Flammability: UL94-V0 Mating cycles: >500 Shell material: High temperature thermoplastic Contact plating: Silver * Subject to environmental factors and cable choice etc ** In accordance with EN60529
