The Seetronic SAC3FX‑67 is a rugged female connector from the PowerTwist TR1 IP67 series. Featuring a secure locking mechanism three-core (line neutral earth) wiring and dual-seal construction it supports up to 20 A/300 V AC. Designed for tough environments this connector is ideal for stage lighting and power distribution applications and mates perfectly with SAC3MX‑67 and SAC3MPX‑67 plugs.
- Part of Seetronic’s PowerTwist TR1 IP67 series
- Lockable 3-core female connector (L N PE) with secure latch
- IP67-rated for outdoor use and wet environments
- Dual-seal design enhances moisture and dust resistance
- Mates with SAC3MX‑67 and SAC3MPX‑67 power plugs
- High current rating: 20 A/300 V AC (UL) 16 A/250 V AC (VDE)
- Certified to UL498 UL50E IEC61984 GB/T 34989
- Series: PowerTwist TR1 IP67
- Contacts: 2 + PE
- Rated Current/Voltage: 20 A/300 V AC (UL); 16 A/250 V AC (VDE)
- Contact Resistance: ≤ 5 mΩ
- Dielectric Strength: 4000 V DC (1600 V AC/min)
- Insulation Resistance: > 1000 MΩ
- Cable Diameter: 7–11 mm; Max conductor size: 2.5 mm²
- Terminals: Screw-type
- Housing: Polyamide (UL94‑V0); Contacts: Silver-plated copper alloy
- Protection Rating: IP67
- Operating Temperature: −30 °C to +80 °C
- Service Life: > 500 mating cycles
- Certifications: UL498 UL50E (E356932) IEC61984 GB/T 34989

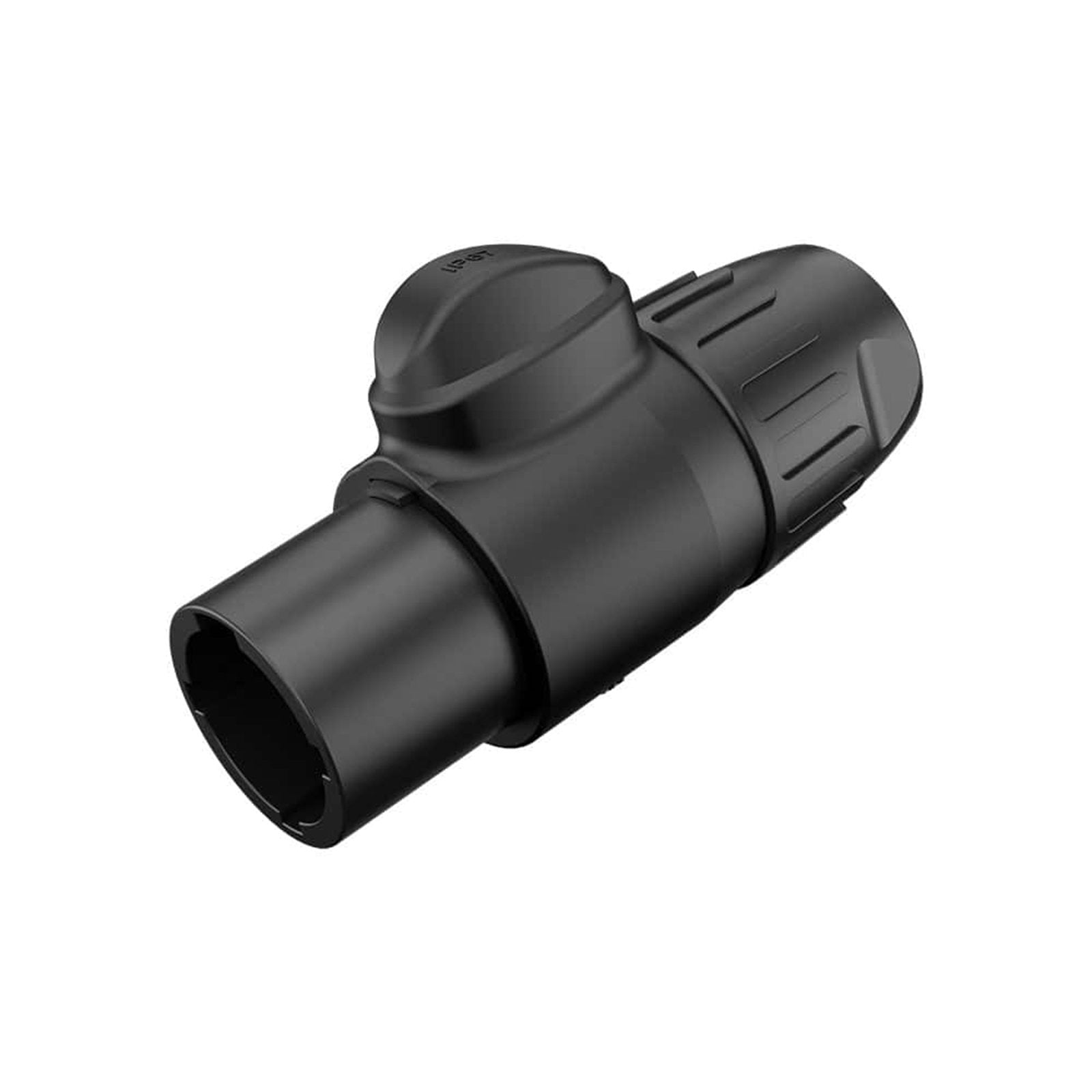

Seetronic PowerTwist TR1 IP67 Male Black SAC3MX-67
Brand: Seetronic
SKU: CONN1401
Regular price
£7.99
Pickup available at Venutec
Usually ready in 24 hours
Seetronic PowerTwist TR1 IP67 Male Black SAC3MX-67
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
The Seetronic SAC3FX‑67 is a rugged female connector from the PowerTwist TR1 IP67 series. Featuring a secure locking mechanism three-core (line neutral earth) wiring and dual-seal construction it supports up to 20 A/300 V AC. Designed for tough environments this connector is ideal for stage lighting and power distribution applications and mates perfectly with SAC3MX‑67 and SAC3MPX‑67 plugs.
- Part of Seetronic’s PowerTwist TR1 IP67 series
- Lockable 3-core female connector (L N PE) with secure latch
- IP67-rated for outdoor use and wet environments
- Dual-seal design enhances moisture and dust resistance
- Mates with SAC3MX‑67 and SAC3MPX‑67 power plugs
- High current rating: 20 A/300 V AC (UL) 16 A/250 V AC (VDE)
- Certified to UL498 UL50E IEC61984 GB/T 34989
- Series: PowerTwist TR1 IP67
- Contacts: 2 + PE
- Rated Current/Voltage: 20 A/300 V AC (UL); 16 A/250 V AC (VDE)
- Contact Resistance: ≤ 5 mΩ
- Dielectric Strength: 4000 V DC (1600 V AC/min)
- Insulation Resistance: > 1000 MΩ
- Cable Diameter: 7–11 mm; Max conductor size: 2.5 mm²
- Terminals: Screw-type
- Housing: Polyamide (UL94‑V0); Contacts: Silver-plated copper alloy
- Protection Rating: IP67
- Operating Temperature: −30 °C to +80 °C
- Service Life: > 500 mating cycles
- Certifications: UL498 UL50E (E356932) IEC61984 GB/T 34989
