The Seetronic SAC3MX‑67 is a rugged male connector from the PowerTwist TR1 IP67 series. This waterproof locking 3-core power plug (line neutral earth) supports up to 20 A/300 V AC and is certified to UL VDE IEC and GB/T standards. Ideal as a powerCON True1-compatible solution for professional power distribution in stage lighting and AV environments.

• Part of Seetronic’s PowerTwist TR1 IP67 series
• Locking 3-core cable plug (L N PE) with secure latch
• IP67-rated for outdoor stage and industrial use
• High current handling: 20 A/300 V AC (UL); 16 A/250 V AC (VDE)
• Quick-connect latch system resists accidental release

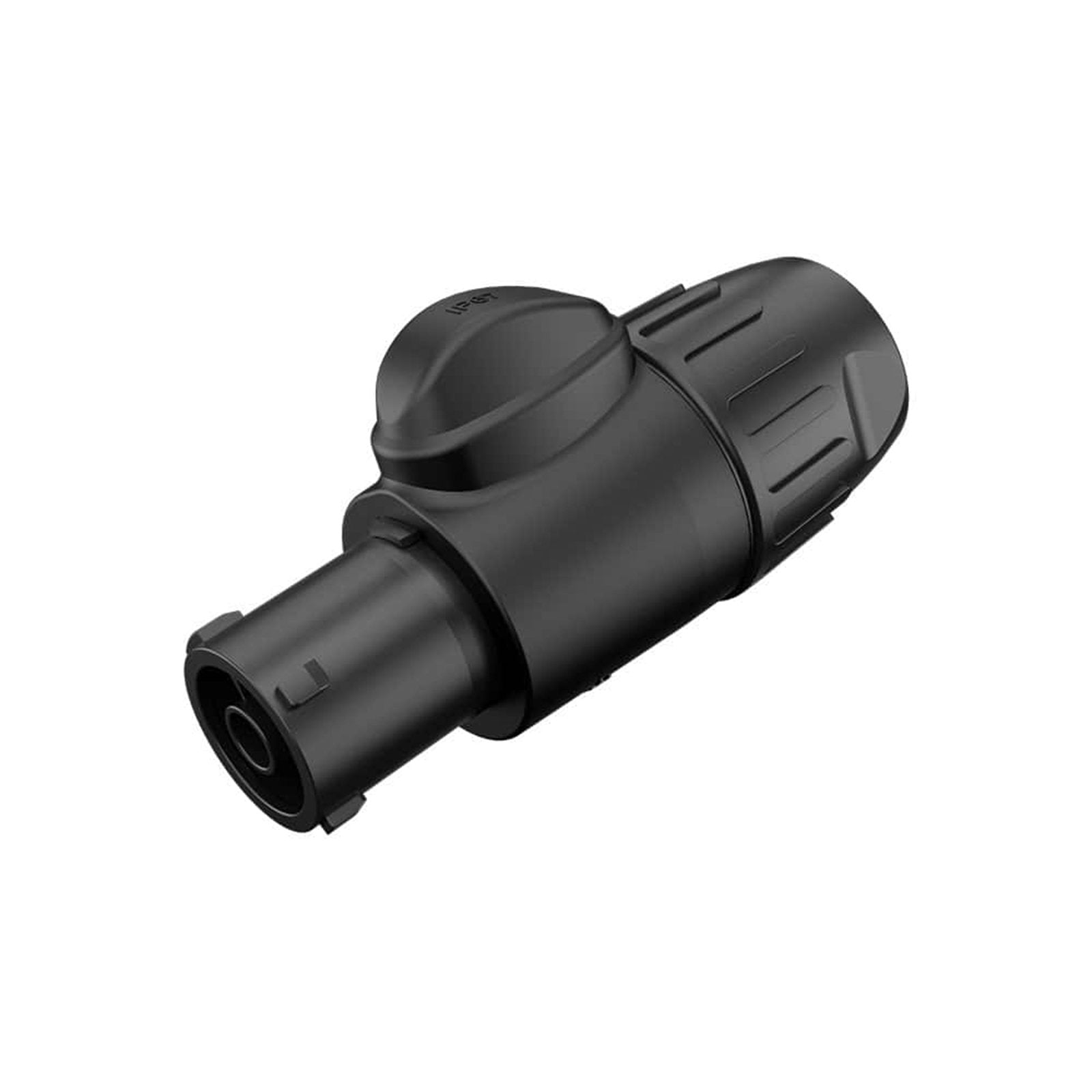

• Compatible with SAC3FX‑67 / SAC3FPX‑67 PowerTwist sockets
• Rugged housing with dual-seal environmental protection
• Certified to UL498 UL50E IEC61984 GB/T 34989

• Series: PowerTwist TR1 IP67
• Contacts: 2 + PE
• Rated Current/Voltage: 20 A/300 V AC (UL); 16 A/250 V AC (VDE)
• Contact Resistance: ≤ 5 mΩ
• Dielectric Strength: 4000 V DC / 1600 V AC (1 min)
• Insulation Resistance: > 1000 MΩ
• Cable Diameter: 7–11 mm; max conductor: 2.5 mm²
• Terminals: Screw-type
• Housing: Polyamide (UL94‑V0); Contacts: Silver-plated copper alloy
• Ingress Protection: IP67 (mated)
• Flame Retardancy: UL94‑V0
• Operating Temp: –30 °C to +80 °C
• Service Life: > 500 mating cycles
• Certifications: UL498 UL50E (E356932); VDE 40044166; IEC61984; GB/T 34989
