The Seetronic SAC3MPX‑67 is a rugged IP67-rated male panel-mount connector from the PowerTwist TR1 series. Designed for high-reliability power input it features a locking 3-core configuration (L N PE) and mates with PowerTwist TR1 cable connectors. Rated for 20 A/300 V AC (UL) it’s ideal for professional lighting stage and industrial power distribution.
- Male chassis connector from the PowerTwist TR1 IP67 series
- 3-core locking inlet (L N PE) with secure mating interface
- Designed for AC power-in connection
- Rated: 20 A/300 V AC (UL) 16 A/250 V AC (VDE)
- Compatible with SAC3FX‑67 cable connector
- IP67-rated for harsh indoor/outdoor environments
- UL498 UL50E IEC61984 and GB/T 34989 certified
- Type: Male chassis connector (panel mount)
- Series: PowerTwist TR1 IP67
- Contacts: 2 + PE
- Rated Current/Voltage: 20 A/300 V AC (UL); 16 A/250 V AC (VDE)
- Contact Resistance: ≤ 5 mΩ
- Dielectric Strength: 4000 V DC (1600 V AC/min)
- Insulation Resistance: > 1000 MΩ
- Mounting: Panel mount (front or rear)
- Housing: PA (UL94‑V0); Contacts: Silver-plated Cu alloy
- Protection: IP67
- Operating Temp: −30 °C to +80 °C
- Service Life: > 500 mating cycles
- Certifications: UL498 UL50E (E356932); IEC61984; GB/T 34989

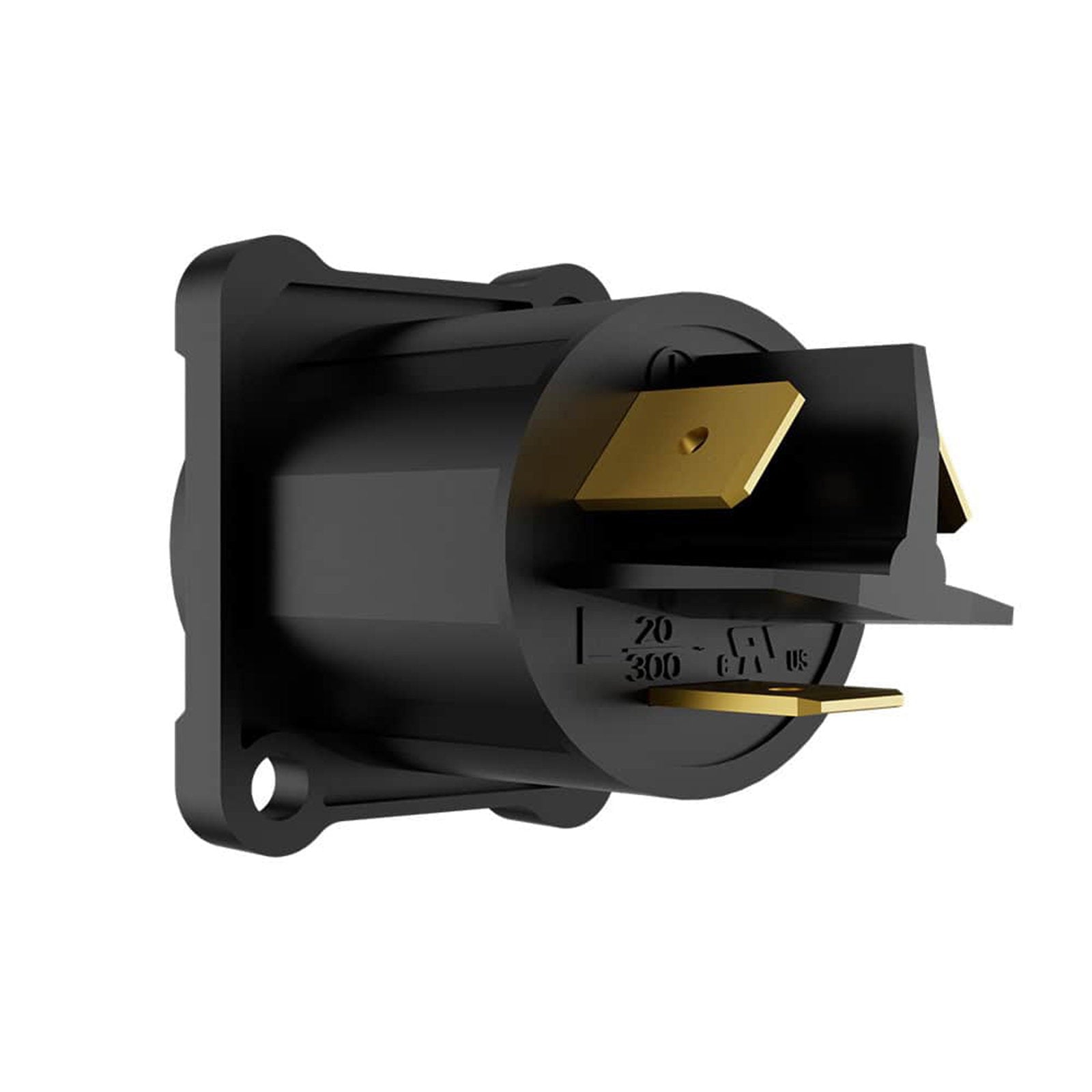

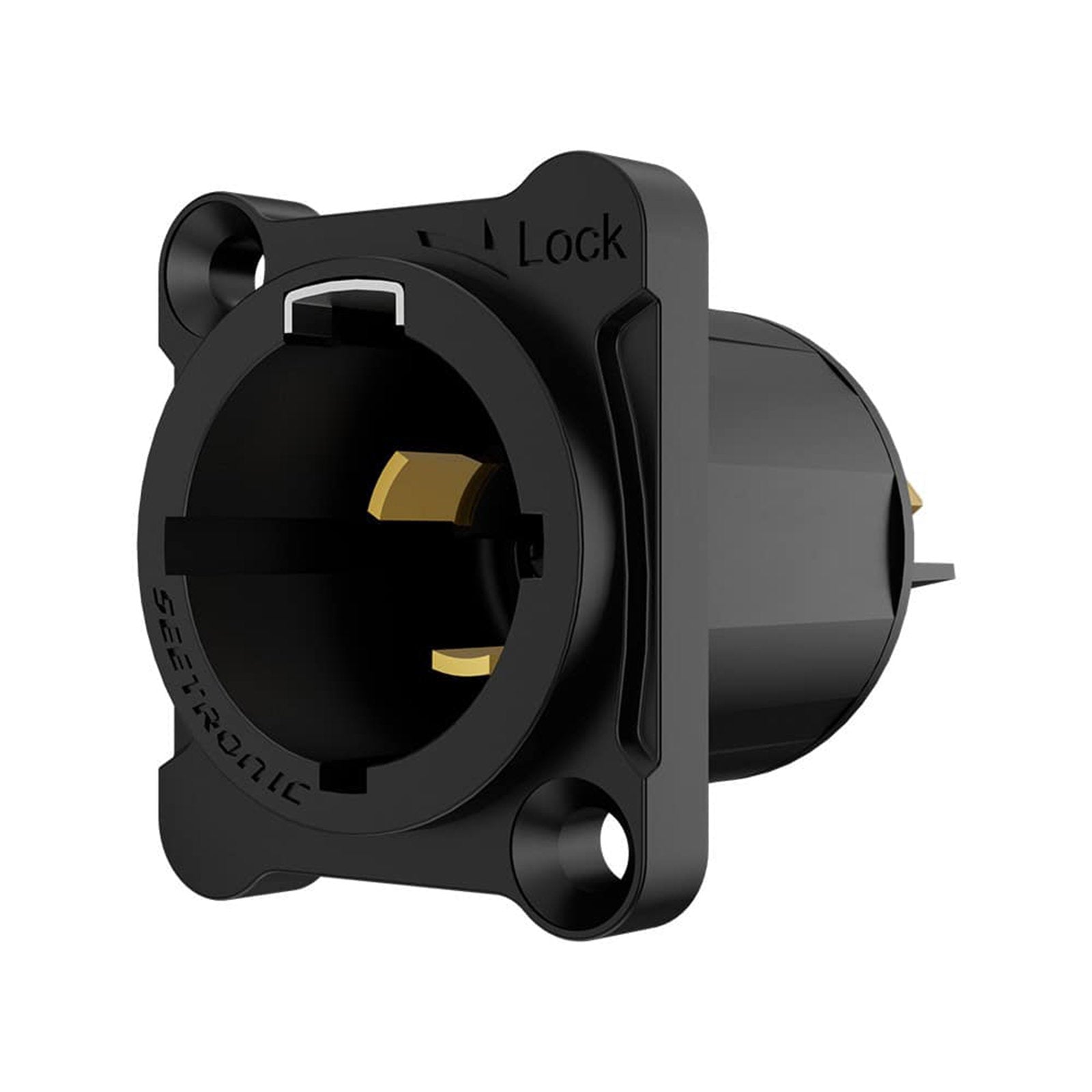

Seetronic PowerTwist TR1 IP67 Chassis Connector SAC3MPX-67
Brand: Seetronic
SKU: CONN1402
Regular price
£4.99
Pickup available at Venutec
Usually ready in 24 hours
Seetronic PowerTwist TR1 IP67 Chassis Connector SAC3MPX-67
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
The Seetronic SAC3MPX‑67 is a rugged IP67-rated male panel-mount connector from the PowerTwist TR1 series. Designed for high-reliability power input it features a locking 3-core configuration (L N PE) and mates with PowerTwist TR1 cable connectors. Rated for 20 A/300 V AC (UL) it’s ideal for professional lighting stage and industrial power distribution.
- Male chassis connector from the PowerTwist TR1 IP67 series
- 3-core locking inlet (L N PE) with secure mating interface
- Designed for AC power-in connection
- Rated: 20 A/300 V AC (UL) 16 A/250 V AC (VDE)
- Compatible with SAC3FX‑67 cable connector
- IP67-rated for harsh indoor/outdoor environments
- UL498 UL50E IEC61984 and GB/T 34989 certified
- Type: Male chassis connector (panel mount)
- Series: PowerTwist TR1 IP67
- Contacts: 2 + PE
- Rated Current/Voltage: 20 A/300 V AC (UL); 16 A/250 V AC (VDE)
- Contact Resistance: ≤ 5 mΩ
- Dielectric Strength: 4000 V DC (1600 V AC/min)
- Insulation Resistance: > 1000 MΩ
- Mounting: Panel mount (front or rear)
- Housing: PA (UL94‑V0); Contacts: Silver-plated Cu alloy
- Protection: IP67
- Operating Temp: −30 °C to +80 °C
- Service Life: > 500 mating cycles
- Certifications: UL498 UL50E (E356932); IEC61984; GB/T 34989
