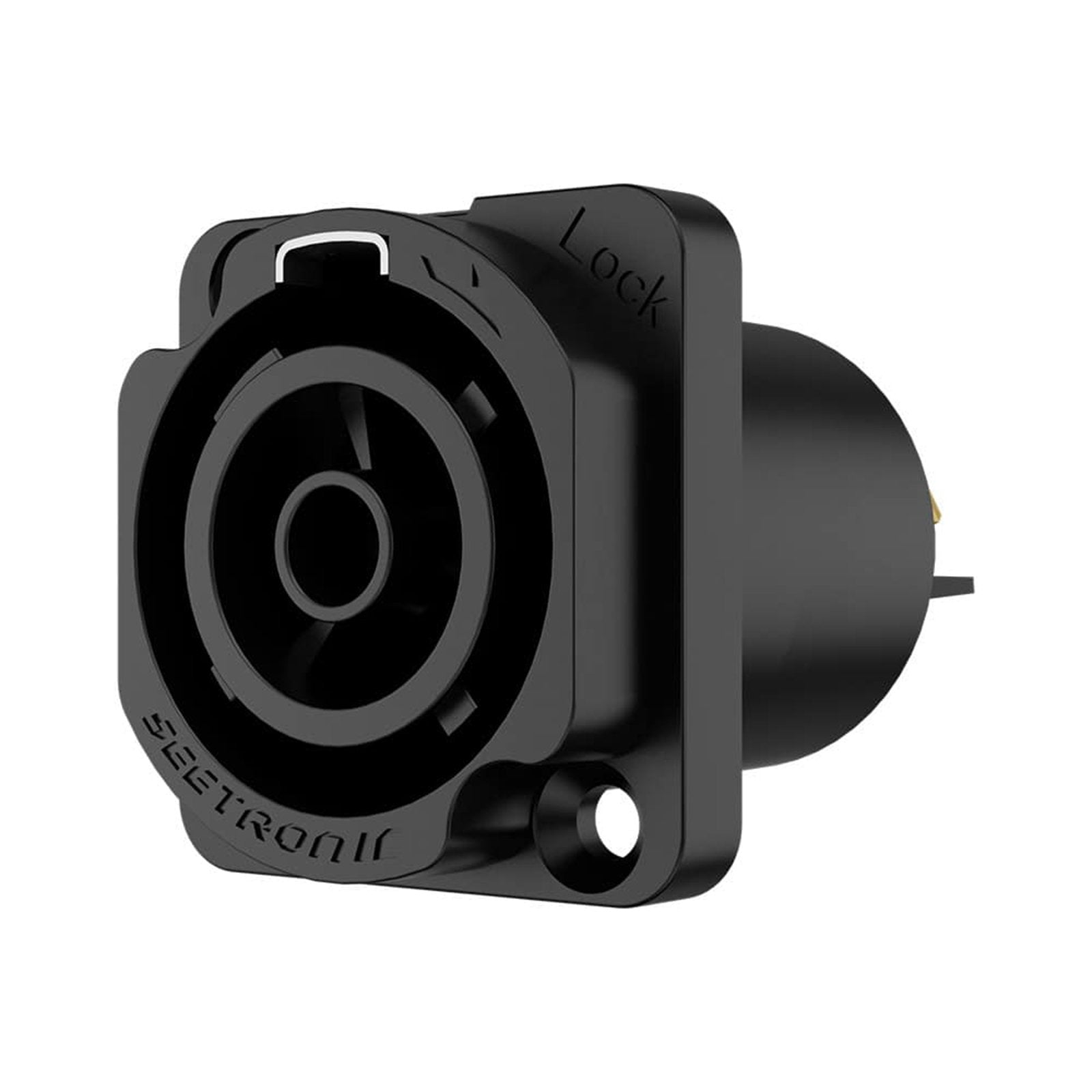

The Seetronic SAC3FPX20‑67 is a compact D-size female PowerTwist TR1 chassis socket with full IP67 waterproof protection. Rated 16 A/250 V AC (TÜV RH) and 20 A/300 V AC (UL) it’s ideal for miniaturised panel designs in stage lighting and amplifier systems. Mating with SAC3MX‑67 plugs it delivers reliable power connections in tough indoor and outdoor conditions. Note: rubber cap (CNAC‑FPX20‑67) sold separately.

• Compact D-size PowerTwist TR1 female chassis connector
• Locking 3-core configuration (L N PE)
• IP67-rated when mated with plug and sealed with rubber cap
• Rated 16 A/250 V AC (TÜV RH); 20 A/300 V AC (UL)
• Mates with SAC3MX‑67 male plug

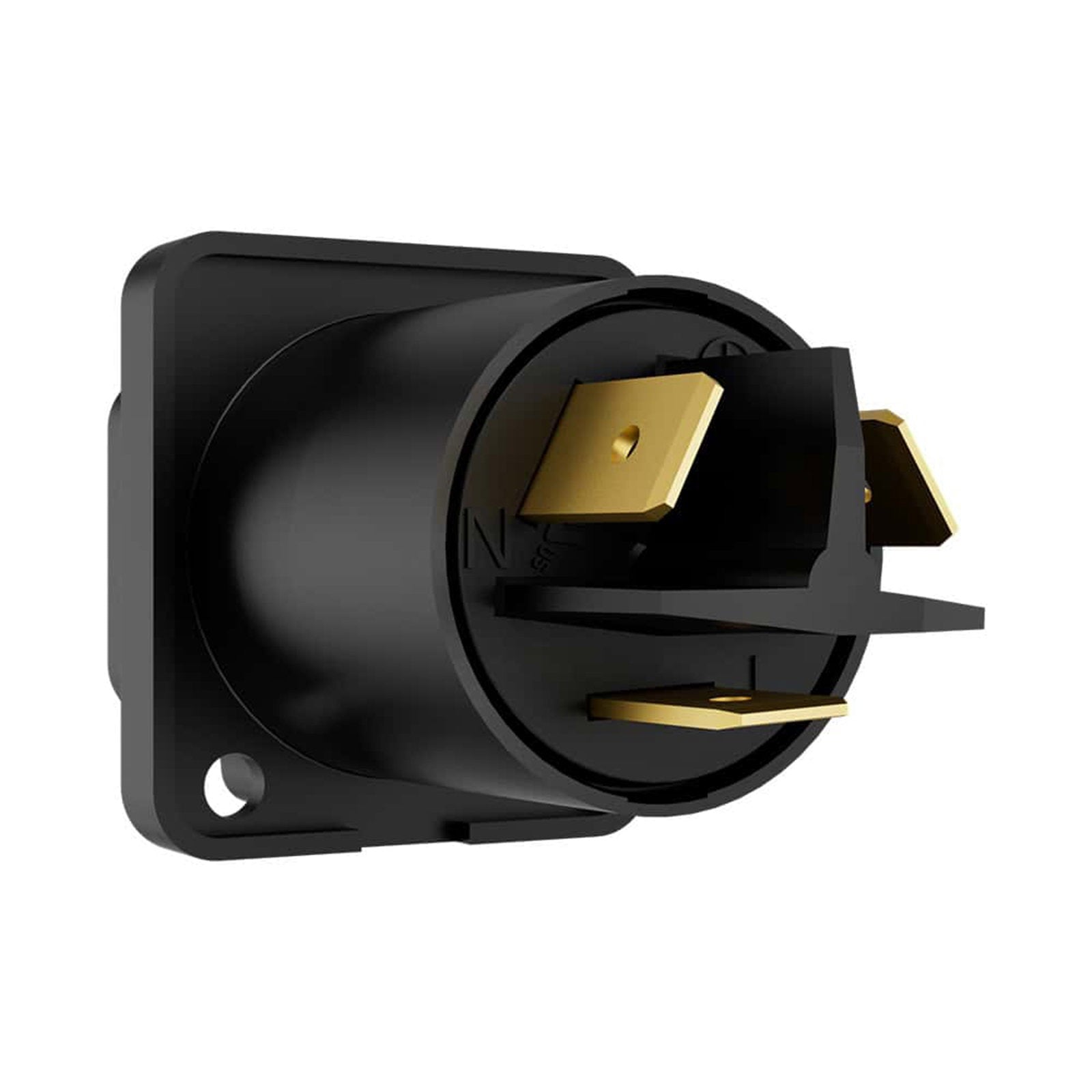

• Supports soldering or push-fit 6.3 mm terminals (max 2.5 mm²)
• Rugged polyamide housing; gold-plated copper alloy contacts
• UL94‑V0 flame-retardant materials
• Operating temperature: –30 °C to +80 °C

• Contacts: 2 + PE
• Rated Current/Voltage: 16 A/250 V AC (TÜV RH); 20 A/300 V AC (UL)
• Contact Resistance: ≤ 5 mΩ
• Dielectric Strength: 4000 V DC
• Insulation Resistance: > 1000 MΩ
• Terminals: Solder or push-fit 6.3 mm tabs; torque: 0.5 Nm
• Max Cable Size: 2.5 mm²
• Housing: PA (polyamide); Contacts: Au-plated copper alloy
• Flame Rating: UL94‑V0
• Protection Class: IP67
• Operating Temperature: –30 °C to +80 °C
• Service Life: > 1000 mating cycles
• Certifications: UL498 UL50E (E356932) IEC61984 GB/T 34989
