The powerCON TRUE1 TOP is a locking 16A true mains connector for indoor or outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The connector can be connected or disconnected under load or live ideal for use in the harsh and demanding environment applications of entertainment equipment like PA systems LED screens or lighting.
Male cable connector Screw terminals Heavy-duty sealed power connector for harsh and demanding environment Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition or in combination with the rubber sealing cover SCNAC-FPX) Uses high impact UV-resistant materials True mains connector with breaking capacity (CBC) Lockable 16A single phase connector (USA: 20A) Easy and reliable twist lock system Extremely robust and reliable Unique Neutrik cable retention ENEC certified according to IEC 60320
Wire size: 2.5mm Number of electronical contacts: 2+PE Rated current per contact: 16A rms (USA: 20A) Rated voltage: 250V ac
Male cable connector Screw terminals Heavy-duty sealed power connector for harsh and demanding environment Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition or in combination with the rubber sealing cover SCNAC-FPX) Uses high impact UV-resistant materials True mains connector with breaking capacity (CBC) Lockable 16A single phase connector (USA: 20A) Easy and reliable twist lock system Extremely robust and reliable Unique Neutrik cable retention ENEC certified according to IEC 60320
Wire size: 2.5mm Number of electronical contacts: 2+PE Rated current per contact: 16A rms (USA: 20A) Rated voltage: 250V ac

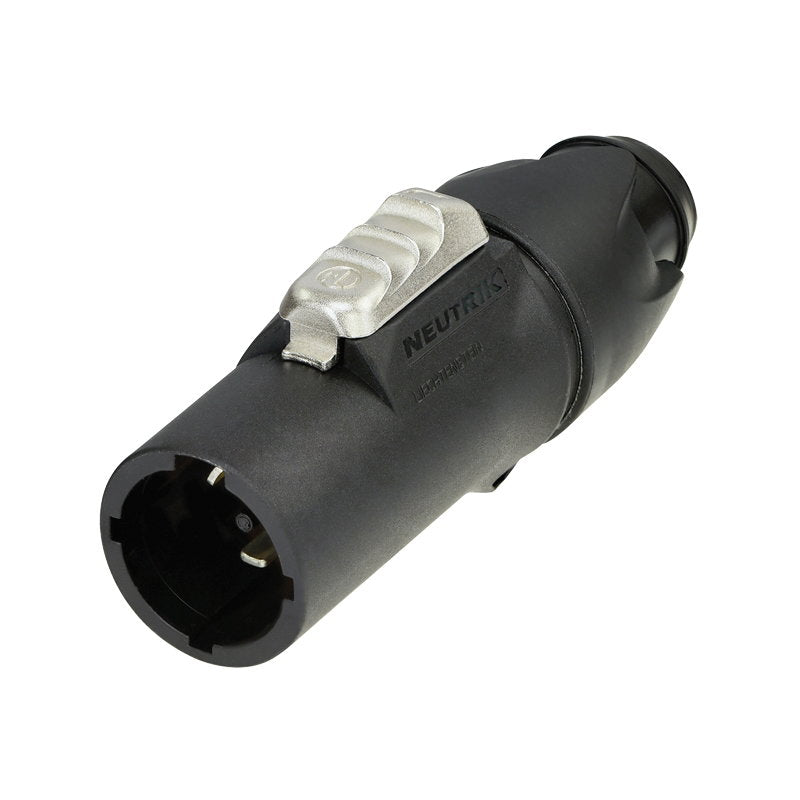

Neutrik powerCON TRUE1 Connector NAC3MX-W-TOP
Brand: Neutrik
SKU: CONN104
Regular price
£8.99
Pickup available at Venutec
Usually ready in 24 hours
Neutrik powerCON TRUE1 Connector NAC3MX-W-TOP
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
The powerCON TRUE1 TOP is a locking 16A true mains connector for indoor or outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The connector can be connected or disconnected under load or live ideal for use in the harsh and demanding environment applications of entertainment equipment like PA systems LED screens or lighting.
Male cable connector Screw terminals Heavy-duty sealed power connector for harsh and demanding environment Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition or in combination with the rubber sealing cover SCNAC-FPX) Uses high impact UV-resistant materials True mains connector with breaking capacity (CBC) Lockable 16A single phase connector (USA: 20A) Easy and reliable twist lock system Extremely robust and reliable Unique Neutrik cable retention ENEC certified according to IEC 60320
Wire size: 2.5mm Number of electronical contacts: 2+PE Rated current per contact: 16A rms (USA: 20A) Rated voltage: 250V ac
Male cable connector Screw terminals Heavy-duty sealed power connector for harsh and demanding environment Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition or in combination with the rubber sealing cover SCNAC-FPX) Uses high impact UV-resistant materials True mains connector with breaking capacity (CBC) Lockable 16A single phase connector (USA: 20A) Easy and reliable twist lock system Extremely robust and reliable Unique Neutrik cable retention ENEC certified according to IEC 60320
Wire size: 2.5mm Number of electronical contacts: 2+PE Rated current per contact: 16A rms (USA: 20A) Rated voltage: 250V ac
