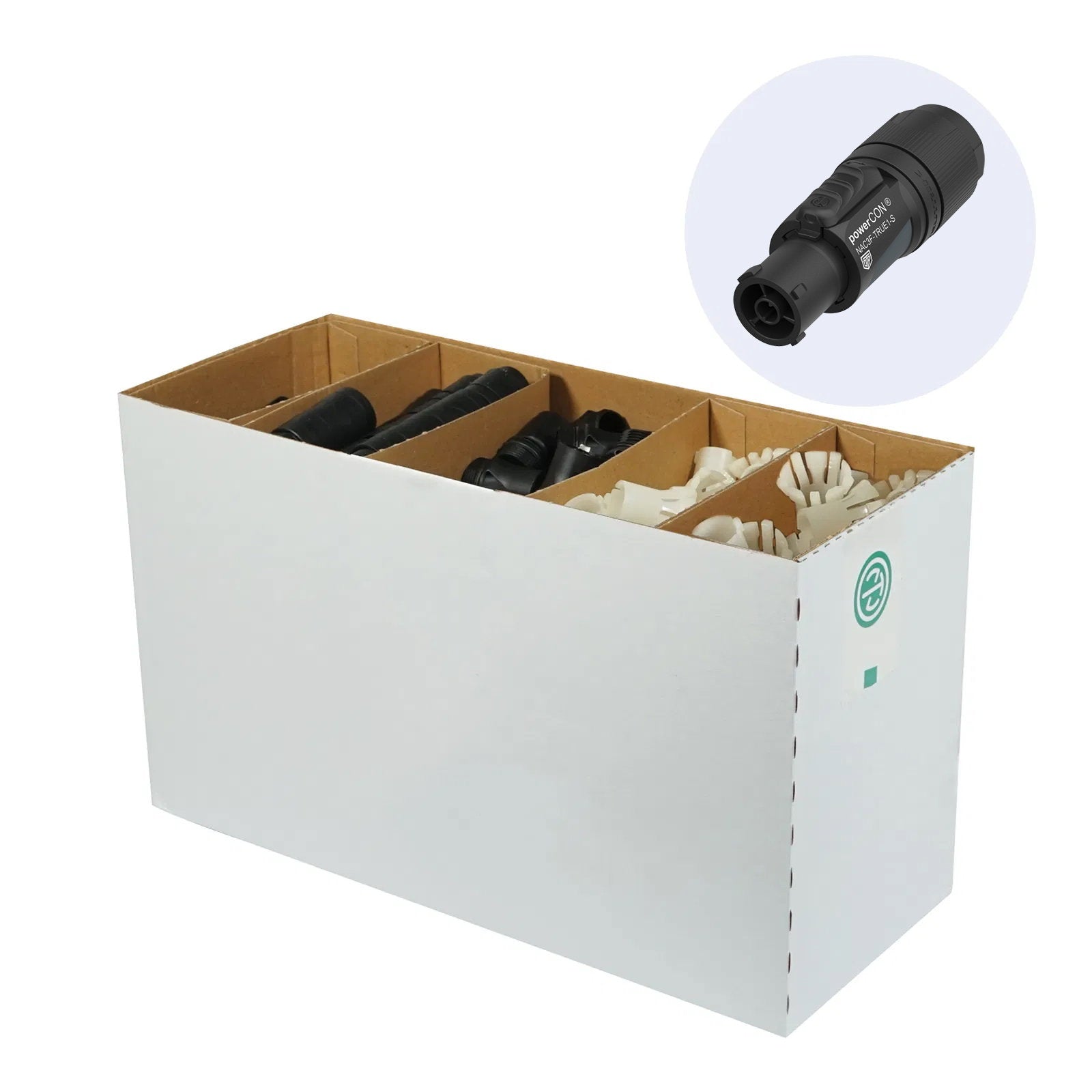

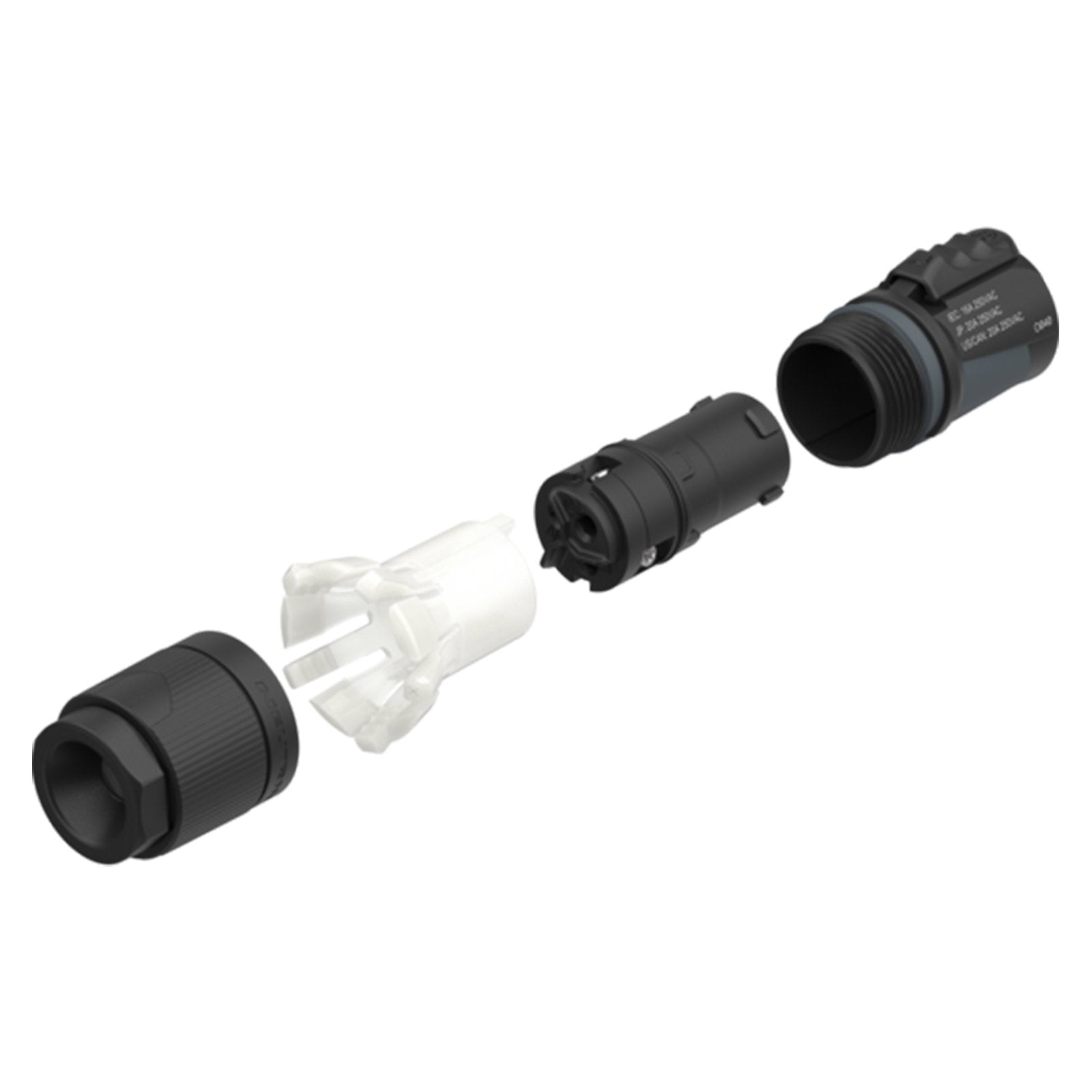

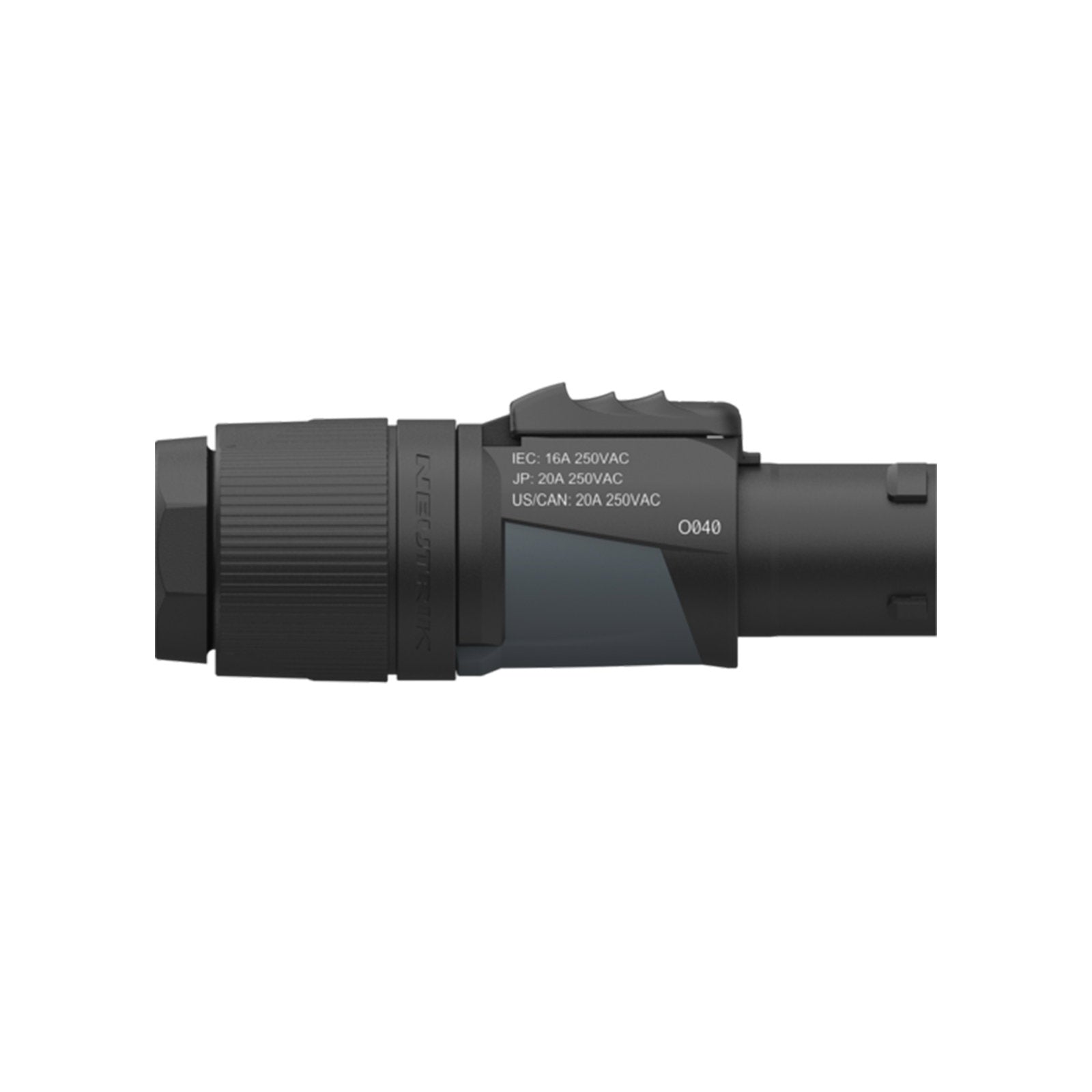

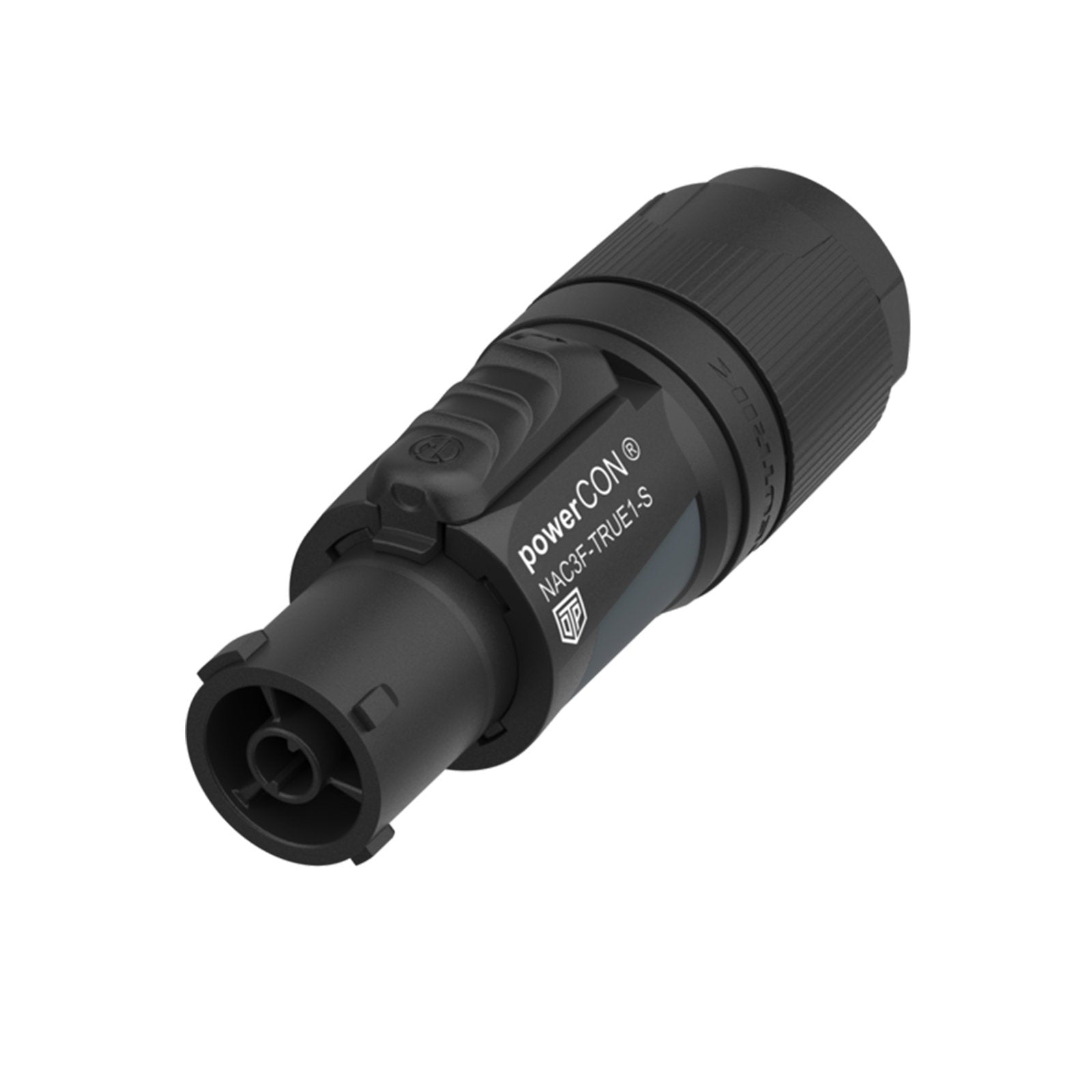

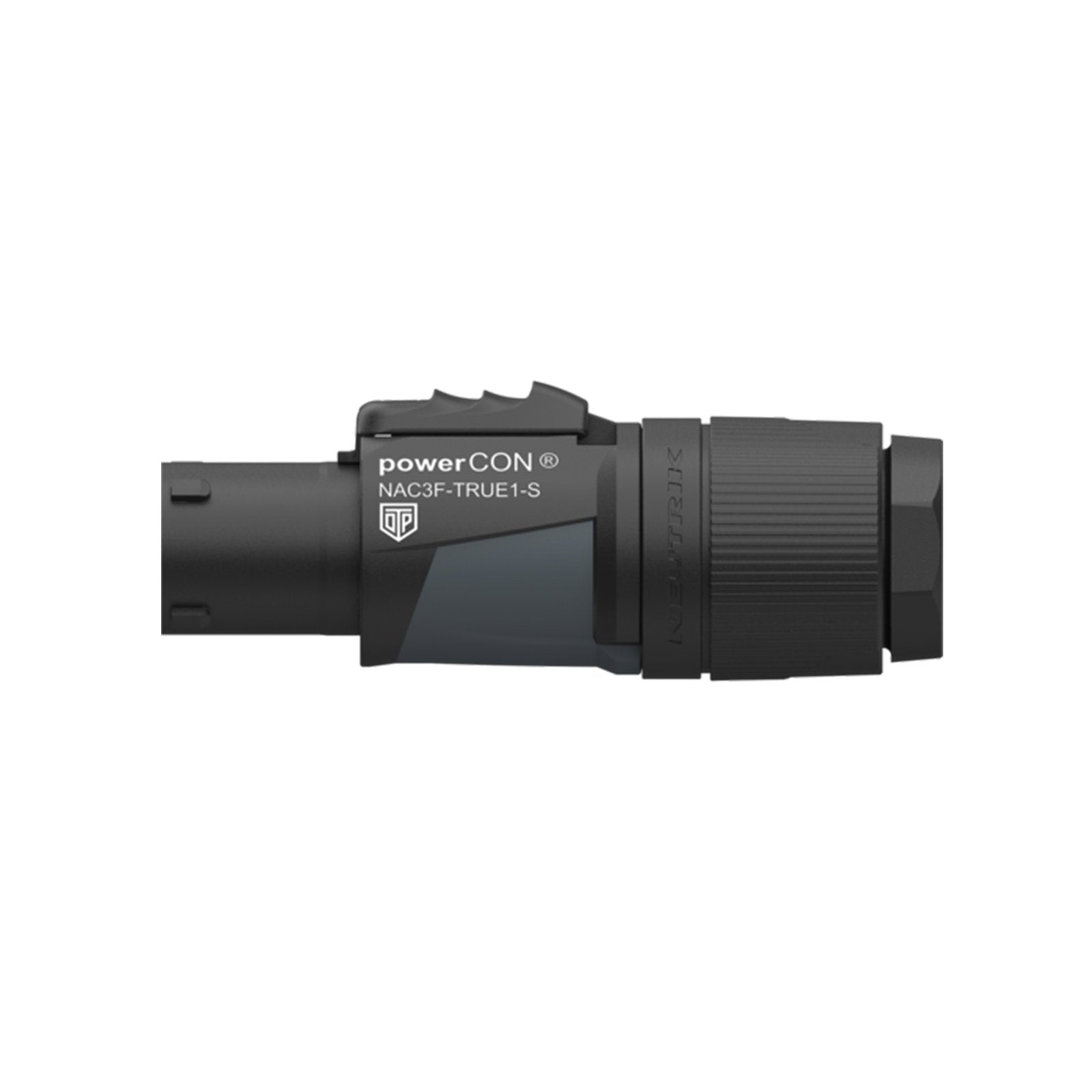

The Neutrik NAC3F-TRUE1-S is a bulk pack of 50 rugged 16A locking female cable connectors from the powerCON® TRUE1 series supplied disassembled for efficient integration into high-volume production or installation workflows. Each connector offers certified breaking capacity (CBC) for safe live connection/disconnection and is IP65/IP67 rated when mated or capped. Constructed with UV-resistant PA66 polyamide these connectors deliver reliable performance in outdoor industrial and professional AV environments. Globally certified to ENEC VDE UL and CSA standards this economical pack is ideal for system builders manufacturers and large-scale event production.
Supplied disassembled in a pack of 50 for efficient installation or production Breaking Capacity (CBC) supports live connection/disconnection IP65/IP67 protection when mated or capped High-impact UV-resistant polyamide (PA66) housing Certified by ENEC VDE UL and CSA Twist-lock design ensures secure power connectivity Rated for 6–12mm cable outer diameters Durable design with 5000+ mating cycles Operating temperature: -30°C to +80°C
Rated Current: 16A / 250V AC (EU) 20A / 250V AC (US) Contacts: 2 + PE Contact Resistance: ≤ 2 mΩ Dielectric Strength: 4kV DC / 2.8kV AC Insulation Resistance: >0.1 GΩ Cable OD Compatibility: 6–12mm Wire Size: 1.0–2.5mm² / 14 AWG Mating Cycles: >5000 Contact Plating: 2 µm Ag Contacts: Copper alloy Locking Element: PA66 polyamide Shell & Insert: PA66 polyamide Strain Relief: Polyketon Flammability Rating: UL 94 V-0 Ingress Protection: IP65 / IP67 (when mated/sealed) UV Resistance: F1-rated for outdoor durability Temperature Range: -30°C to +80°C (IEC 61984); -5°C to +40°C (IEC 60320-1)
Supplied disassembled in a pack of 50 for efficient installation or production Breaking Capacity (CBC) supports live connection/disconnection IP65/IP67 protection when mated or capped High-impact UV-resistant polyamide (PA66) housing Certified by ENEC VDE UL and CSA Twist-lock design ensures secure power connectivity Rated for 6–12mm cable outer diameters Durable design with 5000+ mating cycles Operating temperature: -30°C to +80°C
Rated Current: 16A / 250V AC (EU) 20A / 250V AC (US) Contacts: 2 + PE Contact Resistance: ≤ 2 mΩ Dielectric Strength: 4kV DC / 2.8kV AC Insulation Resistance: >0.1 GΩ Cable OD Compatibility: 6–12mm Wire Size: 1.0–2.5mm² / 14 AWG Mating Cycles: >5000 Contact Plating: 2 µm Ag Contacts: Copper alloy Locking Element: PA66 polyamide Shell & Insert: PA66 polyamide Strain Relief: Polyketon Flammability Rating: UL 94 V-0 Ingress Protection: IP65 / IP67 (when mated/sealed) UV Resistance: F1-rated for outdoor durability Temperature Range: -30°C to +80°C (IEC 61984); -5°C to +40°C (IEC 60320-1)
Neutrik powerCON TRUE1 Connector 6-12mm Cable NAC3F-TRUE1-S-D (Pack of 50)
Brand: Neutrik
SKU: CONN1260B
Regular price
£398.99
Pickup available at Venutec
Usually ready in 24 hours
Neutrik powerCON TRUE1 Connector 6-12mm Cable NAC3F-TRUE1-S-D (Pack of 50)
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
The Neutrik NAC3F-TRUE1-S is a bulk pack of 50 rugged 16A locking female cable connectors from the powerCON® TRUE1 series supplied disassembled for efficient integration into high-volume production or installation workflows. Each connector offers certified breaking capacity (CBC) for safe live connection/disconnection and is IP65/IP67 rated when mated or capped. Constructed with UV-resistant PA66 polyamide these connectors deliver reliable performance in outdoor industrial and professional AV environments. Globally certified to ENEC VDE UL and CSA standards this economical pack is ideal for system builders manufacturers and large-scale event production.
Supplied disassembled in a pack of 50 for efficient installation or production Breaking Capacity (CBC) supports live connection/disconnection IP65/IP67 protection when mated or capped High-impact UV-resistant polyamide (PA66) housing Certified by ENEC VDE UL and CSA Twist-lock design ensures secure power connectivity Rated for 6–12mm cable outer diameters Durable design with 5000+ mating cycles Operating temperature: -30°C to +80°C
Rated Current: 16A / 250V AC (EU) 20A / 250V AC (US) Contacts: 2 + PE Contact Resistance: ≤ 2 mΩ Dielectric Strength: 4kV DC / 2.8kV AC Insulation Resistance: >0.1 GΩ Cable OD Compatibility: 6–12mm Wire Size: 1.0–2.5mm² / 14 AWG Mating Cycles: >5000 Contact Plating: 2 µm Ag Contacts: Copper alloy Locking Element: PA66 polyamide Shell & Insert: PA66 polyamide Strain Relief: Polyketon Flammability Rating: UL 94 V-0 Ingress Protection: IP65 / IP67 (when mated/sealed) UV Resistance: F1-rated for outdoor durability Temperature Range: -30°C to +80°C (IEC 61984); -5°C to +40°C (IEC 60320-1)
Supplied disassembled in a pack of 50 for efficient installation or production Breaking Capacity (CBC) supports live connection/disconnection IP65/IP67 protection when mated or capped High-impact UV-resistant polyamide (PA66) housing Certified by ENEC VDE UL and CSA Twist-lock design ensures secure power connectivity Rated for 6–12mm cable outer diameters Durable design with 5000+ mating cycles Operating temperature: -30°C to +80°C
Rated Current: 16A / 250V AC (EU) 20A / 250V AC (US) Contacts: 2 + PE Contact Resistance: ≤ 2 mΩ Dielectric Strength: 4kV DC / 2.8kV AC Insulation Resistance: >0.1 GΩ Cable OD Compatibility: 6–12mm Wire Size: 1.0–2.5mm² / 14 AWG Mating Cycles: >5000 Contact Plating: 2 µm Ag Contacts: Copper alloy Locking Element: PA66 polyamide Shell & Insert: PA66 polyamide Strain Relief: Polyketon Flammability Rating: UL 94 V-0 Ingress Protection: IP65 / IP67 (when mated/sealed) UV Resistance: F1-rated for outdoor durability Temperature Range: -30°C to +80°C (IEC 61984); -5°C to +40°C (IEC 60320-1)
