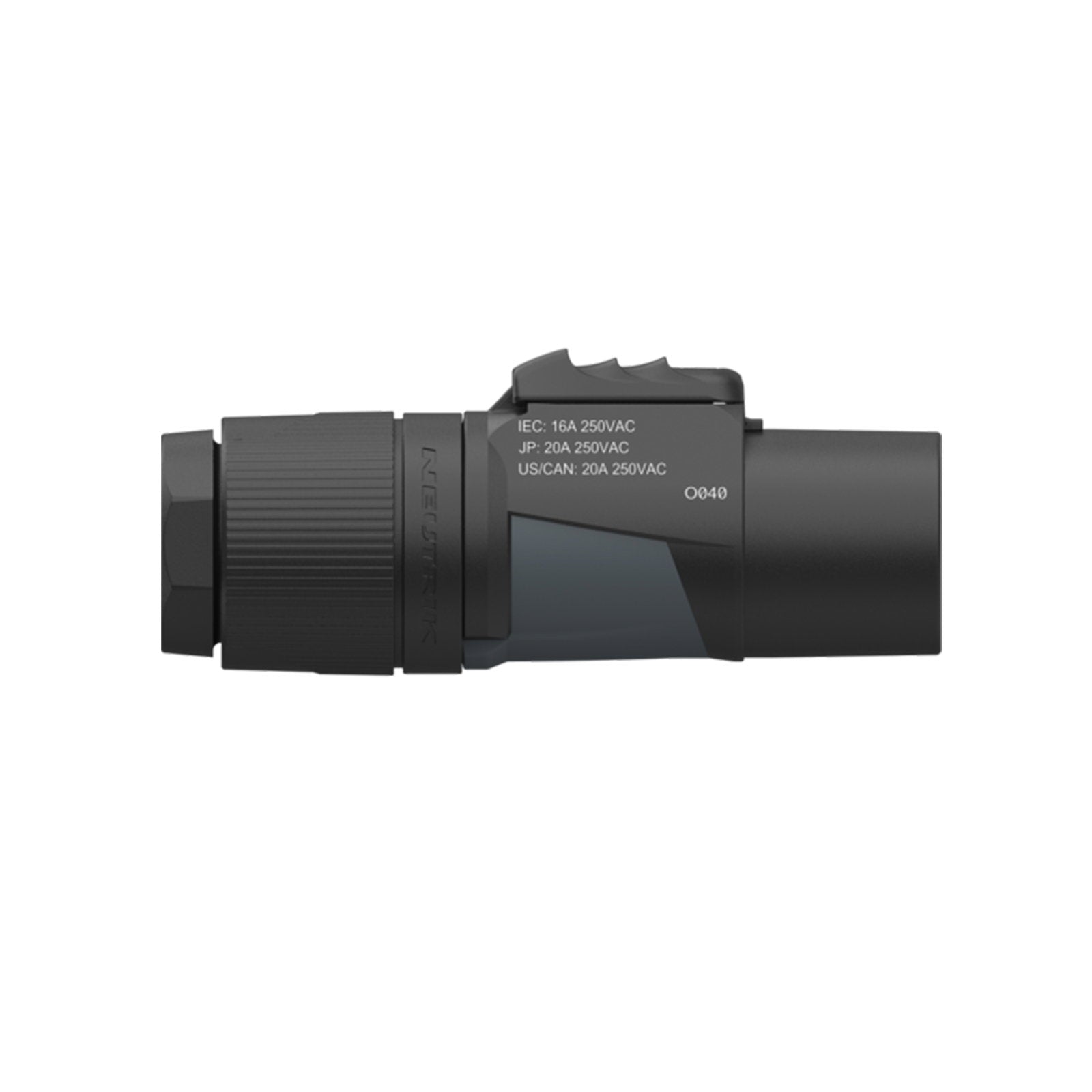

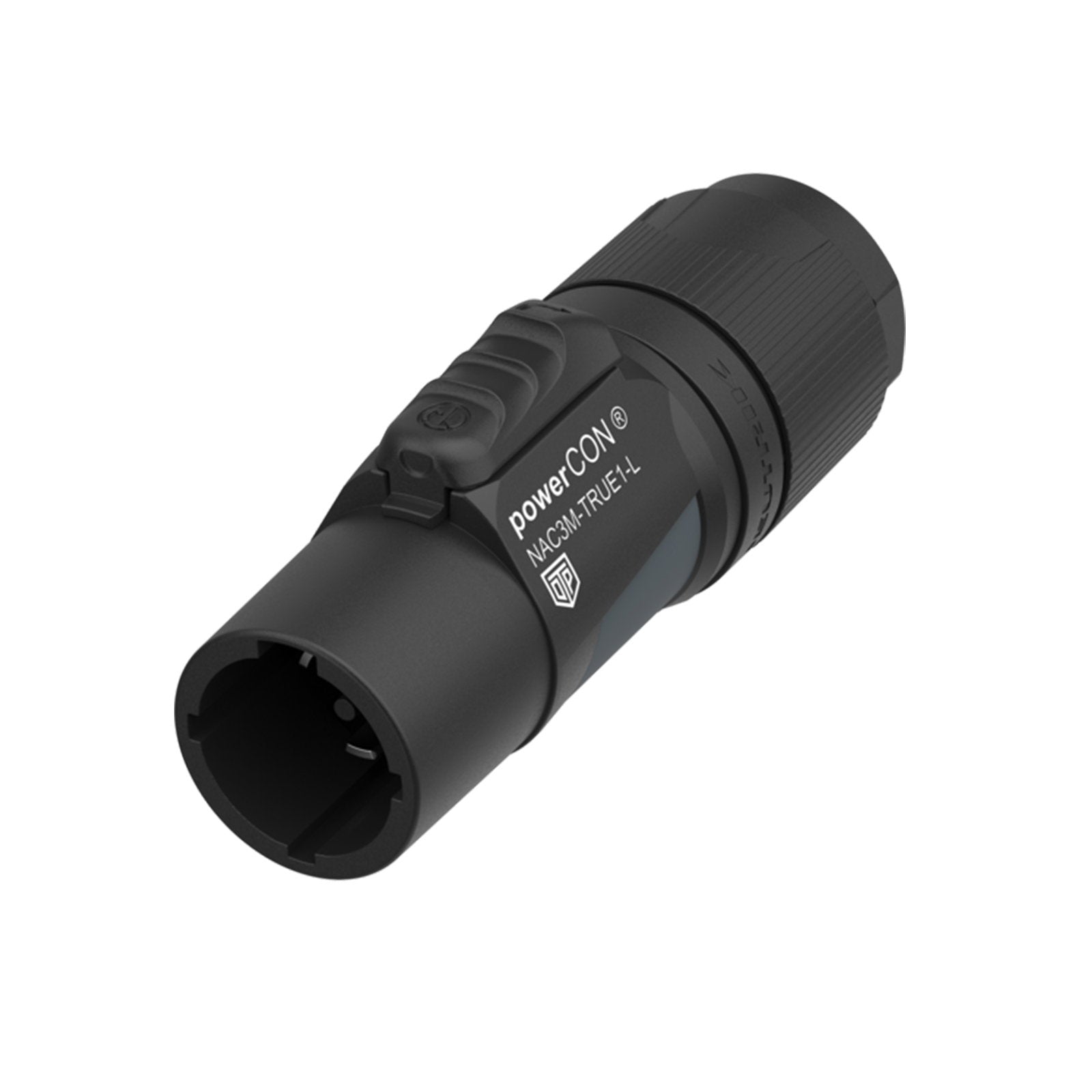

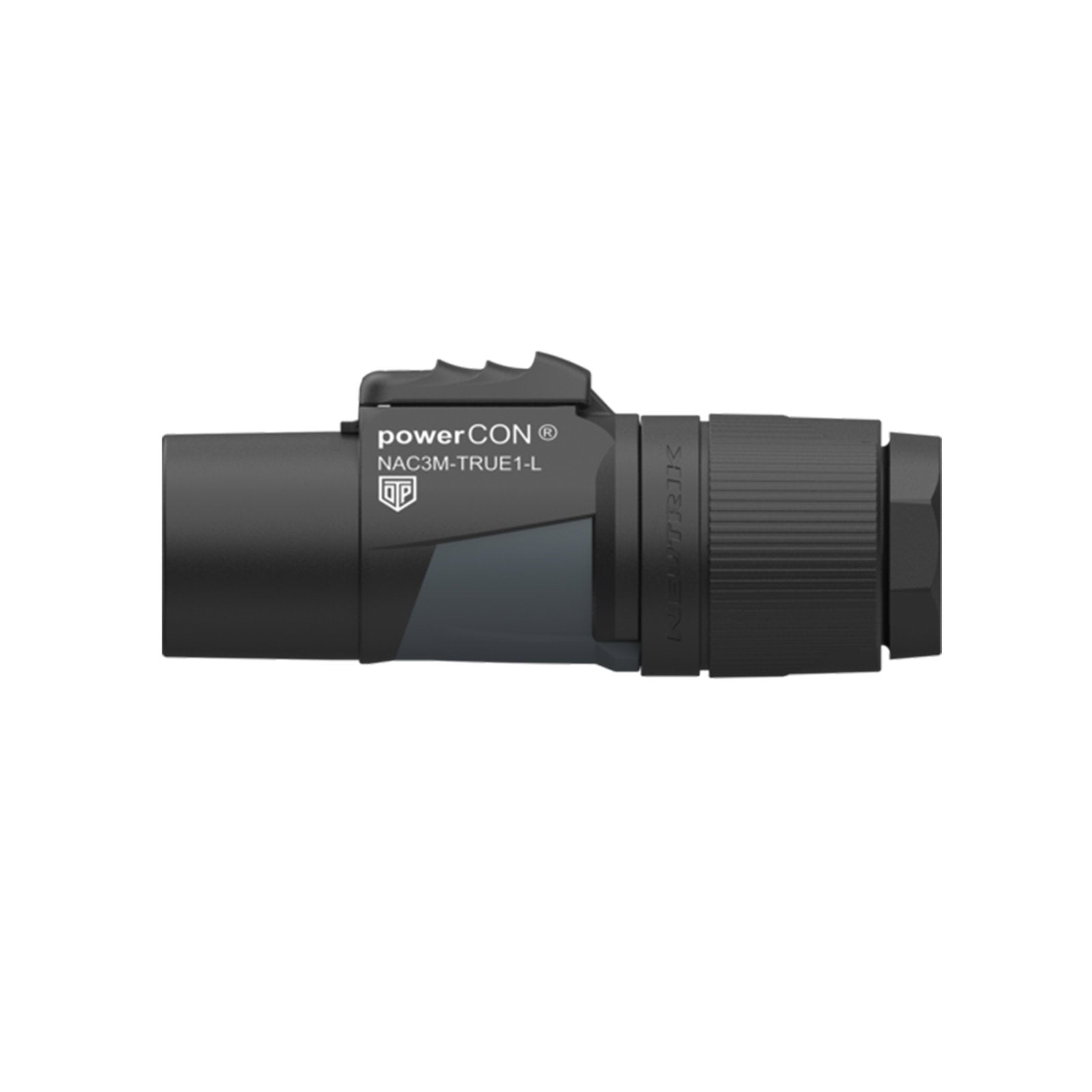

This 50-piece bulk pack of Neutrik NAC3M-TRUE1-L connectors provides a cost-effective disassembled solution for high-volume production and installation environments. Each 16A locking male cable connector belongs to the powerCON® TRUE1 series and features CBC (Breaking Capacity) for safe live connection/disconnection. With IP65/IP67 ingress protection when mated or sealed and a UV-resistant PA 6.6 polyamide housing these rugged components are trusted in professional lighting AV and industrial power setups. Certified to ENEC VDE UL and CSA standards for international compliance.

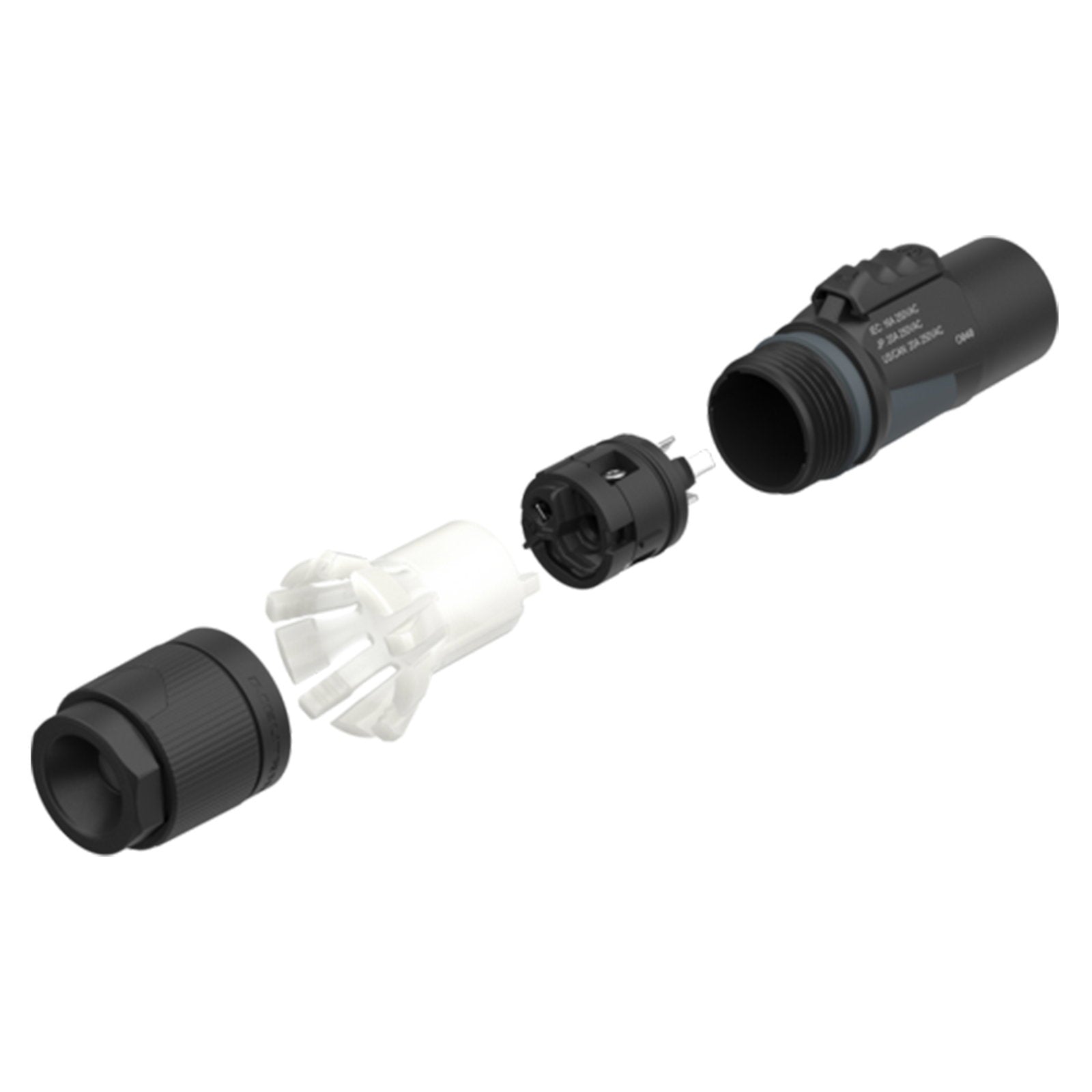

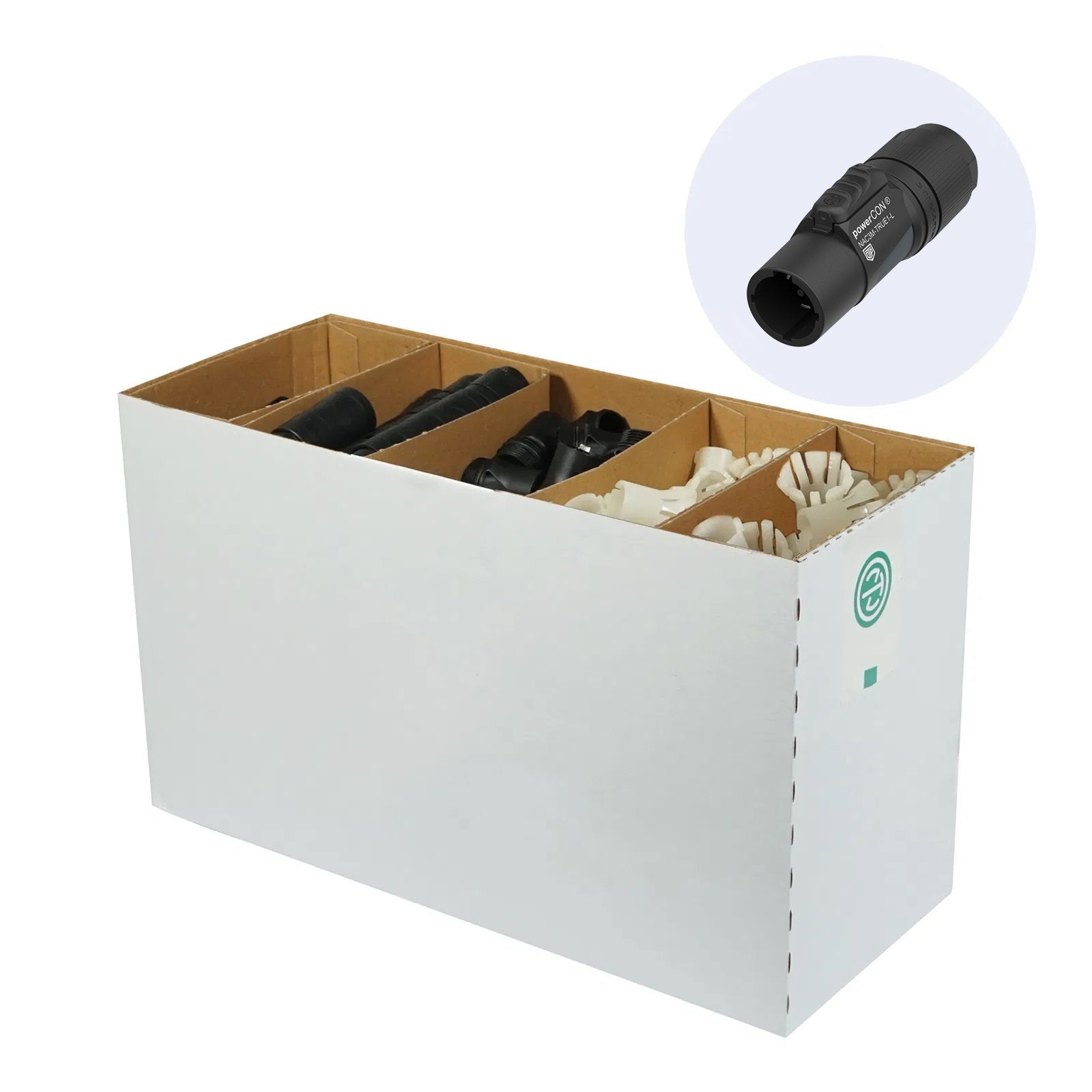

• Supplied disassembled in a bulk pack of 50 connectors
• Breaking Capacity (CBC) for safe live connection/disconnection
• IP65/IP67 rated when mated or sealed
• UV-resistant PA 6.6 polyamide housing
• Supports cable diameters from 10–16mm
• Certified: ENEC VDE UL CSA
• Secure twist-lock connection design
• Rated for over 5000 mating cycles

• Rated Current: 16A / 250V AC (Europe) 20A / 250V AC (USA)
• Contacts: 2 + PE
• Contact Resistance: ≤ 2 mΩ
• Dielectric Strength: 4 kV DC / 2.8 kV AC
• Insulation Resistance: >0.1 GΩ
• Cable Outer Diameter: 10–16mm
• Wire Size: 1.0–2.5mm² / 14–12 AWG
• Mating Cycles: 5000+
• Contact Plating: 2 μm Ag
• Contacts: Copper Alloy
• Shell & Locking Element: PA 6.6
• Strain Relief: Polyketon
• Flammability: UL 94 V-0
• UV Resistance: F1 rated material
• Protection Class: IP65 / IP67 (mated or capped)
• Temperature Range: –30°C to +80°C (IEC 61984) –5°C to +40°C (IEC 60320-1)
