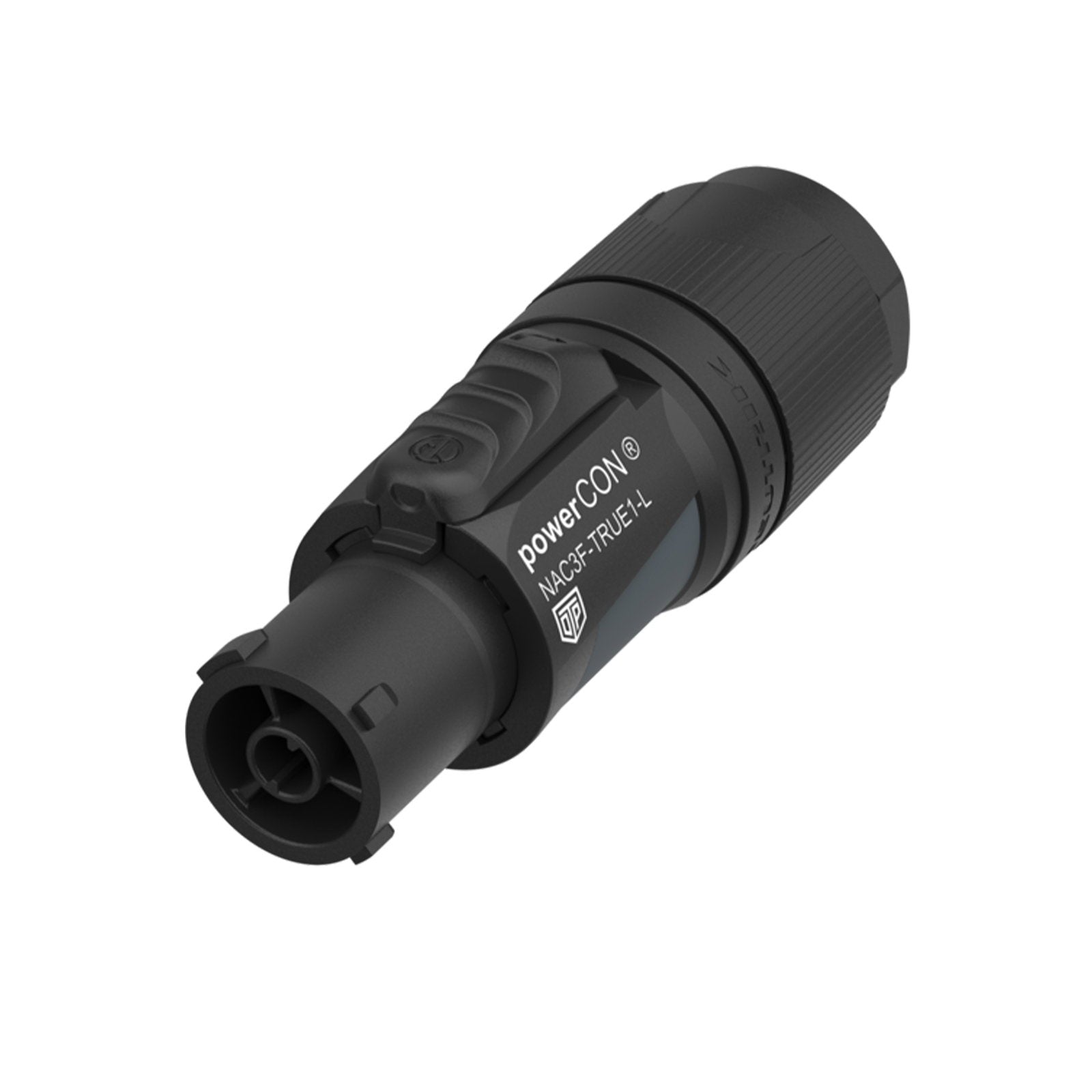

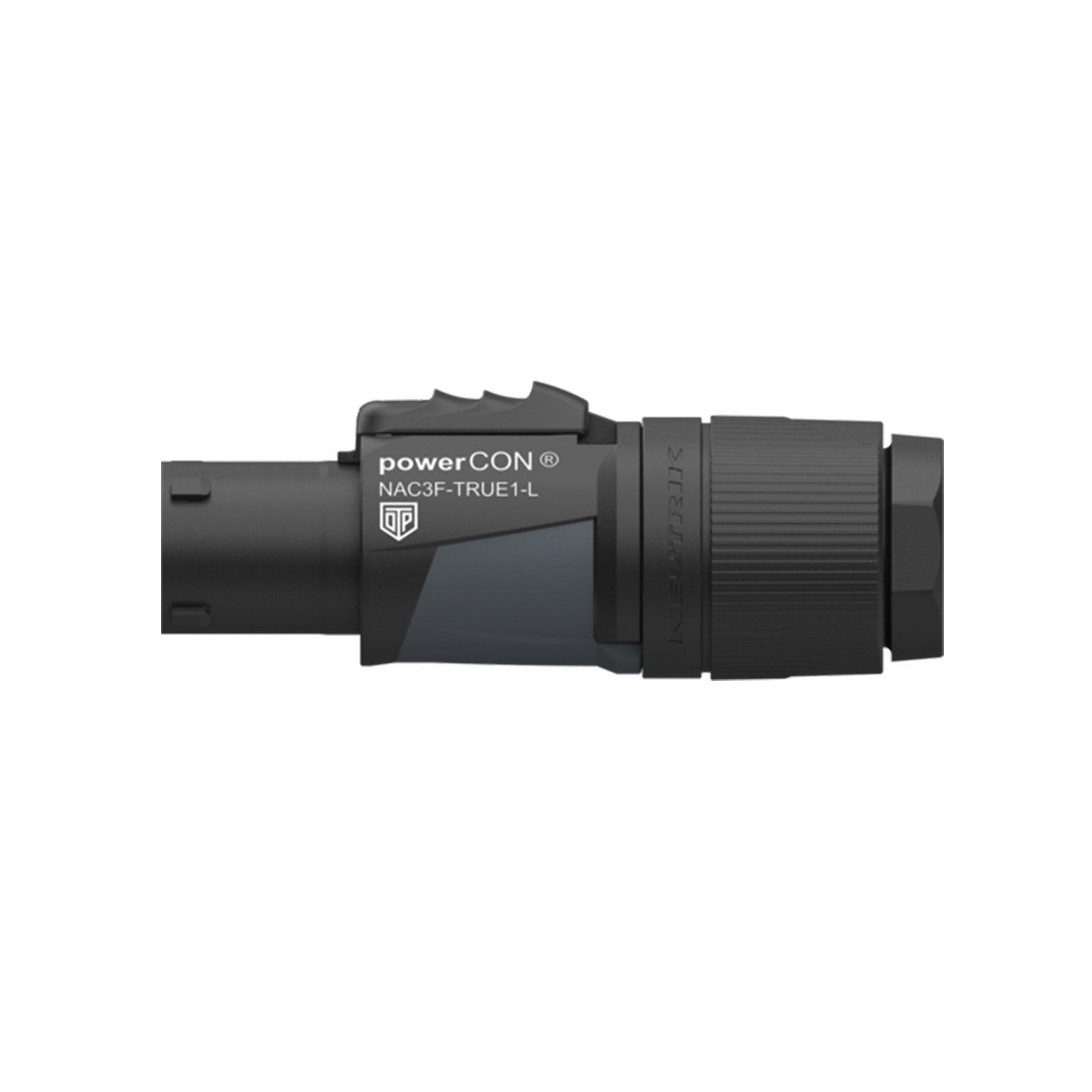

This bulk pack of 50 disassembled Neutrik NAC3F-TRUE1-L connectors provides a professional-grade solution for installers manufacturers and production companies requiring reliable 16A powerCON® TRUE1 connectivity. Each female cable connector features Certified Breaking Capacity (CBC) for live connect/disconnect IP65/IP67 sealing when mated or capped and a UV-resistant PA 6.6 housing. Suitable for cable diameters between 10–16mm these robust connectors offer over 5000 mating cycles and comply with ENEC VDE UL and CSA standards. Supplied unassembled for volume production use.

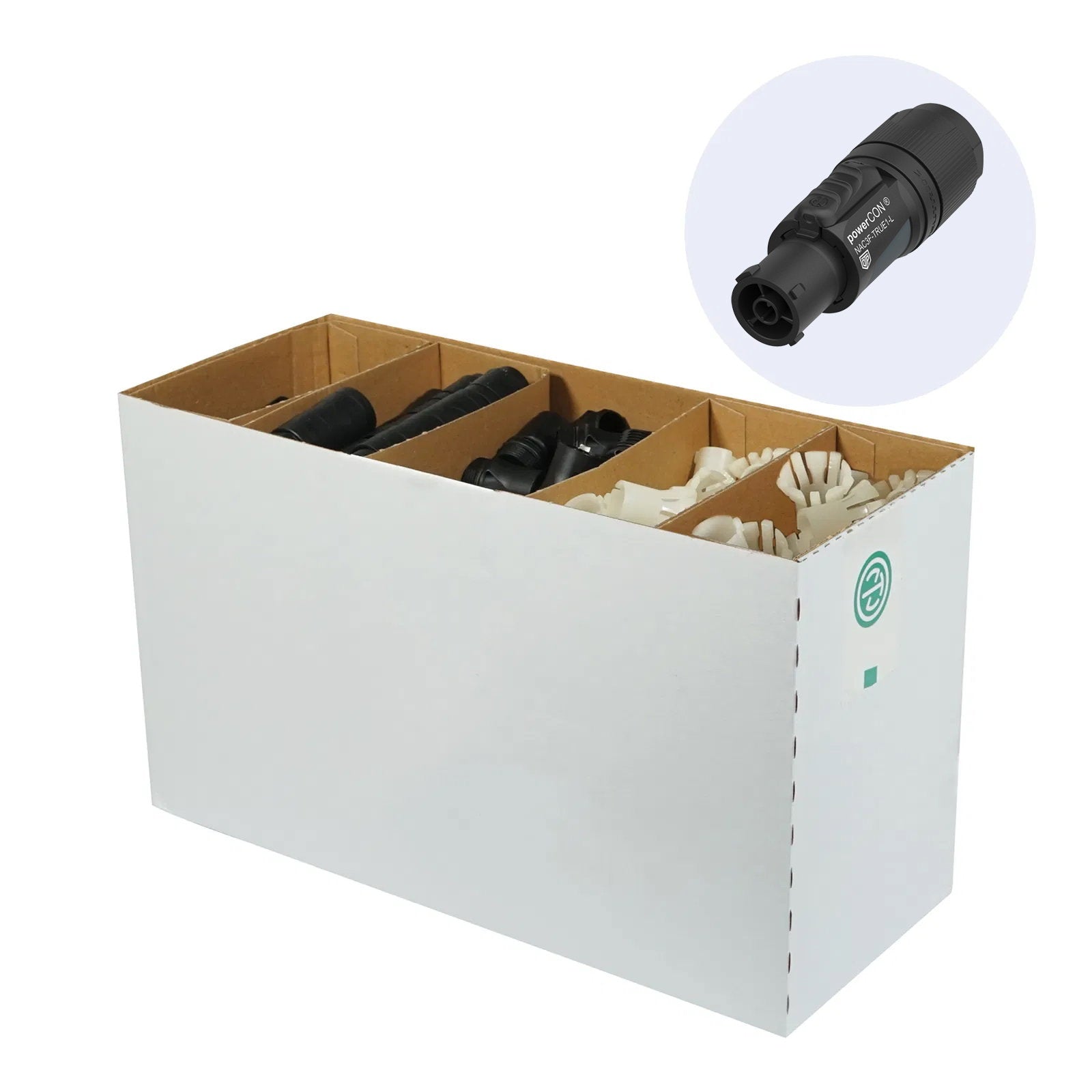

• Includes 50x NAC3F-TRUE1-L connectors (disassembled)
• Certified CBC for safe live connection/disconnection
• Rated IP65/IP67 when mated or sealed with cap
• High-impact UV-resistant PA 6.6 polyamide body
• Certified by ENEC VDE UL and CSA
• Supports cable OD 10–16mm
• Secure twist-lock system with polyketon strain relief
• Rated for 5000+ mating cycles

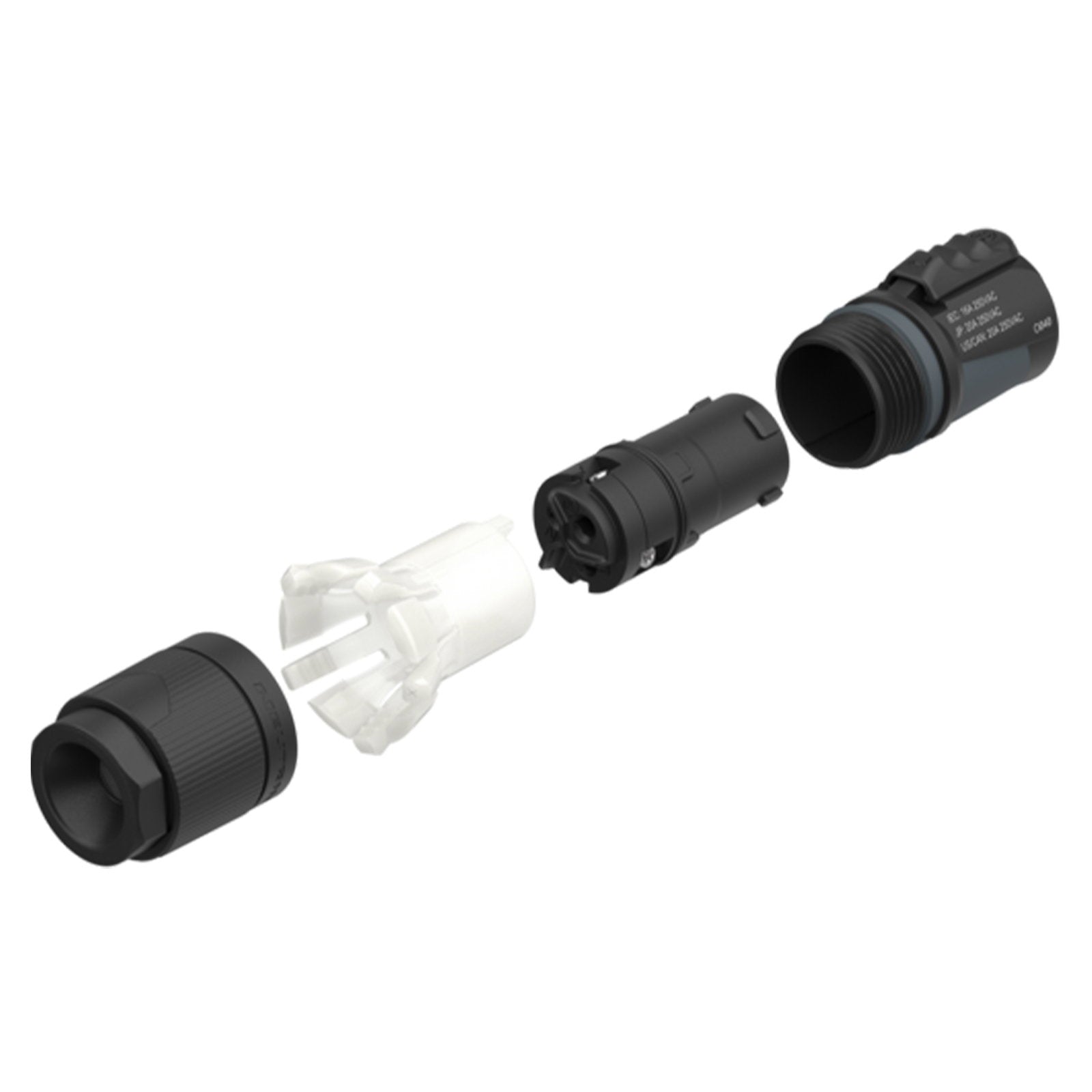

• Supplied unassembled – ideal for volume installation and integration

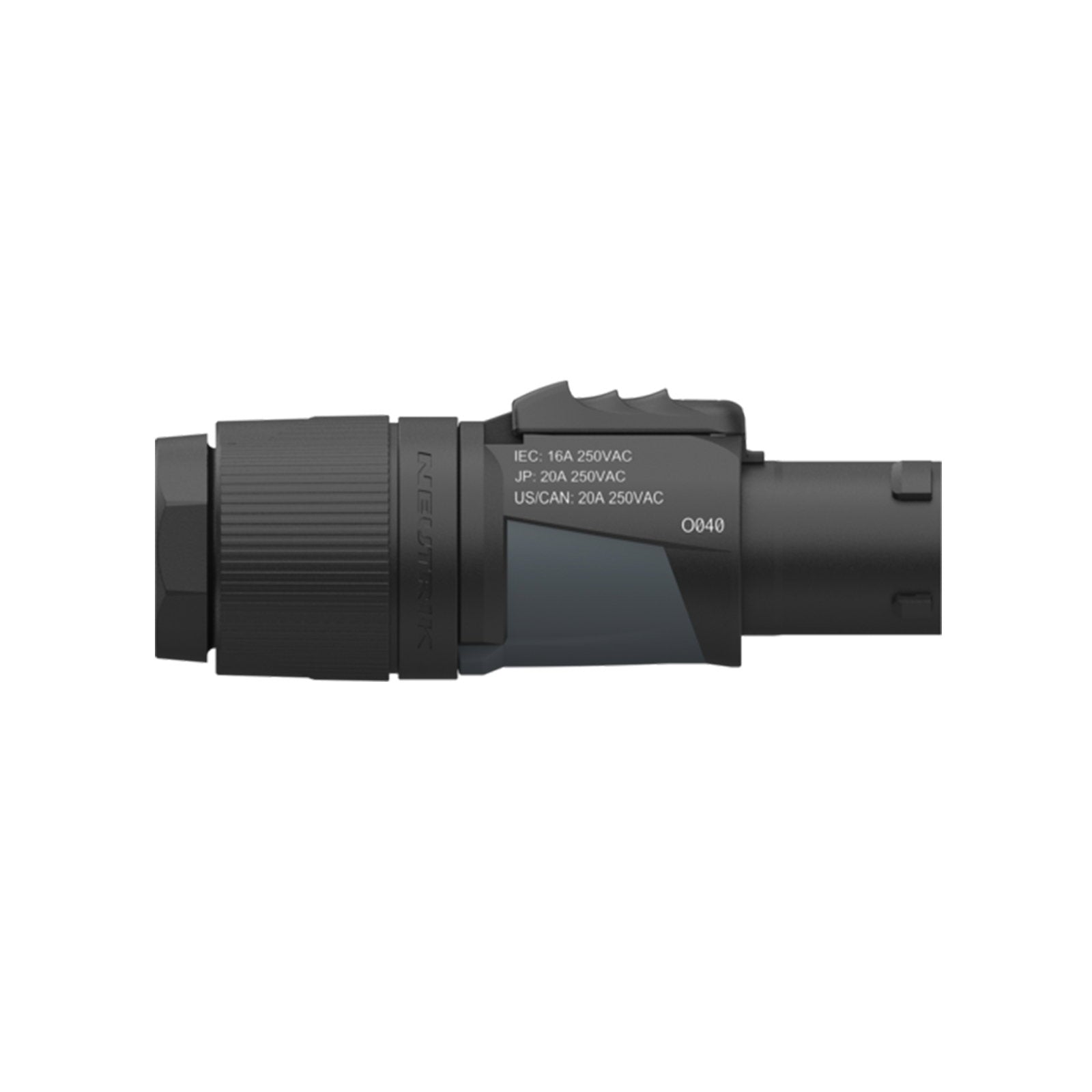

• Rated Current: 16A / 250V AC (EU); 20A / 250V AC (USA/Canada)
• Contacts: 2 + PE
• Contact Resistance: ≤ 2 mΩ
• Dielectric Strength: 4 kV DC / 2.8 kV AC
• Insulation Resistance: >0.1 GΩ
• Cable OD: 10–16mm
• Wire Size: 1.0–2.5mm² / 14–12 AWG
• Contact Plating: 2 μm Ag
• Housing/Shell: Polyamide (PA 6.6)
• Strain Relief: Polyketon
• Flammability: UL 94 V-0
• UV Resistance: F1 rated
• Operating Temperature: -30°C to +80°C (IEC 61984); -5°C to +40°C (IEC 60320-1)
