The 32A powerCON is an extremely robust and reliable locking single phase AC appliance cable connector for high current capacity (32A rated). It is conceived as a non-standardized 3 pole connection system without breaking capacity to serve the needs of high power distribution systems and supplies for professional audio and lighting equipment and installations. The connectors comprise of contacts for phase neutral and protective earth (ground) conductors rated for currents up to 32A and for voltages up to 250V.
250V ac 32A single-phase (for ambient temperatures up to 35°C) Premating contact for protective earth Fast and easy locking system to prevent unintentional disengagement Wiring with screw-type terminals for wires 2.5 to 6.0mm² (AWG 14 - 10) Extremely robust and reliable VDE UL cUL and JET approved
250V ac 32A single-phase (for ambient temperatures up to 35°C) Premating contact for protective earth Fast and easy locking system to prevent unintentional disengagement Wiring with screw-type terminals for wires 2.5 to 6.0mm² (AWG 14 - 10) Extremely robust and reliable VDE UL cUL and JET approved

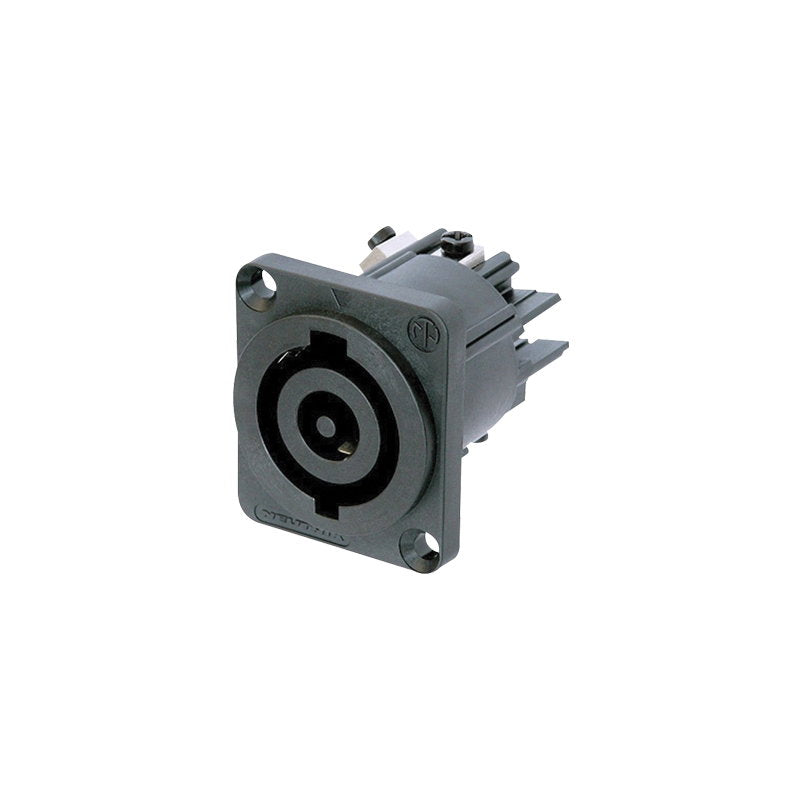

Neutrik powerCON 32A Chassis Inlet NAC3MP-HC
Brand: Neutrik
SKU: CONN134
Regular price
£11.99
Pickup available at Venutec
Usually ready in 24 hours
Neutrik powerCON 32A Chassis Inlet NAC3MP-HC
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
The 32A powerCON is an extremely robust and reliable locking single phase AC appliance cable connector for high current capacity (32A rated). It is conceived as a non-standardized 3 pole connection system without breaking capacity to serve the needs of high power distribution systems and supplies for professional audio and lighting equipment and installations. The connectors comprise of contacts for phase neutral and protective earth (ground) conductors rated for currents up to 32A and for voltages up to 250V.
250V ac 32A single-phase (for ambient temperatures up to 35°C) Premating contact for protective earth Fast and easy locking system to prevent unintentional disengagement Wiring with screw-type terminals for wires 2.5 to 6.0mm² (AWG 14 - 10) Extremely robust and reliable VDE UL cUL and JET approved
250V ac 32A single-phase (for ambient temperatures up to 35°C) Premating contact for protective earth Fast and easy locking system to prevent unintentional disengagement Wiring with screw-type terminals for wires 2.5 to 6.0mm² (AWG 14 - 10) Extremely robust and reliable VDE UL cUL and JET approved
