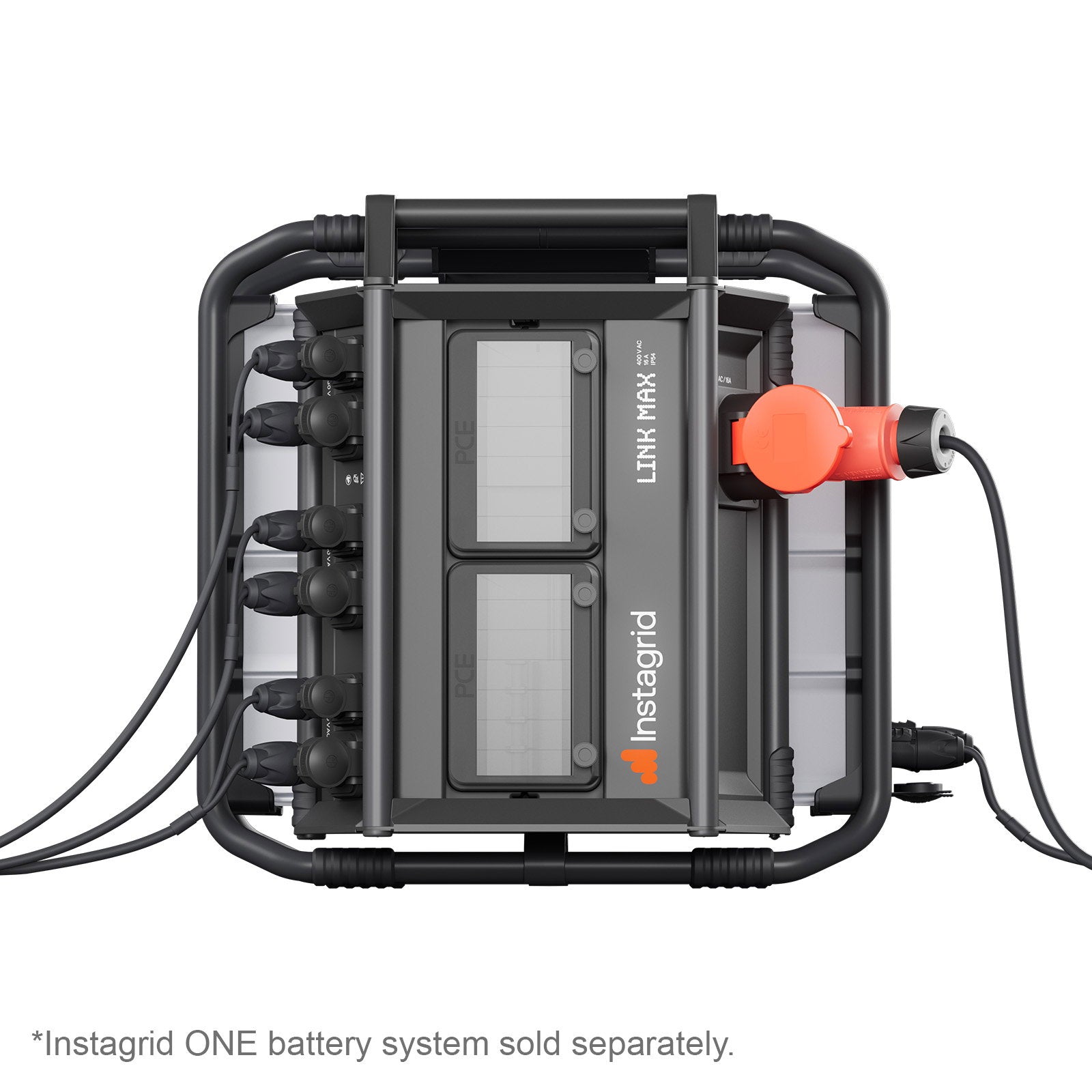

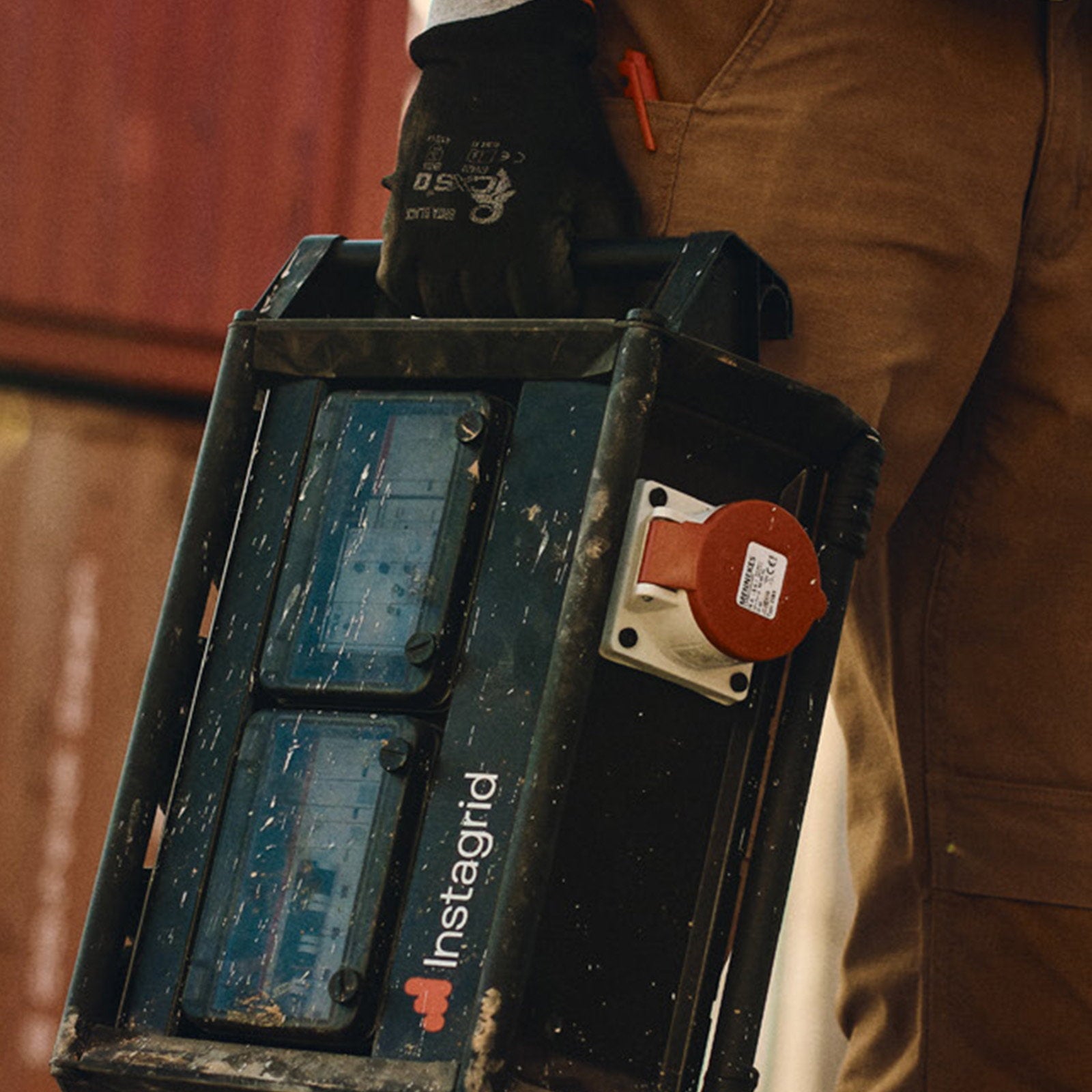

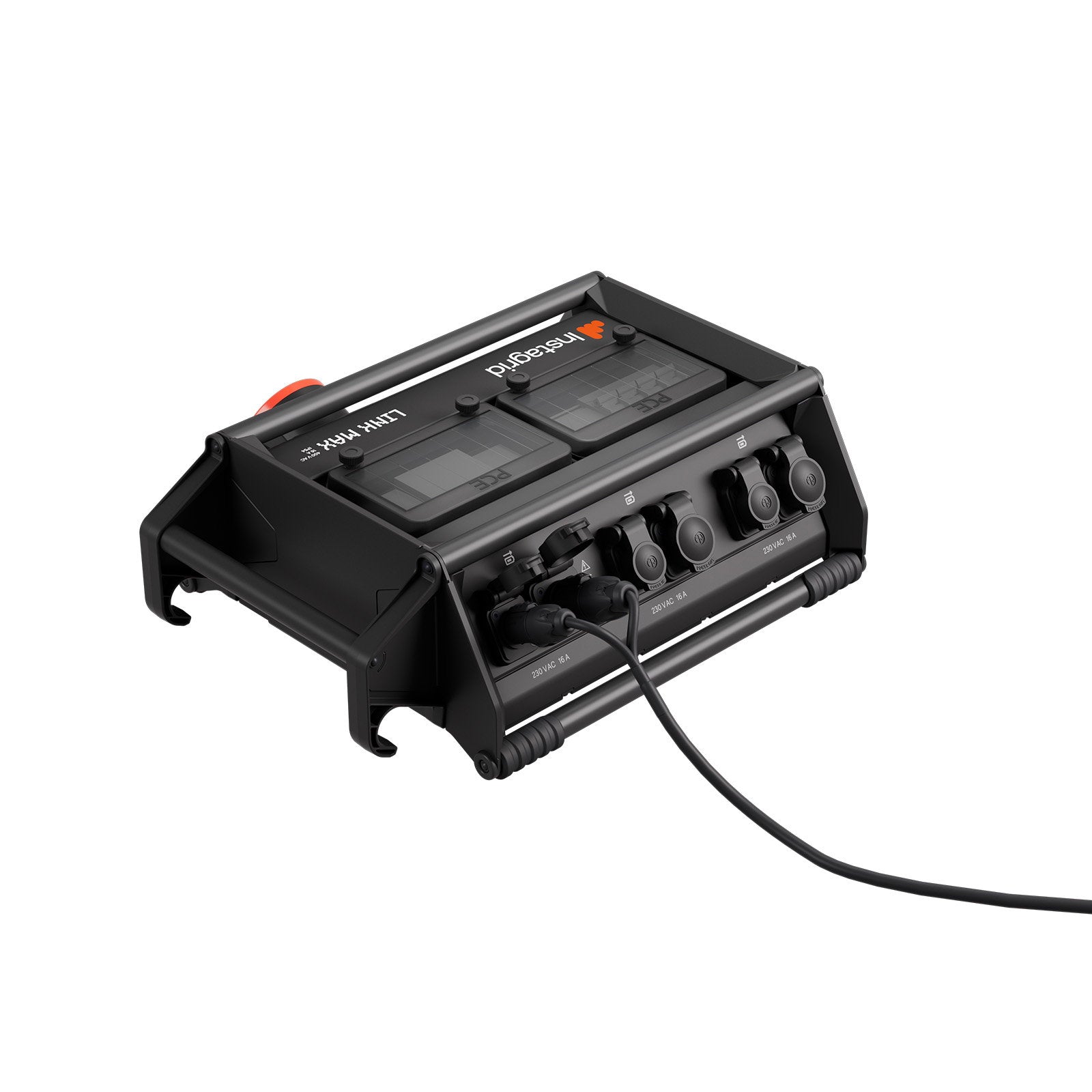

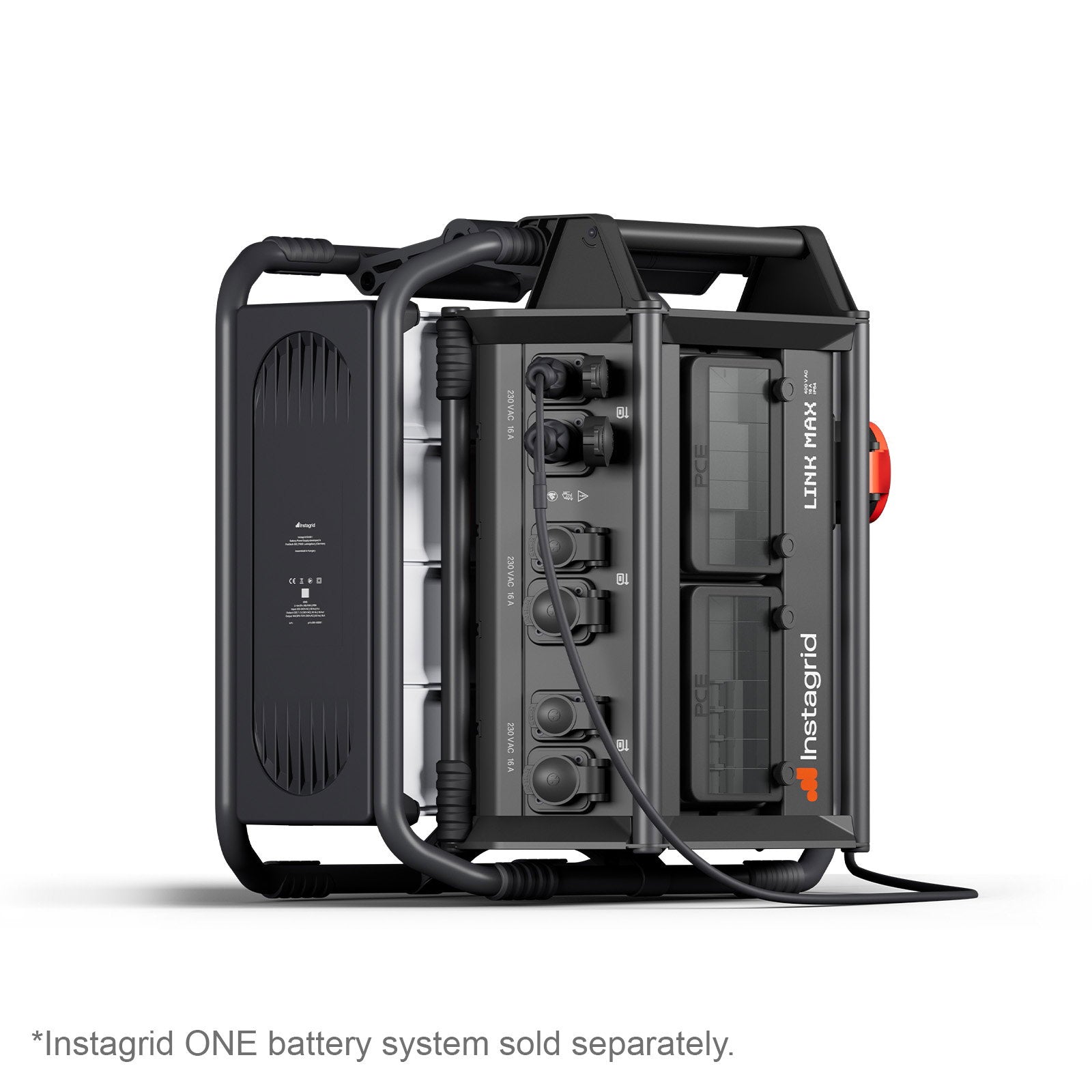

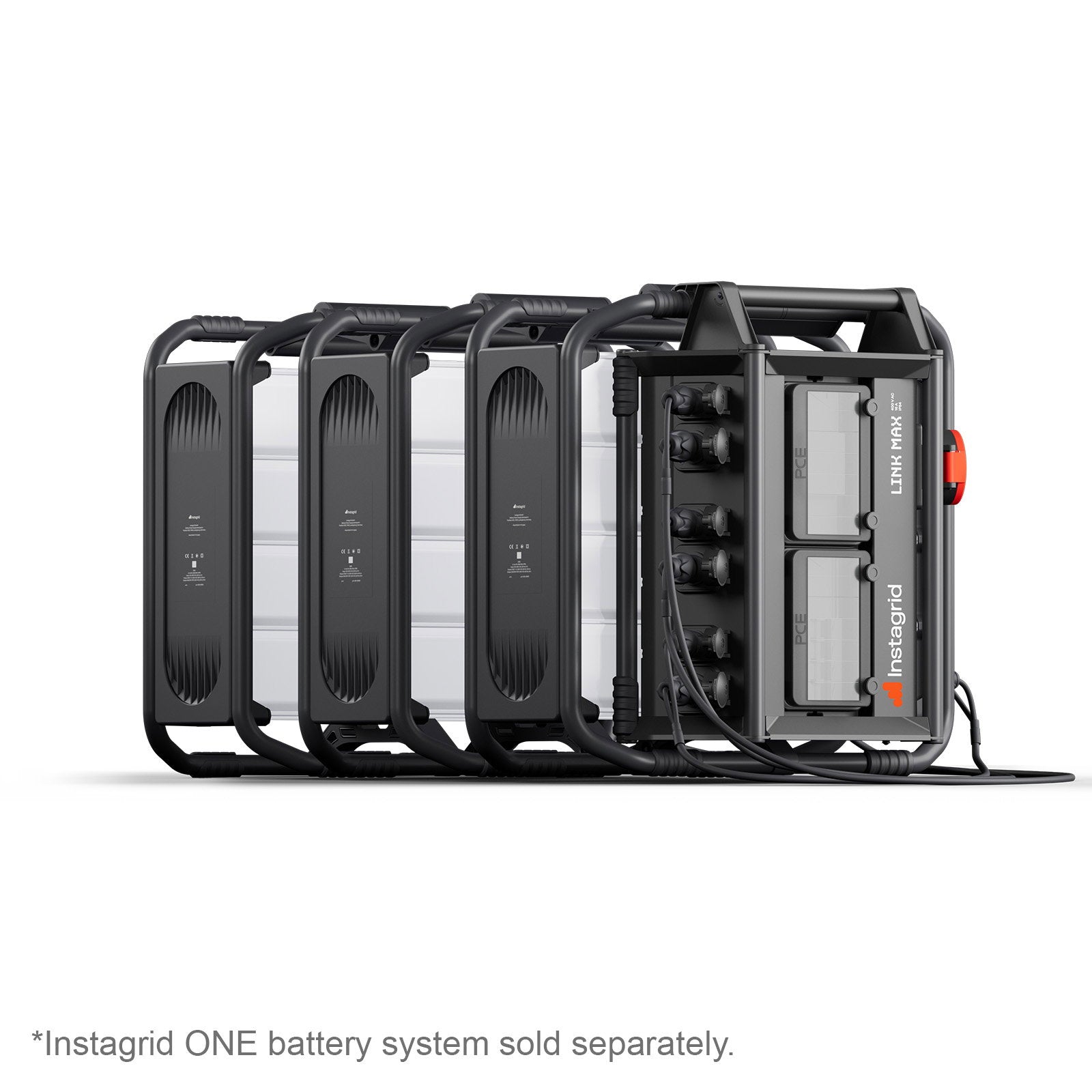

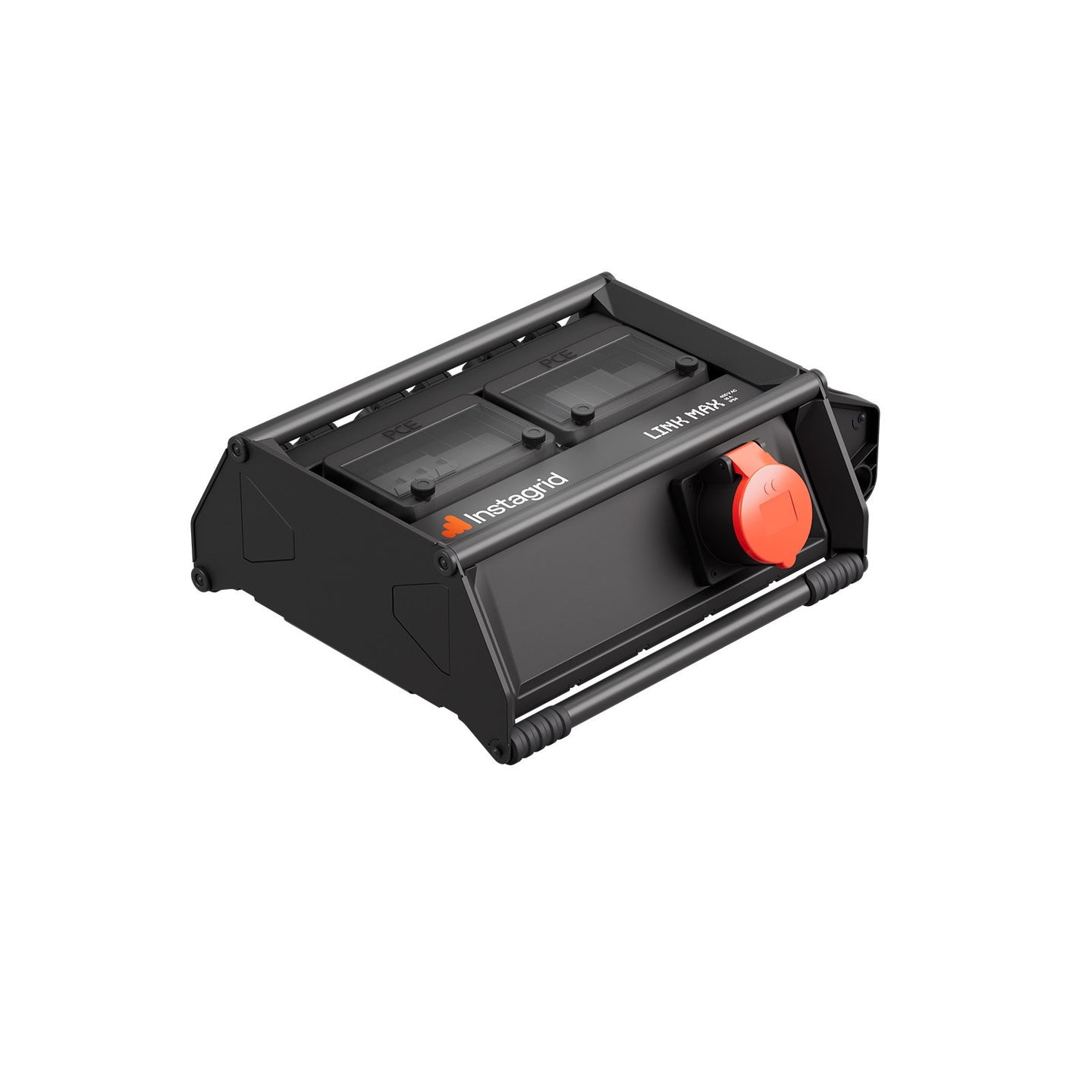

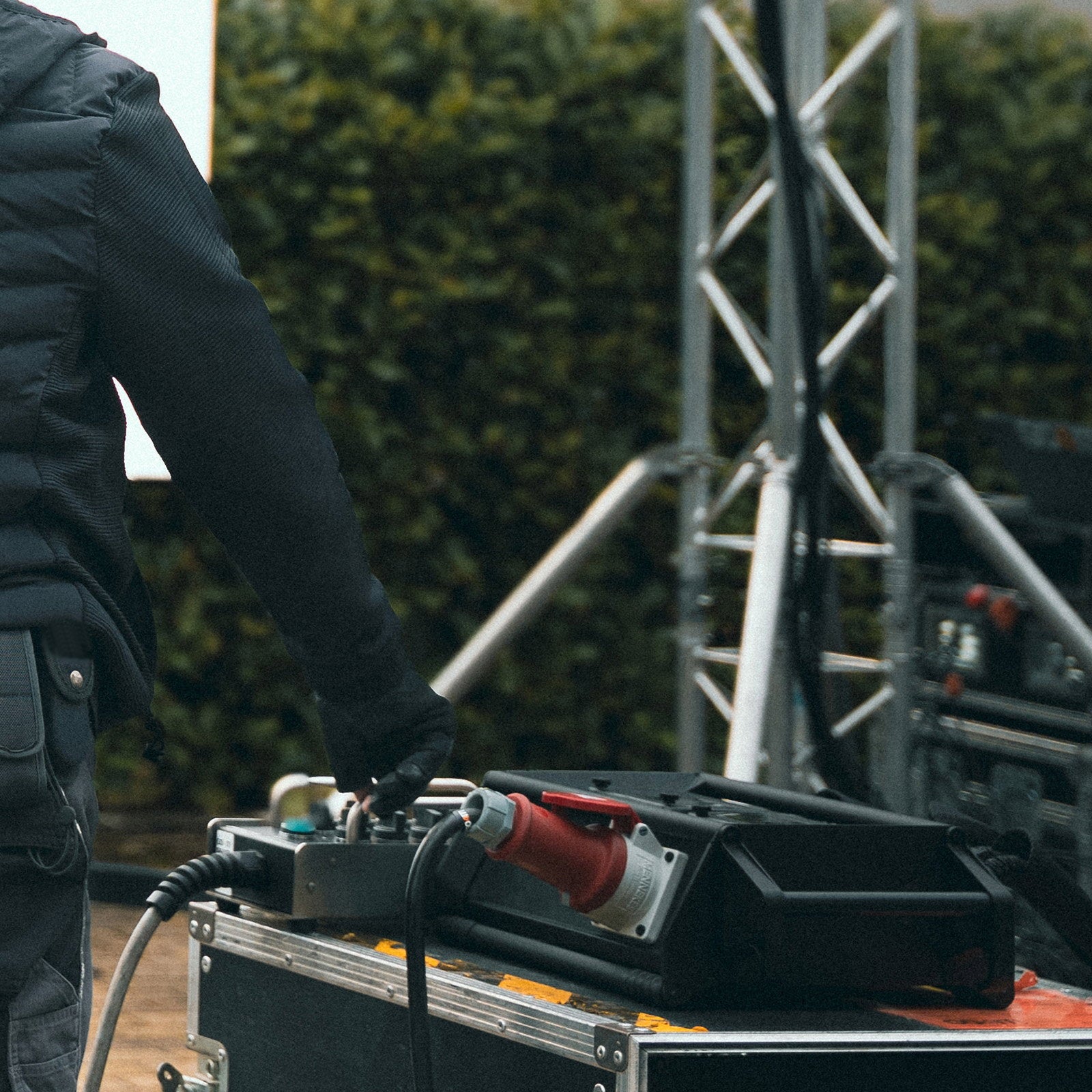

Instagrid LINK MAX transforms three Instagrid ONE units into a high-performance 400V 3-phase power supply delivering an impressive 11kW rated output and up to 54kW peak power. Designed for professionals in events film live production and mobile infrastructure LINK MAX unlocks applications previously limited to industrial diesel generators — now in a silent portable format.Weighing just 5.1kg the LINK MAX unit can be carried by hand and paired with three Instagrid ONE units to create the world’s most compact and convenient 3-phase power system (total weight: 65kg). It features a plug-and-play design tool-free setup and rugged IP54 construction — eliminating the need for noisy engines cables or heavy lifting.Run chain hoists 400V coffee machines or entire truss systems with confidence without the safety risks of extension leads or voltage drops.

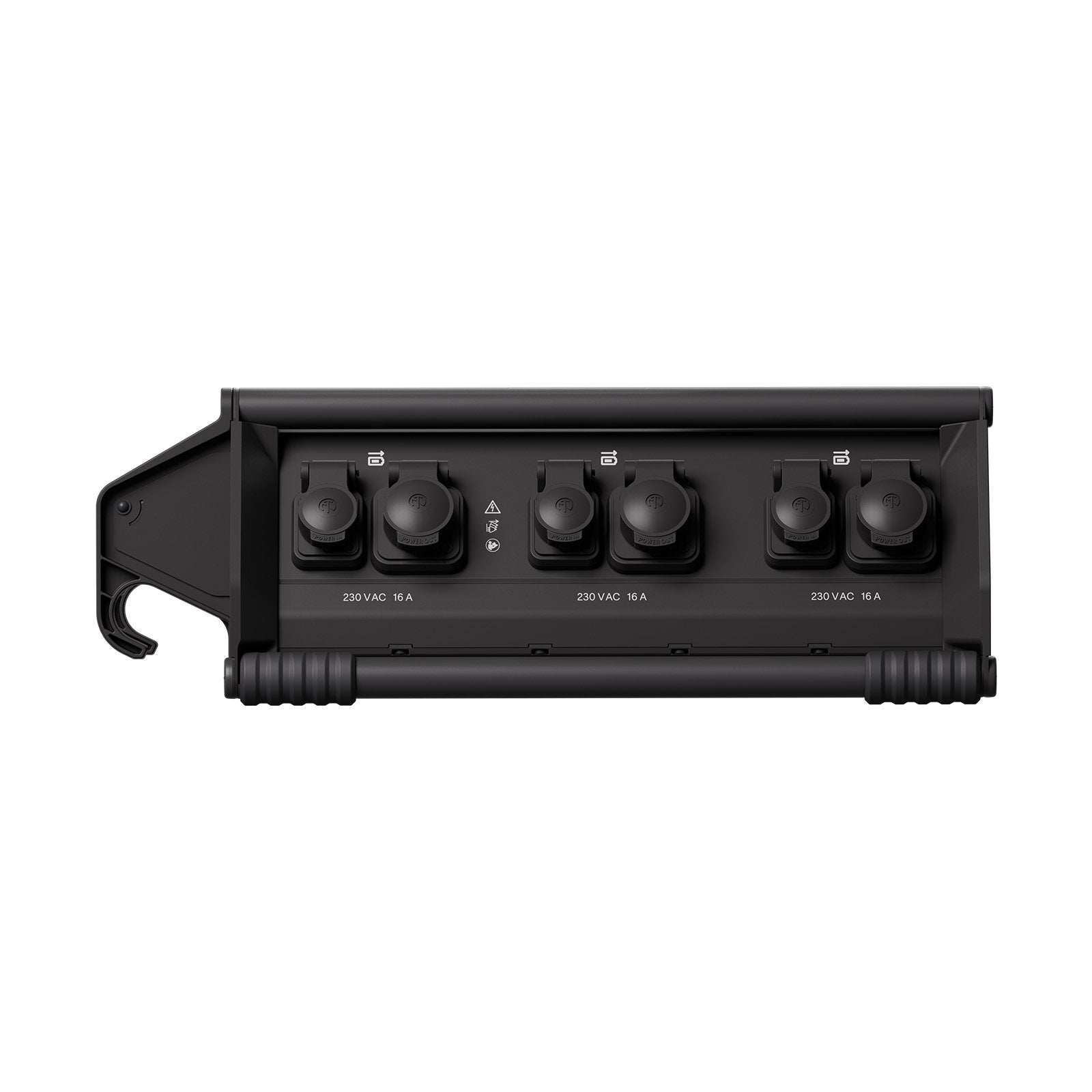

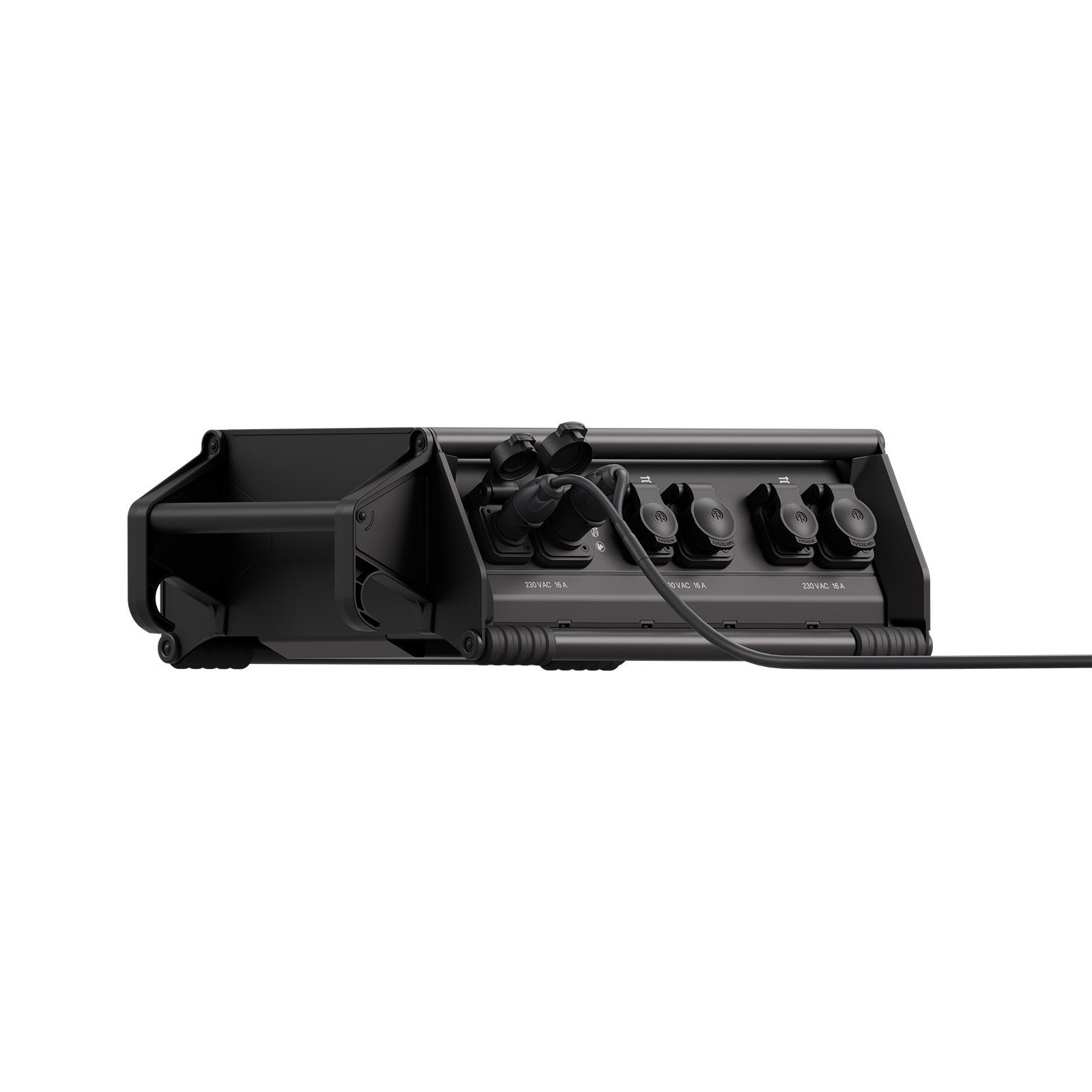

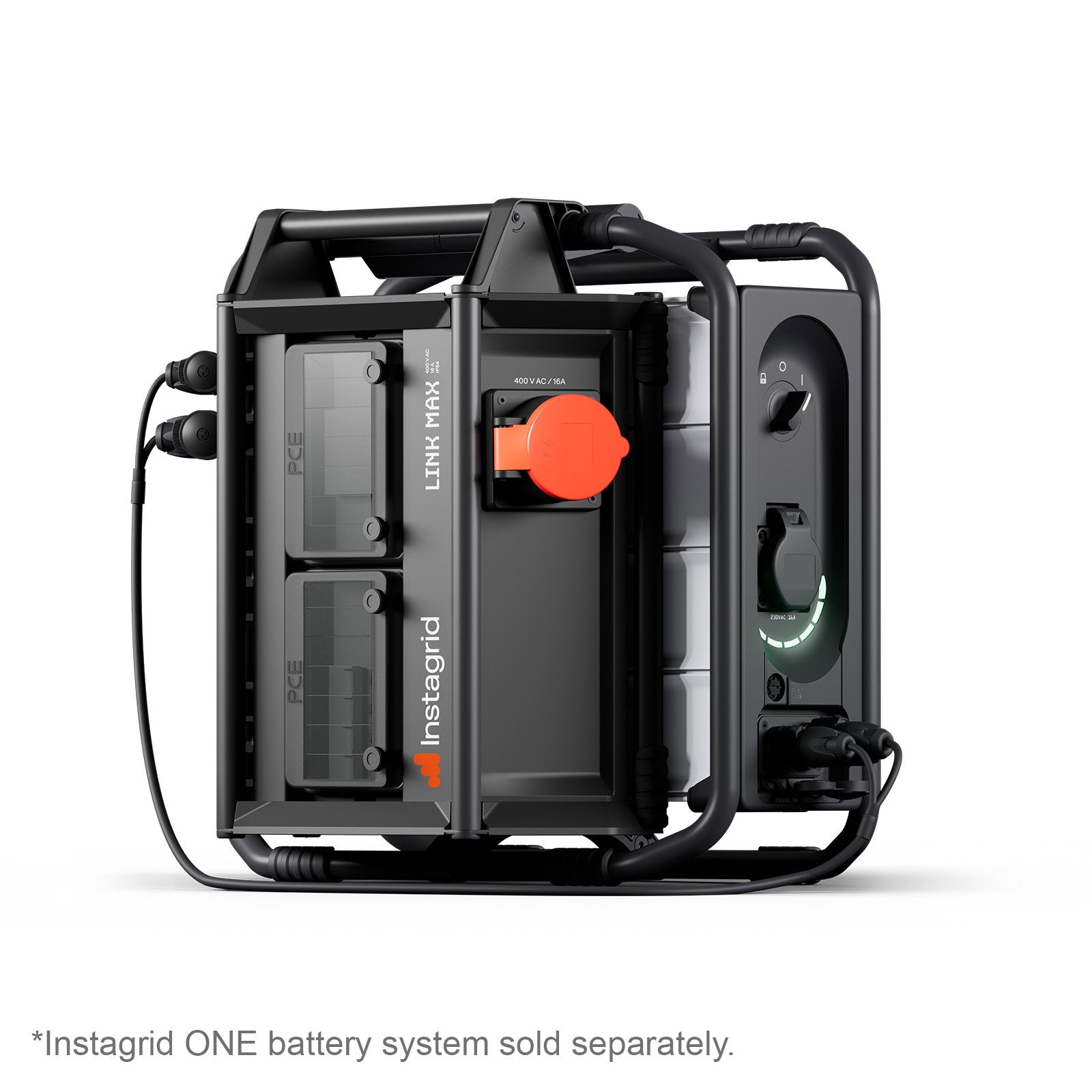

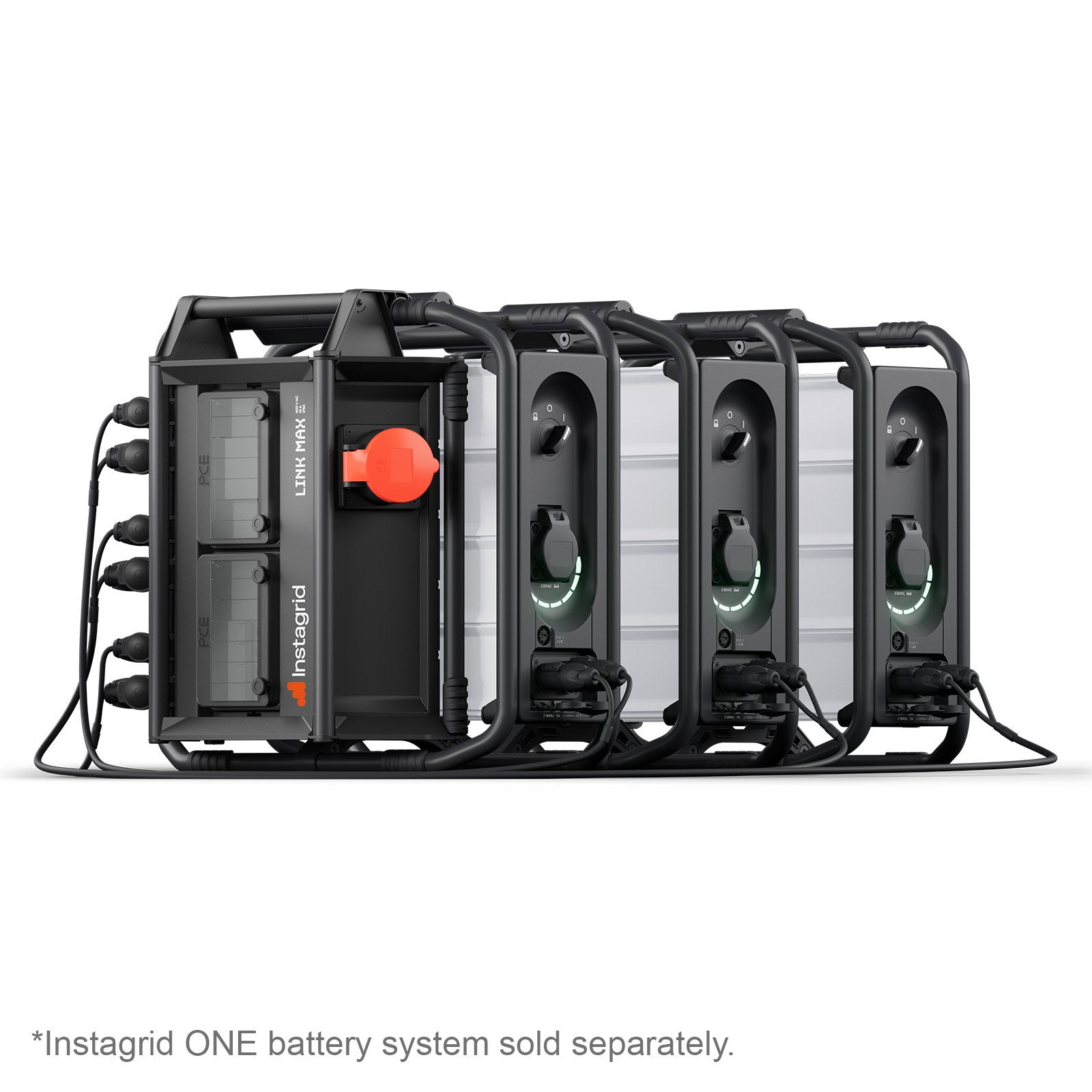

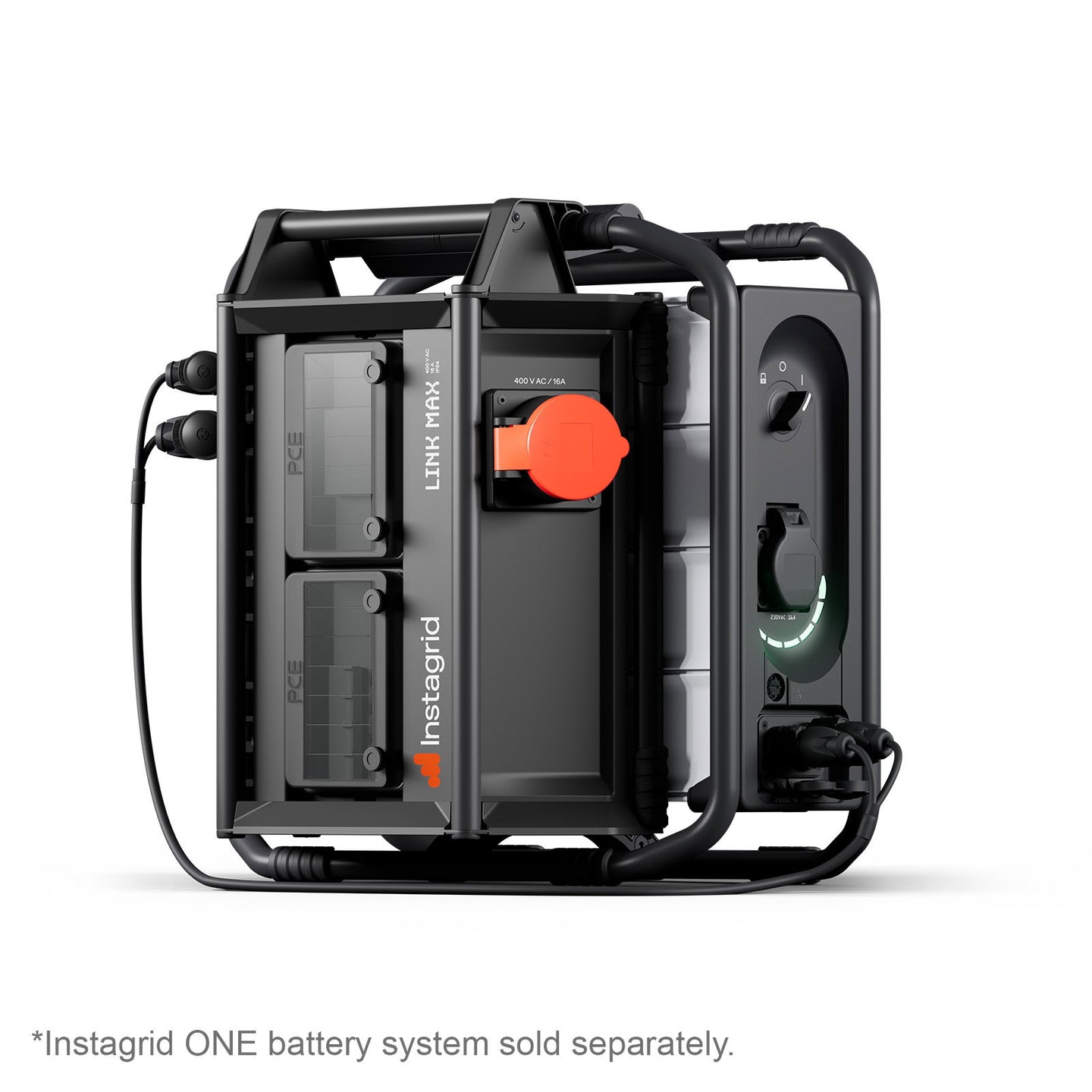

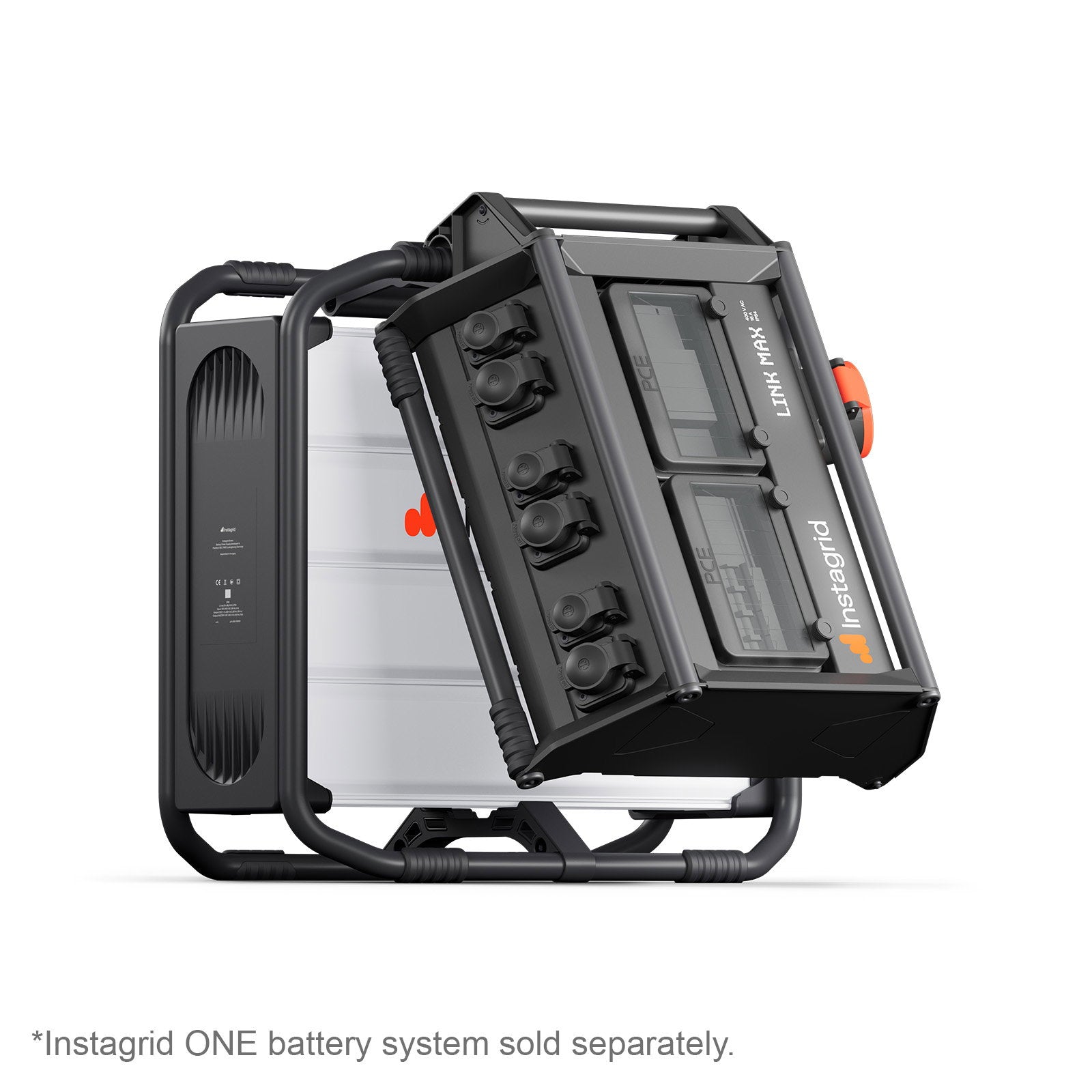

Combines 3 Instagrid ONE units into 400V / 3-phase / 16A output 11000W rated output | 54000W peak output Powers 400V tools such as hoists kitchen appliances and lighting rigs Compact & carryable: LINK MAX weighs just 5.1kg Set up anywhere – zero emissions zero noise Advanced protection with built-in IMD PMD and MCB Up to 66% lower total cost of ownership vs. 12kVA generator Smart safety & connectivity:3x dual Neutrik TRUE1 inputs for correct connection 1x CEE 400V / 16A output Optional use of Instagrid ONE’s 230V outputs simultaneously Insulation and phase monitoring devices for extra safety Use cases:Events: Chain hoists backline infrastructure temporary catering equipment Film & Media: High-demand lighting rigs production trucks Touring: Mobile setups pop-ups outdoor stages with no mains
Compatible With: 3x Instagrid ONE units only Nominal Output Voltage: 400V AC Frequency: 50Hz Rated Output Current: 16A Rated Output Power: 11000W Peak Power: 54000W Output Receptacle: 1x CEE 5-pole 6h 400V / 16A Input Receptacles: 3x Neutrik powerCON TRUE1 TOP® dual input Output Type: 400V / 3-phase plus optional 230V via ONE Protection Devices: MCB IMD PMD Circuit Breaker: 1x 4-pole C16 Weight: 5.1kg Dimensions (L x W x H): 391 x 320 x 140mm IP Rating: IP54 Protection Class: Class I with Class II construction Operating Temperature: –20°C to +60°C Delivery Scope: LINK MAX + 3x dual Neutrik cables
Combines 3 Instagrid ONE units into 400V / 3-phase / 16A output 11000W rated output | 54000W peak output Powers 400V tools such as hoists kitchen appliances and lighting rigs Compact & carryable: LINK MAX weighs just 5.1kg Set up anywhere – zero emissions zero noise Advanced protection with built-in IMD PMD and MCB Up to 66% lower total cost of ownership vs. 12kVA generator Smart safety & connectivity:3x dual Neutrik TRUE1 inputs for correct connection 1x CEE 400V / 16A output Optional use of Instagrid ONE’s 230V outputs simultaneously Insulation and phase monitoring devices for extra safety Use cases:Events: Chain hoists backline infrastructure temporary catering equipment Film & Media: High-demand lighting rigs production trucks Touring: Mobile setups pop-ups outdoor stages with no mains
Compatible With: 3x Instagrid ONE units only Nominal Output Voltage: 400V AC Frequency: 50Hz Rated Output Current: 16A Rated Output Power: 11000W Peak Power: 54000W Output Receptacle: 1x CEE 5-pole 6h 400V / 16A Input Receptacles: 3x Neutrik powerCON TRUE1 TOP® dual input Output Type: 400V / 3-phase plus optional 230V via ONE Protection Devices: MCB IMD PMD Circuit Breaker: 1x 4-pole C16 Weight: 5.1kg Dimensions (L x W x H): 391 x 320 x 140mm IP Rating: IP54 Protection Class: Class I with Class II construction Operating Temperature: –20°C to +60°C Delivery Scope: LINK MAX + 3x dual Neutrik cables
Instagrid LINK MAX 400V IP54
Brand: Instagrid
SKU: INSTA003
Regular price
£1,881.99
Pickup available at Venutec
Usually ready in 24 hours
Instagrid LINK MAX 400V IP54
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
Instagrid LINK MAX transforms three Instagrid ONE units into a high-performance 400V 3-phase power supply delivering an impressive 11kW rated output and up to 54kW peak power. Designed for professionals in events film live production and mobile infrastructure LINK MAX unlocks applications previously limited to industrial diesel generators — now in a silent portable format.Weighing just 5.1kg the LINK MAX unit can be carried by hand and paired with three Instagrid ONE units to create the world’s most compact and convenient 3-phase power system (total weight: 65kg). It features a plug-and-play design tool-free setup and rugged IP54 construction — eliminating the need for noisy engines cables or heavy lifting.Run chain hoists 400V coffee machines or entire truss systems with confidence without the safety risks of extension leads or voltage drops.
Combines 3 Instagrid ONE units into 400V / 3-phase / 16A output 11000W rated output | 54000W peak output Powers 400V tools such as hoists kitchen appliances and lighting rigs Compact & carryable: LINK MAX weighs just 5.1kg Set up anywhere – zero emissions zero noise Advanced protection with built-in IMD PMD and MCB Up to 66% lower total cost of ownership vs. 12kVA generator Smart safety & connectivity:3x dual Neutrik TRUE1 inputs for correct connection 1x CEE 400V / 16A output Optional use of Instagrid ONE’s 230V outputs simultaneously Insulation and phase monitoring devices for extra safety Use cases:Events: Chain hoists backline infrastructure temporary catering equipment Film & Media: High-demand lighting rigs production trucks Touring: Mobile setups pop-ups outdoor stages with no mains
Compatible With: 3x Instagrid ONE units only Nominal Output Voltage: 400V AC Frequency: 50Hz Rated Output Current: 16A Rated Output Power: 11000W Peak Power: 54000W Output Receptacle: 1x CEE 5-pole 6h 400V / 16A Input Receptacles: 3x Neutrik powerCON TRUE1 TOP® dual input Output Type: 400V / 3-phase plus optional 230V via ONE Protection Devices: MCB IMD PMD Circuit Breaker: 1x 4-pole C16 Weight: 5.1kg Dimensions (L x W x H): 391 x 320 x 140mm IP Rating: IP54 Protection Class: Class I with Class II construction Operating Temperature: –20°C to +60°C Delivery Scope: LINK MAX + 3x dual Neutrik cables
Combines 3 Instagrid ONE units into 400V / 3-phase / 16A output 11000W rated output | 54000W peak output Powers 400V tools such as hoists kitchen appliances and lighting rigs Compact & carryable: LINK MAX weighs just 5.1kg Set up anywhere – zero emissions zero noise Advanced protection with built-in IMD PMD and MCB Up to 66% lower total cost of ownership vs. 12kVA generator Smart safety & connectivity:3x dual Neutrik TRUE1 inputs for correct connection 1x CEE 400V / 16A output Optional use of Instagrid ONE’s 230V outputs simultaneously Insulation and phase monitoring devices for extra safety Use cases:Events: Chain hoists backline infrastructure temporary catering equipment Film & Media: High-demand lighting rigs production trucks Touring: Mobile setups pop-ups outdoor stages with no mains
Compatible With: 3x Instagrid ONE units only Nominal Output Voltage: 400V AC Frequency: 50Hz Rated Output Current: 16A Rated Output Power: 11000W Peak Power: 54000W Output Receptacle: 1x CEE 5-pole 6h 400V / 16A Input Receptacles: 3x Neutrik powerCON TRUE1 TOP® dual input Output Type: 400V / 3-phase plus optional 230V via ONE Protection Devices: MCB IMD PMD Circuit Breaker: 1x 4-pole C16 Weight: 5.1kg Dimensions (L x W x H): 391 x 320 x 140mm IP Rating: IP54 Protection Class: Class I with Class II construction Operating Temperature: –20°C to +60°C Delivery Scope: LINK MAX + 3x dual Neutrik cables
