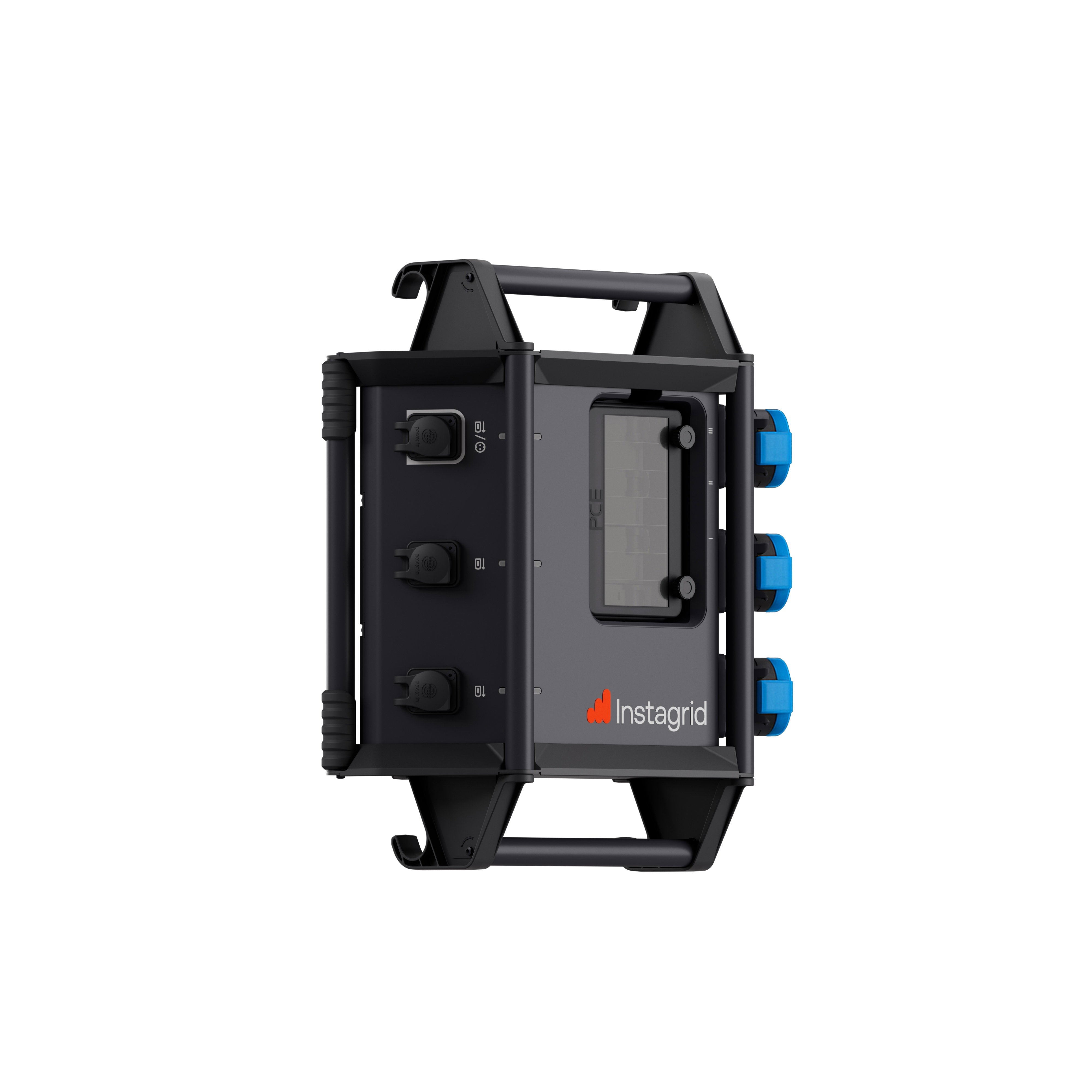

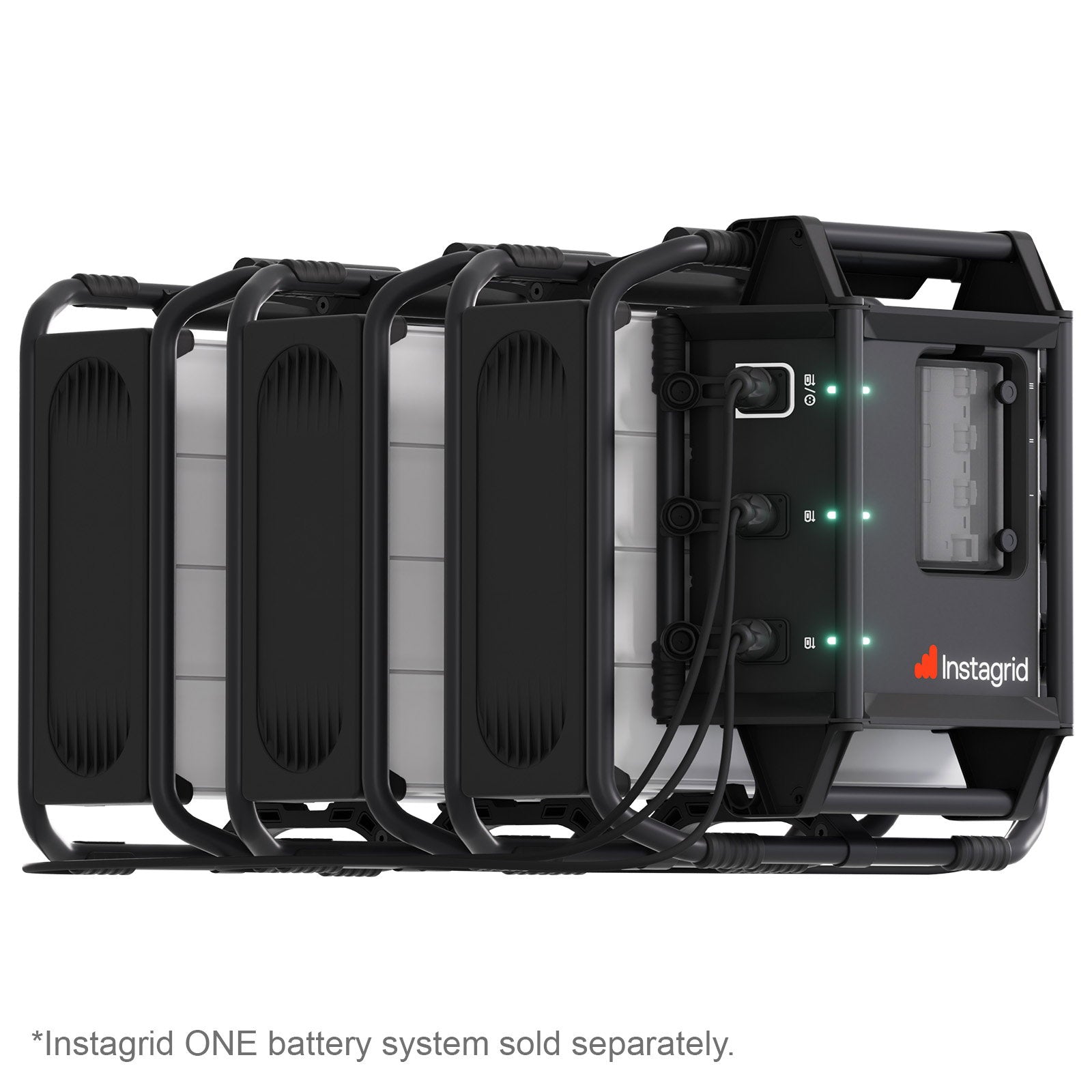

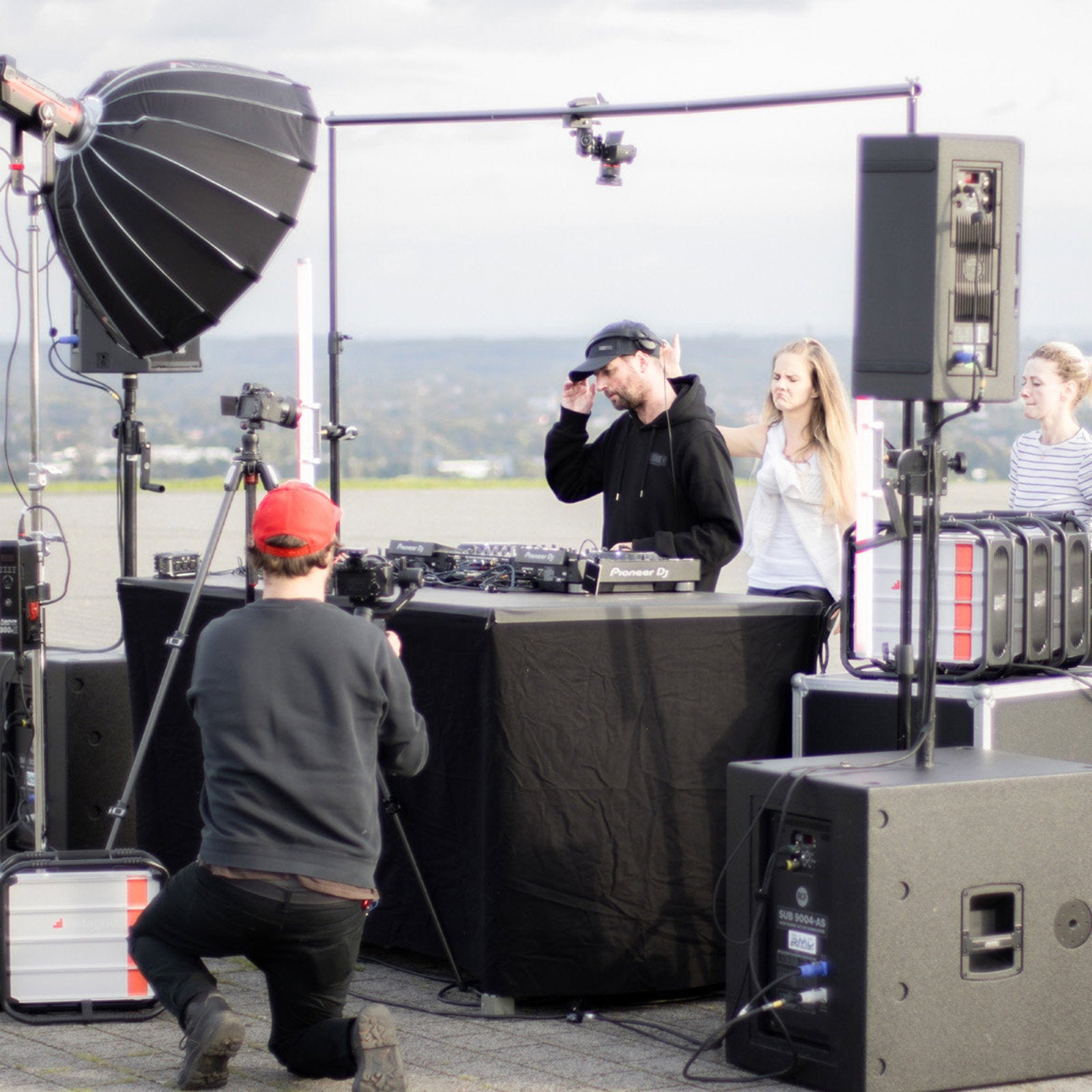

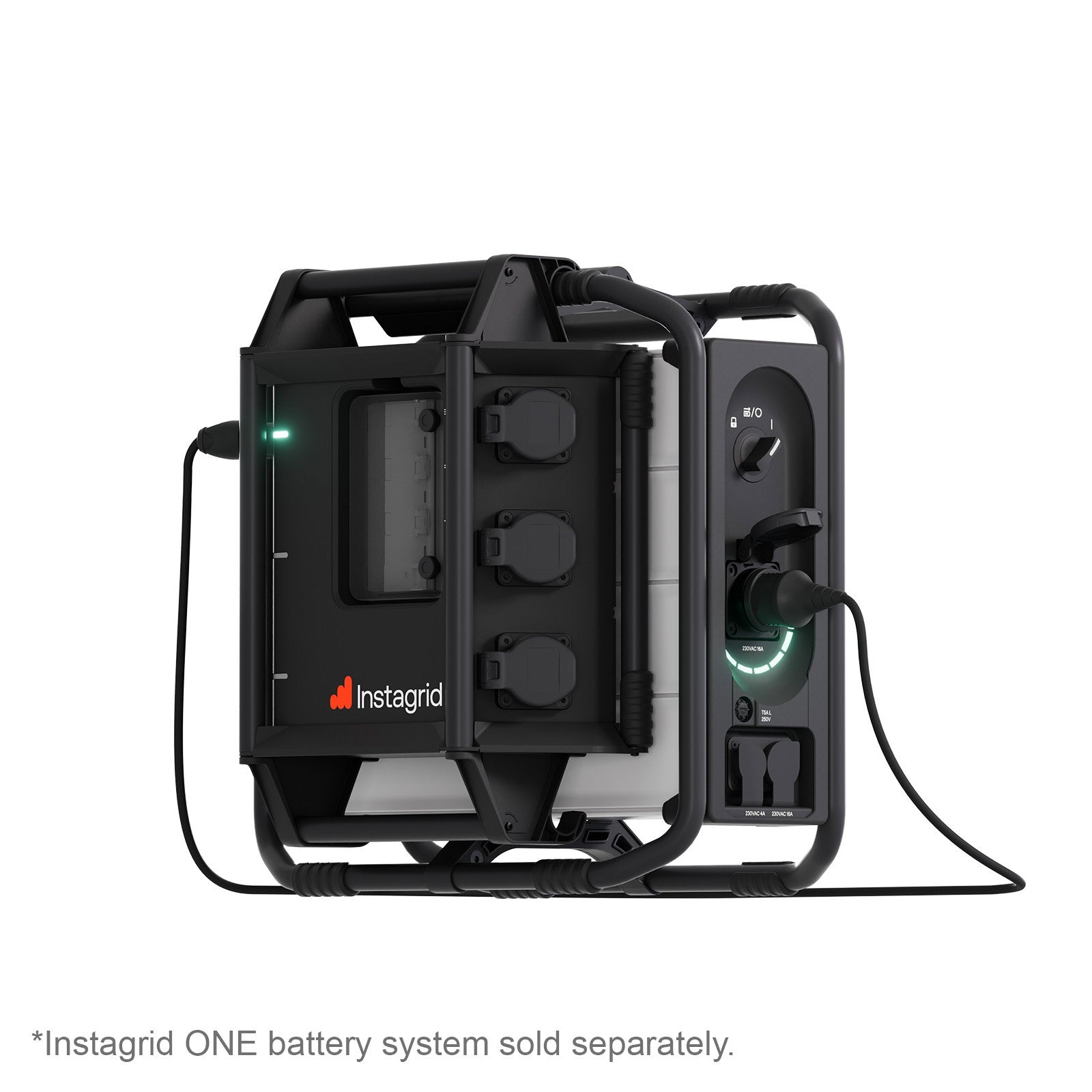

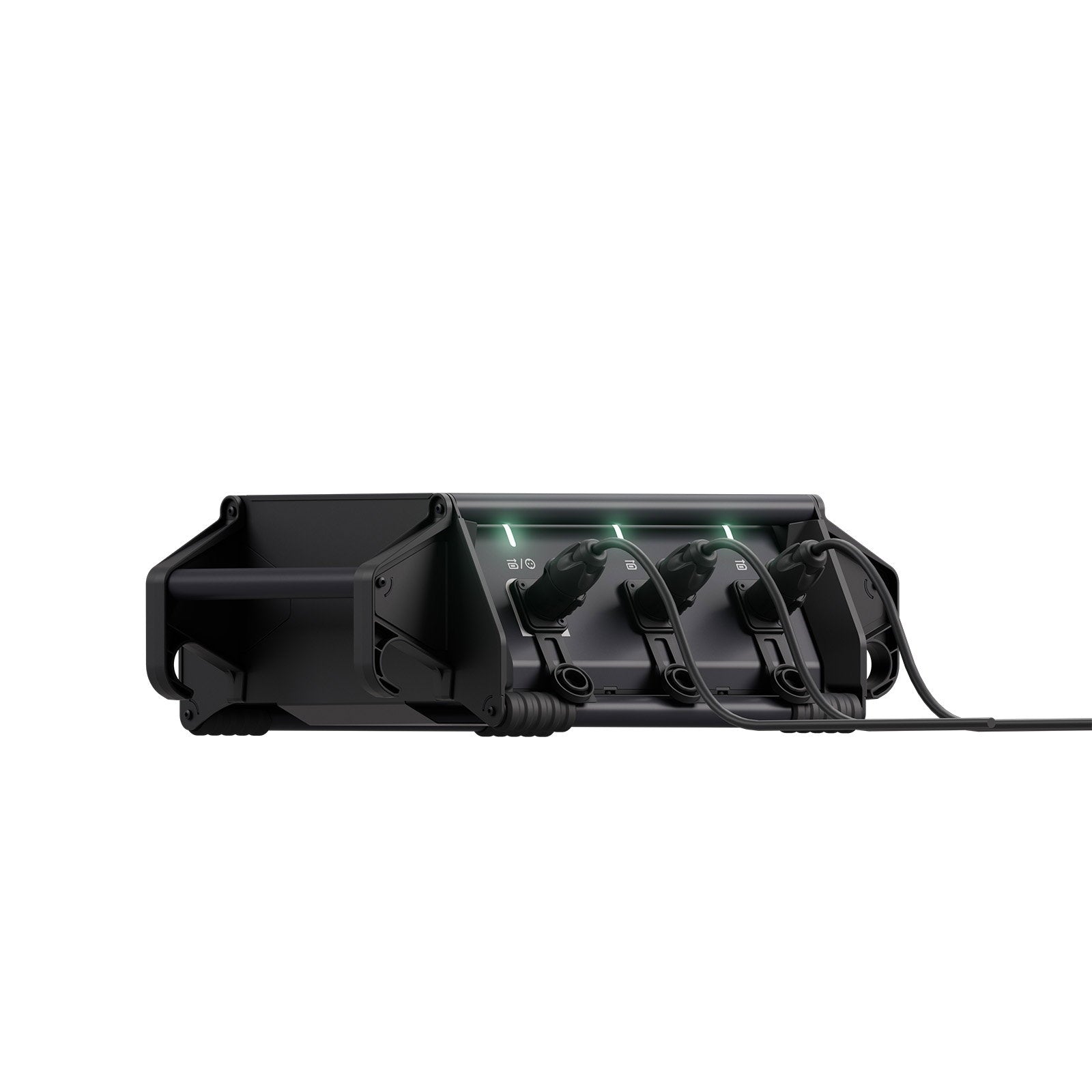

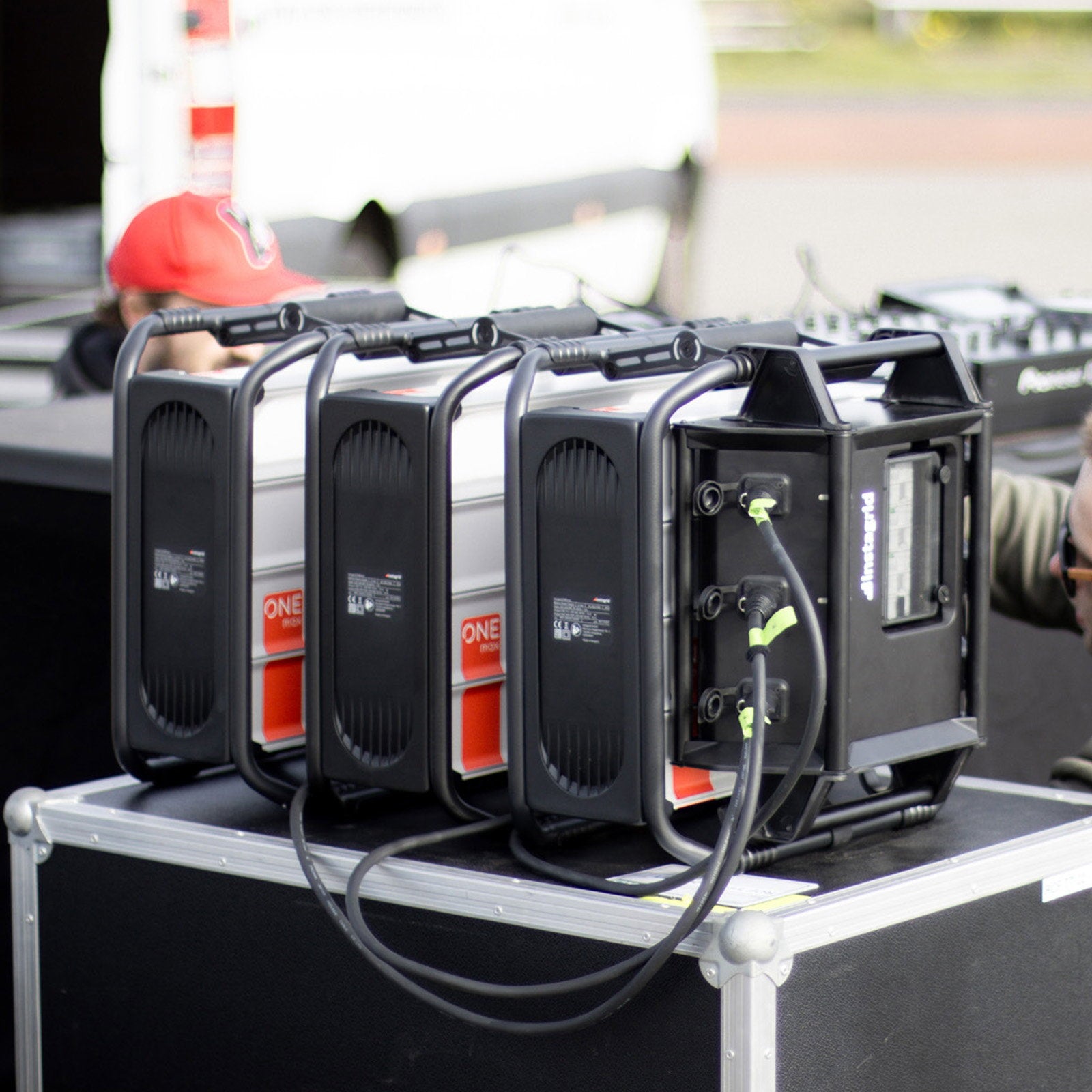

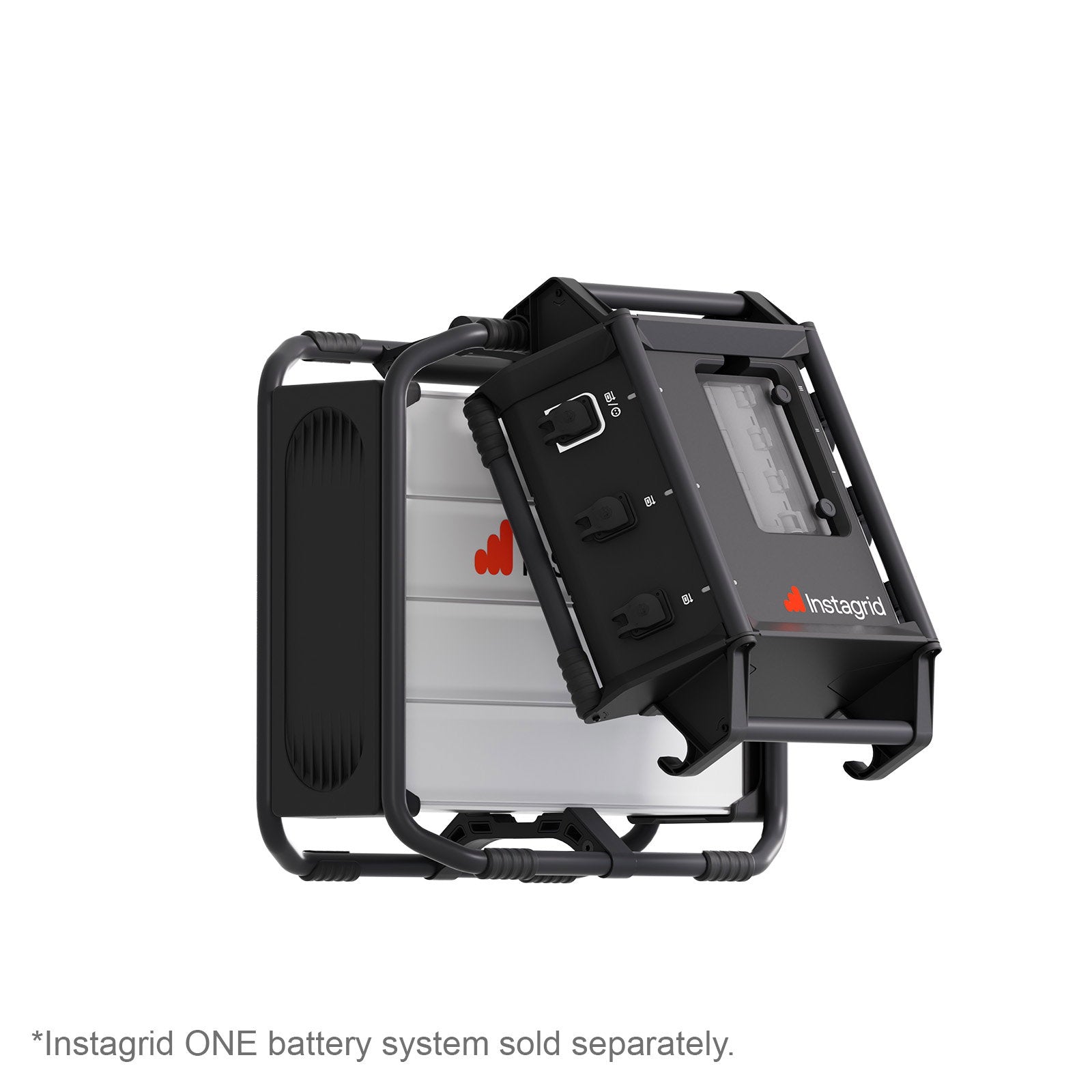

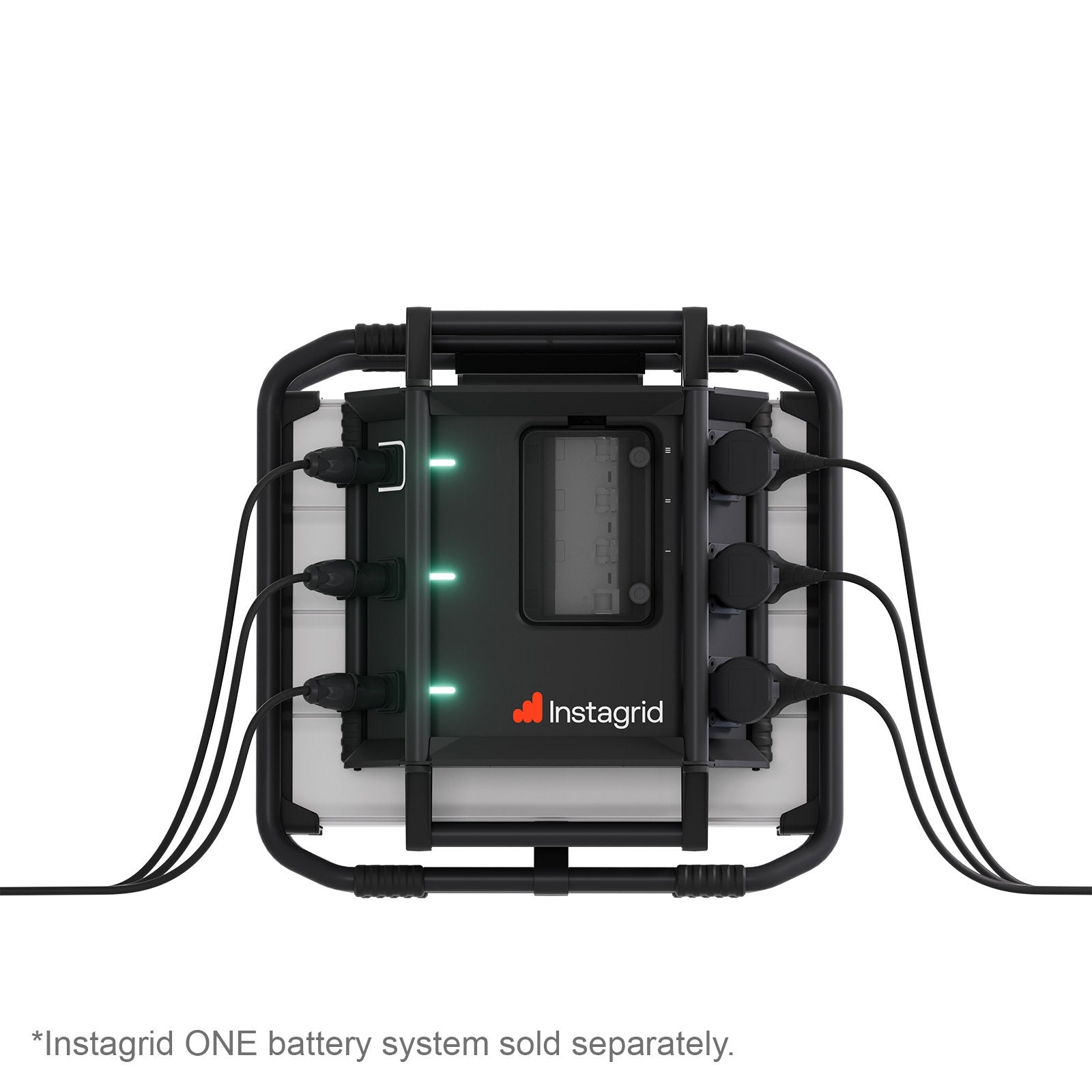

Instagrid LINK is a compact and intelligent power distributor that expands the capabilities of the Instagrid ONE portable power supply. Designed for professionals in events film broadcast and mobile operations it allows you to safely power multiple devices extend runtime and create continuous backup systems — all with zero noise fumes or disruption.With Island Mode you can connect up to three Instagrid ONE units to triple your energy capacity — perfect for long off-grid jobs. Units can be hot-swapped during operation delivering effectively unlimited power. In Continuous Power Mode LINK seamlessly switches between mains and battery within 20 milliseconds keeping even sensitive equipment running without interruption.Power up to three devices simultaneously thanks to three 230V RCD-protected outputs. Whether you're supporting a film shoot DJ setup or field deployment Instagrid LINK delivers flexible safe and clean power in a rugged IP54-rated form.

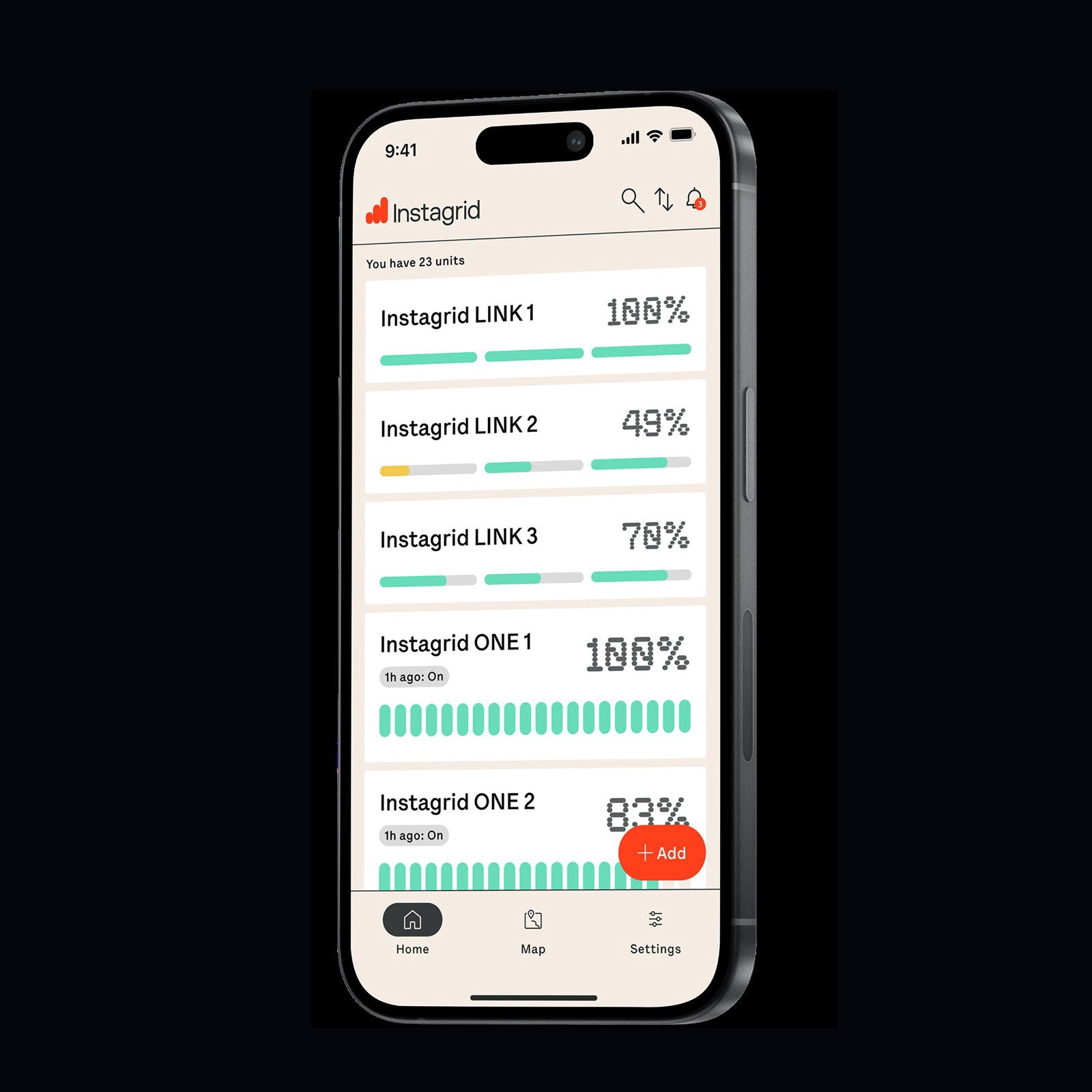

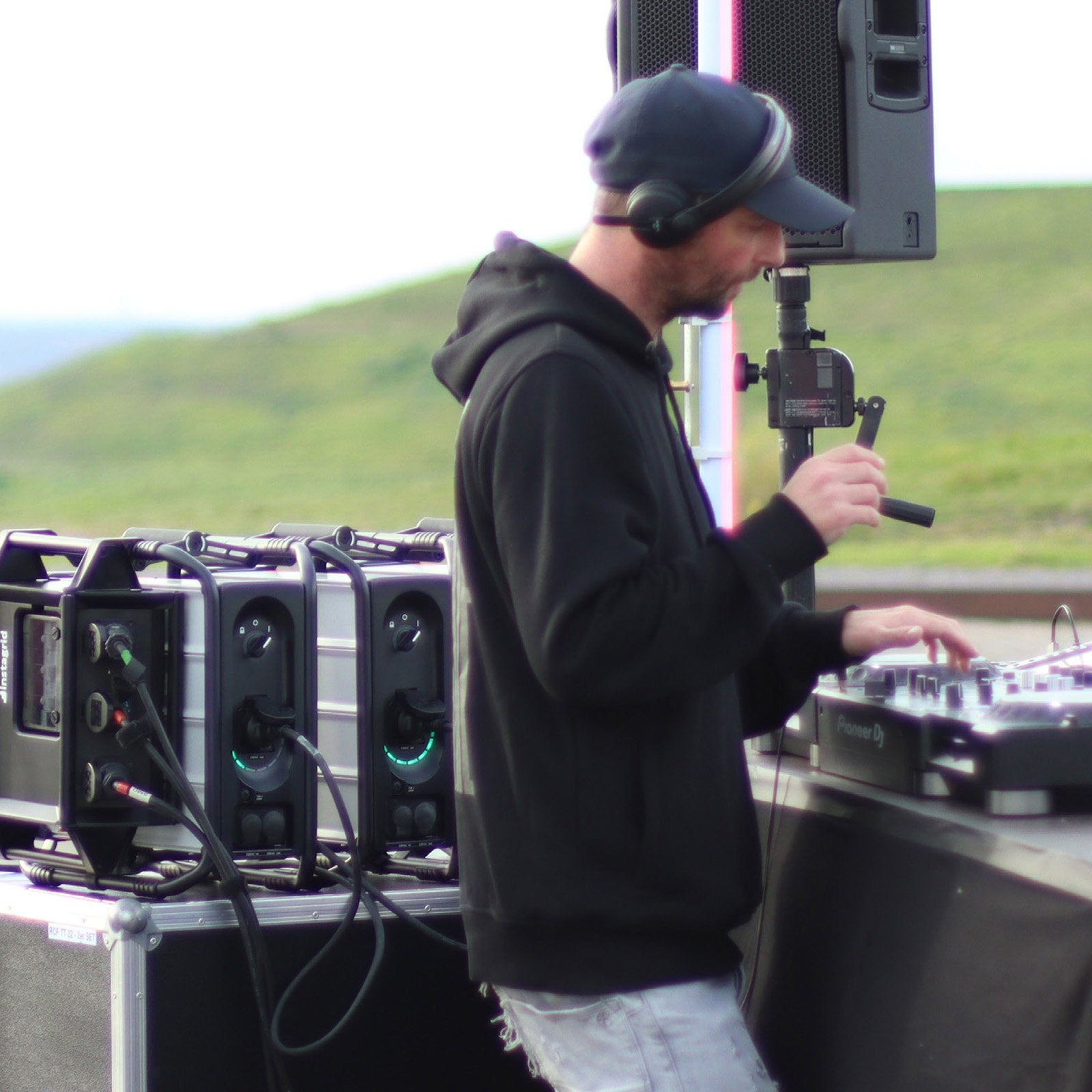

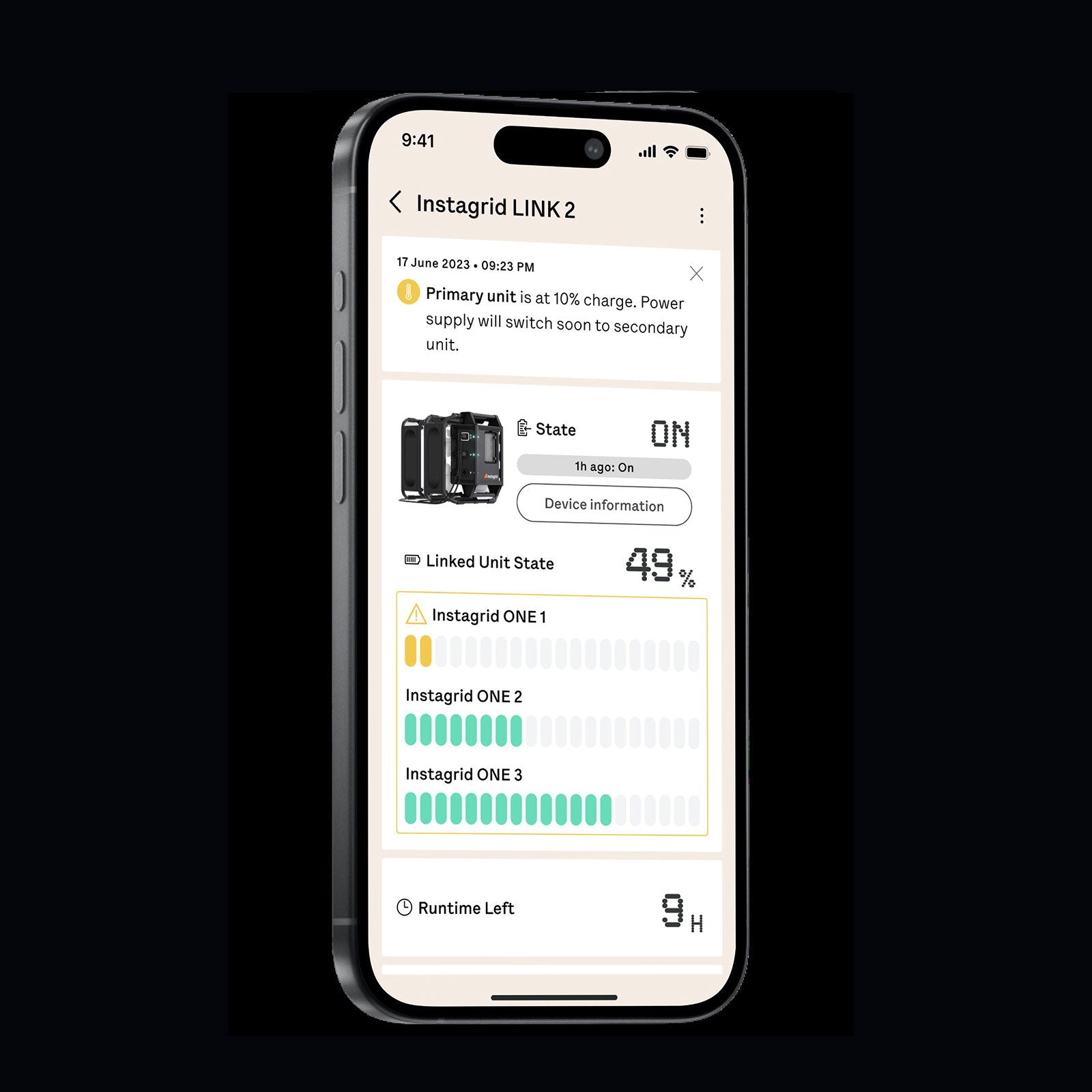

Connect up to 3 Instagrid ONE units for expanded energy capacity Hot-swappable batteries for virtually unlimited runtime 3x individually RCD-protected 230V outputs (CEE-Form IEC 60309) Seamless switch from mains to battery in under 20ms Compact rugged steel frame weighing only 4.5kg IP54 rated for indoor and outdoor use Compatible with Instagrid App for monitoring location runtime and charge Supplied with 2 x 2m TRUE1 Link CablesExample use cases:Power DJ controller LED lights and haze machine simultaneously Keep camera cranes and coffee machines running all day Avoid unsafe extension cables and noisy petrol generators on-site

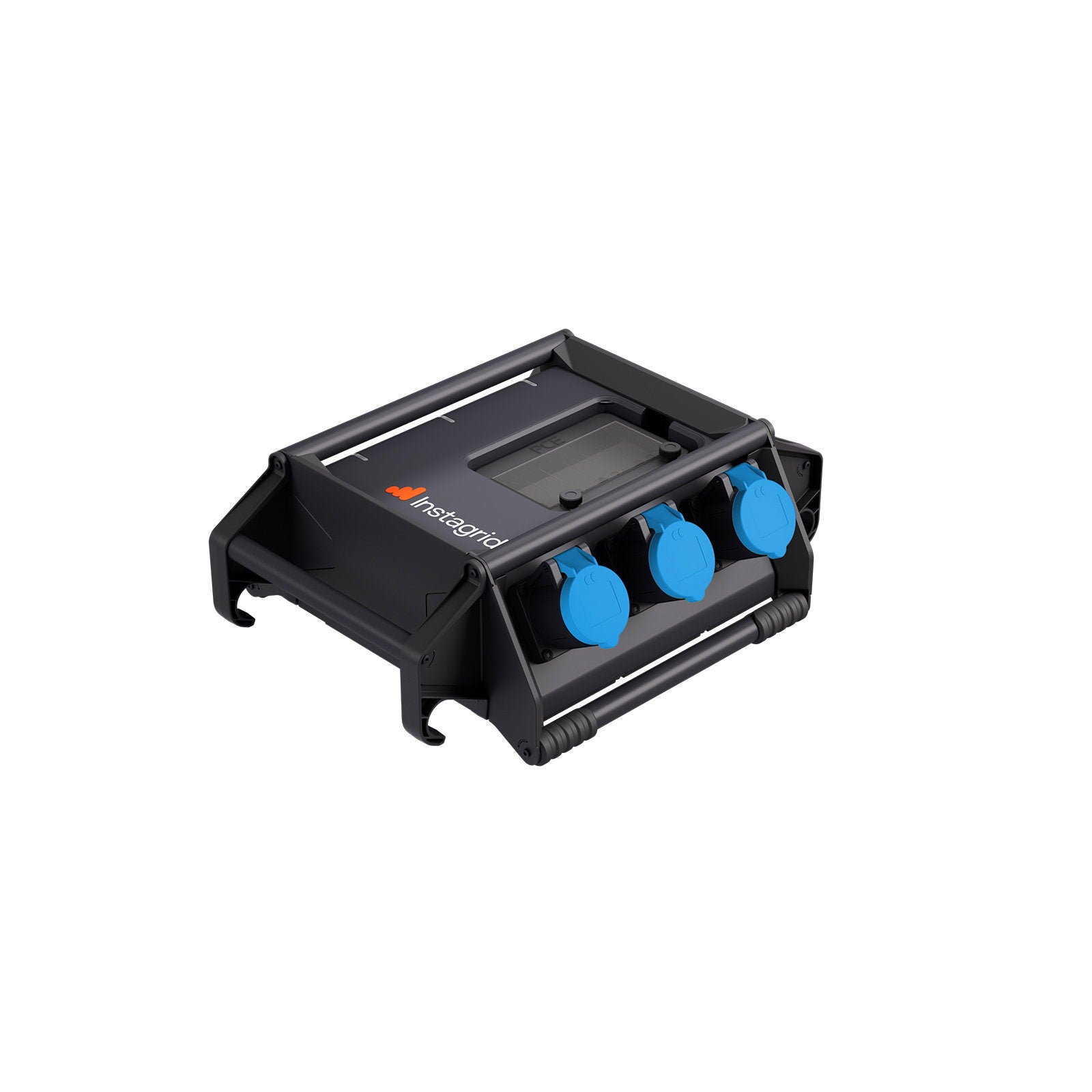

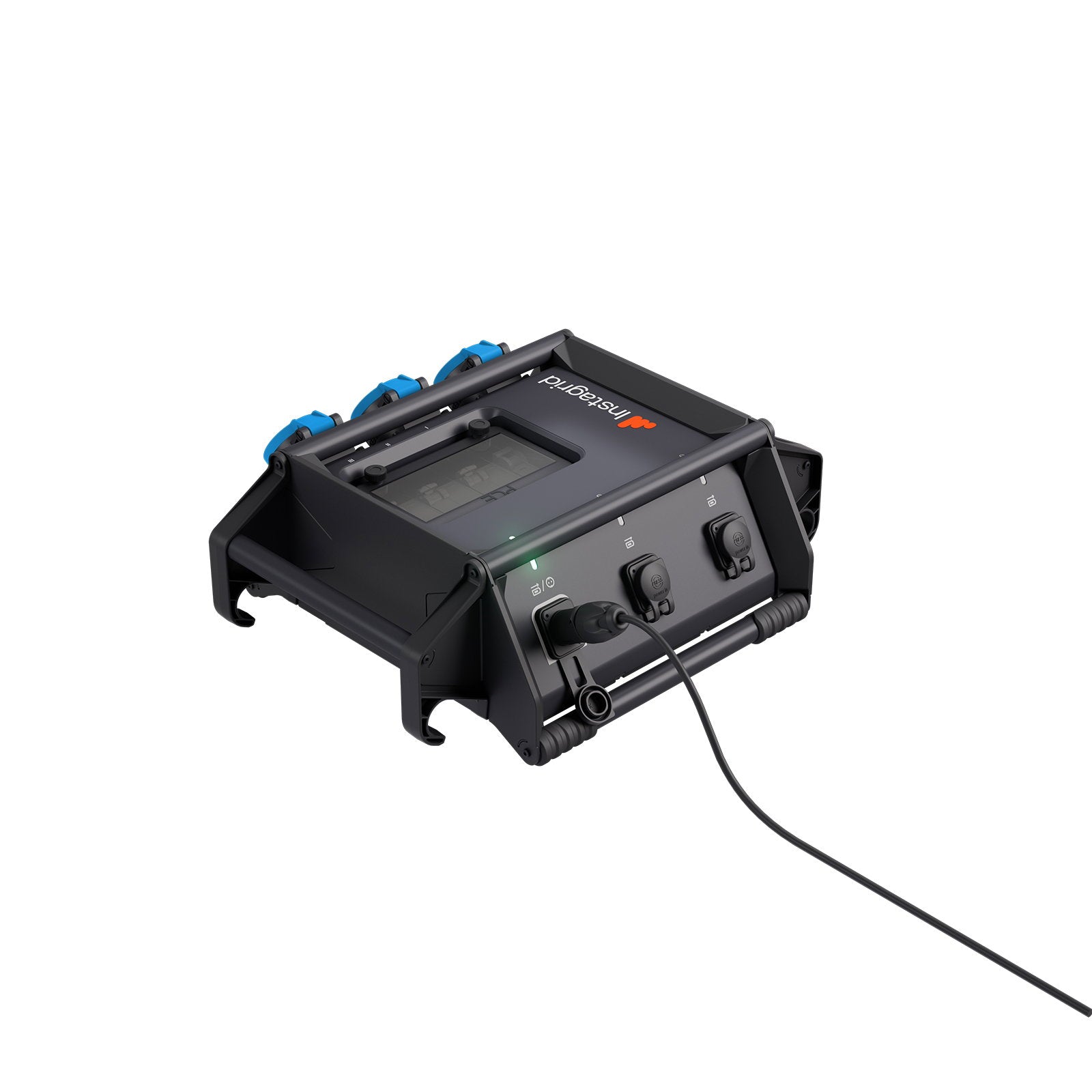

Compatible With: Instagrid ONE or any 230V AC power source Output Voltage: 230V AC / 50Hz Output Current: 16A Switching Time: < 20ms (mains to battery switchover) Rated Outputs: 3x CEE-Form (IEC 60309) 16A / 230V RCD Protection: 3x 1P+N RCD Type A (30mA) one per socket Line Protection: 1P B16 circuit breaker Input Connections: 3x Neutrik PowerCON TRUE1 TOP® (1x primary 2x secondary) Mounting Options: Hook & release screw feet velcro straps Weight: 4.5kg Dimensions: (Not listed; similar in size to Instagrid ONE footprint) IP Rating: IP54 – dust and splash resistant Protection Class: Class II / Double-insulated Operating Temperature: –15°C to +40°C Delivery Scope: 1x LINK unit 1x connection cable (Neutrik to output)
Connect up to 3 Instagrid ONE units for expanded energy capacity Hot-swappable batteries for virtually unlimited runtime 3x individually RCD-protected 230V outputs (CEE-Form IEC 60309) Seamless switch from mains to battery in under 20ms Compact rugged steel frame weighing only 4.5kg IP54 rated for indoor and outdoor use Compatible with Instagrid App for monitoring location runtime and charge Supplied with 2 x 2m TRUE1 Link Cables
Compatible With: Instagrid ONE or any 230V AC power source Output Voltage: 230V AC / 50Hz Output Current: 16A Switching Time: < 20ms (mains to battery switchover) Rated Outputs: 3x CEE-Form (IEC 60309) 16A / 230V RCD Protection: 3x 1P+N RCD Type A (30mA) one per socket Line Protection: 1P B16 circuit breaker Input Connections: 3x Neutrik PowerCON TRUE1 TOP® (1x primary 2x secondary) Mounting Options: Hook & release screw feet velcro straps Weight: 4.5kg Dimensions: (Not listed; similar in size to Instagrid ONE footprint) IP Rating: IP54 – dust and splash resistant Protection Class: Class II / Double-insulated Operating Temperature: –15°C to +40°C Delivery Scope: 1x LINK unit 1x connection cable (Neutrik to output)
Instagrid LINK 36 230V IP54
Brand: Instagrid
SKU: INSTA002
Regular price
£894.99
Pickup available at Venutec
Usually ready in 24 hours
Instagrid LINK 36 230V IP54
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
Instagrid LINK is a compact and intelligent power distributor that expands the capabilities of the Instagrid ONE portable power supply. Designed for professionals in events film broadcast and mobile operations it allows you to safely power multiple devices extend runtime and create continuous backup systems — all with zero noise fumes or disruption.With Island Mode you can connect up to three Instagrid ONE units to triple your energy capacity — perfect for long off-grid jobs. Units can be hot-swapped during operation delivering effectively unlimited power. In Continuous Power Mode LINK seamlessly switches between mains and battery within 20 milliseconds keeping even sensitive equipment running without interruption.Power up to three devices simultaneously thanks to three 230V RCD-protected outputs. Whether you're supporting a film shoot DJ setup or field deployment Instagrid LINK delivers flexible safe and clean power in a rugged IP54-rated form.
Connect up to 3 Instagrid ONE units for expanded energy capacity Hot-swappable batteries for virtually unlimited runtime 3x individually RCD-protected 230V outputs (CEE-Form IEC 60309) Seamless switch from mains to battery in under 20ms Compact rugged steel frame weighing only 4.5kg IP54 rated for indoor and outdoor use Compatible with Instagrid App for monitoring location runtime and charge Supplied with 2 x 2m TRUE1 Link CablesExample use cases:Power DJ controller LED lights and haze machine simultaneously Keep camera cranes and coffee machines running all day Avoid unsafe extension cables and noisy petrol generators on-site
Compatible With: Instagrid ONE or any 230V AC power source Output Voltage: 230V AC / 50Hz Output Current: 16A Switching Time: < 20ms (mains to battery switchover) Rated Outputs: 3x CEE-Form (IEC 60309) 16A / 230V RCD Protection: 3x 1P+N RCD Type A (30mA) one per socket Line Protection: 1P B16 circuit breaker Input Connections: 3x Neutrik PowerCON TRUE1 TOP® (1x primary 2x secondary) Mounting Options: Hook & release screw feet velcro straps Weight: 4.5kg Dimensions: (Not listed; similar in size to Instagrid ONE footprint) IP Rating: IP54 – dust and splash resistant Protection Class: Class II / Double-insulated Operating Temperature: –15°C to +40°C Delivery Scope: 1x LINK unit 1x connection cable (Neutrik to output)
Connect up to 3 Instagrid ONE units for expanded energy capacity Hot-swappable batteries for virtually unlimited runtime 3x individually RCD-protected 230V outputs (CEE-Form IEC 60309) Seamless switch from mains to battery in under 20ms Compact rugged steel frame weighing only 4.5kg IP54 rated for indoor and outdoor use Compatible with Instagrid App for monitoring location runtime and charge Supplied with 2 x 2m TRUE1 Link Cables
Compatible With: Instagrid ONE or any 230V AC power source Output Voltage: 230V AC / 50Hz Output Current: 16A Switching Time: < 20ms (mains to battery switchover) Rated Outputs: 3x CEE-Form (IEC 60309) 16A / 230V RCD Protection: 3x 1P+N RCD Type A (30mA) one per socket Line Protection: 1P B16 circuit breaker Input Connections: 3x Neutrik PowerCON TRUE1 TOP® (1x primary 2x secondary) Mounting Options: Hook & release screw feet velcro straps Weight: 4.5kg Dimensions: (Not listed; similar in size to Instagrid ONE footprint) IP Rating: IP54 – dust and splash resistant Protection Class: Class II / Double-insulated Operating Temperature: –15°C to +40°C Delivery Scope: 1x LINK unit 1x connection cable (Neutrik to output)
