These PCE MERZ 63A distribution boxes are robust lightweight and made of shock-resistant thermoplastic. Suitable for events and rental they are IP44 splash proof rated. Manufactured with 63A 3phase input and pass through for onsite daisy chaining of multiple distribution units on one power run.
Made in Britain Handy robust and lightweight distribution box made of shock-resistant thermoplastic IP44 rated Stackable design for space saving
Input: 63A 415V~50/60Hz 5-Pin 3P+N+E IP67 chassis plug protected by a 4-Pole type C MCB Pass Through: 63A 415V~50/60Hz 5-Pin 3P+N+E IP67 chassis socket Outputs: 1 x 32A 400V~50/60Hz 3P+N+E IP44 sockets each protected by 32A 4-Pole MCB with variable earth leakage relay 3 x 32A 220-250V~50/60Hz 2P+E sockets each protected by a 32A 30mA 2-Pole RCBO 6 x 16A 220-250V~50/60Hz 2P+E sockets each protected by a 16A 30mA 2-Pole RCBO Dimensions (H x W x D): 340 x 740 x 340mm Weight: 17.5kg
Made in Britain Handy robust and lightweight distribution box made of shock-resistant thermoplastic IP44 rated Stackable design for space saving
Input: 63A 415V~50/60Hz 5-Pin 3P+N+E IP67 chassis plug protected by a 4-Pole type C MCB Pass Through: 63A 415V~50/60Hz 5-Pin 3P+N+E IP67 chassis socket Outputs: 1 x 32A 400V~50/60Hz 3P+N+E IP44 sockets each protected by 32A 4-Pole MCB with variable earth leakage relay 3 x 32A 220-250V~50/60Hz 2P+E sockets each protected by a 32A 30mA 2-Pole RCBO 6 x 16A 220-250V~50/60Hz 2P+E sockets each protected by a 16A 30mA 2-Pole RCBO Dimensions (H x W x D): 340 x 740 x 340mm Weight: 17.5kg

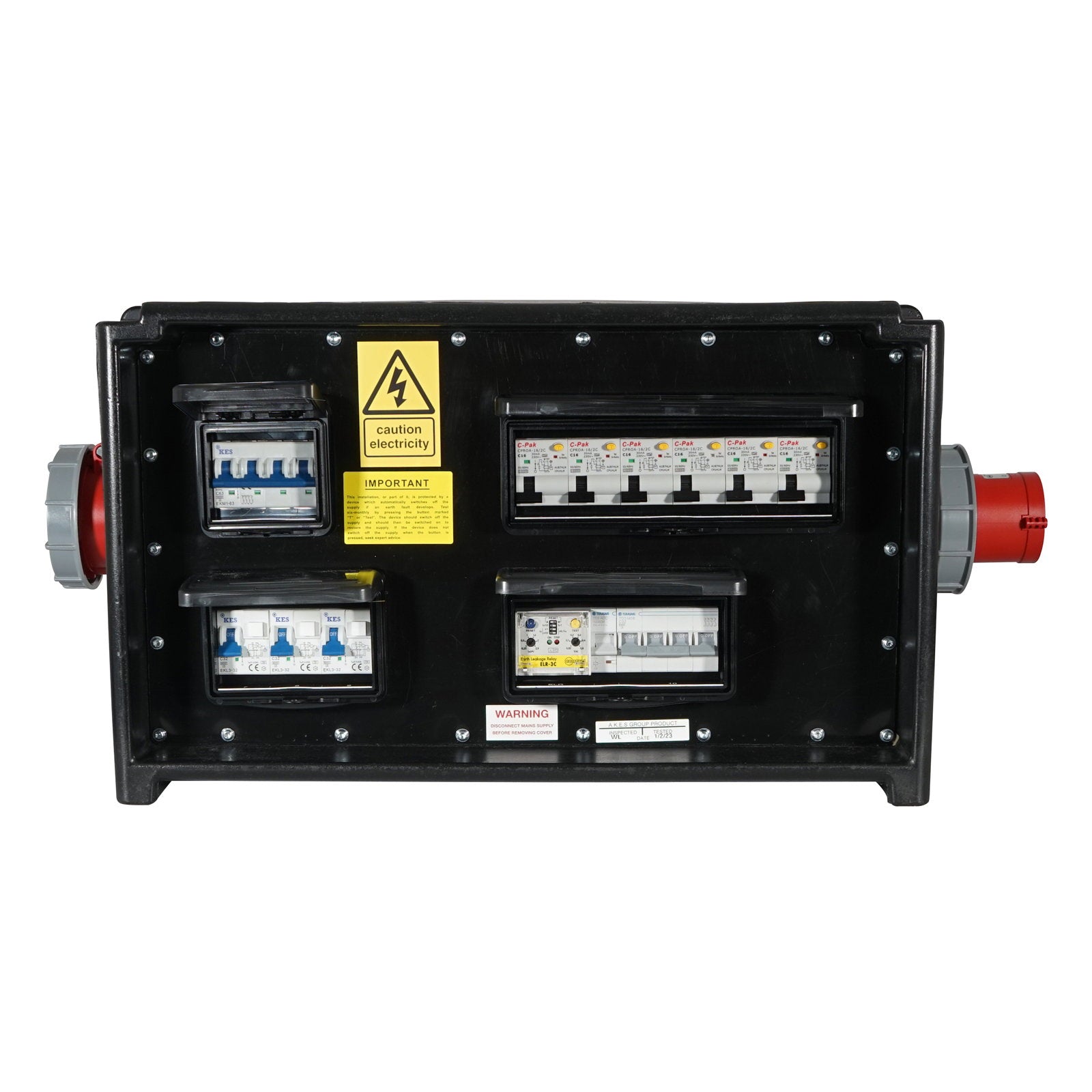

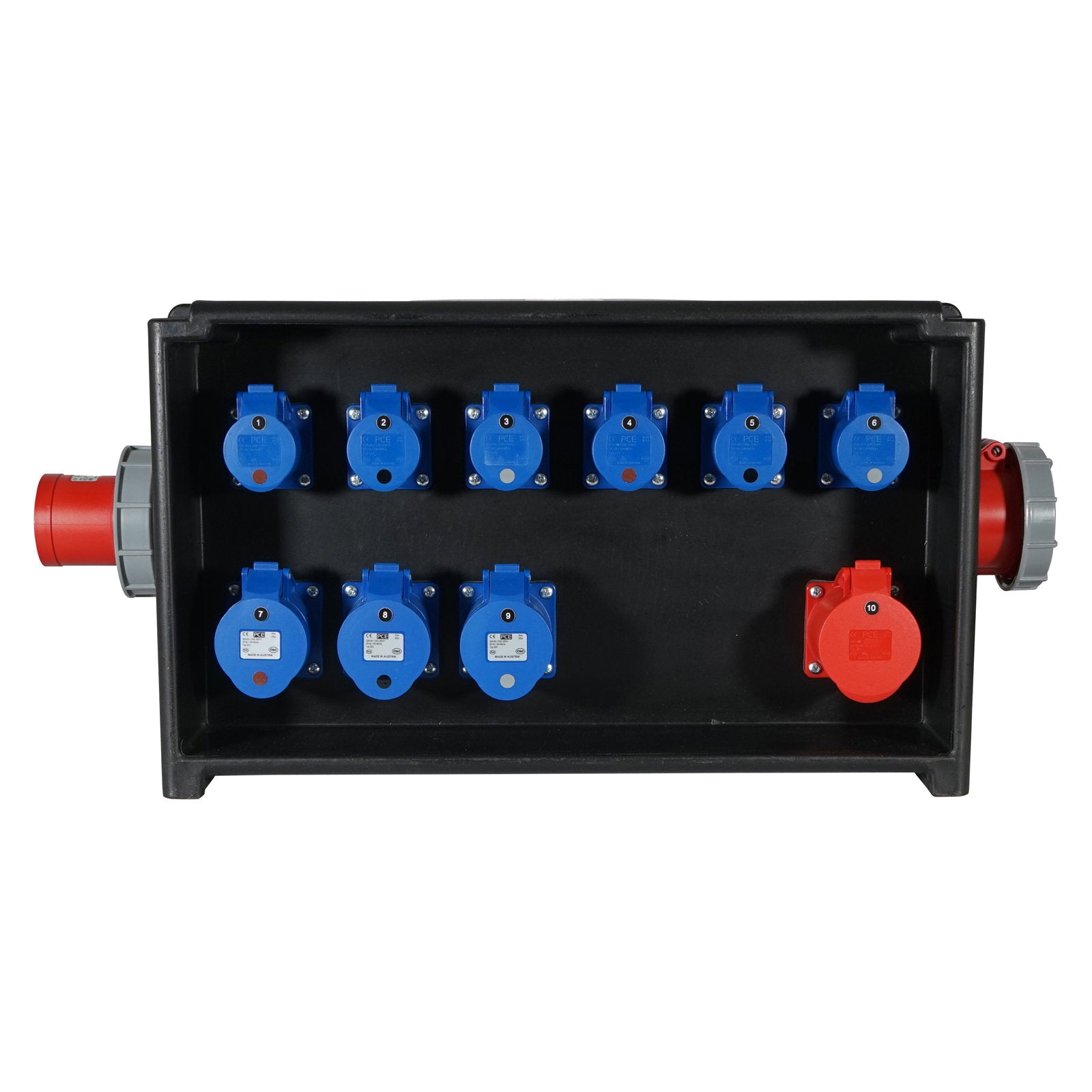

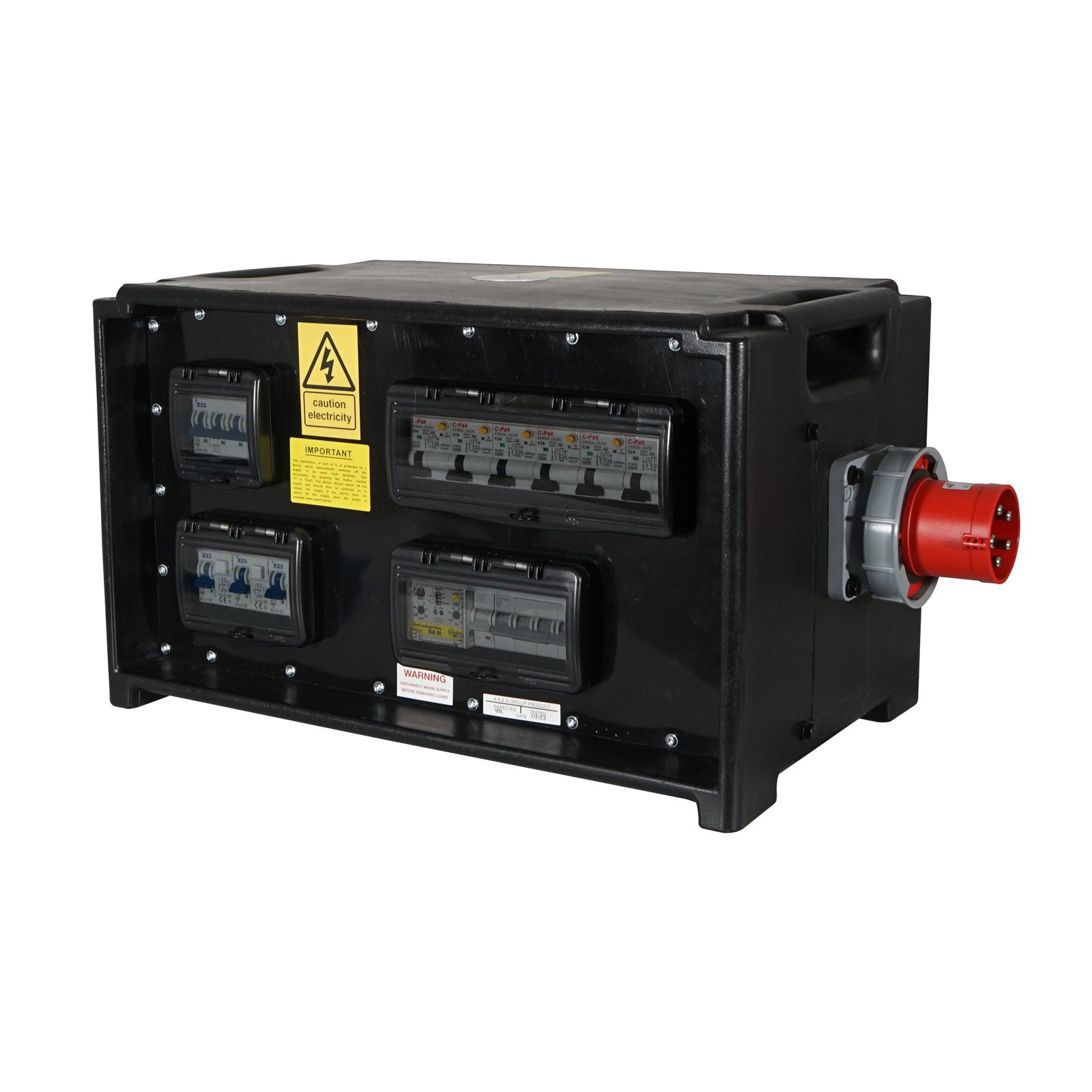

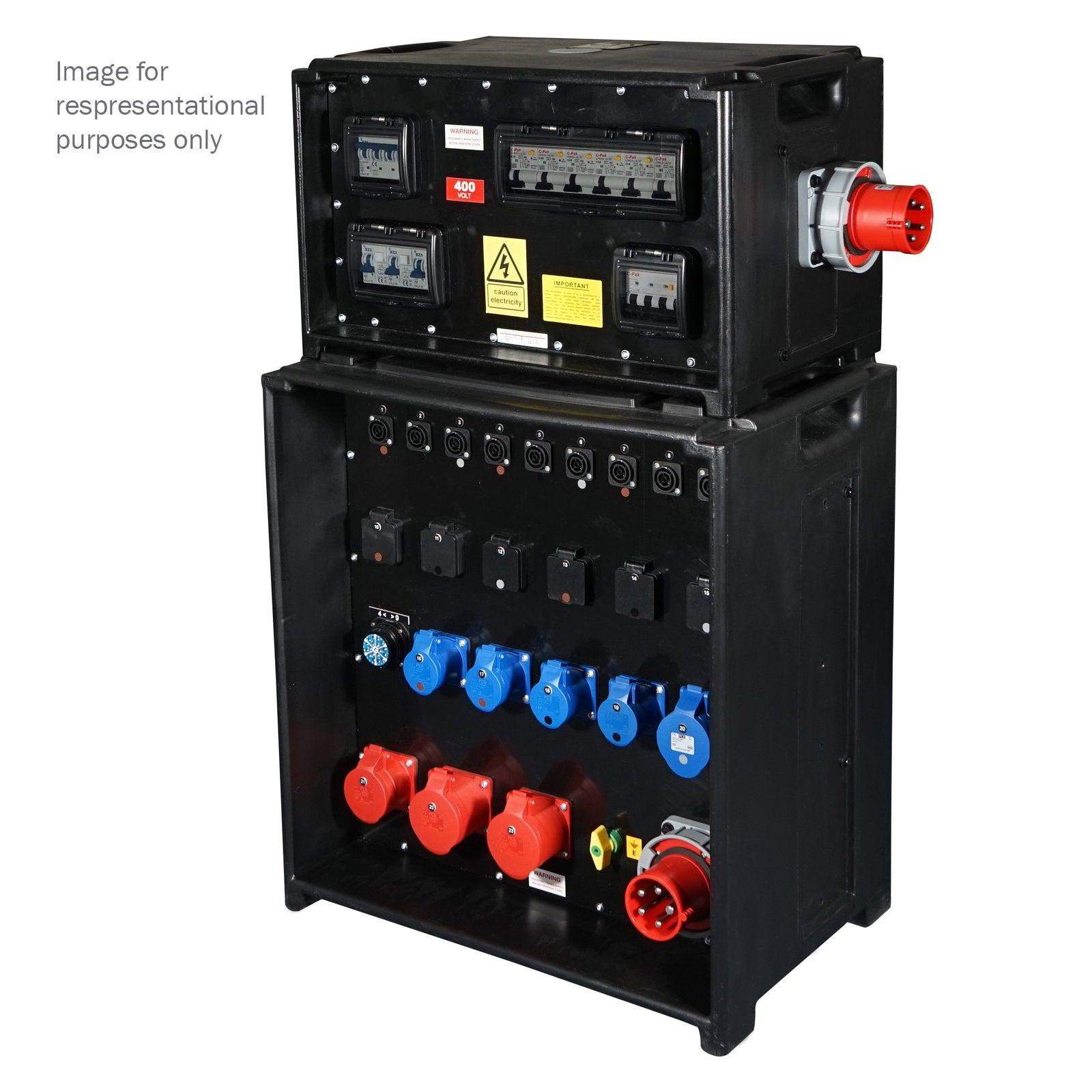

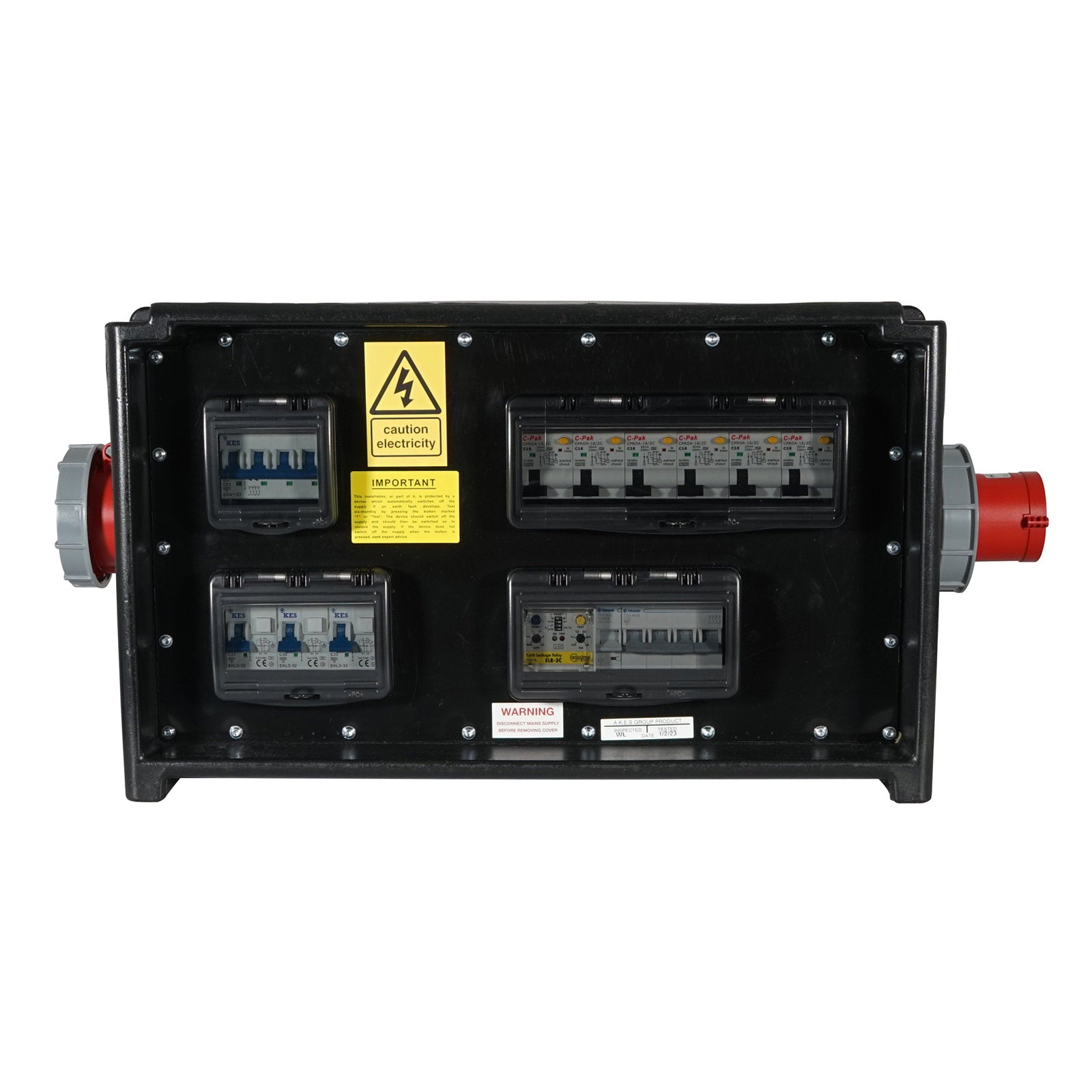

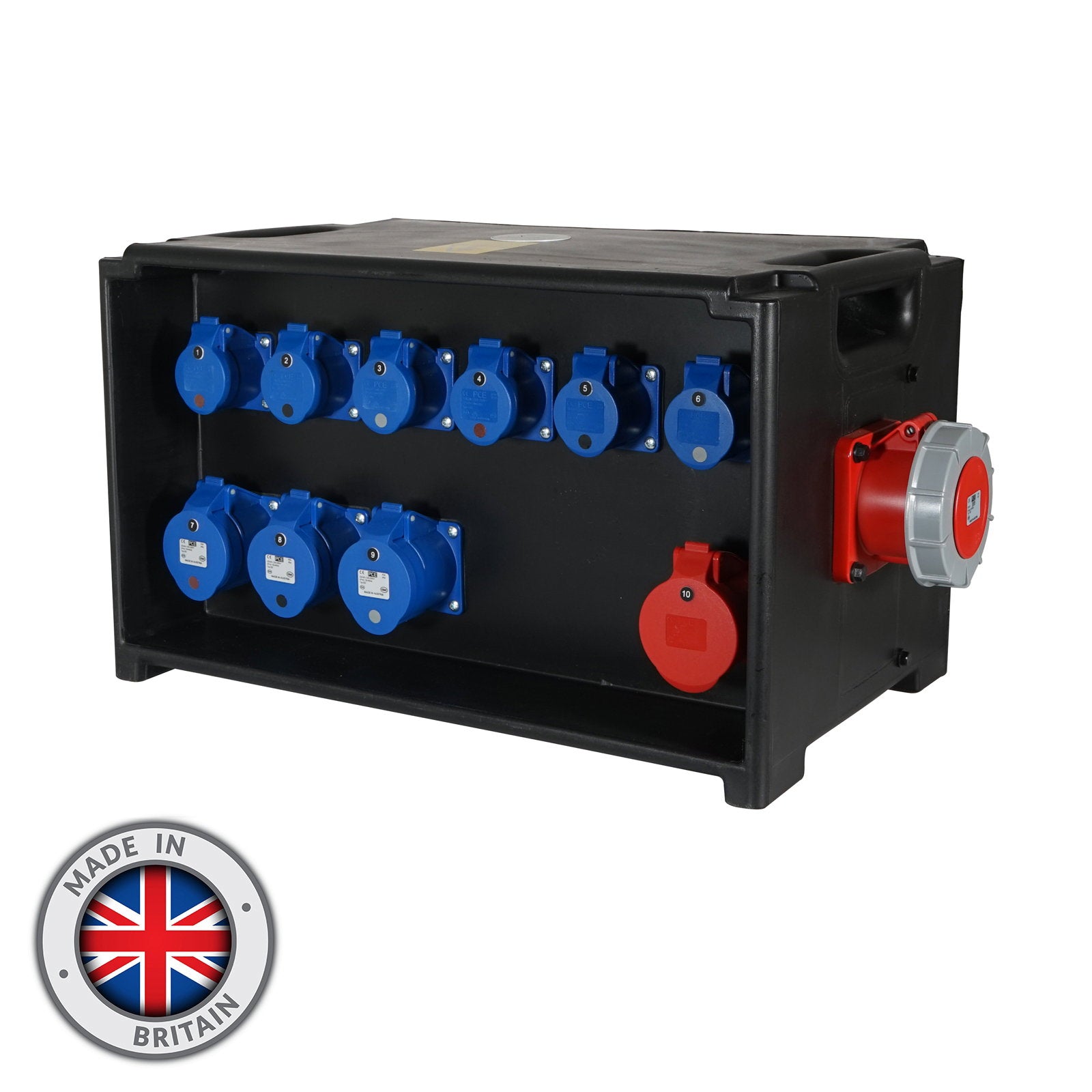

Elumen8 MERZ Distribution Box 63A 3PH In/Thru to 32A/16A
Brand: Elumen8
SKU: CONN396
Regular price
£2,246.99
Pickup available at Venutec
Usually ready in 24 hours
Elumen8 MERZ Distribution Box 63A 3PH In/Thru to 32A/16A
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
These PCE MERZ 63A distribution boxes are robust lightweight and made of shock-resistant thermoplastic. Suitable for events and rental they are IP44 splash proof rated. Manufactured with 63A 3phase input and pass through for onsite daisy chaining of multiple distribution units on one power run.
Made in Britain Handy robust and lightweight distribution box made of shock-resistant thermoplastic IP44 rated Stackable design for space saving
Input: 63A 415V~50/60Hz 5-Pin 3P+N+E IP67 chassis plug protected by a 4-Pole type C MCB Pass Through: 63A 415V~50/60Hz 5-Pin 3P+N+E IP67 chassis socket Outputs: 1 x 32A 400V~50/60Hz 3P+N+E IP44 sockets each protected by 32A 4-Pole MCB with variable earth leakage relay 3 x 32A 220-250V~50/60Hz 2P+E sockets each protected by a 32A 30mA 2-Pole RCBO 6 x 16A 220-250V~50/60Hz 2P+E sockets each protected by a 16A 30mA 2-Pole RCBO Dimensions (H x W x D): 340 x 740 x 340mm Weight: 17.5kg
Made in Britain Handy robust and lightweight distribution box made of shock-resistant thermoplastic IP44 rated Stackable design for space saving
Input: 63A 415V~50/60Hz 5-Pin 3P+N+E IP67 chassis plug protected by a 4-Pole type C MCB Pass Through: 63A 415V~50/60Hz 5-Pin 3P+N+E IP67 chassis socket Outputs: 1 x 32A 400V~50/60Hz 3P+N+E IP44 sockets each protected by 32A 4-Pole MCB with variable earth leakage relay 3 x 32A 220-250V~50/60Hz 2P+E sockets each protected by a 32A 30mA 2-Pole RCBO 6 x 16A 220-250V~50/60Hz 2P+E sockets each protected by a 16A 30mA 2-Pole RCBO Dimensions (H x W x D): 340 x 740 x 340mm Weight: 17.5kg
