These 125A distribution boxes are manufactured using PCE components fitted into a MERZ enclosure creating a robust lightweight unit made from shock-resistant thermoplastic. Suitable for events and rental these 125A boxes are IP44 splash proof rated.
Made in Britain Handy robust distribution box made from shock-resistant thermoplastic IP44 rated Stackable design for space saving Inputs feature phase neutral and earth indictor lamps All outlets feature a red indicator lamp External earth
Input: 125A 400V 3P+N+E IP67 appliance inlet protected by 125A 4-Pole MCB Outputs: 1 x 63A 400V 3P+N+E IP67 socket protected by 63A 4-Pole MCB 2 x 32A 400V 3P+N+E IP44 sockets each protected by 32A 30mA 4-Pole RCBO 12 x 32A 230V 2P+E IP44 sockets each protected by 32A 30mA 2-Pole RCBO 6 x 16A 230V 2P+E IP44 sockets each protected by 16A 30mA 2-Pole RCBO Dimensions (H x W x D): 669 x 612 x 400mm Weight: 31.3kg
Made in Britain Handy robust distribution box made from shock-resistant thermoplastic IP44 rated Stackable design for space saving Inputs feature phase neutral and earth indictor lamps All outlets feature a red indicator lamp External earth
Input: 125A 400V 3P+N+E IP67 appliance inlet protected by 125A 4-Pole MCB Outputs: 1 x 63A 400V 3P+N+E IP67 socket protected by 63A 4-Pole MCB 2 x 32A 400V 3P+N+E IP44 sockets each protected by 32A 30mA 4-Pole RCBO 12 x 32A 230V 2P+E IP44 sockets each protected by 32A 30mA 2-Pole RCBO 6 x 16A 230V 2P+E IP44 sockets each protected by 16A 30mA 2-Pole RCBO Dimensions (H x W x D): 669 x 612 x 400mm Weight: 31.3kg

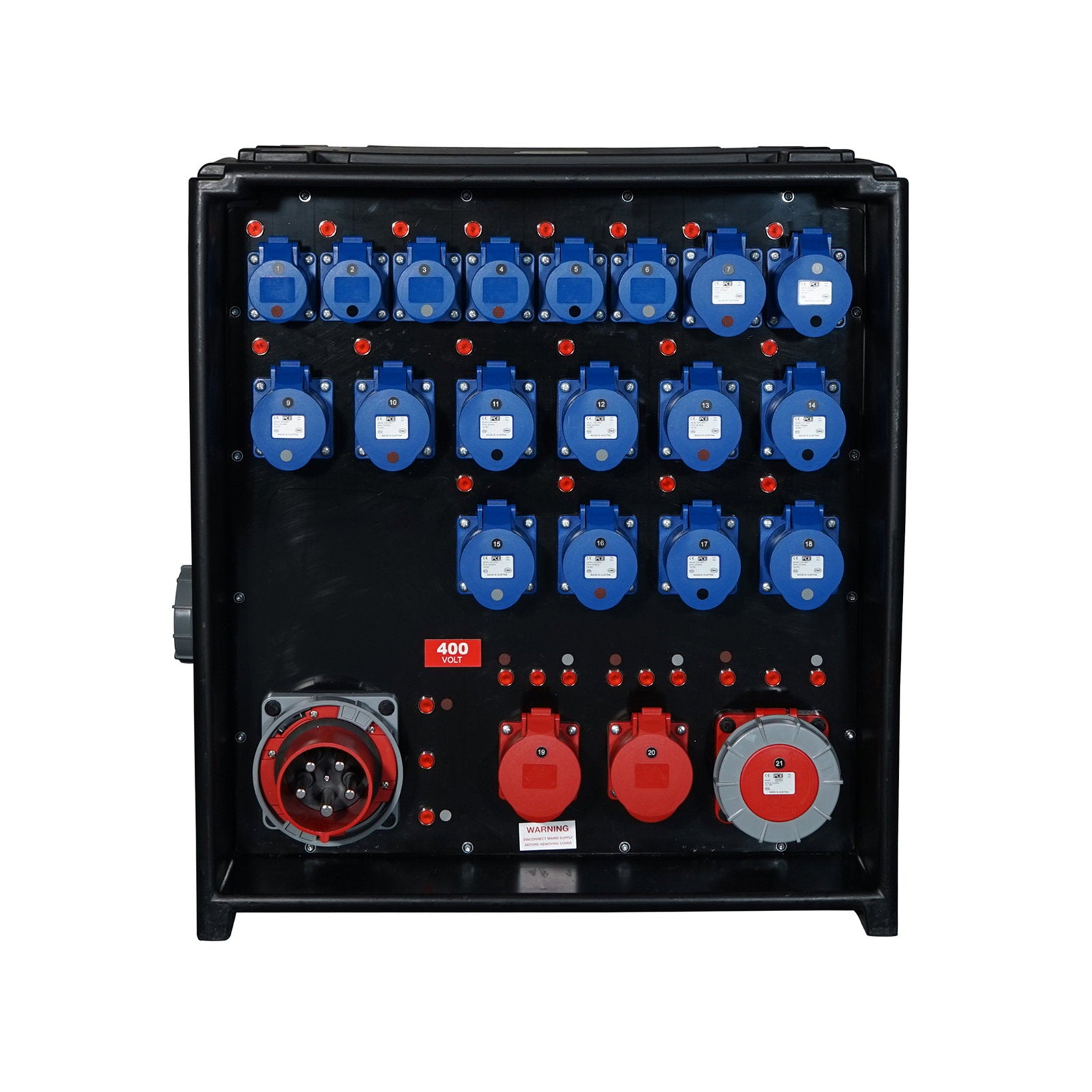

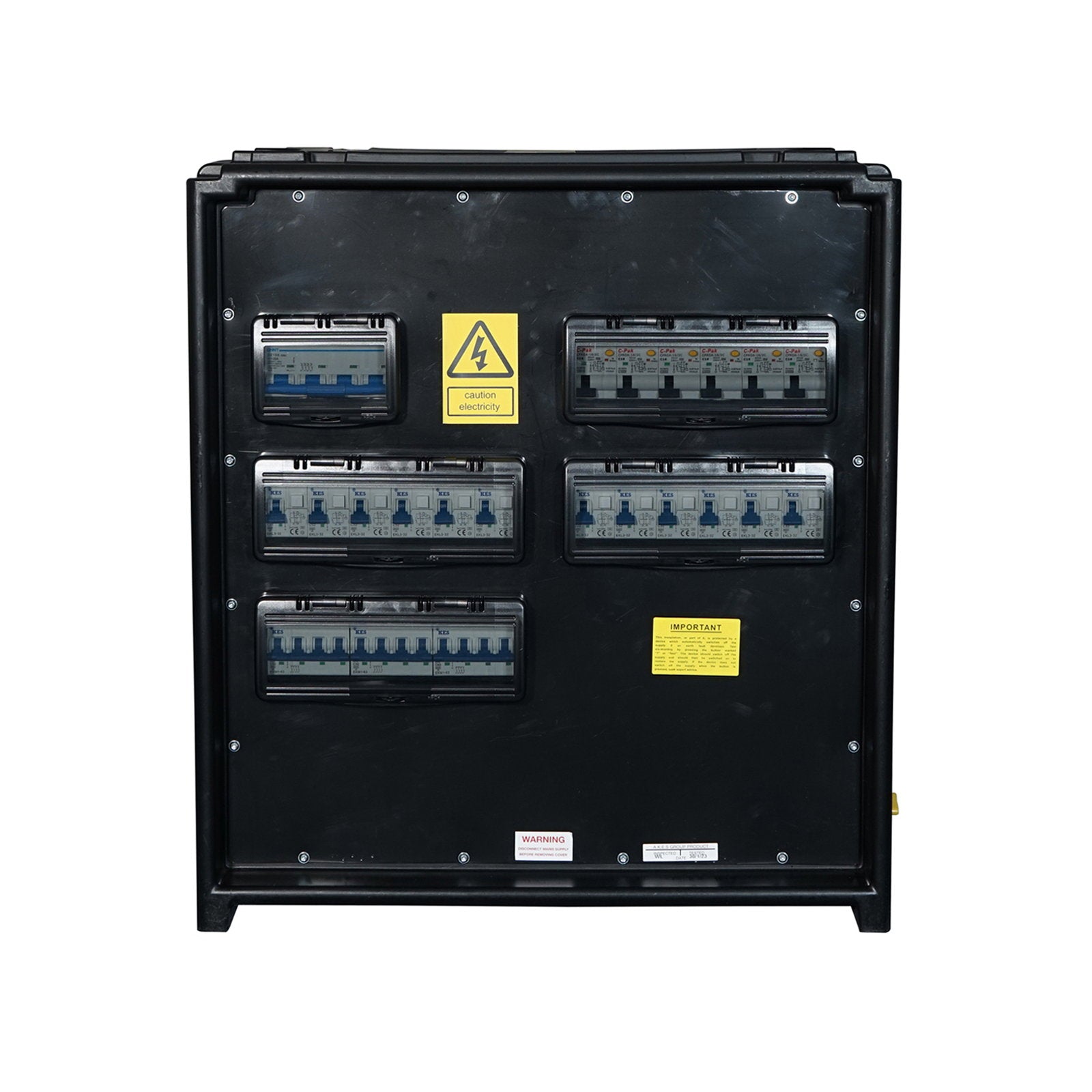

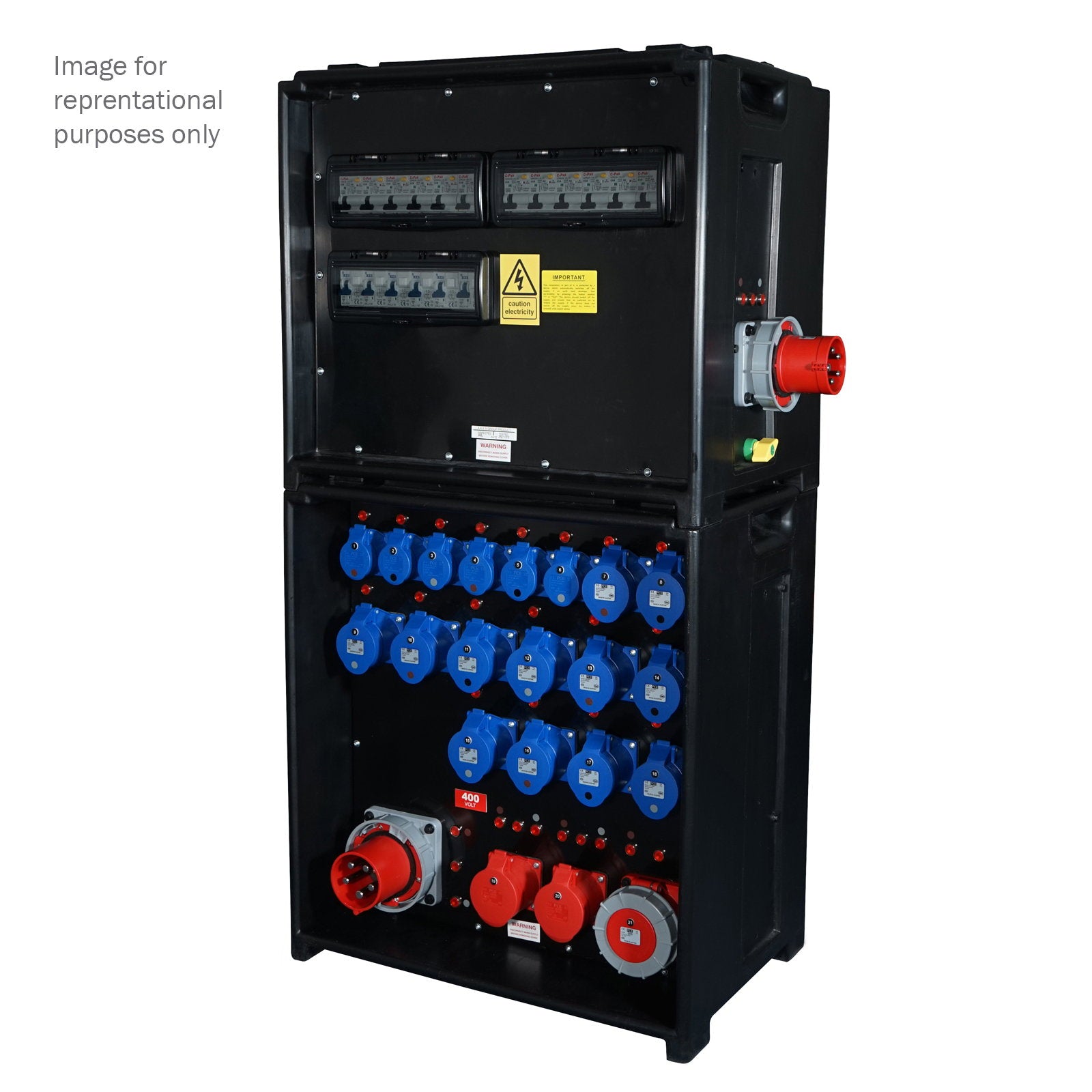

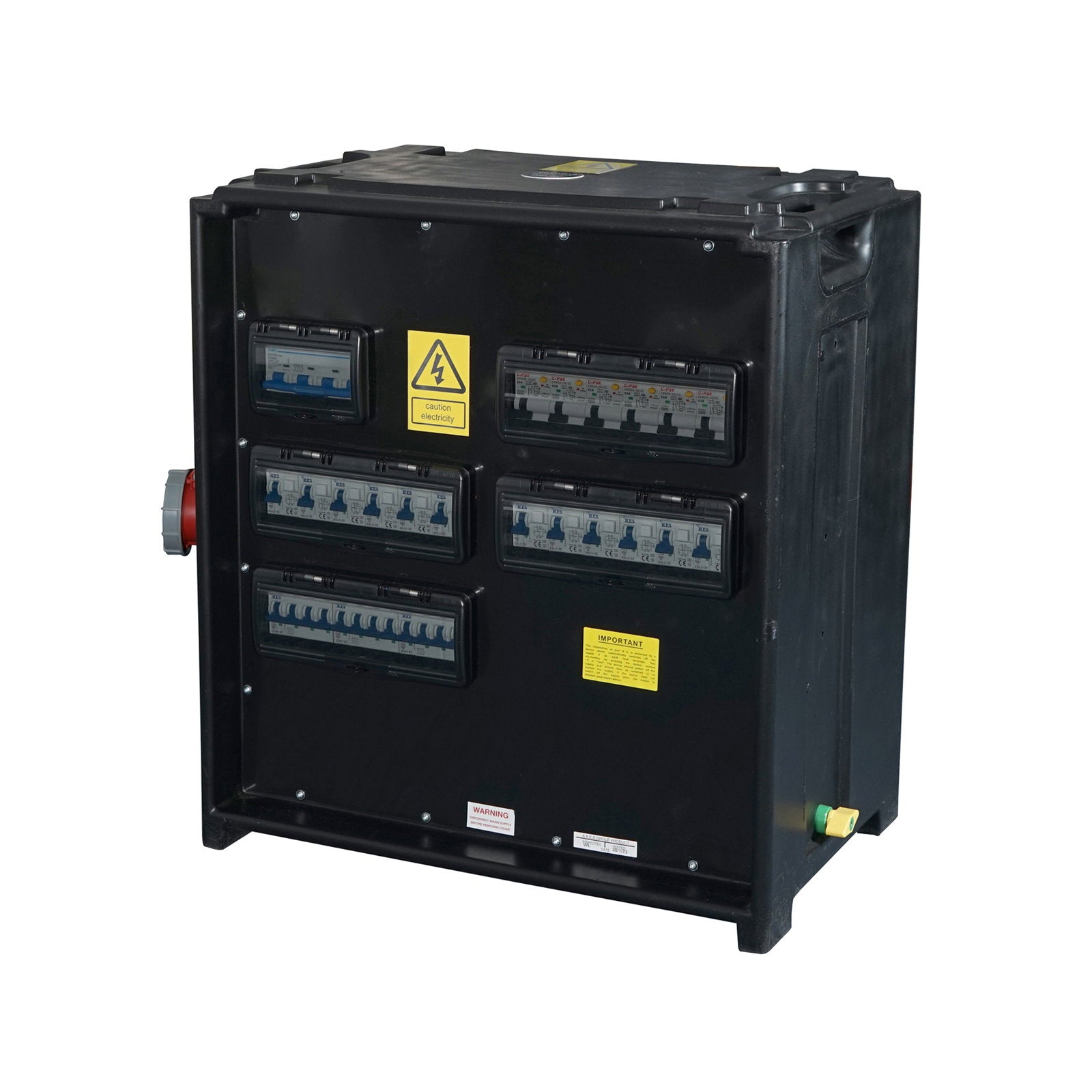

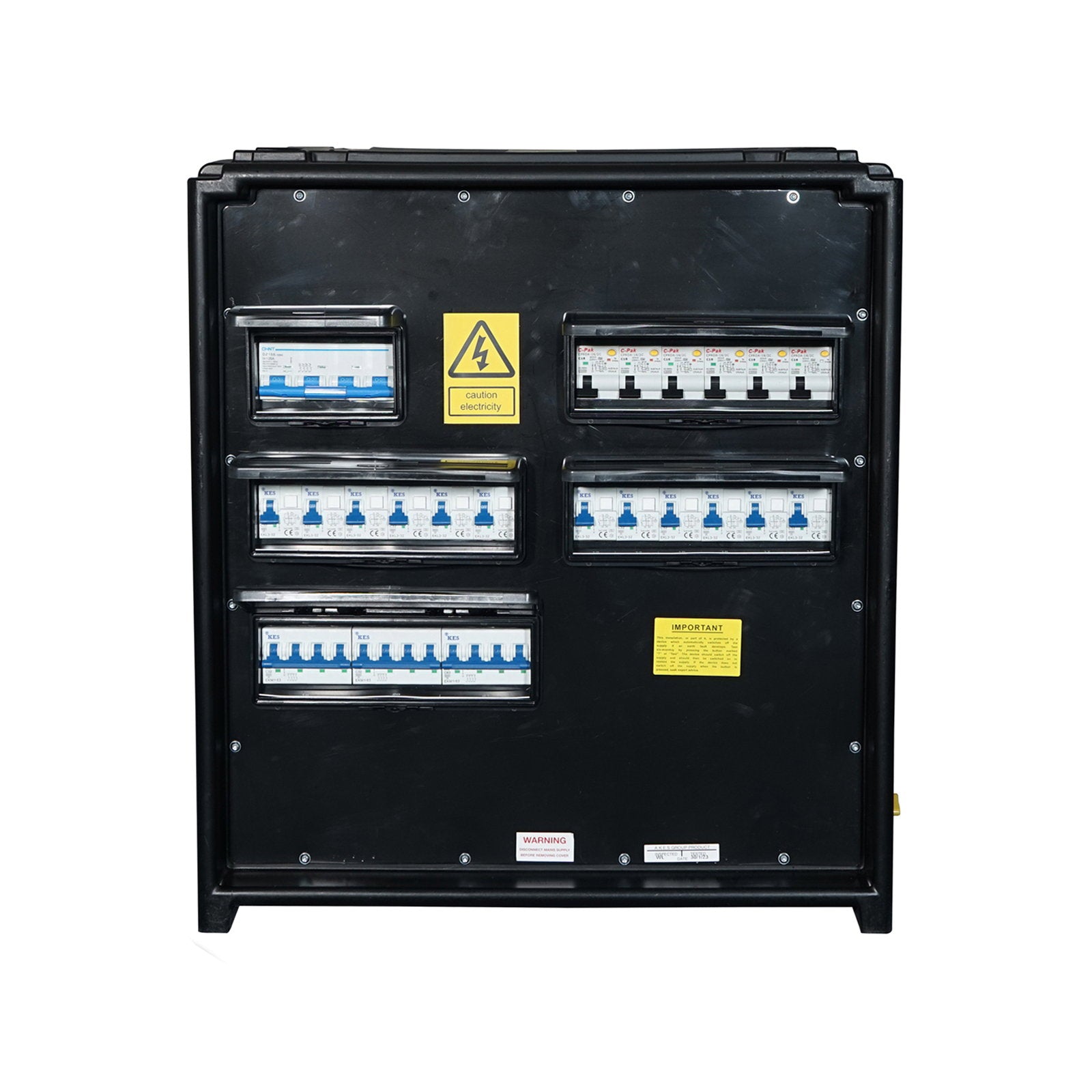

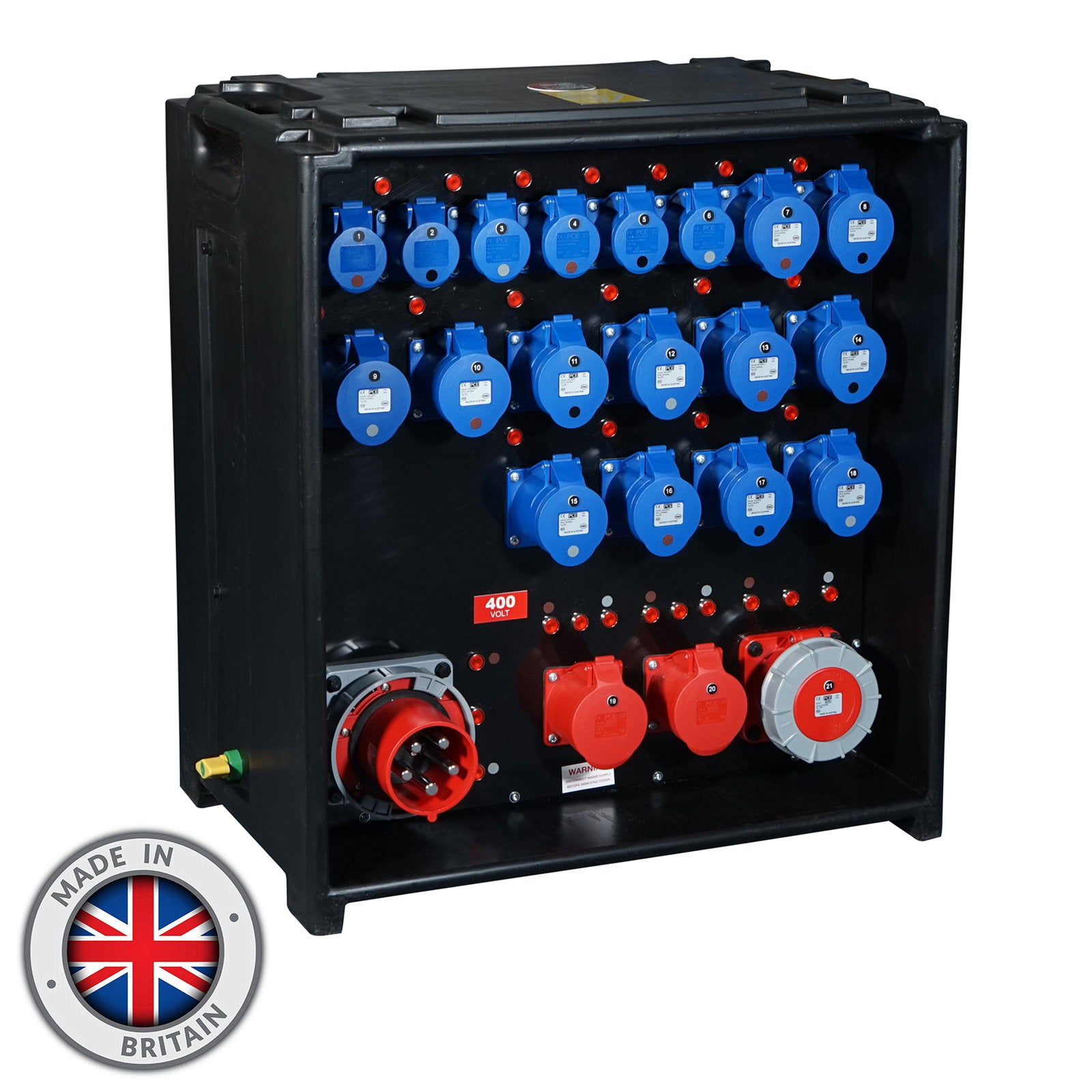

Elumen8 MERZ Distribution Box 125A 3PH to 63A/32A
Brand: Elumen8
SKU: CONN383
Regular price
£3,918.99
Pickup available at Venutec
Usually ready in 24 hours
Elumen8 MERZ Distribution Box 125A 3PH to 63A/32A
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
These 125A distribution boxes are manufactured using PCE components fitted into a MERZ enclosure creating a robust lightweight unit made from shock-resistant thermoplastic. Suitable for events and rental these 125A boxes are IP44 splash proof rated.
Made in Britain Handy robust distribution box made from shock-resistant thermoplastic IP44 rated Stackable design for space saving Inputs feature phase neutral and earth indictor lamps All outlets feature a red indicator lamp External earth
Input: 125A 400V 3P+N+E IP67 appliance inlet protected by 125A 4-Pole MCB Outputs: 1 x 63A 400V 3P+N+E IP67 socket protected by 63A 4-Pole MCB 2 x 32A 400V 3P+N+E IP44 sockets each protected by 32A 30mA 4-Pole RCBO 12 x 32A 230V 2P+E IP44 sockets each protected by 32A 30mA 2-Pole RCBO 6 x 16A 230V 2P+E IP44 sockets each protected by 16A 30mA 2-Pole RCBO Dimensions (H x W x D): 669 x 612 x 400mm Weight: 31.3kg
Made in Britain Handy robust distribution box made from shock-resistant thermoplastic IP44 rated Stackable design for space saving Inputs feature phase neutral and earth indictor lamps All outlets feature a red indicator lamp External earth
Input: 125A 400V 3P+N+E IP67 appliance inlet protected by 125A 4-Pole MCB Outputs: 1 x 63A 400V 3P+N+E IP67 socket protected by 63A 4-Pole MCB 2 x 32A 400V 3P+N+E IP44 sockets each protected by 32A 30mA 4-Pole RCBO 12 x 32A 230V 2P+E IP44 sockets each protected by 32A 30mA 2-Pole RCBO 6 x 16A 230V 2P+E IP44 sockets each protected by 16A 30mA 2-Pole RCBO Dimensions (H x W x D): 669 x 612 x 400mm Weight: 31.3kg
