These PCE ISCHL distribution boxes are compact robust lightweight and made of shock-resistant polyamide. Suitable for events and rental they are IP44 splash proof rated.
Handy robust and lightweight distribution box made of shock-resistant polyamide Number of modules: 8 (Can be increased to 13) IP44 rated Stackable design for space saving Made in the EU
Input: 63A 230V 1P+N+E IP44 via 1m 16mm 3C H07 trailing cable (plug fitted) 63A 30mA 2-Pole RCD Outputs: 2 x 32A 230V 1P+N+E IP44 sockets each protected by 32A 1P Type C MCB 4 x 16A 230V 1P+N+E IP44 sockets each protected by 16A 1P Type C MCB Overall protection via 30mA 4-pole RCD Dimensions (H x W x D): 200 x 400 x 320mm Weight: 5.8kg
Handy robust and lightweight distribution box made of shock-resistant polyamide Number of modules: 8 (Can be increased to 13) IP44 rated Stackable design for space saving Made in the EU
Input: 63A 230V 1P+N+E IP44 via 1m 16mm 3C H07 trailing cable (plug fitted) 63A 30mA 2-Pole RCD Outputs: 2 x 32A 230V 1P+N+E IP44 sockets each protected by 32A 1P Type C MCB 4 x 16A 230V 1P+N+E IP44 sockets each protected by 16A 1P Type C MCB Overall protection via 30mA 4-pole RCD Dimensions (H x W x D): 200 x 400 x 320mm Weight: 5.8kg

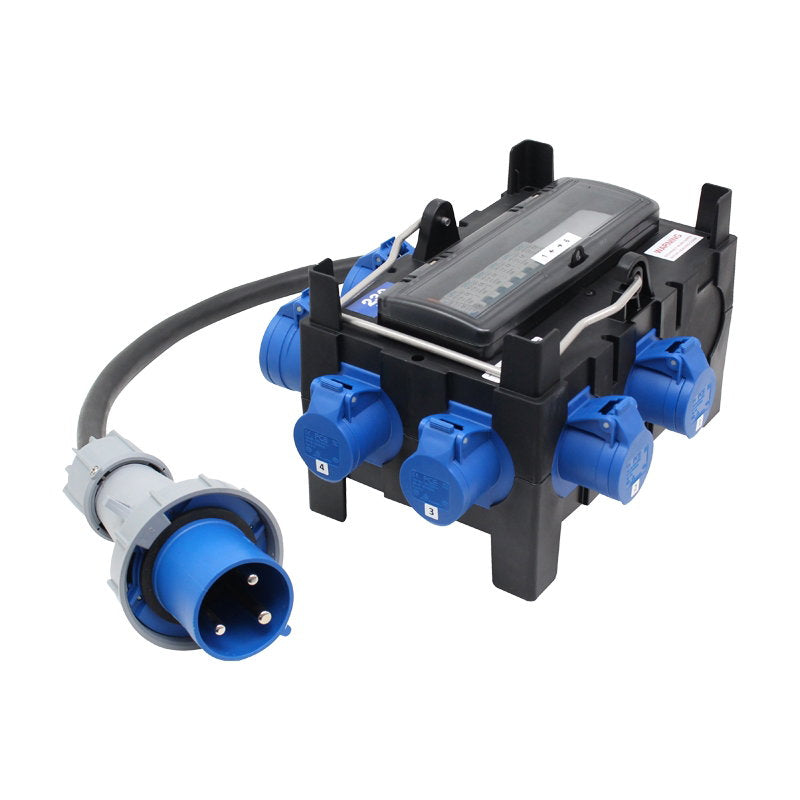

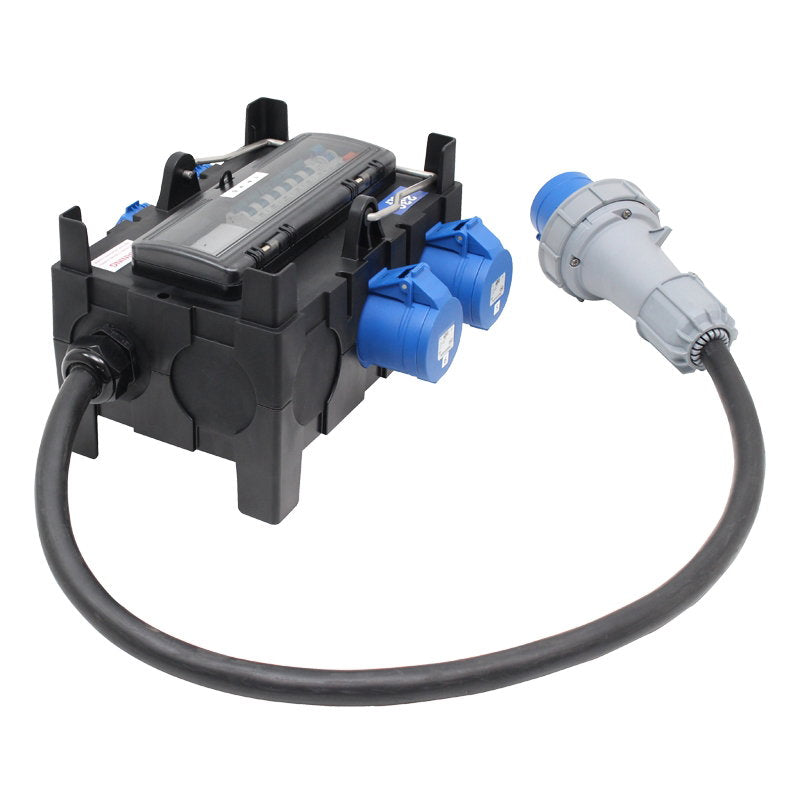

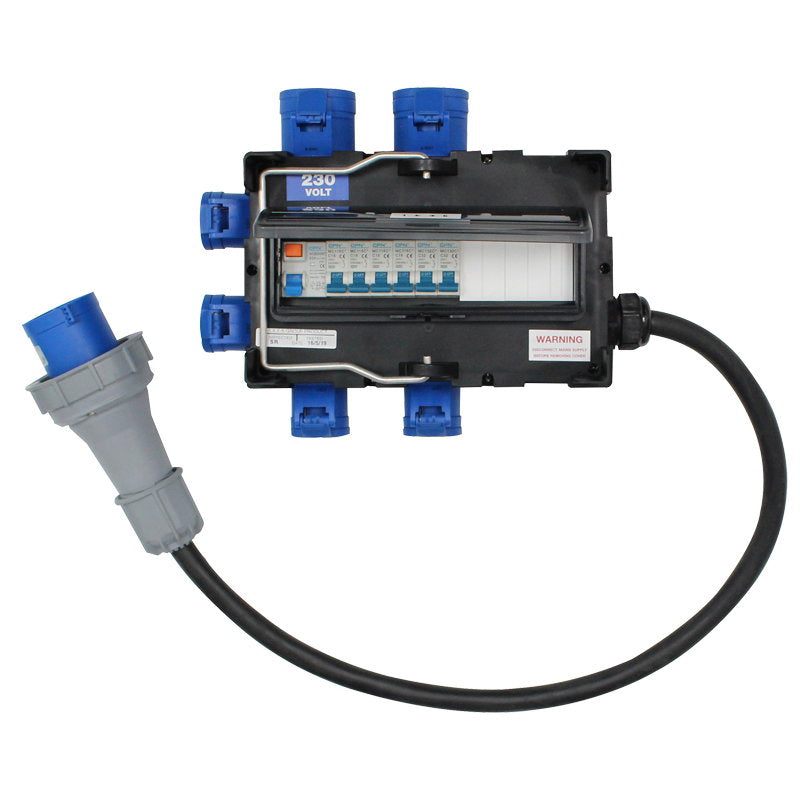

Elumen8 ISCHL Distribution Box 63A 230V In 2 x 32A + 4 x 16A Out
Brand: Elumen8
SKU: CONN087
Regular price
£512.99
Pickup available at Venutec
Usually ready in 24 hours
Elumen8 ISCHL Distribution Box 63A 230V In 2 x 32A + 4 x 16A Out
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
These PCE ISCHL distribution boxes are compact robust lightweight and made of shock-resistant polyamide. Suitable for events and rental they are IP44 splash proof rated.
Handy robust and lightweight distribution box made of shock-resistant polyamide Number of modules: 8 (Can be increased to 13) IP44 rated Stackable design for space saving Made in the EU
Input: 63A 230V 1P+N+E IP44 via 1m 16mm 3C H07 trailing cable (plug fitted) 63A 30mA 2-Pole RCD Outputs: 2 x 32A 230V 1P+N+E IP44 sockets each protected by 32A 1P Type C MCB 4 x 16A 230V 1P+N+E IP44 sockets each protected by 16A 1P Type C MCB Overall protection via 30mA 4-pole RCD Dimensions (H x W x D): 200 x 400 x 320mm Weight: 5.8kg
Handy robust and lightweight distribution box made of shock-resistant polyamide Number of modules: 8 (Can be increased to 13) IP44 rated Stackable design for space saving Made in the EU
Input: 63A 230V 1P+N+E IP44 via 1m 16mm 3C H07 trailing cable (plug fitted) 63A 30mA 2-Pole RCD Outputs: 2 x 32A 230V 1P+N+E IP44 sockets each protected by 32A 1P Type C MCB 4 x 16A 230V 1P+N+E IP44 sockets each protected by 16A 1P Type C MCB Overall protection via 30mA 4-pole RCD Dimensions (H x W x D): 200 x 400 x 320mm Weight: 5.8kg
