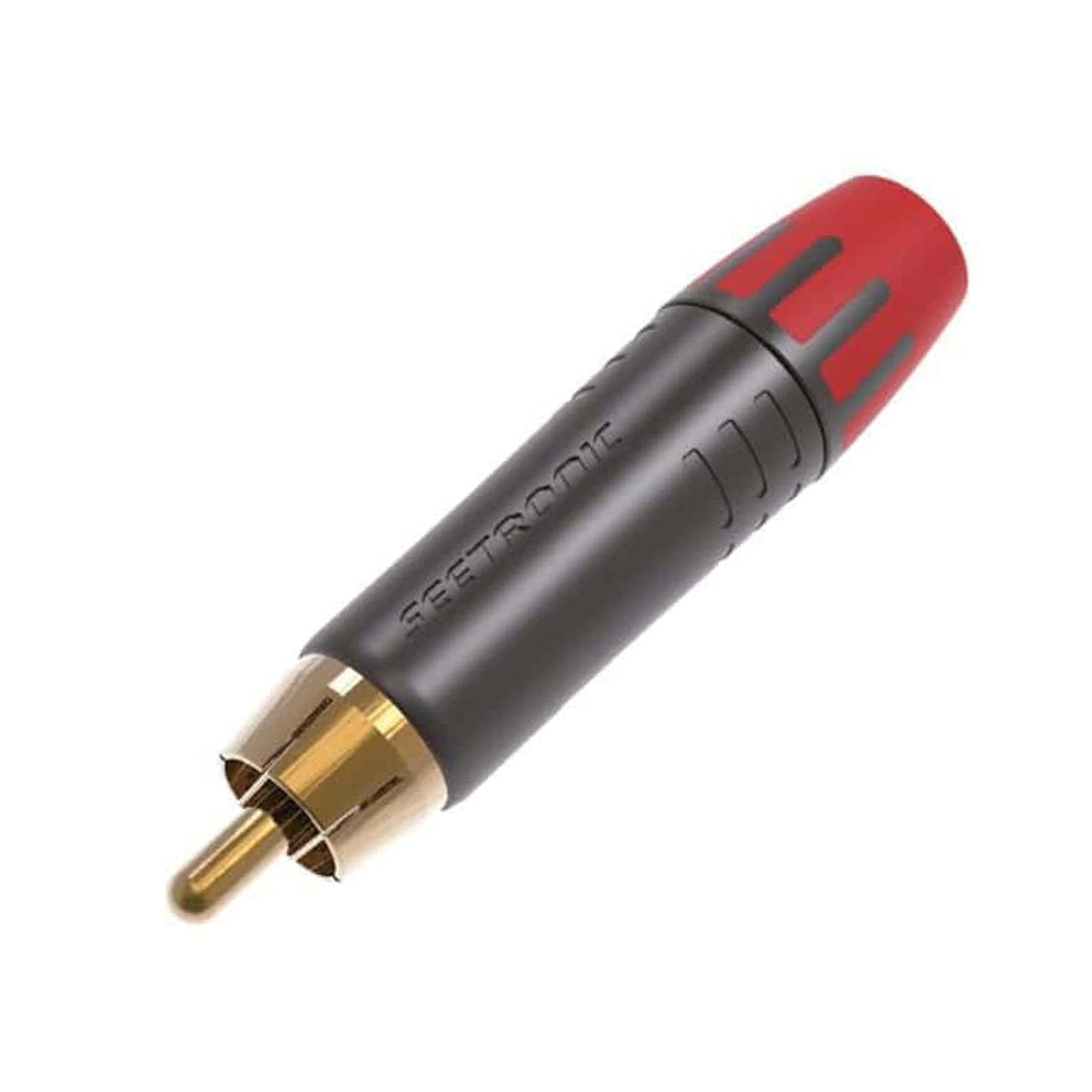

The Seetronic MT380‑2 is a robust RCA male plug with a red-coloured boot for easy left/right channel identification in AV setups. Built with a black-plated zinc alloy body and gold-plated brass contacts this precision connector ensures stable signal transmission for both digital audio and analog video. Supporting cable diameters from 3.5–6.5 mm and rated for over 1000 mating cycles the MT380‑2 delivers long-lasting performance in touring studio and install environments.

• Gold-plated brass contacts for high signal integrity
• Black-plated zinc alloy housing with red polymer boot
• Supports cable ODs from 3.5–6.5 mm (up to 1.5 mm² / 16 AWG)
• Rated voltage <50 V; dielectric strength: 1500 V DC
• Insulation resistance >5 GΩ for reliable performance
• Tested for over 1000 mating cycles
• Operating temperature range: −30 °C to +80 °C
• Complies with IEC 68‑2‑20 solderability standard

• Rated Voltage: <50 V
• Dielectric Strength: 1500 V DC
• Insulation Resistance: >5 GΩ
• Contact Resistance: Dependent on mating connector
• Cable OD Range: 3.5–6.5 mm
• Max Cable Size: 1.5 mm² / 16 AWG
• Housing: Zinc alloy (black-plated)
• Contacts: Brass gold-plated
• Boot: Red polymer (screw-fit)
• Mechanical Life: >1000 mating cycles
• Temperature Range: −30 °C to +80 °C
• Soldering Standard: IEC 68‑2‑20
