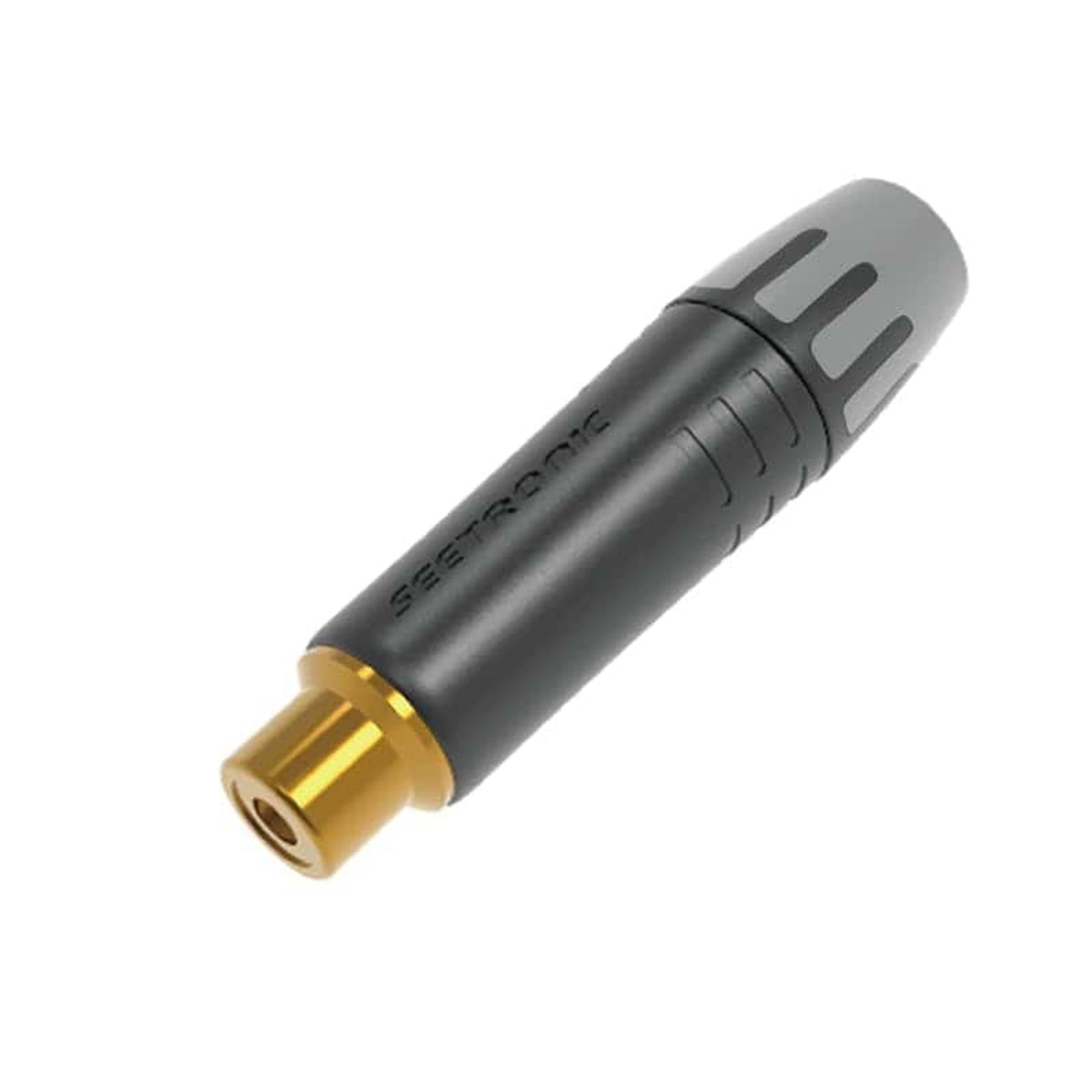

The Seetronic MT390 is a rugged RCA female cable connector with a black-plated zinc alloy body and gold-plated brass contacts. It supports cables from 3.5–6.5mm outer diameter and up to 1.5mm² (16 AWG) delivering stable signal transmission for both digital audio and analog video. Designed for over 1000 mating cycles and compliant with IEC 68‑2‑20 soldering standards the MT390 ensures long-lasting performance in professional AV environments.
Gold-plated brass contacts for high signal integrity Black-plated zinc alloy housing with integrated collet strain relief Supports cable OD 3.5–6.5mm (up to 1.5mm² / 16 AWG) Rated voltage <50V; dielectric strength 1500VDC; insulation resistance >5GΩ Designed for >1000 mating cycles Solderable per IEC 68‑2‑20 Operating temperature: –30 °C to +80 °C Suitable for digital audio and analog video systems
Rated Voltage: <50V Dielectric Strength: 1500VDC Insulation Resistance: >5GΩ Contact Resistance: Dependent on mating connector Cable Size: 1.5mm² (16 AWG) Cable OD: 3.5–6.5mm Service Life: >1000 mating cycles Contacts: Brass gold-plated Housing: Zinc alloy black-plated Solder Standard: IEC 68‑2‑20 Temperature Range: –30 °C to +80 °C
Gold-plated brass contacts for high signal integrity Black-plated zinc alloy housing with integrated collet strain relief Supports cable OD 3.5–6.5mm (up to 1.5mm² / 16 AWG) Rated voltage <50V; dielectric strength 1500VDC; insulation resistance >5GΩ Designed for >1000 mating cycles Solderable per IEC 68‑2‑20 Operating temperature: –30 °C to +80 °C Suitable for digital audio and analog video systems
Rated Voltage: <50V Dielectric Strength: 1500VDC Insulation Resistance: >5GΩ Contact Resistance: Dependent on mating connector Cable Size: 1.5mm² (16 AWG) Cable OD: 3.5–6.5mm Service Life: >1000 mating cycles Contacts: Brass gold-plated Housing: Zinc alloy black-plated Solder Standard: IEC 68‑2‑20 Temperature Range: –30 °C to +80 °C
Seetronic Phono Female Cable Connector Black MT390
Brand: Seetronic
SKU: CONN1448
Regular price
£1.99
Pickup available at Venutec
Usually ready in 24 hours
Seetronic Phono Female Cable Connector Black MT390
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
The Seetronic MT390 is a rugged RCA female cable connector with a black-plated zinc alloy body and gold-plated brass contacts. It supports cables from 3.5–6.5mm outer diameter and up to 1.5mm² (16 AWG) delivering stable signal transmission for both digital audio and analog video. Designed for over 1000 mating cycles and compliant with IEC 68‑2‑20 soldering standards the MT390 ensures long-lasting performance in professional AV environments.
Gold-plated brass contacts for high signal integrity Black-plated zinc alloy housing with integrated collet strain relief Supports cable OD 3.5–6.5mm (up to 1.5mm² / 16 AWG) Rated voltage <50V; dielectric strength 1500VDC; insulation resistance >5GΩ Designed for >1000 mating cycles Solderable per IEC 68‑2‑20 Operating temperature: –30 °C to +80 °C Suitable for digital audio and analog video systems
Rated Voltage: <50V Dielectric Strength: 1500VDC Insulation Resistance: >5GΩ Contact Resistance: Dependent on mating connector Cable Size: 1.5mm² (16 AWG) Cable OD: 3.5–6.5mm Service Life: >1000 mating cycles Contacts: Brass gold-plated Housing: Zinc alloy black-plated Solder Standard: IEC 68‑2‑20 Temperature Range: –30 °C to +80 °C
Gold-plated brass contacts for high signal integrity Black-plated zinc alloy housing with integrated collet strain relief Supports cable OD 3.5–6.5mm (up to 1.5mm² / 16 AWG) Rated voltage <50V; dielectric strength 1500VDC; insulation resistance >5GΩ Designed for >1000 mating cycles Solderable per IEC 68‑2‑20 Operating temperature: –30 °C to +80 °C Suitable for digital audio and analog video systems
Rated Voltage: <50V Dielectric Strength: 1500VDC Insulation Resistance: >5GΩ Contact Resistance: Dependent on mating connector Cable Size: 1.5mm² (16 AWG) Cable OD: 3.5–6.5mm Service Life: >1000 mating cycles Contacts: Brass gold-plated Housing: Zinc alloy black-plated Solder Standard: IEC 68‑2‑20 Temperature Range: –30 °C to +80 °C
