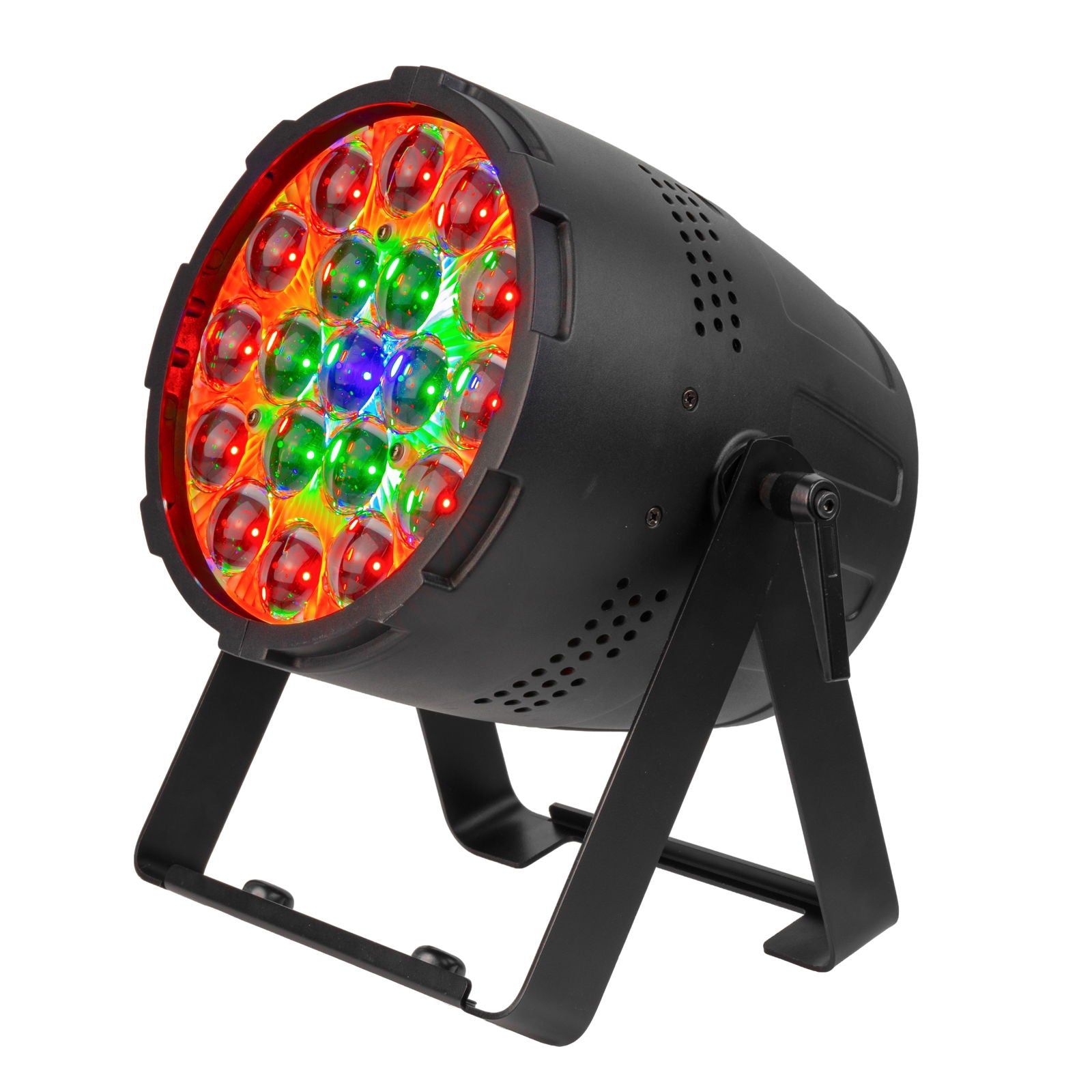

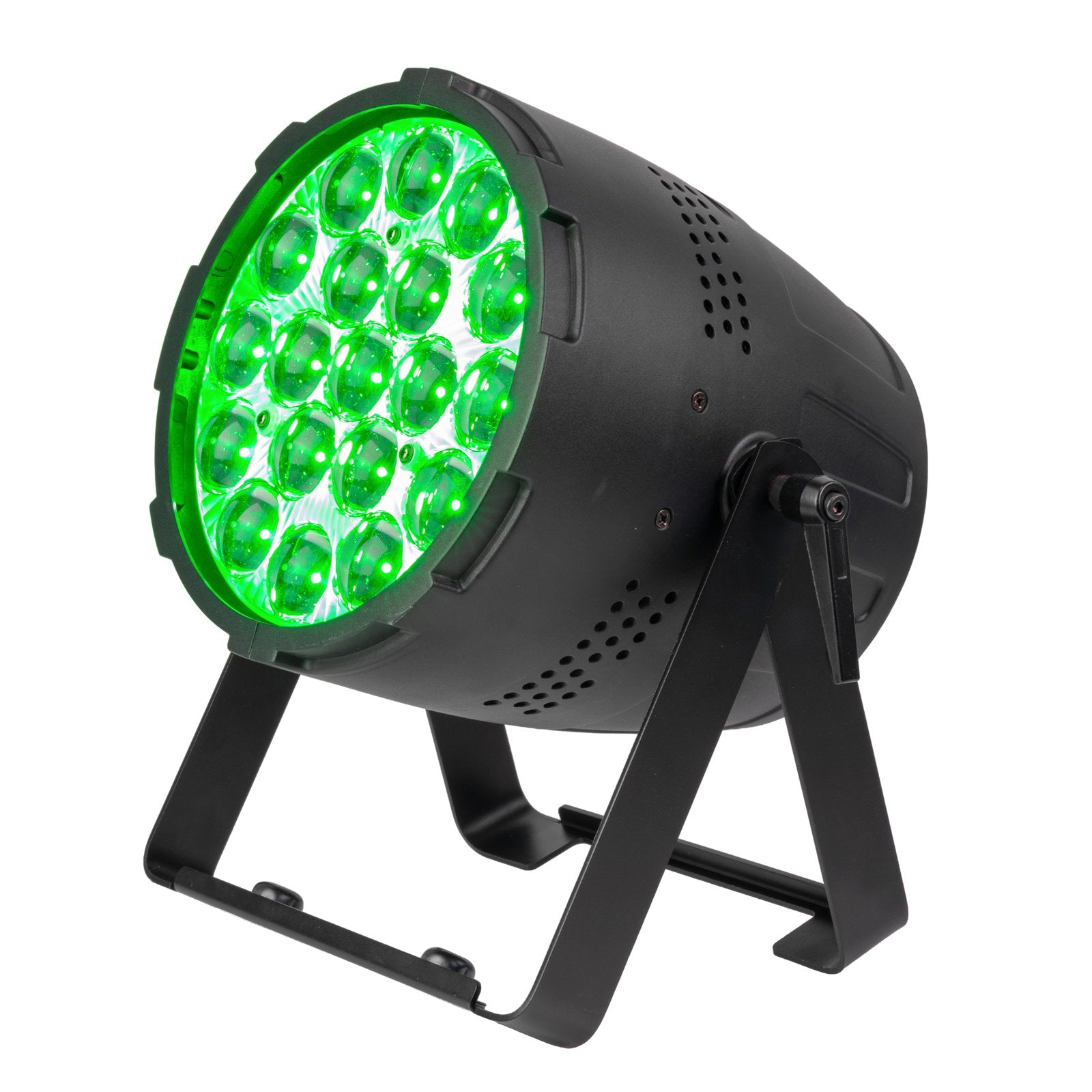

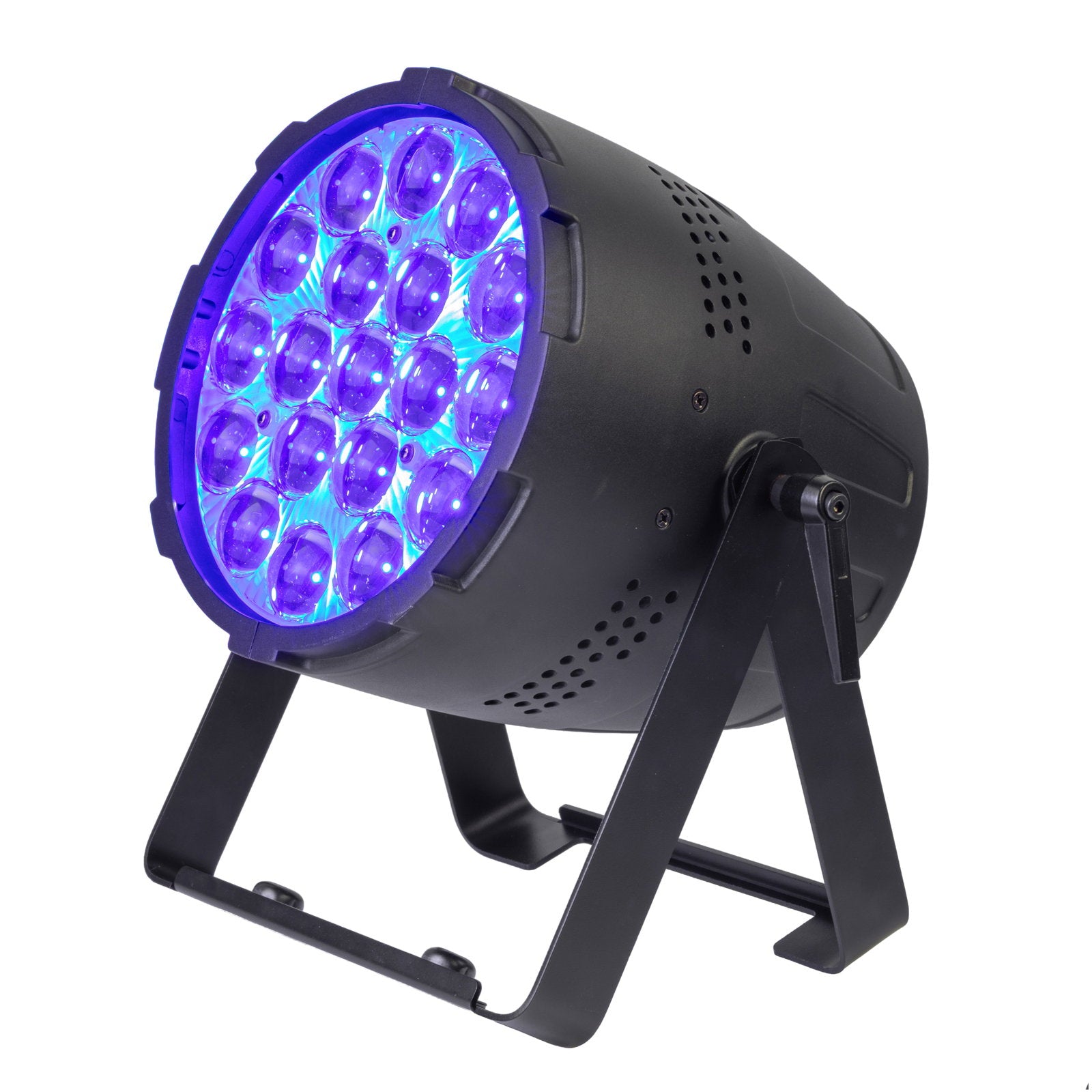

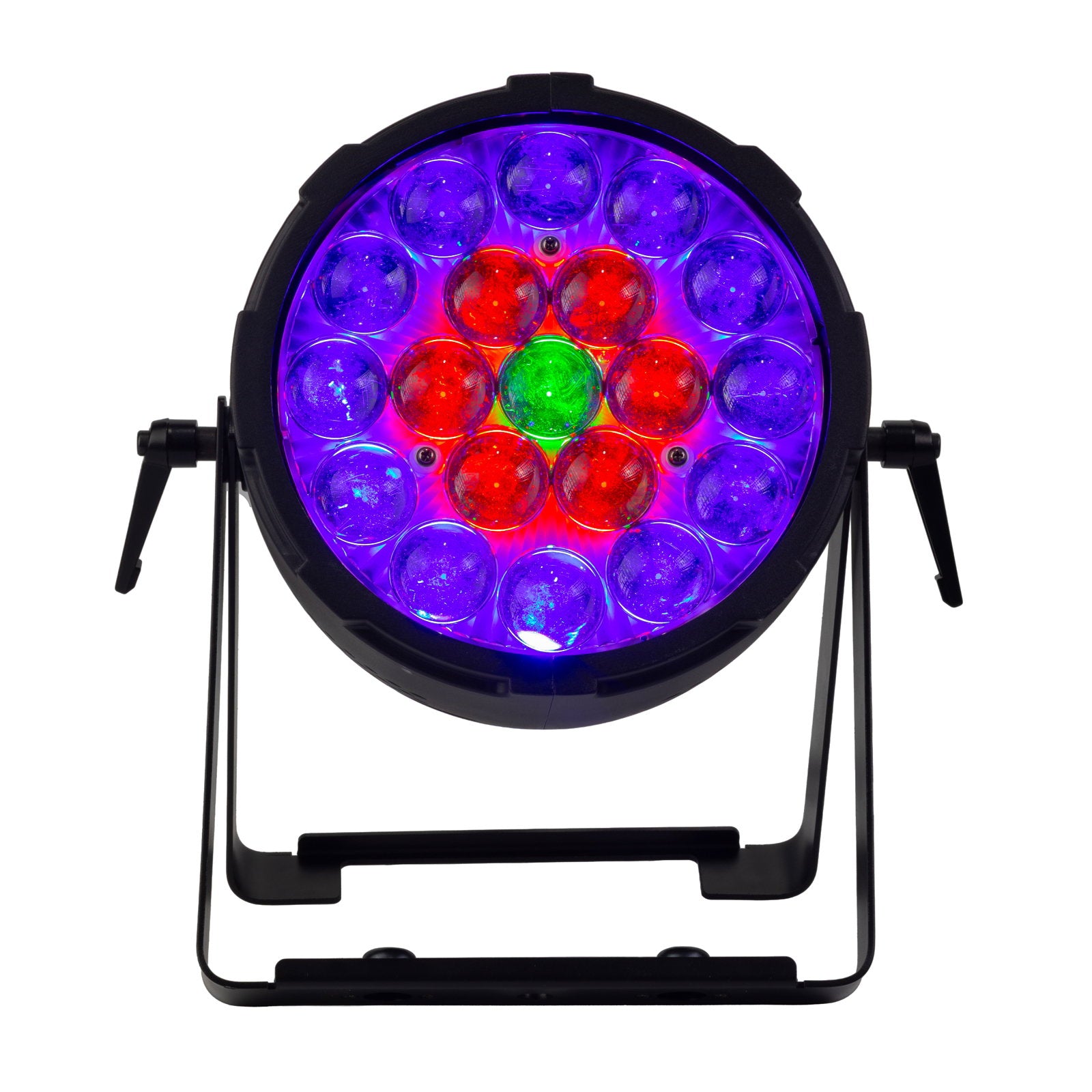

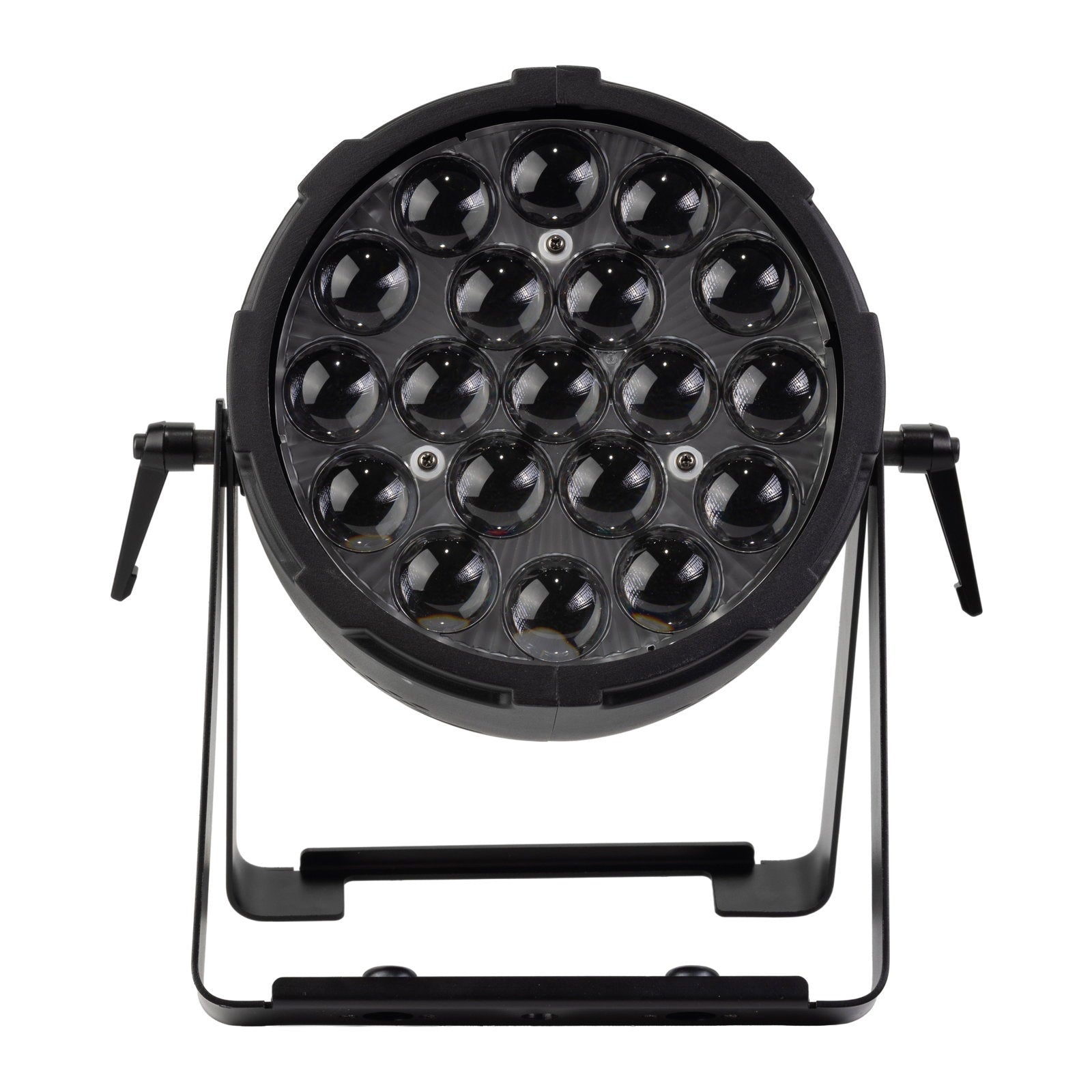

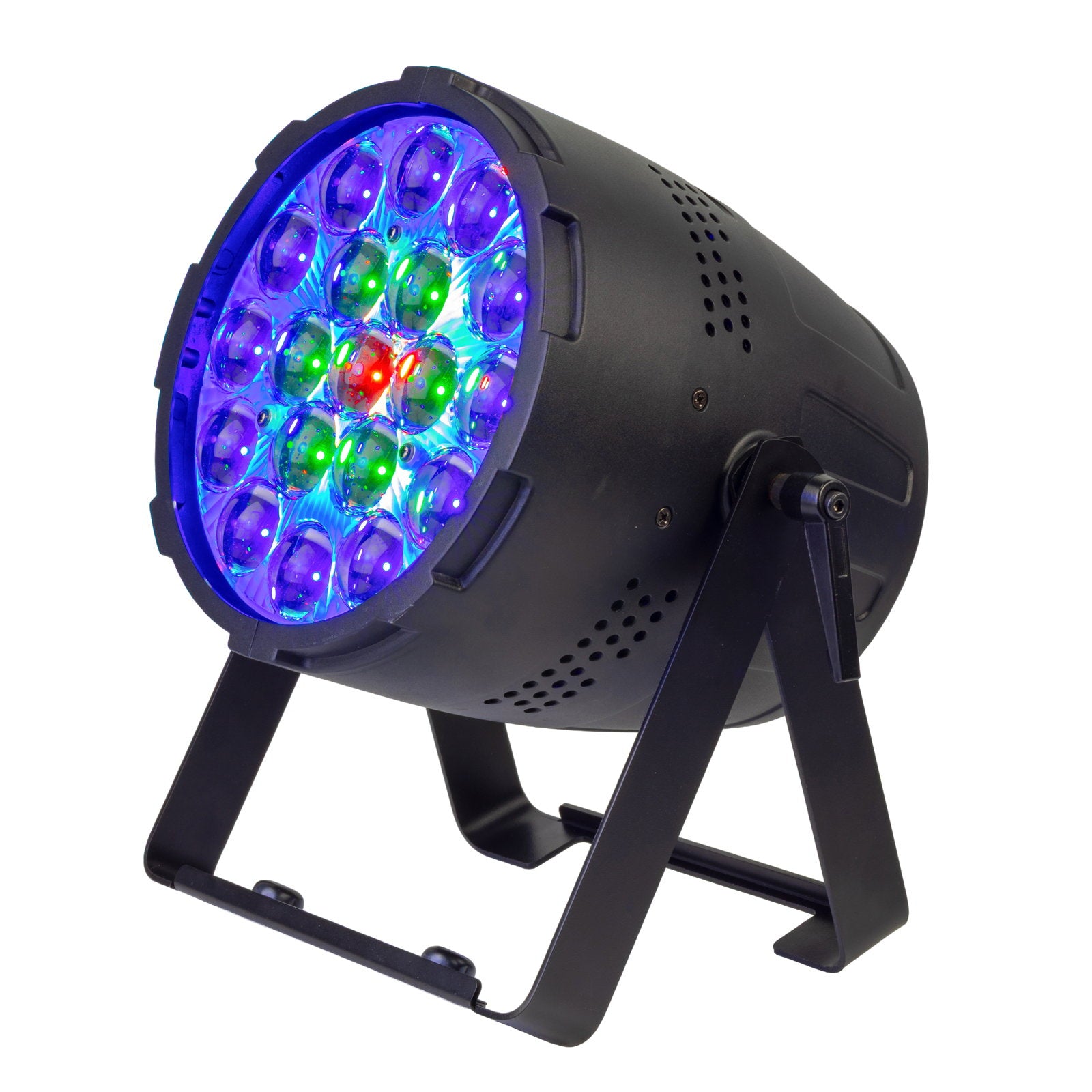

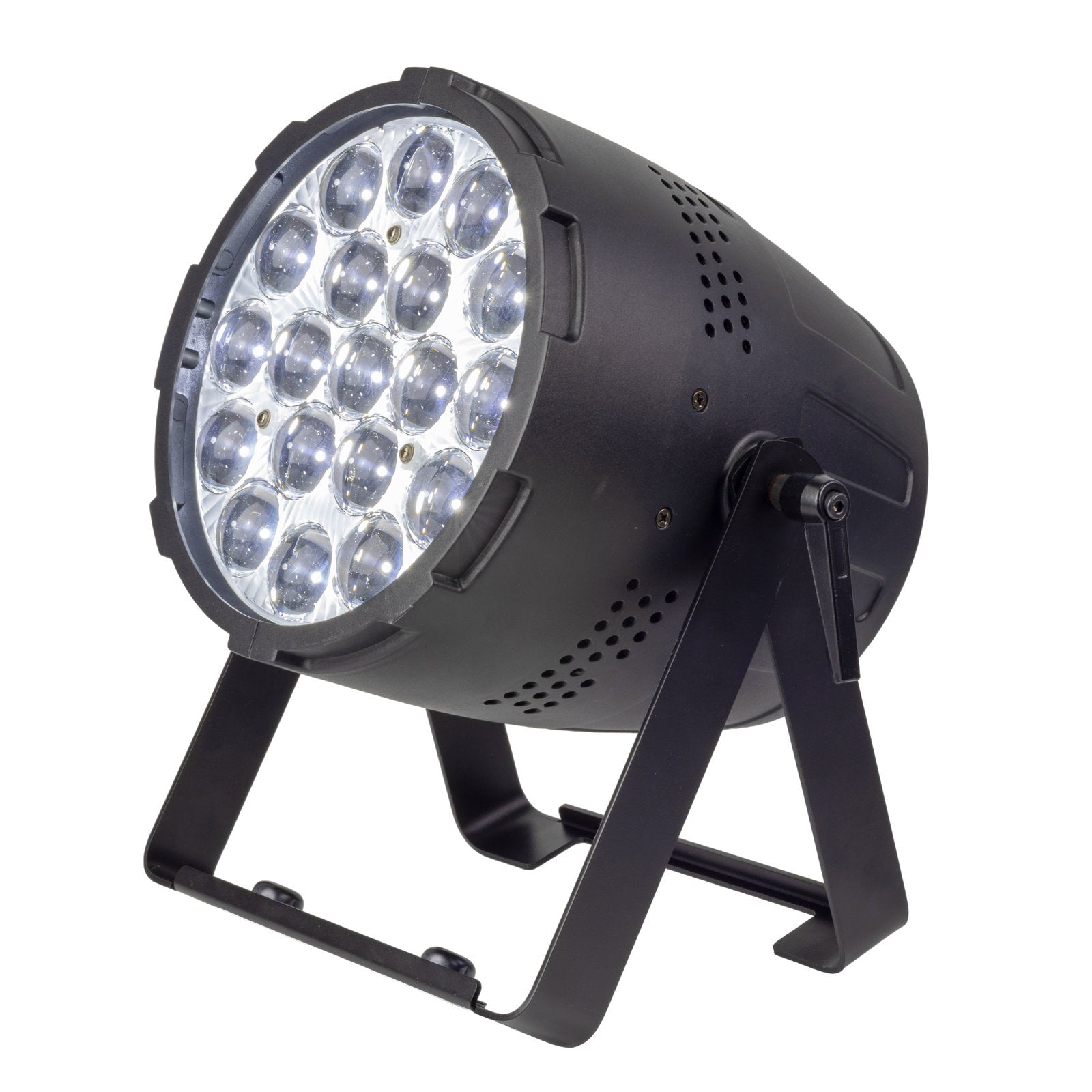

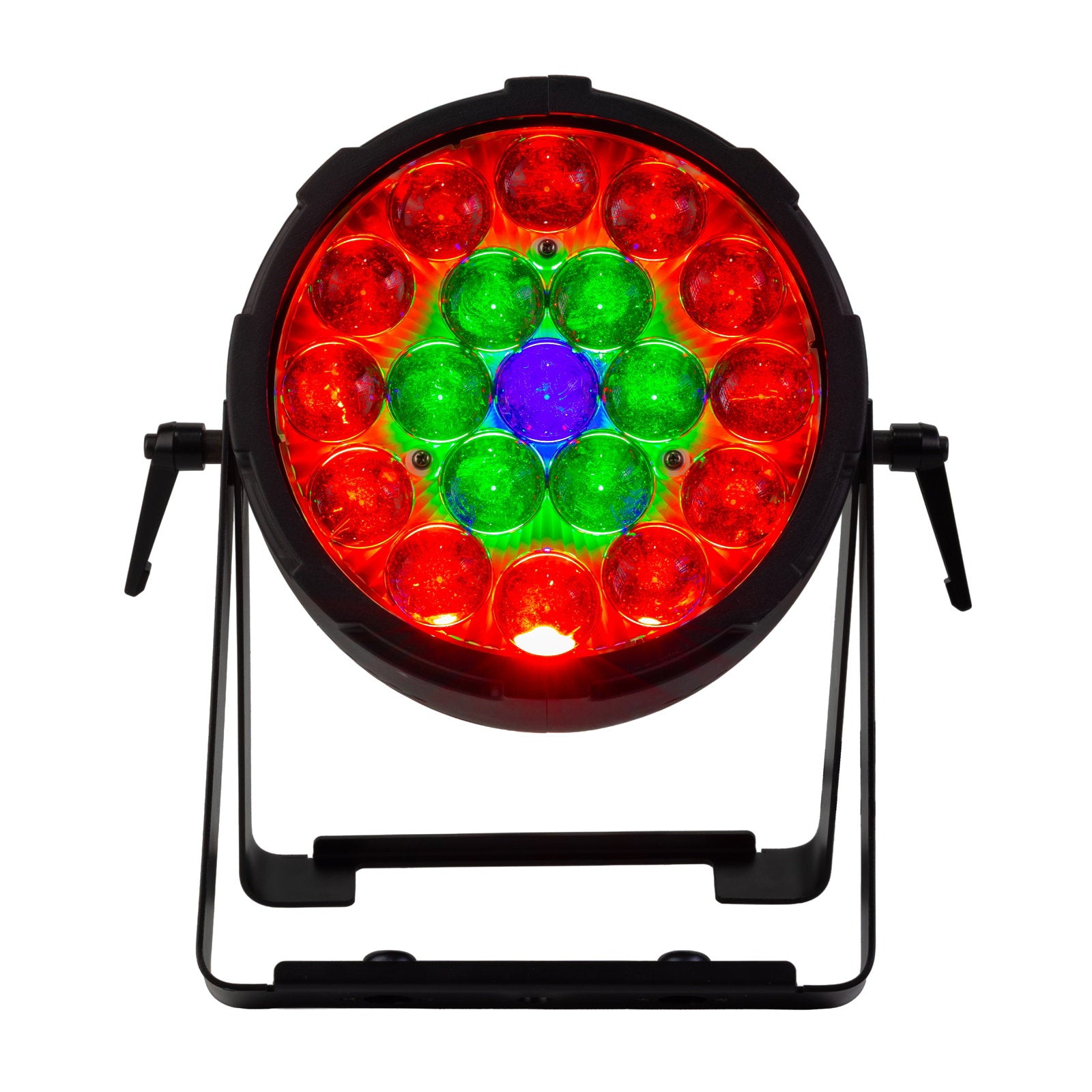

The Equinox 260 Zoom Par is a versatile RGBW LED lighting fixture designed for professional stage event and broadcast use. It features 19 x 15W quad-colour LEDs (RGBW) delivering everything from soft pastel hues to rich saturated colours. The LEDs are arranged in three concentric rings enabling creative pixel zone effects and wide even wash coverage. A motorised zoom range of 10°–50° allows for flexible beam control from tight beams to broad washes. With an adjustable refresh rate (up to 25kHz) this fixture is ideal for TV and film applications. It also includes four selectable dimming curves temperature-controlled fans for quiet operation and a selection of preset colour macros auto programs and colour temperature presets to streamline programming and performance.

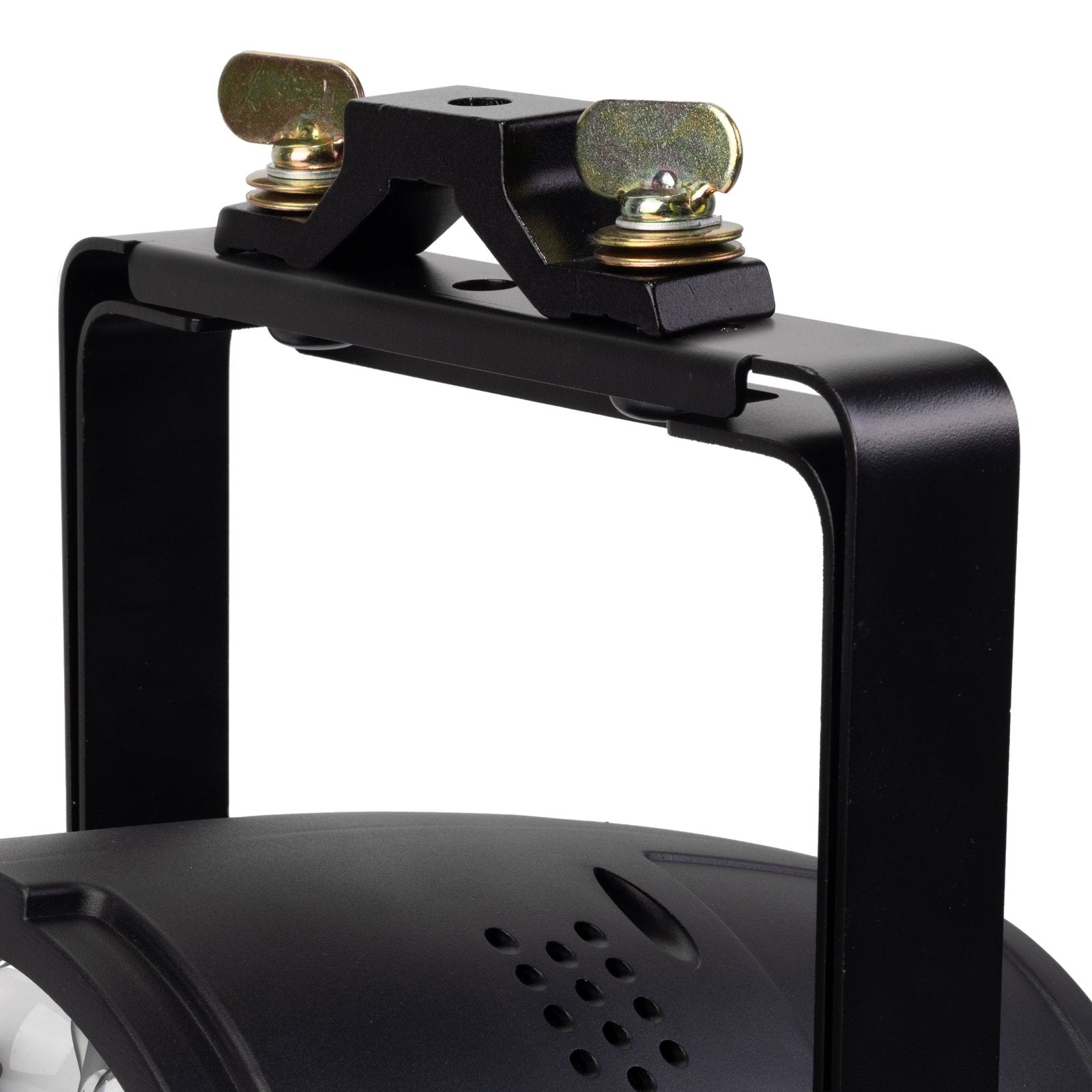

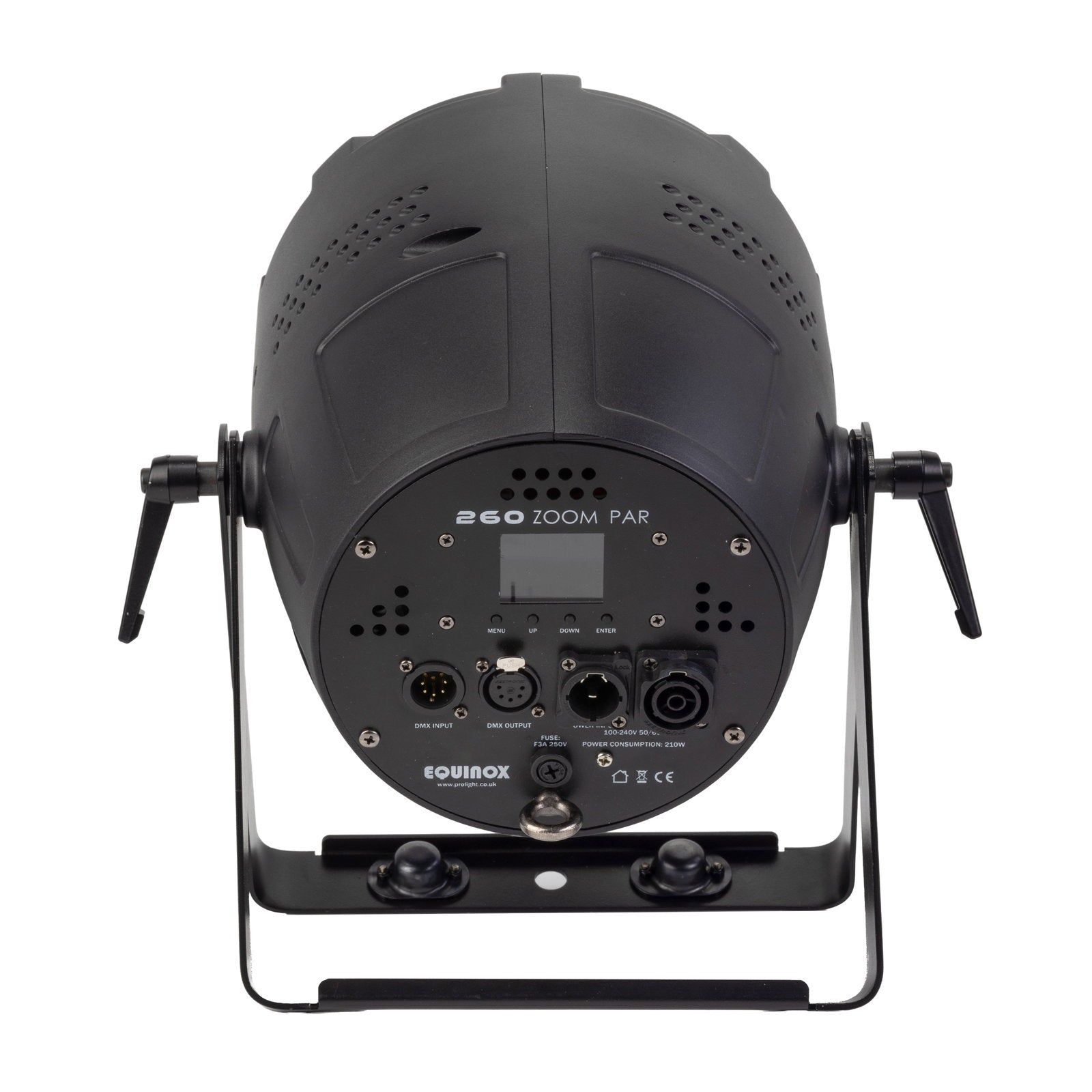

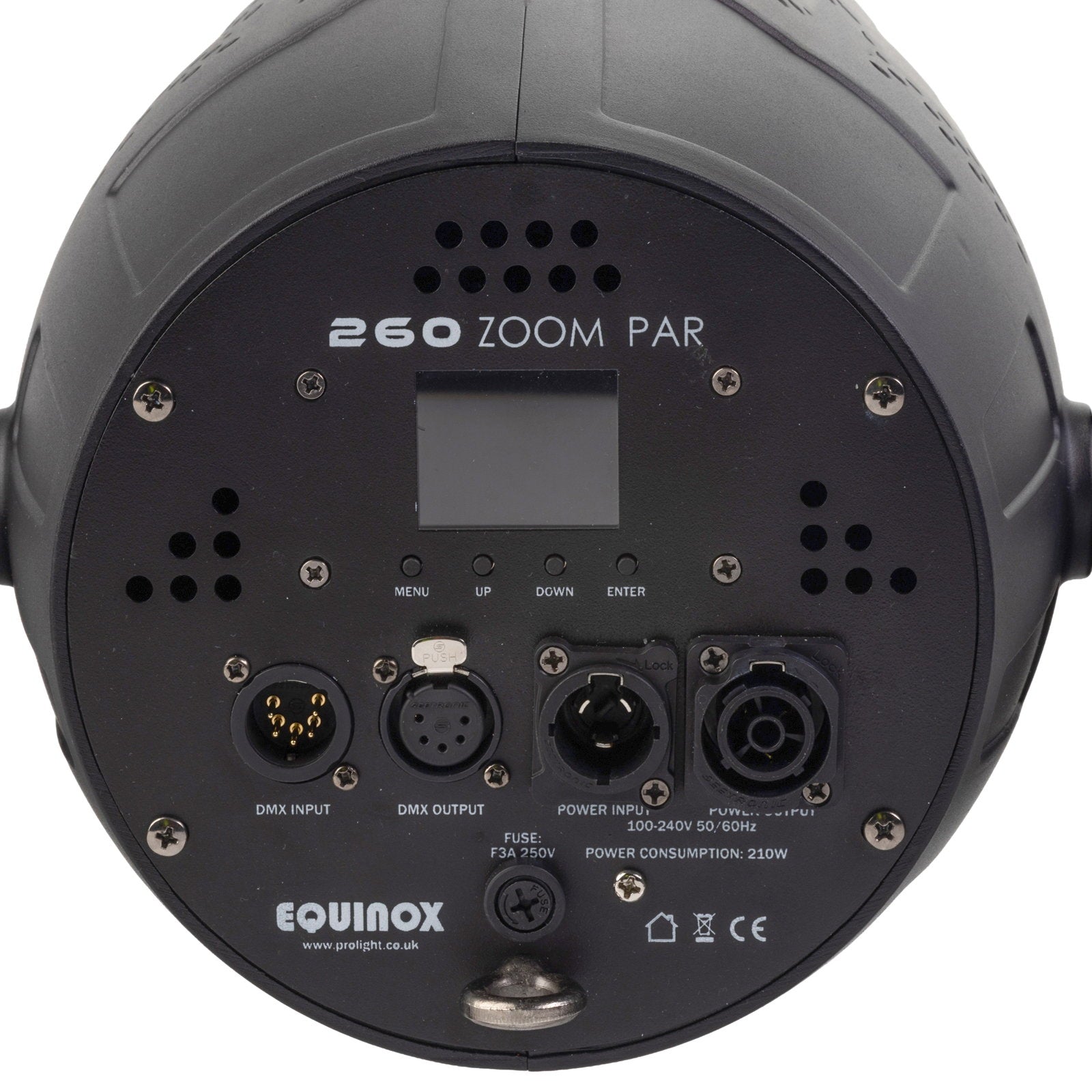

19 x 15W quad-colour LEDs (RGBW) Adjustable beam angle: 10°- 50° 10° - 27750 Lux @ 2m (full on) 50° - 2629 Lux @ 2m (full on) Refresh rate: 650Hz 1.5kHz 3.6kHz 12kHz or 25kHz selectable Motorised zoom Pixel zone mapping DMX channels: 2/6/7/13/19/21 or 23 selectable Auto sound active and primary/secondary modes 0 - 100% dimming Variable strobe 4 dimming curves: Linear square law inverse square law and S-curve Supplied with quick release omega clamp 4 button menu with LCD display PowerTwist input/output 5-Pin XLR input/output Temperature controlled fans Die-cast aluminium chassis
Power consumption: 210W Power supply: 100~240V 50/60Hz Fuse: F3A 250V Dimensions (H x W x D): 336 x 245 x 225mm Weight: 4.4kg
19 x 15W quad-colour LEDs (RGBW) Adjustable beam angle: 10°- 50° 10° - 27750 Lux @ 2m (full on) 50° - 2629 Lux @ 2m (full on) Refresh rate: 650Hz 1.5kHz 3.6kHz 12kHz or 25kHz selectable Motorised zoom Pixel zone mapping DMX channels: 2/6/7/13/19/21 or 23 selectable Auto sound active and primary/secondary modes 0 - 100% dimming Variable strobe 4 dimming curves: Linear square law inverse square law and S-curve Supplied with quick release omega clamp 4 button menu with LCD display PowerTwist input/output 5-Pin XLR input/output Temperature controlled fans Die-cast aluminium chassis
Power consumption: 210W Power supply: 100~240V 50/60Hz Fuse: F3A 250V Dimensions (H x W x D): 336 x 245 x 225mm Weight: 4.4kg
Equinox 260 Zoom Par
Brand: Equinox
SKU: EQLED457
Regular price
£247.99
Pickup available at Venutec
Usually ready in 24 hours
Equinox 260 Zoom Par
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
The Equinox 260 Zoom Par is a versatile RGBW LED lighting fixture designed for professional stage event and broadcast use. It features 19 x 15W quad-colour LEDs (RGBW) delivering everything from soft pastel hues to rich saturated colours. The LEDs are arranged in three concentric rings enabling creative pixel zone effects and wide even wash coverage. A motorised zoom range of 10°–50° allows for flexible beam control from tight beams to broad washes. With an adjustable refresh rate (up to 25kHz) this fixture is ideal for TV and film applications. It also includes four selectable dimming curves temperature-controlled fans for quiet operation and a selection of preset colour macros auto programs and colour temperature presets to streamline programming and performance.
19 x 15W quad-colour LEDs (RGBW) Adjustable beam angle: 10°- 50° 10° - 27750 Lux @ 2m (full on) 50° - 2629 Lux @ 2m (full on) Refresh rate: 650Hz 1.5kHz 3.6kHz 12kHz or 25kHz selectable Motorised zoom Pixel zone mapping DMX channels: 2/6/7/13/19/21 or 23 selectable Auto sound active and primary/secondary modes 0 - 100% dimming Variable strobe 4 dimming curves: Linear square law inverse square law and S-curve Supplied with quick release omega clamp 4 button menu with LCD display PowerTwist input/output 5-Pin XLR input/output Temperature controlled fans Die-cast aluminium chassis
Power consumption: 210W Power supply: 100~240V 50/60Hz Fuse: F3A 250V Dimensions (H x W x D): 336 x 245 x 225mm Weight: 4.4kg
19 x 15W quad-colour LEDs (RGBW) Adjustable beam angle: 10°- 50° 10° - 27750 Lux @ 2m (full on) 50° - 2629 Lux @ 2m (full on) Refresh rate: 650Hz 1.5kHz 3.6kHz 12kHz or 25kHz selectable Motorised zoom Pixel zone mapping DMX channels: 2/6/7/13/19/21 or 23 selectable Auto sound active and primary/secondary modes 0 - 100% dimming Variable strobe 4 dimming curves: Linear square law inverse square law and S-curve Supplied with quick release omega clamp 4 button menu with LCD display PowerTwist input/output 5-Pin XLR input/output Temperature controlled fans Die-cast aluminium chassis
Power consumption: 210W Power supply: 100~240V 50/60Hz Fuse: F3A 250V Dimensions (H x W x D): 336 x 245 x 225mm Weight: 4.4kg
