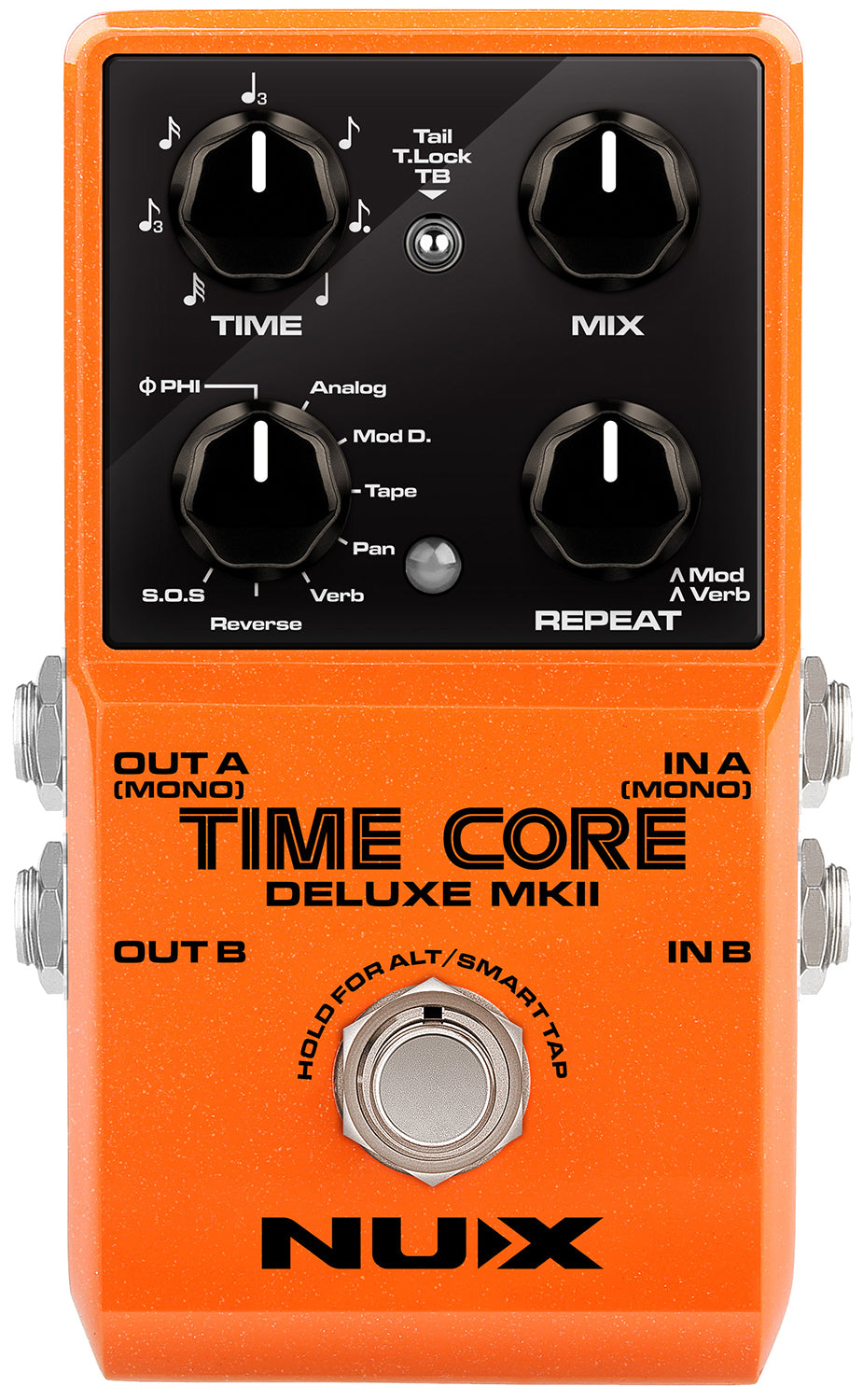

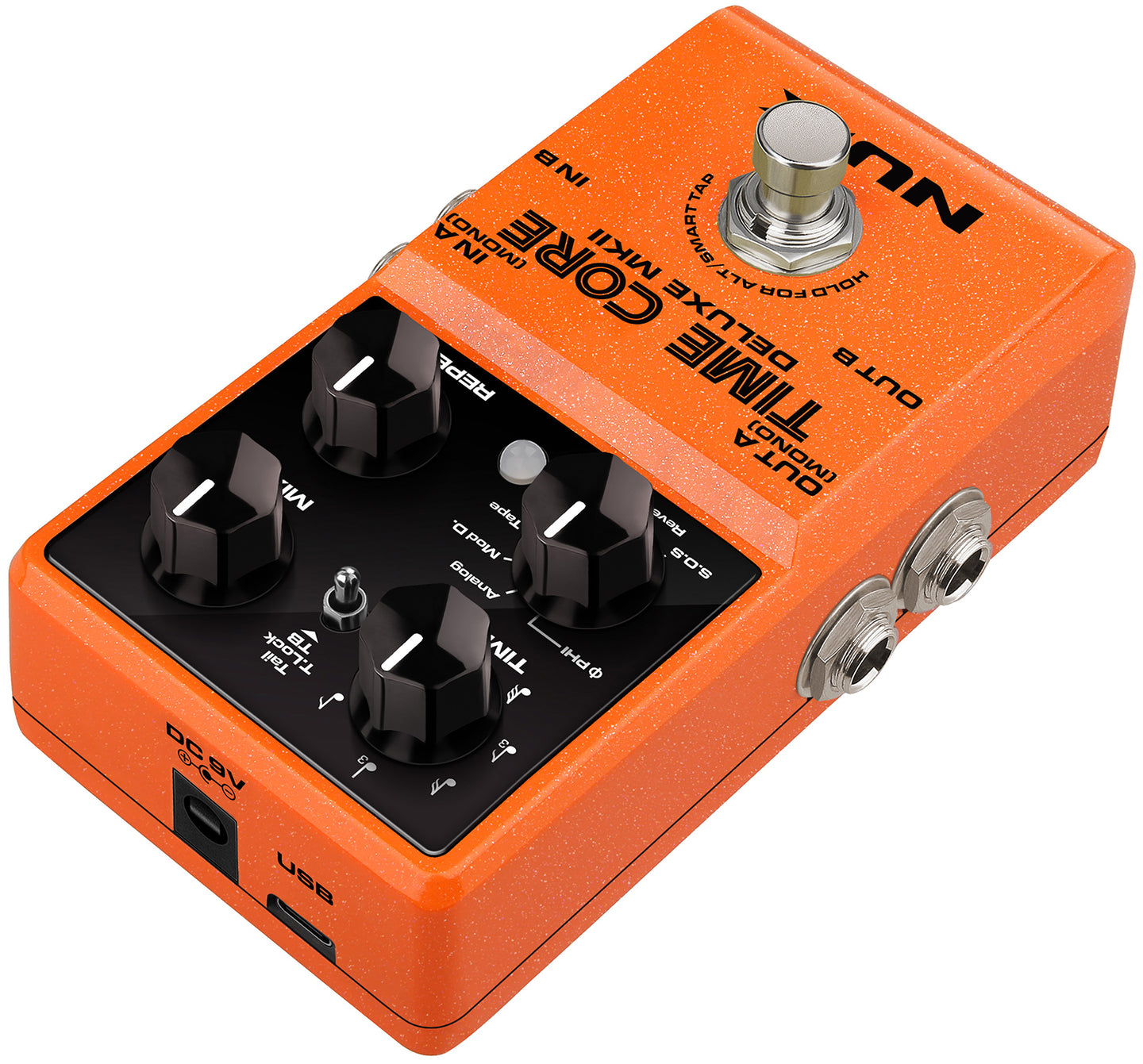

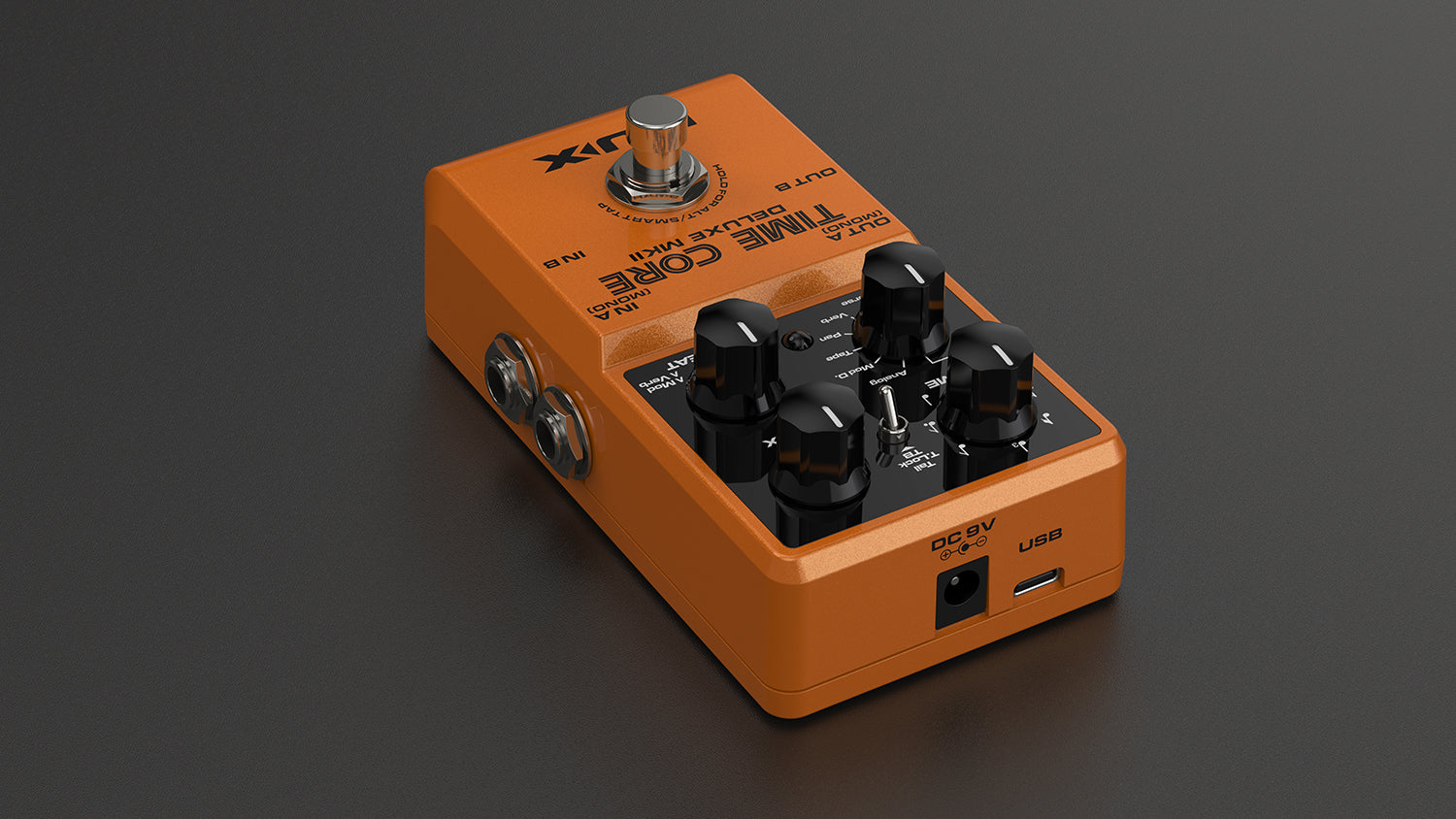

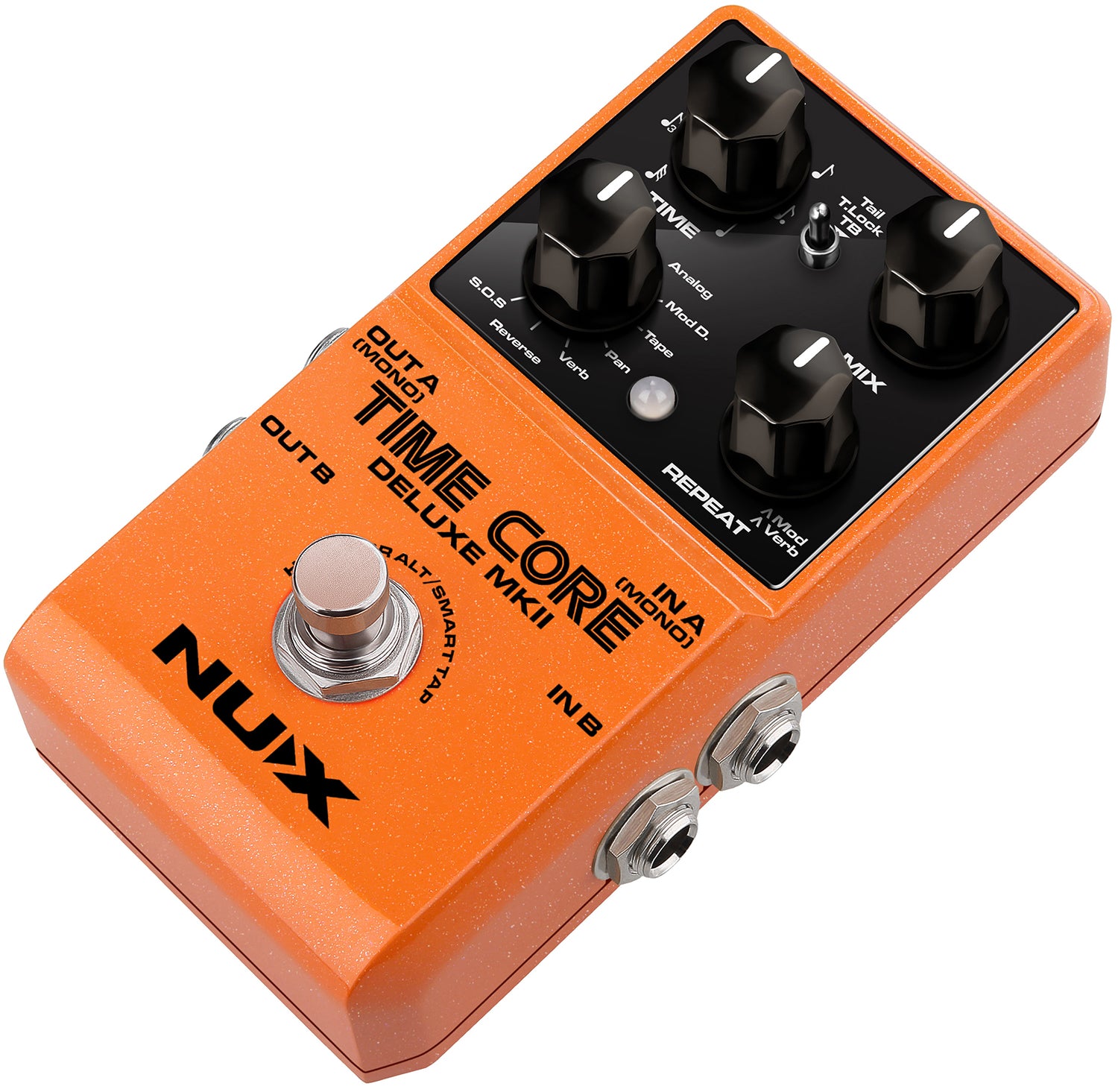

Time Core Deluxe mkII is the next generation digital delay pedal from NU-X, with 7 selectable delay types. Simulation of highly revered analog, tape and digital effect pedals with the benefit of up-to-date features such as tap-tempo, kill dry and buffered tail bypass offer a choice of high end delay effects with augmented flexibility. New additions include the proprietary Phi delay, SOS looper and layered reverb. From short slap-back echo to long multi-tap repeats, the Time Core Deluxe mkII covers practically any delay duties required for your pedal board.

Specifications

Full stereo or mono signal path
True or buffered bypass options
7 distinct delay types
40 second looper function

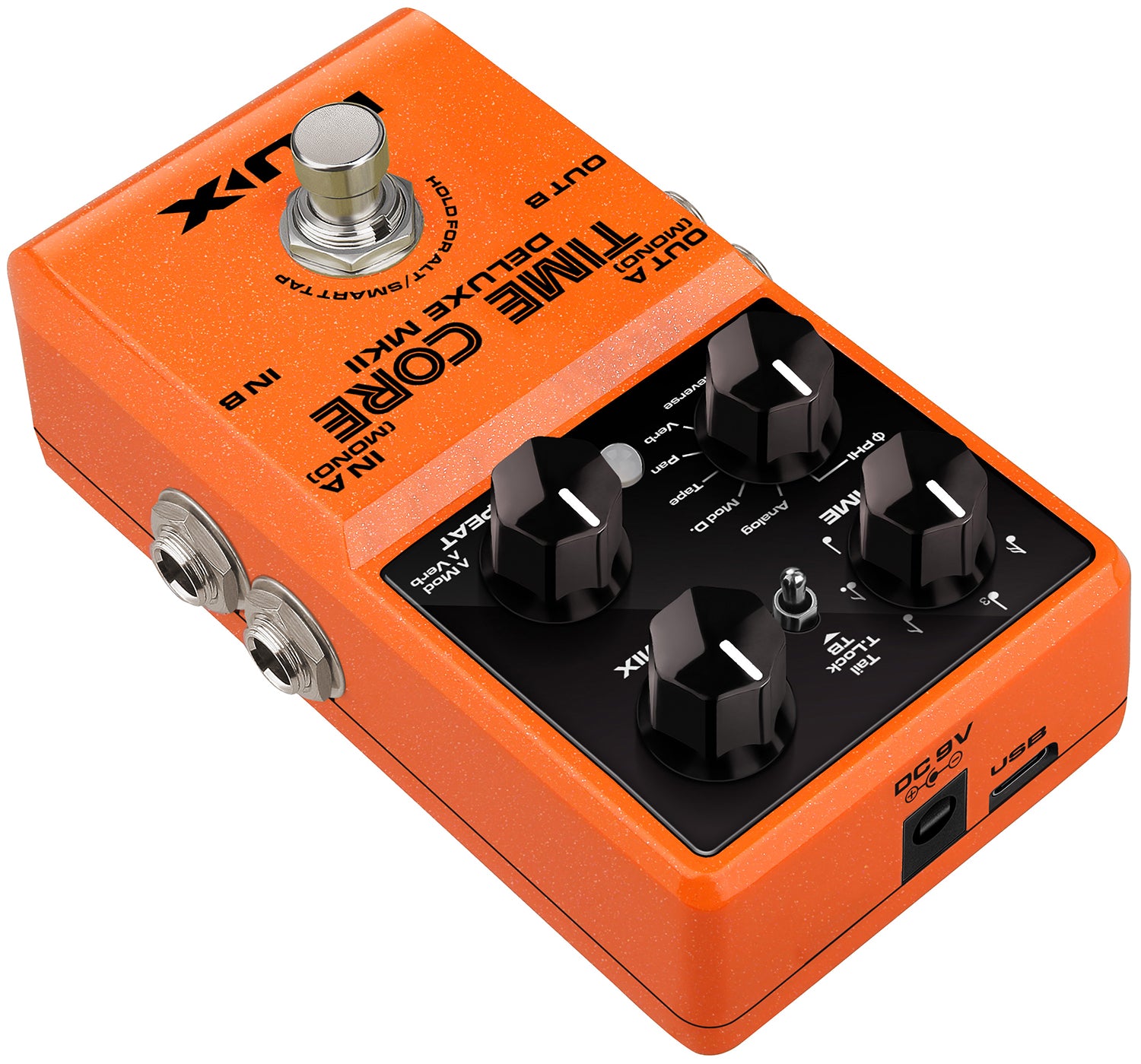

USB-C port for firmware updates
Requires suitable 9Vdc power adaptor (e.g. 173.290UK)
Power supply:9Vdc power adaptor required

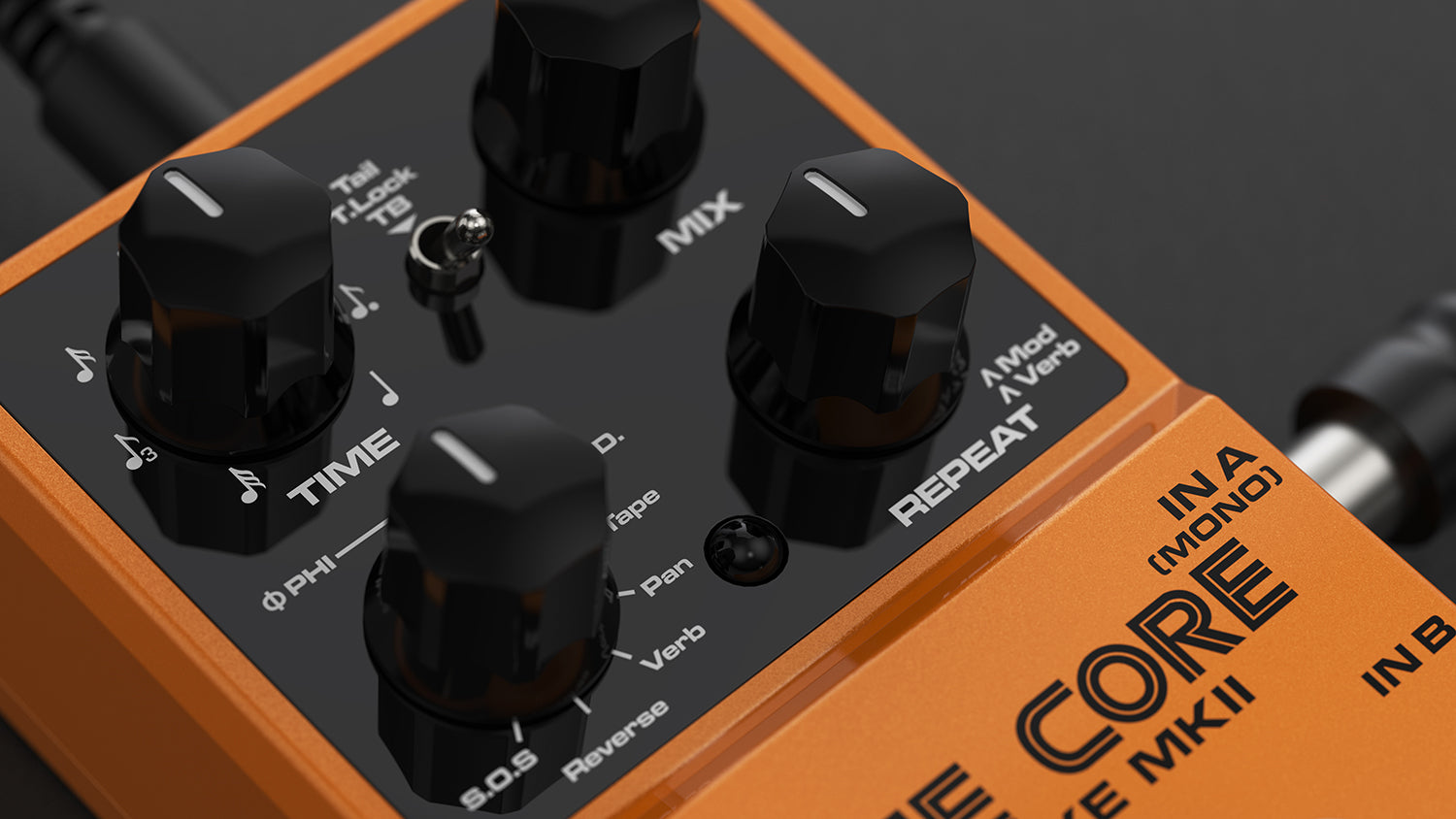

Controls:Time, Mix, Repeat, Delay type
Recording mode:40 second sound-on-sound looper
Modes:Phi Digital, Analog, Modulation, Tape, Pan, Verb, Reverse delay

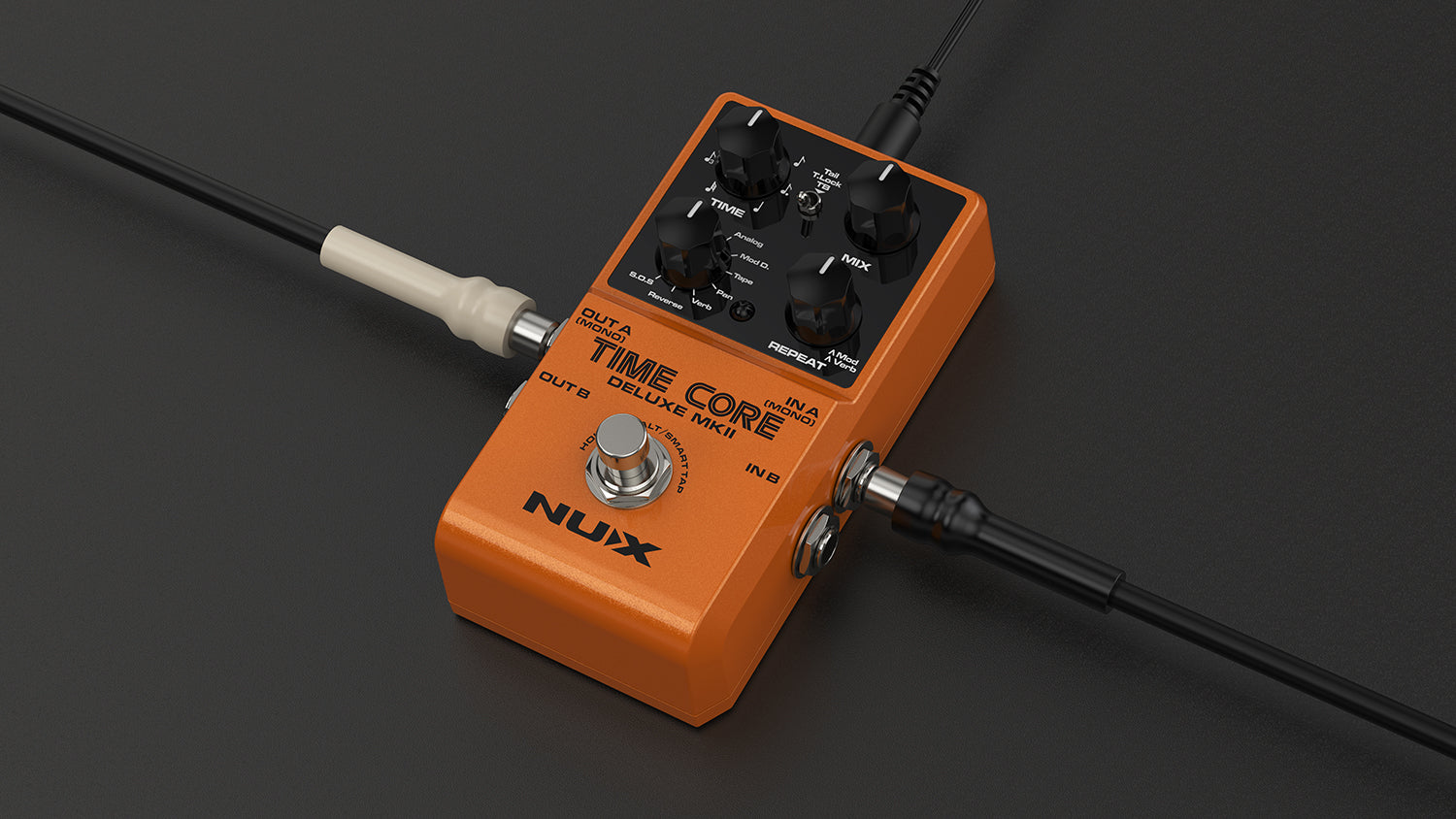

Inputs:L+R 6.3mm mono jack
Outputs:L+R 6.3mm mono jack
DC input connection:DC5521 jack (for optional adaptor - pin-negative)
Dimensions:122 x 72 x 47mm
Weight:270g
Sampling format:48kHz, 24-bit
Input impedance:1M ohm
Output impedance:1k ohm
Dynamic range:104dB
Current consumption:<120mA
