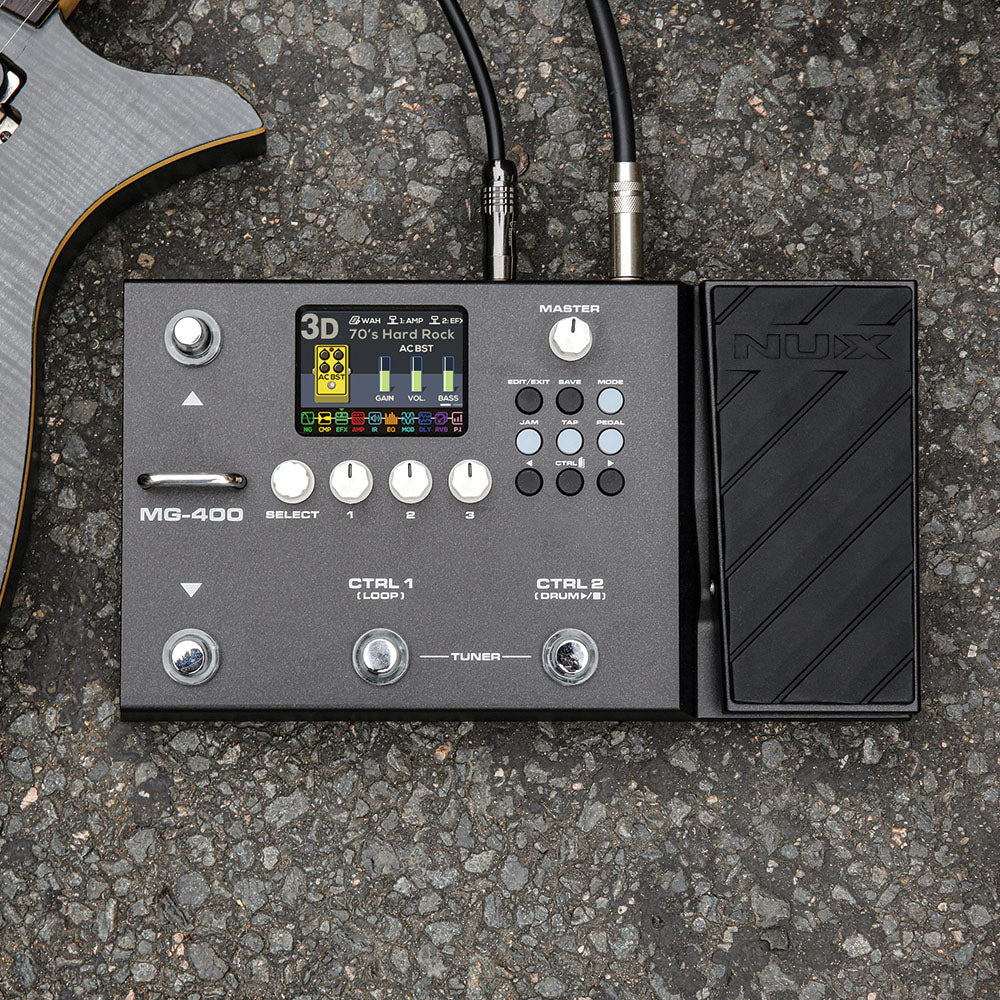

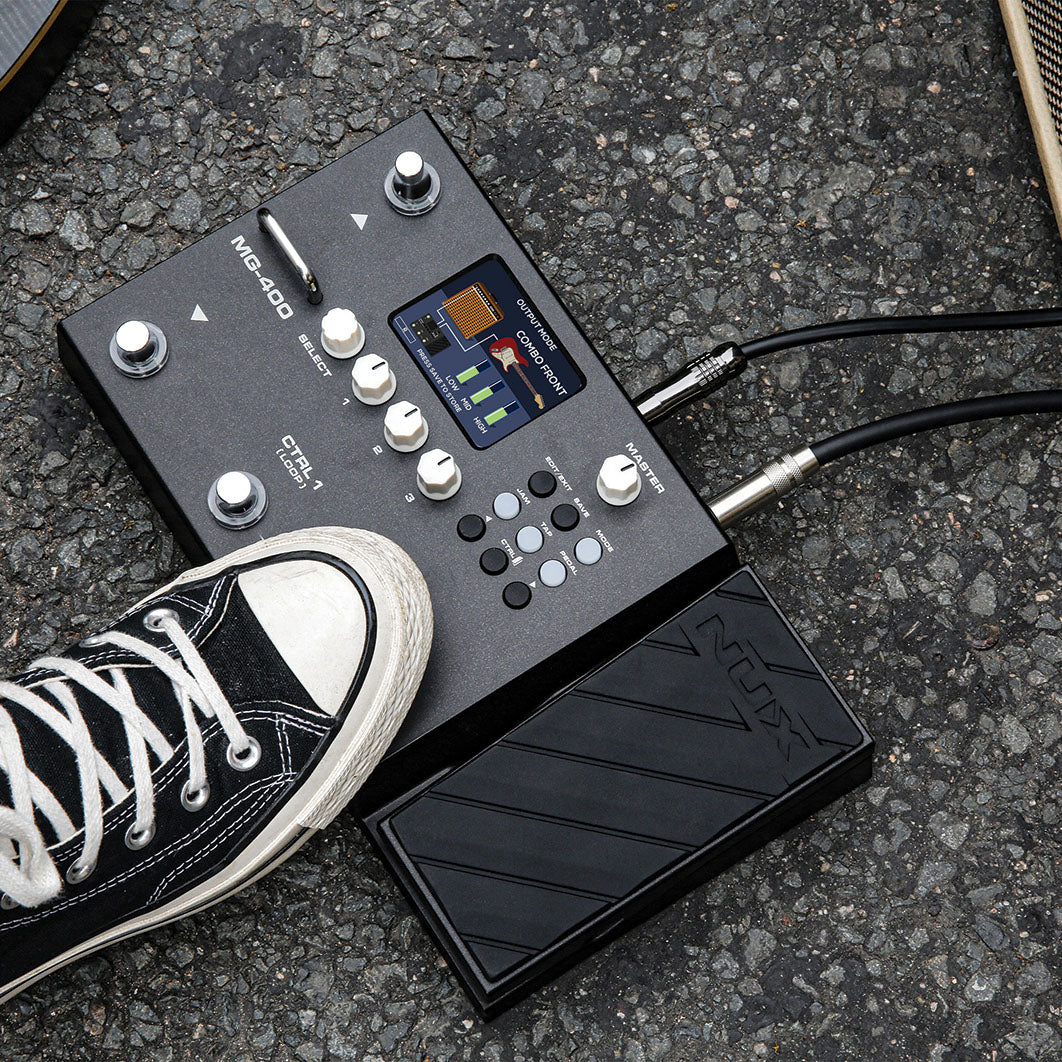

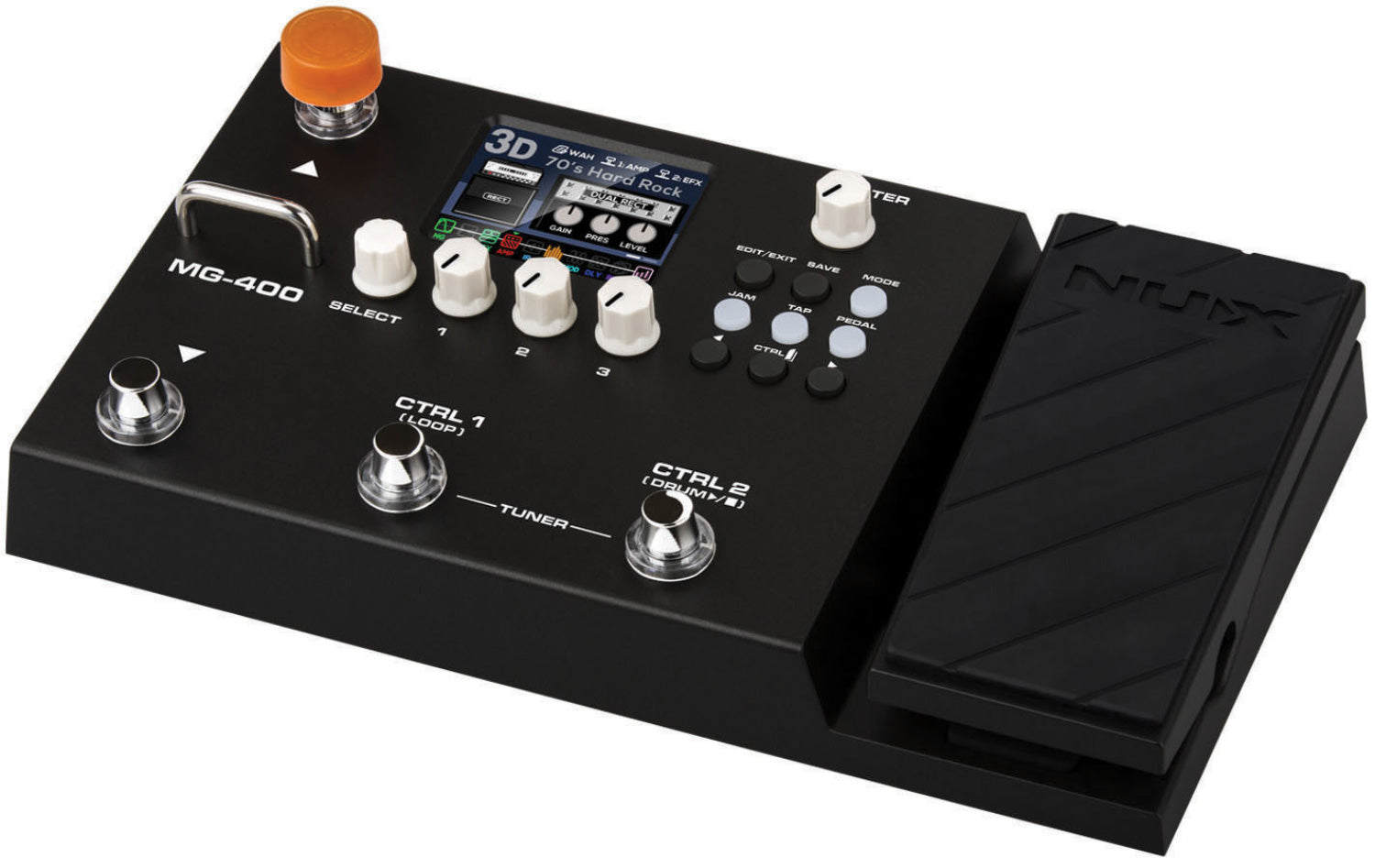

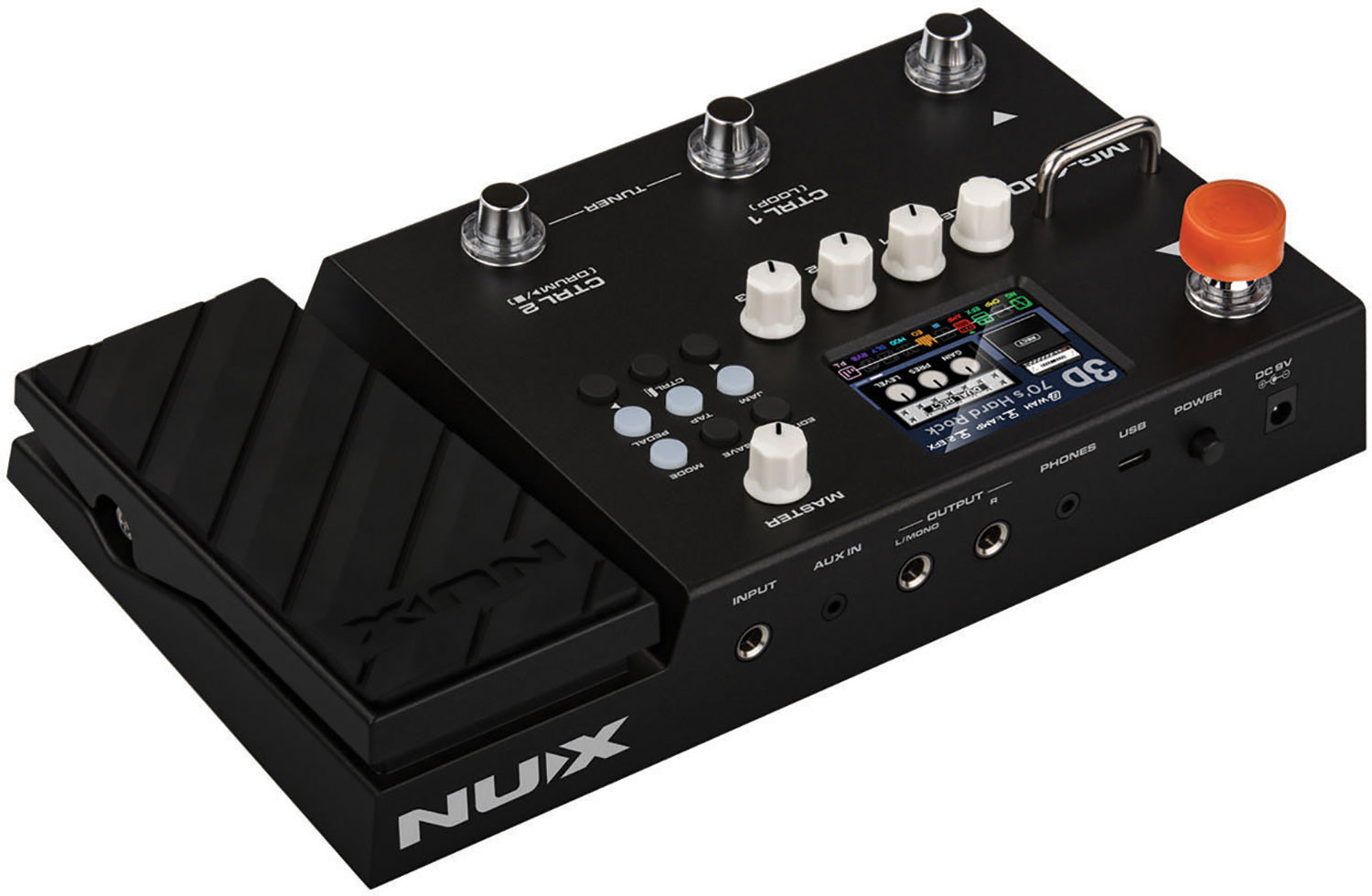

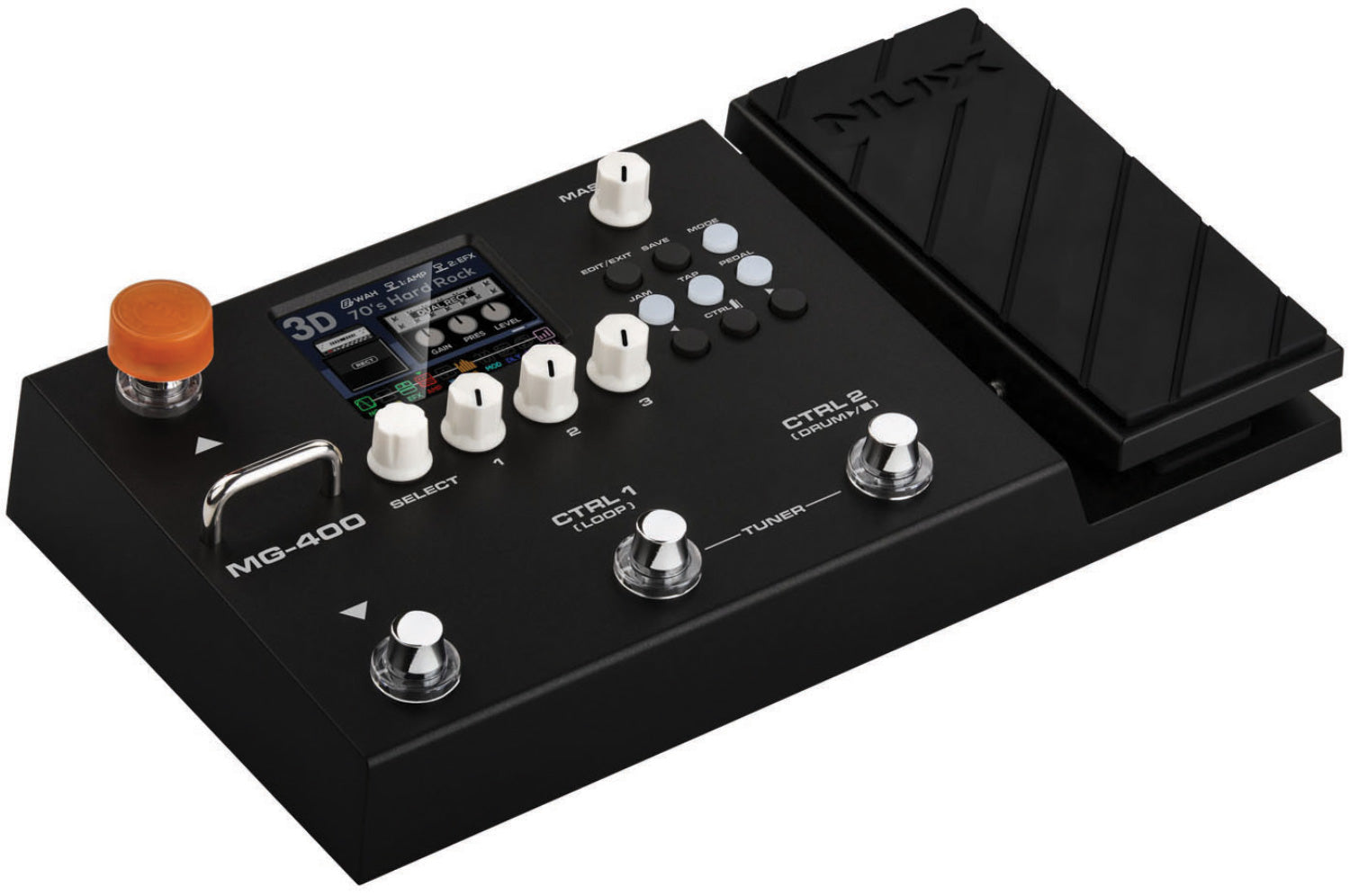

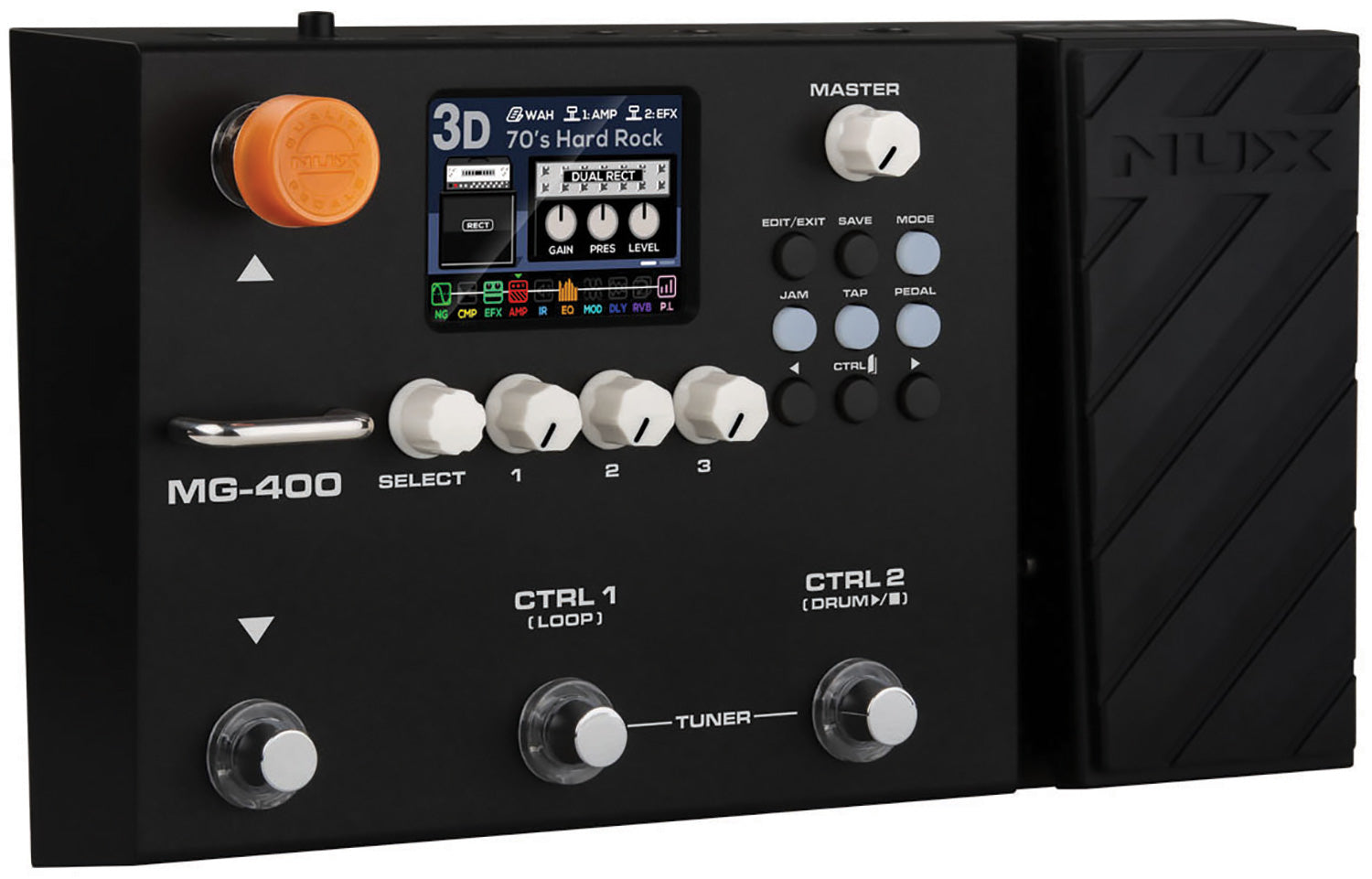

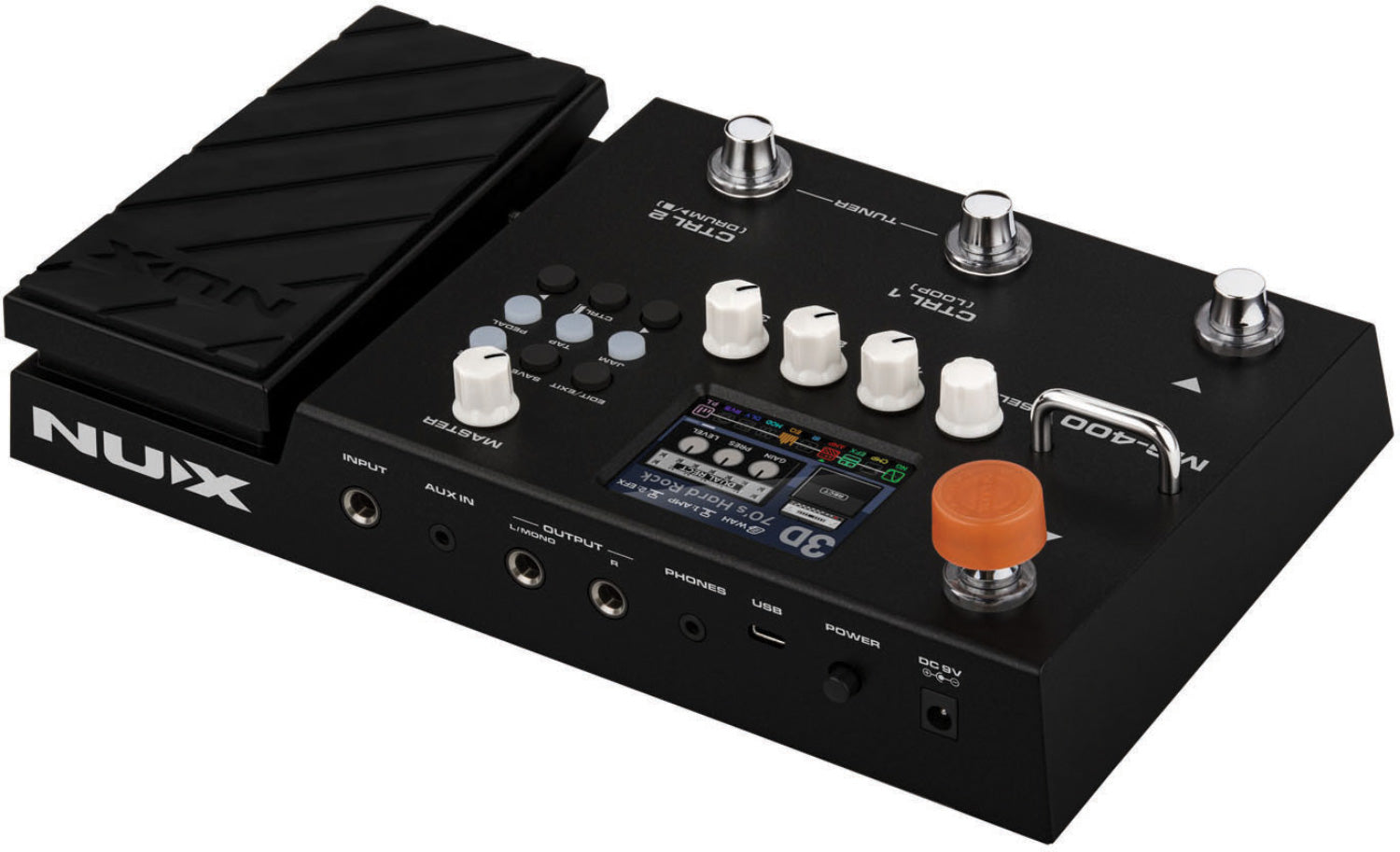

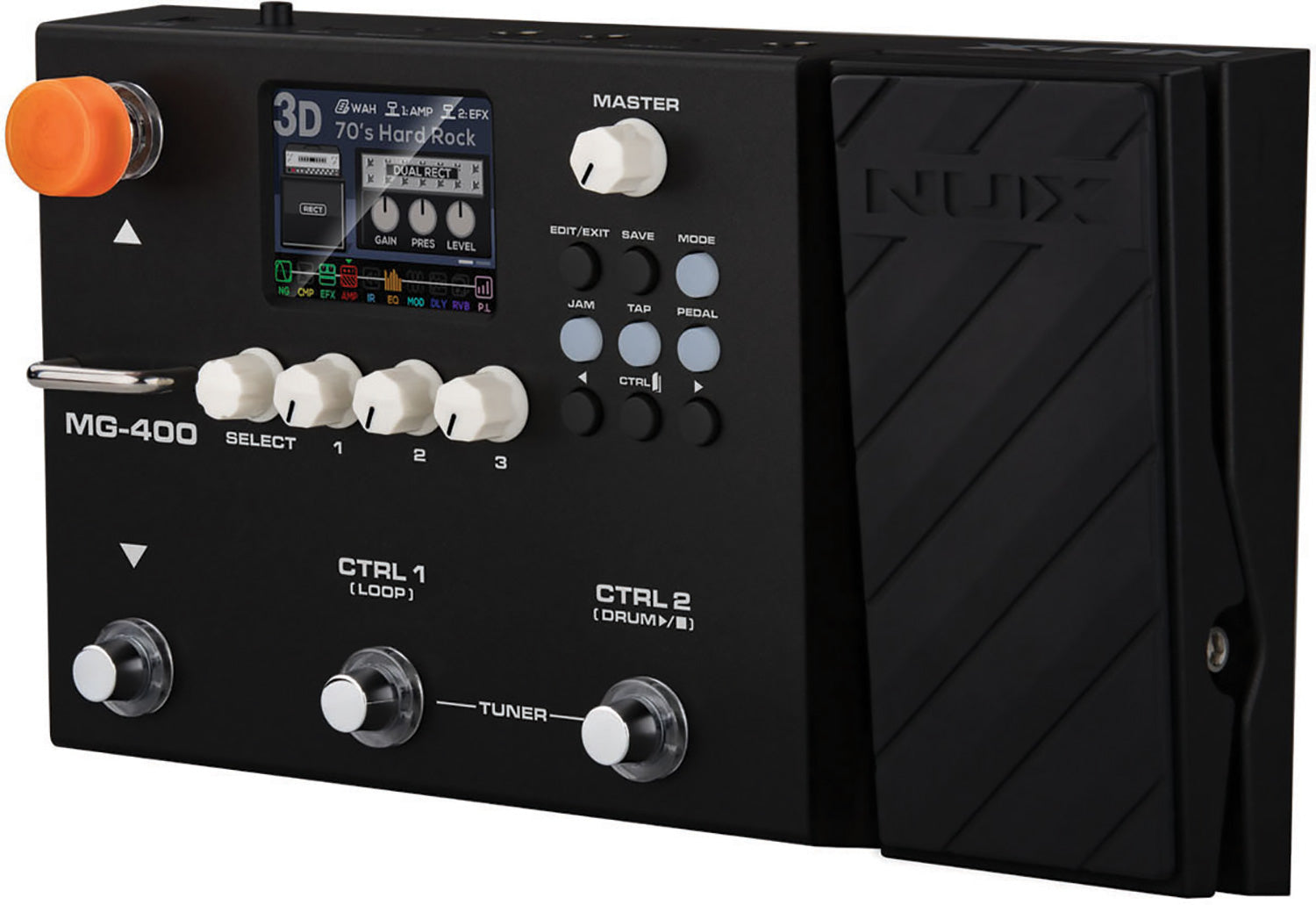

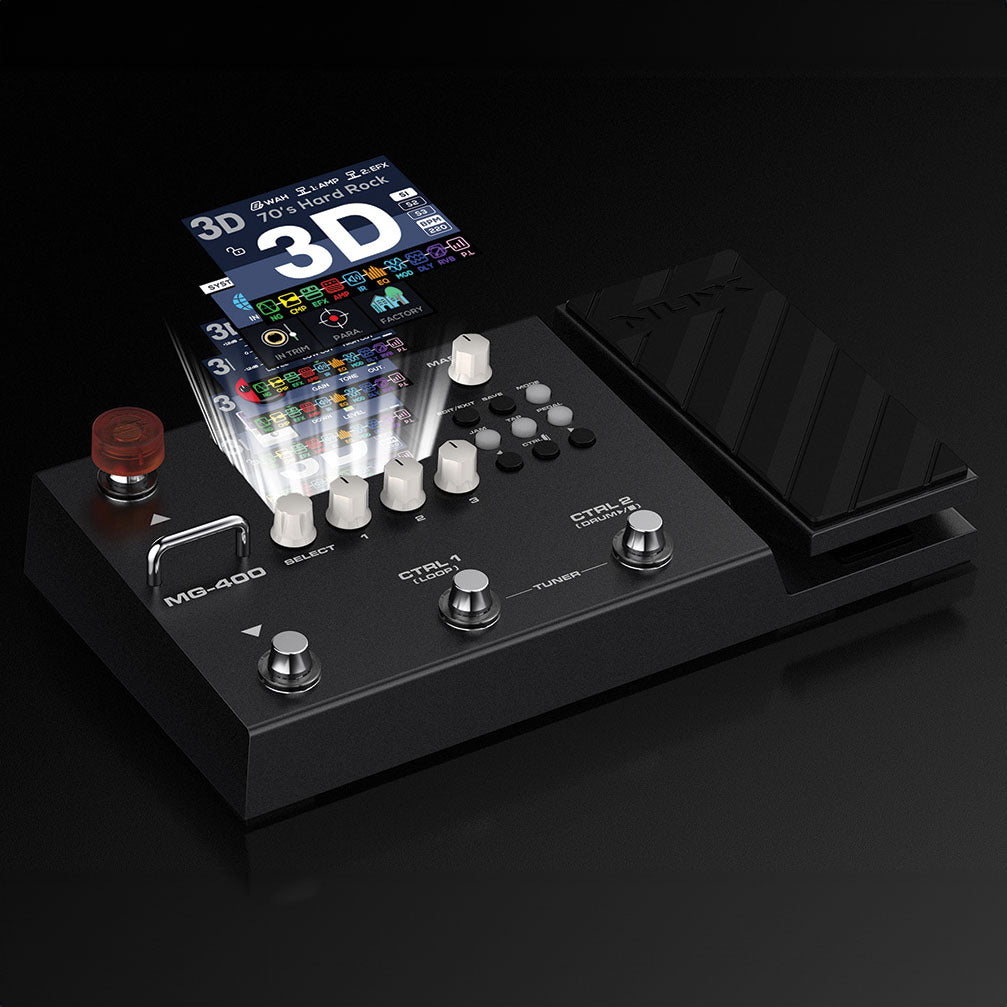

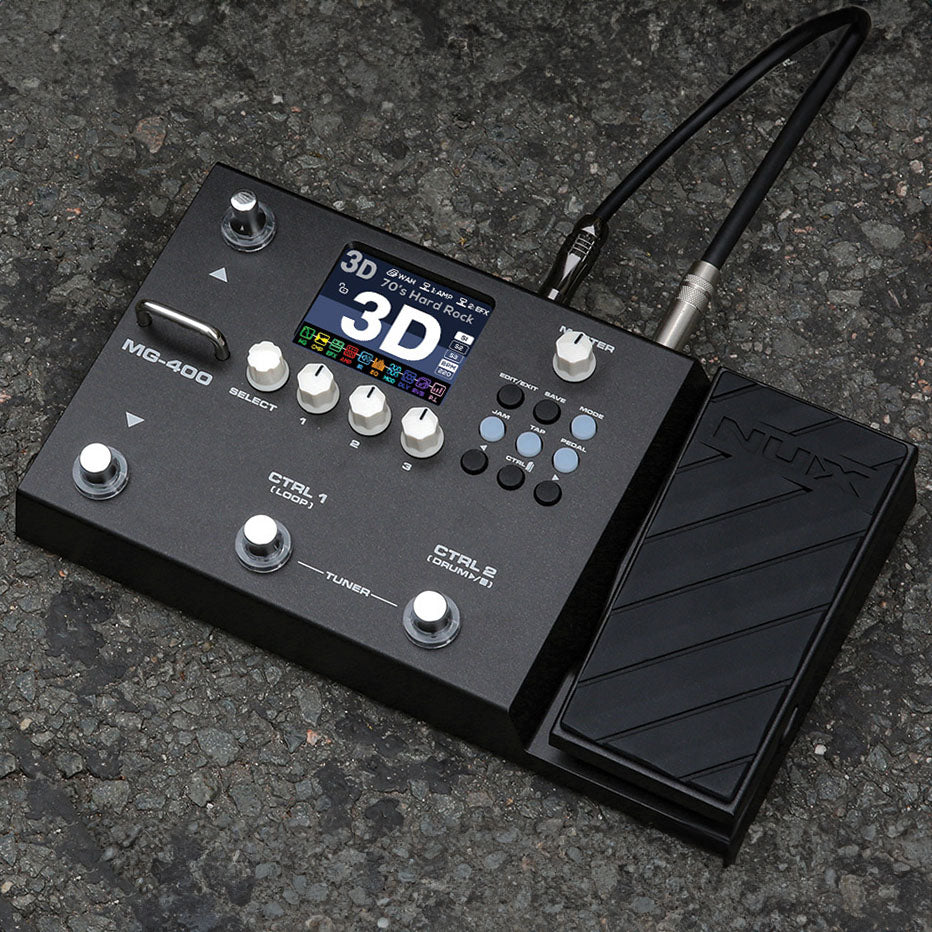

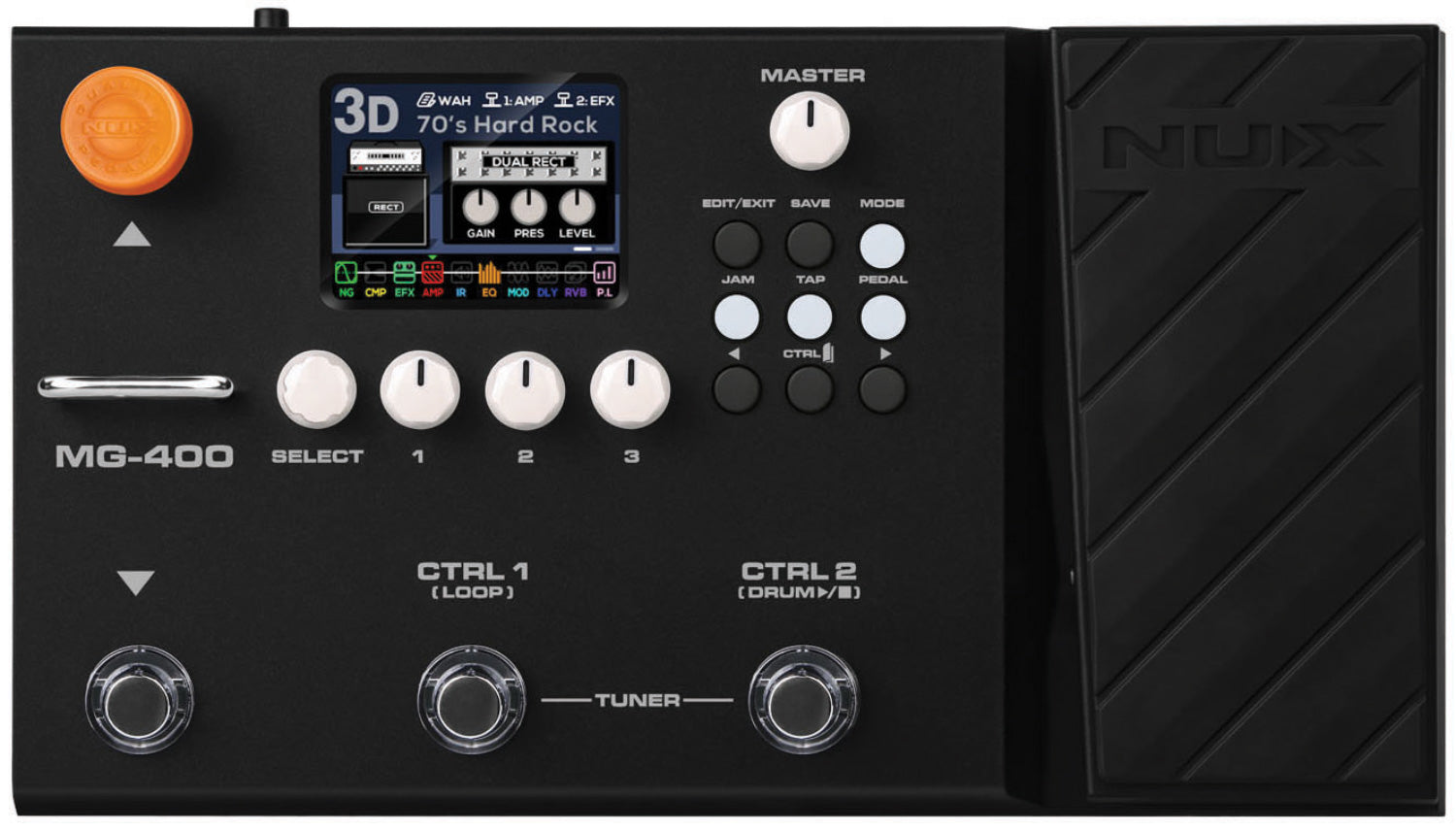

The NU-X MG-400 builds on the success of the ground-breaking MG-300 compact multi-FX pedal, adding dual processors and delivering high definition models and increased flexibility. Integrated effects sections include Drive, Amp Simulation, I.R cabinet simulation, Modulation, Delays & Reverbs with a host of options within each category. Audio modelling is based on the NU-X TSAC-HD algorithm, which delivers high definition analogue circuit simulation for pro quality guitar tones. An expression pedal covers wah and swell effects amongst other possibilities. All settings can be edited onboard or via USB using the downloadable PC/Mac Quicktone software and then stored into one of 36 internal memory locations. For live or rehearsal backing, the built-in Jam function has a fully featured drum machine and phrase looper. To integrate with a DAW studio suite, the USB also functions as a high quality audio interface, completing the studio-ready guitar rig. The main output can be stereo or mono for guitar amplifiers or D.I to studio equipment. There is an additional 3.5mm output for stereo headphones. Expanding the control surface has provided space for additional control footswitches for a smoother and more accessible live playing experience.

Specifications

Expression pedal and 2 programmable control switches
High definition TSAC-HD amplifier and effect models
USB audio interface and PC/Mac editor
Core image modulation, delay and reverb effects
Fully-featured drum machine and looper
12 importable I.R. cabinet simulations
Power supply:9Vdc, 280mA pin-negative (adaptor included)

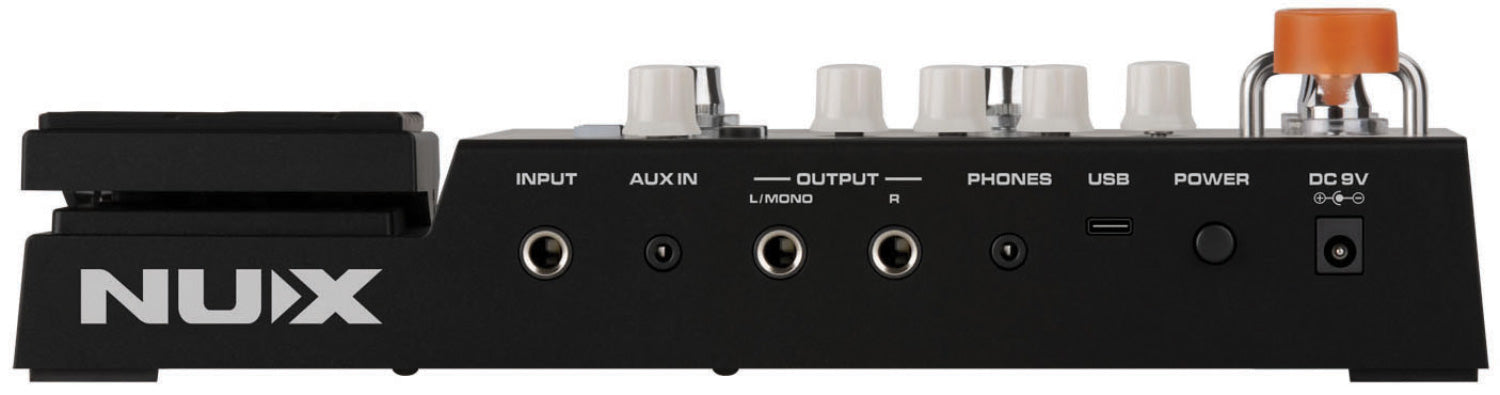

Inputs:6.3mm jack (guitar), 3.5mm jack (aux input)
USB port:USB type-C for audio interface and PC/Mac editing
Sampling format:48kHz, 32-bit
Frequency response:20Hz - 20kHz (±1dB)

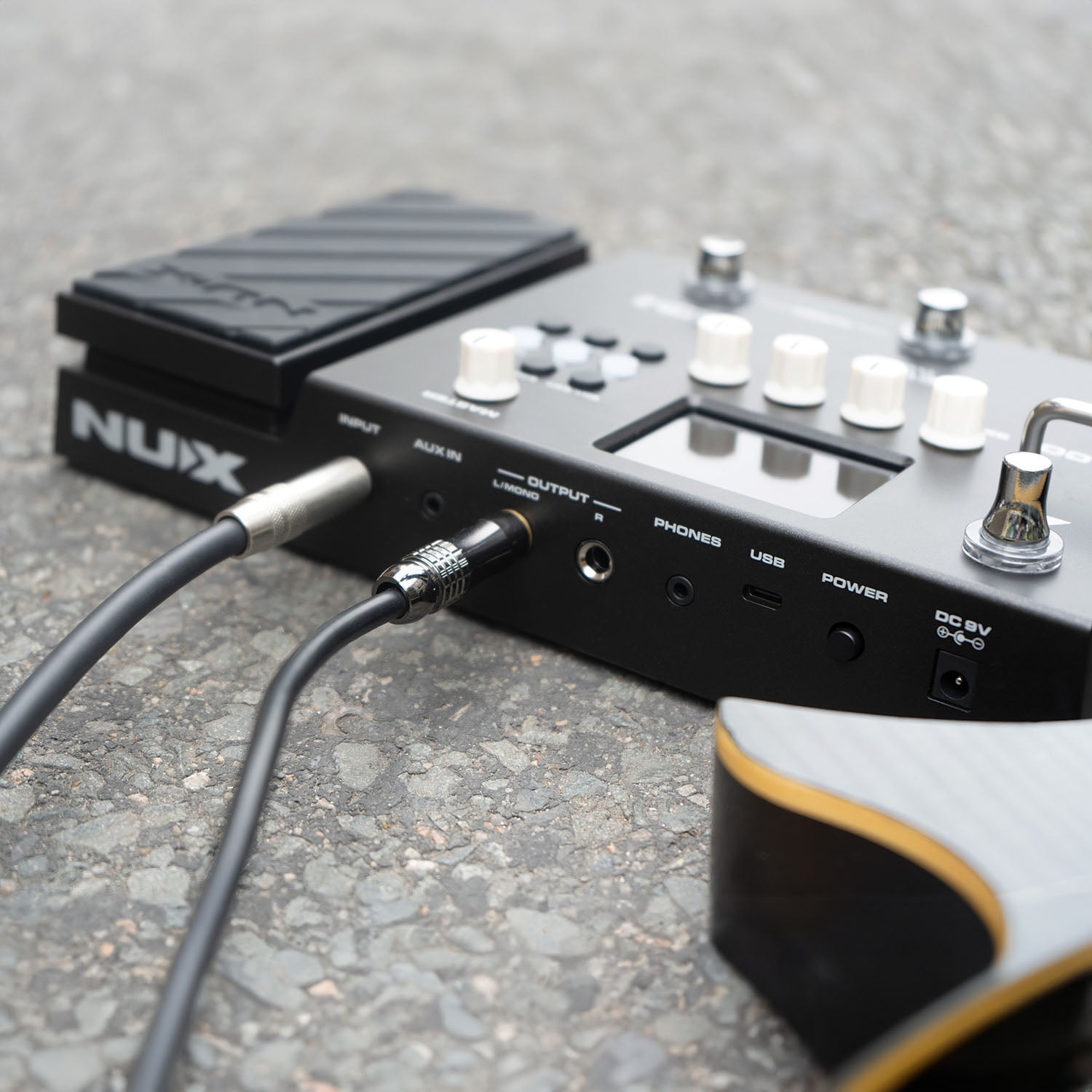

Outputs:L/Mono + R 6.3mm jack, stereo 3.5mm headphones
Latency:1.1ms
Dynamic range:108dB
THD +N:<0.03%
Input impedance:470k ohms (Aux 10k ohms)
Output impedance:1k ohm (Headphones 47 ohms)
Dimensions:289 x 160 x 71mm
Weight:920g
