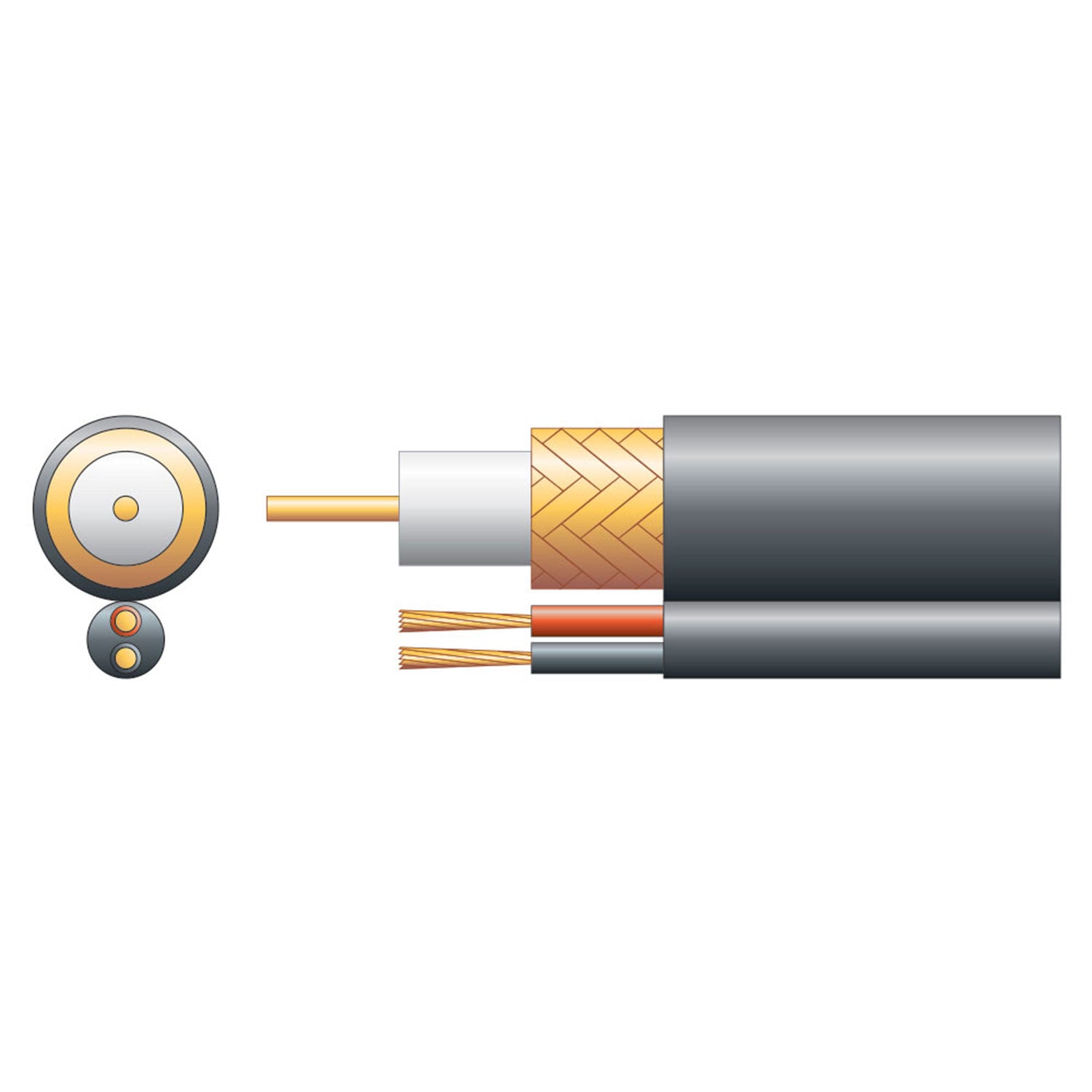

75 Ohms RG59 coaxial cable coupled with a two core power cable. Constructed of a solid oxygen free copper conductor, foam filled polyethylene dielectric and copper clad aluminium braid. Paired with a two core strand conductor double insulated power cable. Designed for CCTV power and signal transmission.

Specifications

Solid OFC coaxial conductor
Foam filled PE dielectric
CCA braid
Stranded OFC power cable conductor
Supplied in 100m reel with metric cut markers
Conductor diameter:0.8mmØ
CSA:0.5mm²
Dielectric:3.7mmØ foam PE
Braid:48 x 0.12mmØ
Cable : diameter:6mmØ
Impedance:75 Ohms
Capacitance:67pF/m
Velocity factor:83%
Power cable:2 x 7/0.38mmØ (0.79mm²) bare copper, red/black
Max. current:6A
Colour:Black
Length:100m
Weight:6.4kg
Return loss 5-400MHz:24dB min./100m
Return loss 450-1000MHz:20dB min./100m
Return loss 1000-2150MHz:16dB min./100m
Attenuation @ 5MHz:2.8dB max./100m
Attenuation @ 50MHz:5.1dB max./100m
Attenuation @ 100MHz:7.3dB max./100m
Attenuation @ 200MHz:10.1dB max./100m
Attenuation @ 400MHz:14.9dB max./100m
Attenuation @ 860MHz:22.1dB max./100m
Attenuation @ 1000MHz:24.7dB max./100m
Attenuation @ 1750MHz:34.1dB max./100m
Attenuation @ 2150MHz:38.1dB max./100m
Conductor material:Solid OFC
Braid material:CCA
