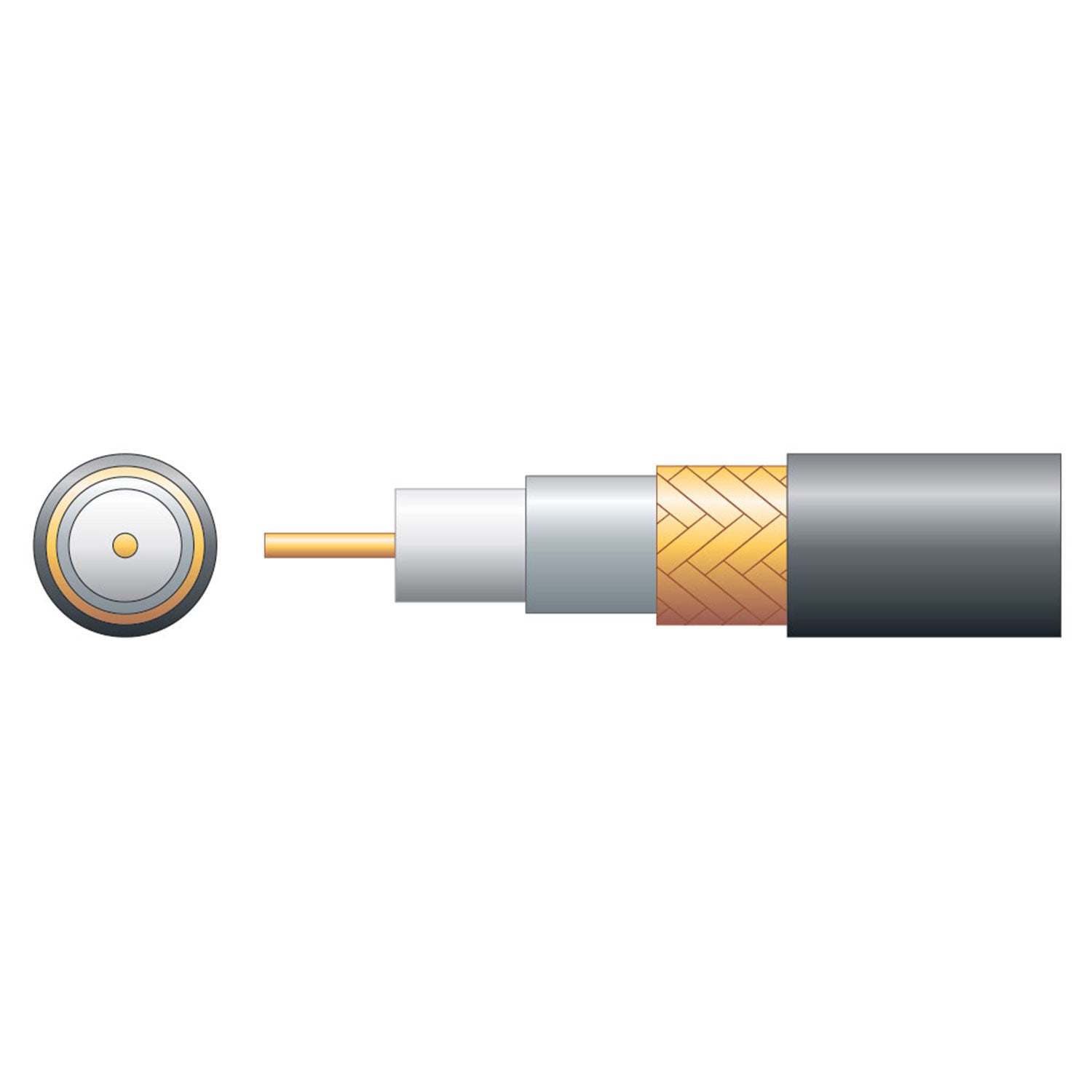

75 Ohms RG59 coaxial cable constructed of solid oxygen free copper conductor, foam filled polyethylene dielectric, aluminium foil screen, oxygen free copper braid and PVC sheath. Ideal for video signal transmission such as CCTV.
Foam filled PE dielectric
Binded aluminium foil screen
OFC braid
Supplied in 100m reel with metric cut markers
Conductor diameter:0.8mmØ
Braid:48 x 0.12mmØ
Screen:Aluminium / PET foil
Cable : diameter:6mmØ
Dielectric:3.7mmØ foam PE
Impedance:75 Ohms
Capacitance:67pF/m
CSA:0.5mm²
Velocity factor:83%
Colour:Black
Length:100m
Weight:3.5kg
Return loss 5-400MHz:24dB min./100m
Return loss 450-1000MHz:20dB min./100m
Return loss 1000-2150MHz:16dB min./100m
Attenuation @ 5MHz:2.8dB max./100m
Attenuation @ 1000MHz:24.7dB max./100m
Attenuation @ 100MHz:7.3dB max./100m
Attenuation @ 50MHz:5.1dB max./100m
Attenuation @ 200MHz:10.1dB max./100m
Attenuation @ 400MHz:14.9dB max./100m
Attenuation @ 860MHz:22.1dB max./100m
Attenuation @ 1750MHz:34.1dB max./100m
Attenuation @ 2150MHz:38.1dB max./100m
Conductor material:Solid OFC
Braid material:OFC
Specifications
Solid OFC conductorFoam filled PE dielectric
Binded aluminium foil screen
OFC braid
Supplied in 100m reel with metric cut markers
Conductor diameter:0.8mmØ
Braid:48 x 0.12mmØ
Screen:Aluminium / PET foil
Cable : diameter:6mmØ
Dielectric:3.7mmØ foam PE
Impedance:75 Ohms
Capacitance:67pF/m
CSA:0.5mm²
Velocity factor:83%
Colour:Black
Length:100m
Weight:3.5kg
Return loss 5-400MHz:24dB min./100m
Return loss 450-1000MHz:20dB min./100m
Return loss 1000-2150MHz:16dB min./100m
Attenuation @ 5MHz:2.8dB max./100m
Attenuation @ 1000MHz:24.7dB max./100m
Attenuation @ 100MHz:7.3dB max./100m
Attenuation @ 50MHz:5.1dB max./100m
Attenuation @ 200MHz:10.1dB max./100m
Attenuation @ 400MHz:14.9dB max./100m
Attenuation @ 860MHz:22.1dB max./100m
Attenuation @ 1750MHz:34.1dB max./100m
Attenuation @ 2150MHz:38.1dB max./100m
Conductor material:Solid OFC
Braid material:OFC

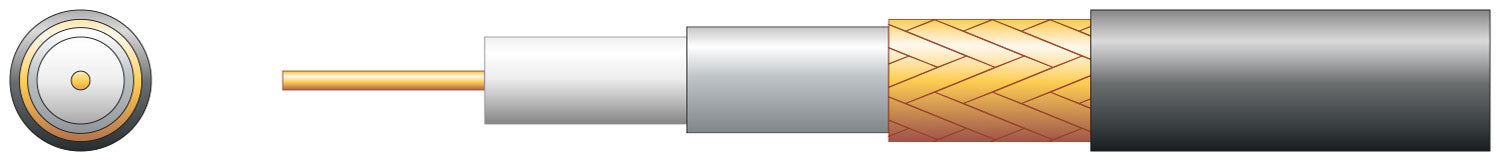

Mercury RG59B/U Foam PE with Copper Braid - 100m Black
Brand: Mercury
SKU: 808.101UK
Regular price
£35.99
Pickup available at Venutec
Usually ready in 24 hours
Mercury RG59B/U Foam PE with Copper Braid - 100m Black
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
