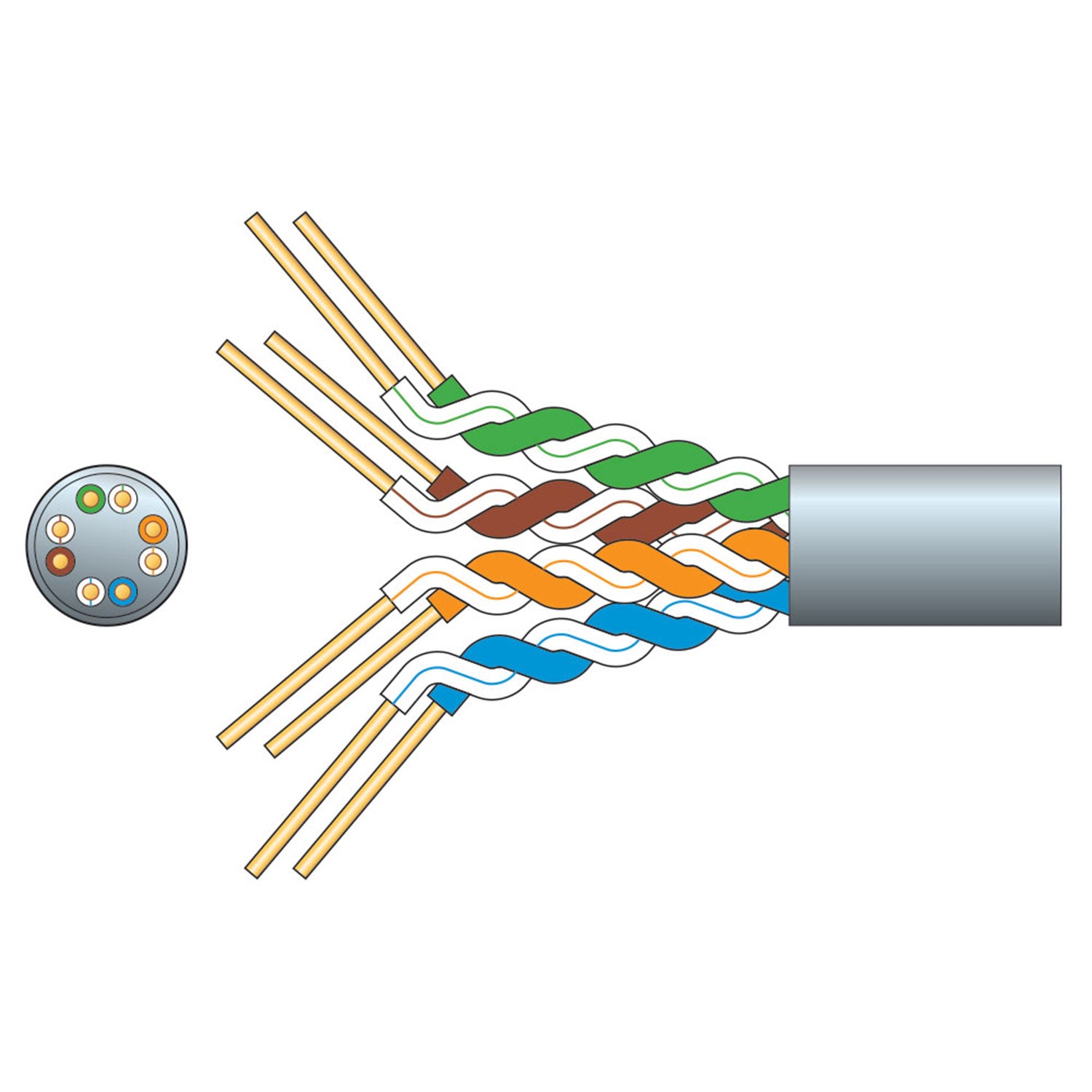

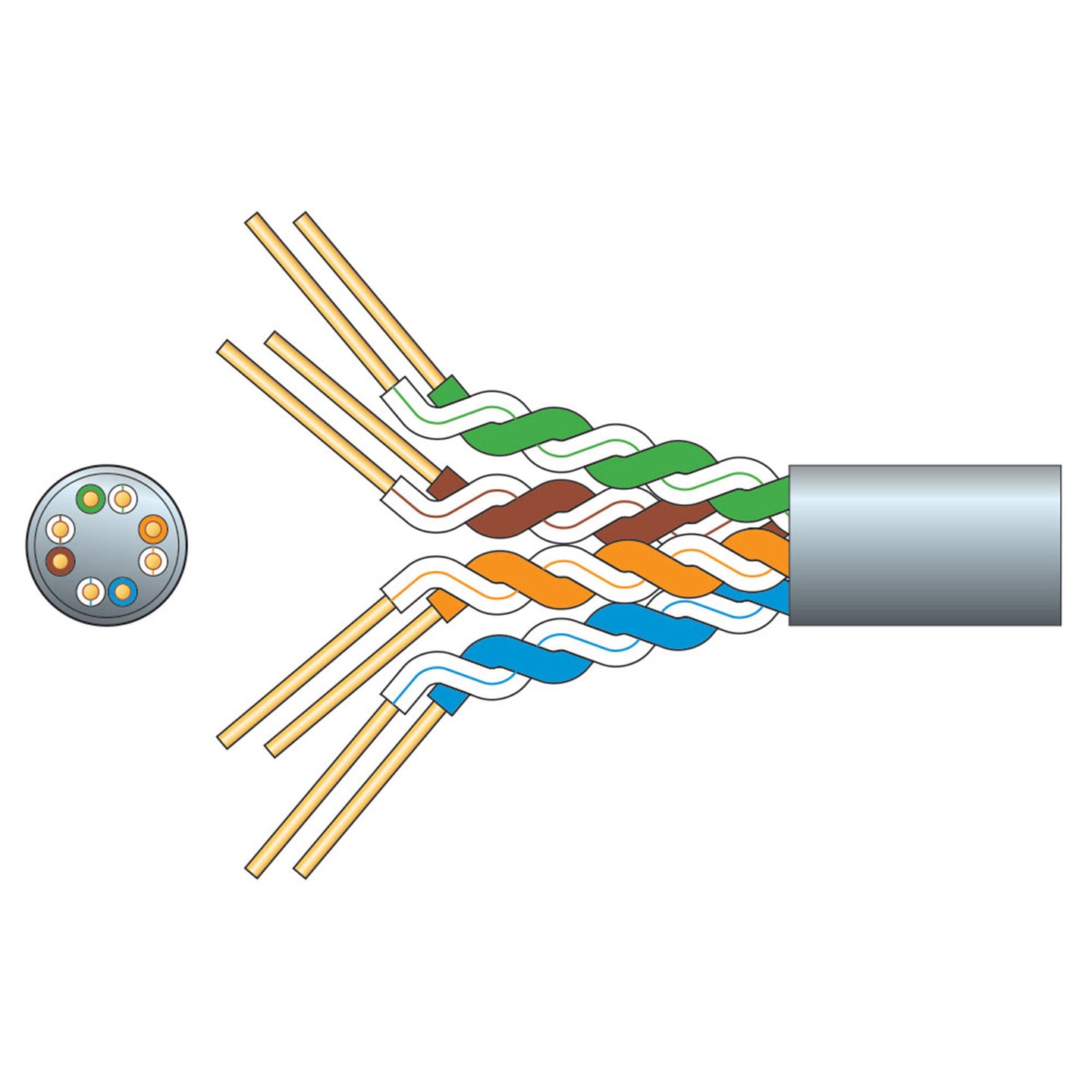

Cat6 solid conductor twisted pair data cable supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications in an indoor environment.
Supplied in an easy-pull dispensing box
Passes Cat6 fluke test 100m at 250MHz
Complies to TIA/EIA-568 Cat6 standard
Conductor:Solid CCA
Strands:8 x 1/0.57mmØ ±2%
CSA:8 x 0.26mm²
Cable : diameter:5.5mmØ
Insulation:HDPE 0.23mm thickness
Sheath:PVC 0.5mm thickness
Impedance:100 Ohms (±15)
DC resistance @ 20°C:<35 Ohms/100mt
Return loss:>20dB @ 100m (from 1Mhz to 100Mhz)
NEXT:>40dB @ 100m
PSNEXT:>38dB @ 100m
Cable colour:Grey
Length:305m
Weight:8.5kg
Specifications
Solid copper clad aluminium conductorSupplied in an easy-pull dispensing box
Passes Cat6 fluke test 100m at 250MHz
Complies to TIA/EIA-568 Cat6 standard
Conductor:Solid CCA
Strands:8 x 1/0.57mmØ ±2%
CSA:8 x 0.26mm²
Cable : diameter:5.5mmØ
Insulation:HDPE 0.23mm thickness
Sheath:PVC 0.5mm thickness
Impedance:100 Ohms (±15)
DC resistance @ 20°C:<35 Ohms/100mt
Return loss:>20dB @ 100m (from 1Mhz to 100Mhz)
NEXT:>40dB @ 100m
PSNEXT:>38dB @ 100m
Cable colour:Grey
Length:305m
Weight:8.5kg

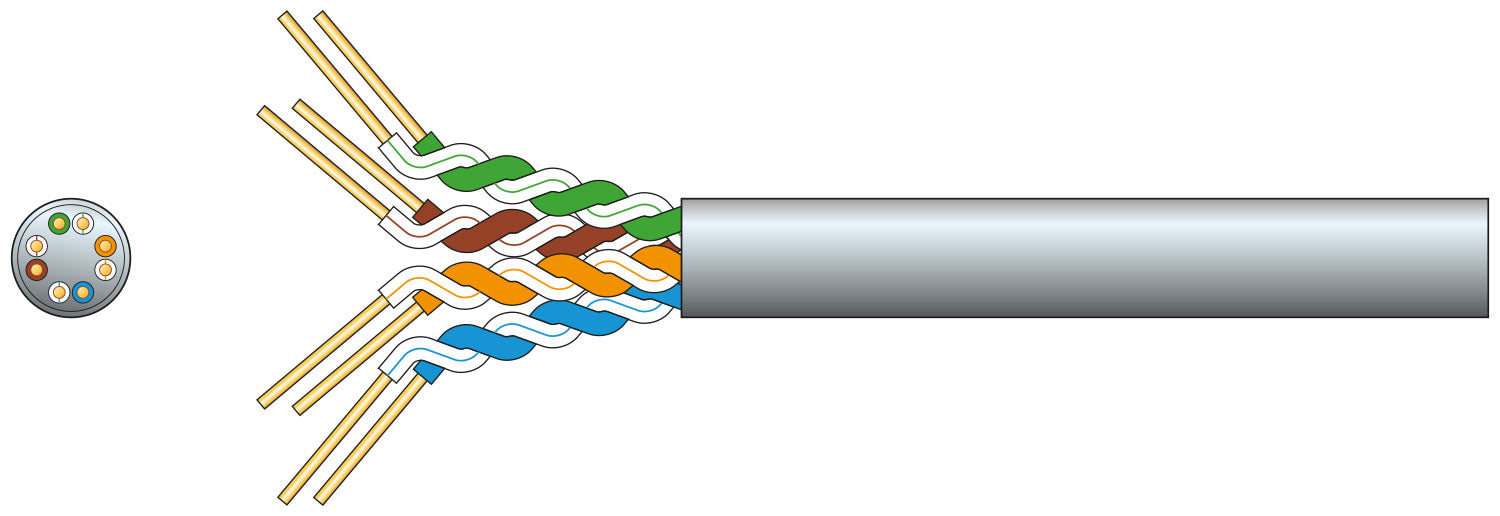

Mercury Economy Cat6 U/UTP Network Cable 305m
Brand: Mercury
SKU: 808.025UK
Regular price
£59.99
Need help with choosing the right product?
Click here to reach out to one of our experts.
Cat6 solid conductor twisted pair data cable supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications in an indoor environment.
Supplied in an easy-pull dispensing box
Passes Cat6 fluke test 100m at 250MHz
Complies to TIA/EIA-568 Cat6 standard
Conductor:Solid CCA
Strands:8 x 1/0.57mmØ ±2%
CSA:8 x 0.26mm²
Cable : diameter:5.5mmØ
Insulation:HDPE 0.23mm thickness
Sheath:PVC 0.5mm thickness
Impedance:100 Ohms (±15)
DC resistance @ 20°C:<35 Ohms/100mt
Return loss:>20dB @ 100m (from 1Mhz to 100Mhz)
NEXT:>40dB @ 100m
PSNEXT:>38dB @ 100m
Cable colour:Grey
Length:305m
Weight:8.5kg
Specifications
Solid copper clad aluminium conductorSupplied in an easy-pull dispensing box
Passes Cat6 fluke test 100m at 250MHz
Complies to TIA/EIA-568 Cat6 standard
Conductor:Solid CCA
Strands:8 x 1/0.57mmØ ±2%
CSA:8 x 0.26mm²
Cable : diameter:5.5mmØ
Insulation:HDPE 0.23mm thickness
Sheath:PVC 0.5mm thickness
Impedance:100 Ohms (±15)
DC resistance @ 20°C:<35 Ohms/100mt
Return loss:>20dB @ 100m (from 1Mhz to 100Mhz)
NEXT:>40dB @ 100m
PSNEXT:>38dB @ 100m
Cable colour:Grey
Length:305m
Weight:8.5kg
