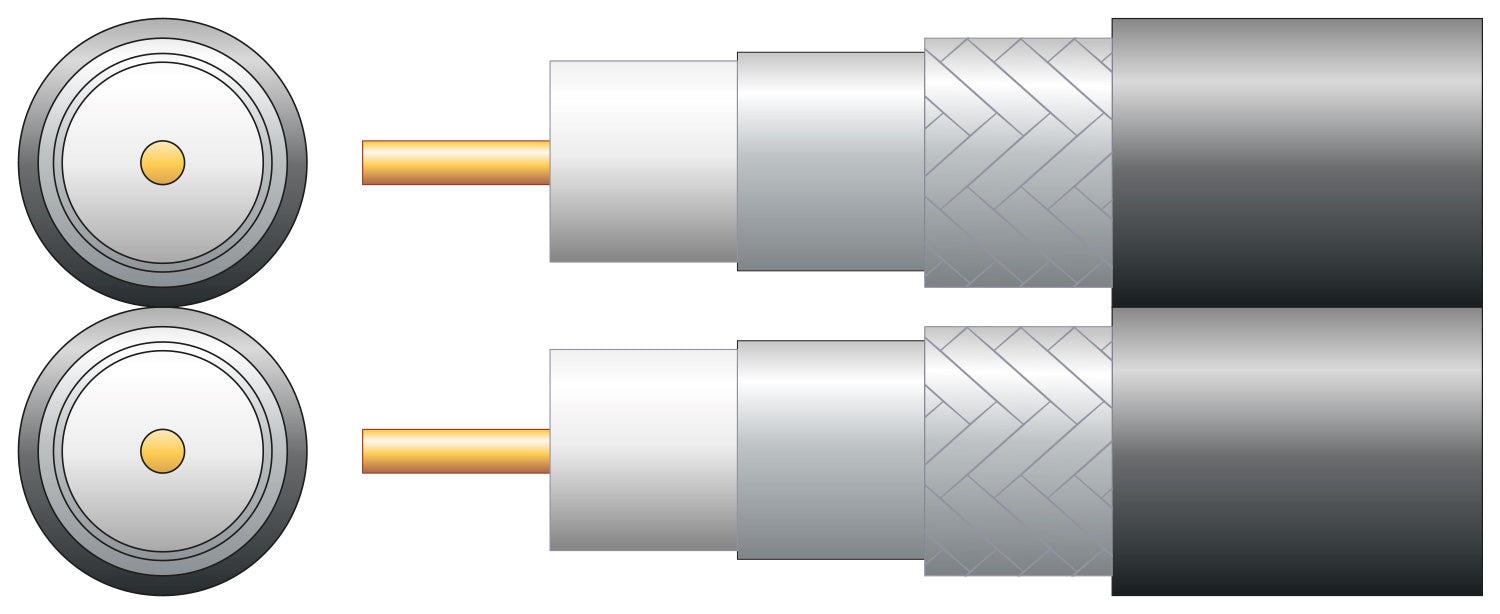

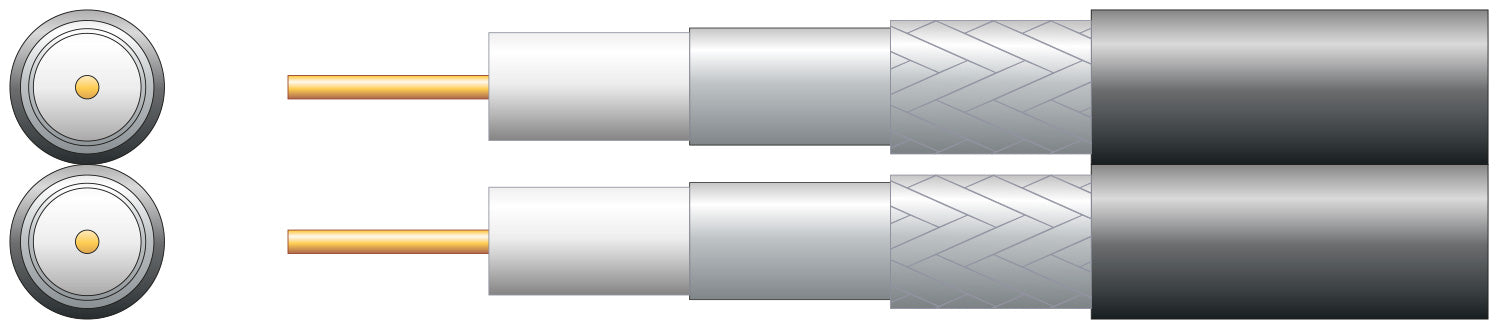

75 Ohms twin RG6 coaxial cable constructed of solid copper clad steel conductor, foam filled polyethylene dielectric, aluminium foil screen, aluminium braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for satellite dish installation with dual or quad LNB.

Specifications

Solid CCS conductor
Foam filled PE dielectric
Binded aluminium screen
Aluminium braid
Supplied in 100m or 250m reel with metric cut markers
Conductor diameter:2 x 1mmØ
CSA:2 x 0.79mm²
Dielectric:4.6mmØ foam PE
Screen:Aluminium / PET foil
Braid:2 x 64/0.12mmØ
Cable : diameter:2 x 6.6mmØ
Impedance:75 Ohms
Capacitance:54pF/m
Velocity factor:83%
Return loss 5-400MHz:24dB min./100m
Return loss 450-1000MHz:20dB min./100m
Return loss 1000-2150MHz:16dB min./100m
Attenuation @ 5MHz:2.8dB max./100m
Attenuation @ 50MHz:5.1dB max./100m
Attenuation @ 100MHz:6.9dB max./100m
Attenuation @ 200MHz:10.1dB max./100m
Attenuation @ 400MHz:14.9dB max./100m
Attenuation @ 860MHz:20.1dB max./100m
Attenuation @ 1000MHz:22.2dB max./100m
Attenuation @ 1750MHz:29.6dB max./100m
Attenuation @ 2150MHz:33.3dB max./100m
Conductor material:Solid CCS
Braid material:Aluminium
