Cat6a oxygen free copper twisted pair data cable with LDPE sheath and individual pair aluminium foil screen. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications in an outdoor environment.
LDPE sheath with UV resistant properties ideal for outdoor installations
Supplied on a sturdy wooden drum reel
Passes Cat6a fluke test 100m at 500MHz
Complies to TIA/EIA-568 Cat6a standard
Conductor:Solid OFC
Strands:8 x 1/0.560mmØ ±2%
Cable : diameter:7.3±0.5mm
Screen:Aluminium/Mylar foil
Insulation:PE 1.330±0.05mmØ
Sheath:LDPE 0.55±0.05mm thickness
Capacitance:<330pf/100m
DC resistance @ 20°C:<9.38 Ohms/100m
Impedance (100 to 250MHz):100±15 Ohms
Impedance (250 to 500MHz):100±22 Ohms
Return loss:>26.62dB
Attenuation:<2.03dB
NEXT:>87.2dB
PSNEXT:>85.15dB
ELFEXT:>88.77dB
PSELFEXT:>86.74dB
Phase delay:<450.79ns
Colour:Black
Length:305m
Weight:17.4kg
Specifications
AWG 23 oxygen free solid copper conductorLDPE sheath with UV resistant properties ideal for outdoor installations
Supplied on a sturdy wooden drum reel
Passes Cat6a fluke test 100m at 500MHz
Complies to TIA/EIA-568 Cat6a standard
Conductor:Solid OFC
Strands:8 x 1/0.560mmØ ±2%
Cable : diameter:7.3±0.5mm
Screen:Aluminium/Mylar foil
Insulation:PE 1.330±0.05mmØ
Sheath:LDPE 0.55±0.05mm thickness
Capacitance:<330pf/100m
DC resistance @ 20°C:<9.38 Ohms/100m
Impedance (100 to 250MHz):100±15 Ohms
Impedance (250 to 500MHz):100±22 Ohms
Return loss:>26.62dB
Attenuation:<2.03dB
NEXT:>87.2dB
PSNEXT:>85.15dB
ELFEXT:>88.77dB
PSELFEXT:>86.74dB
Phase delay:<450.79ns
Colour:Black
Length:305m
Weight:17.4kg

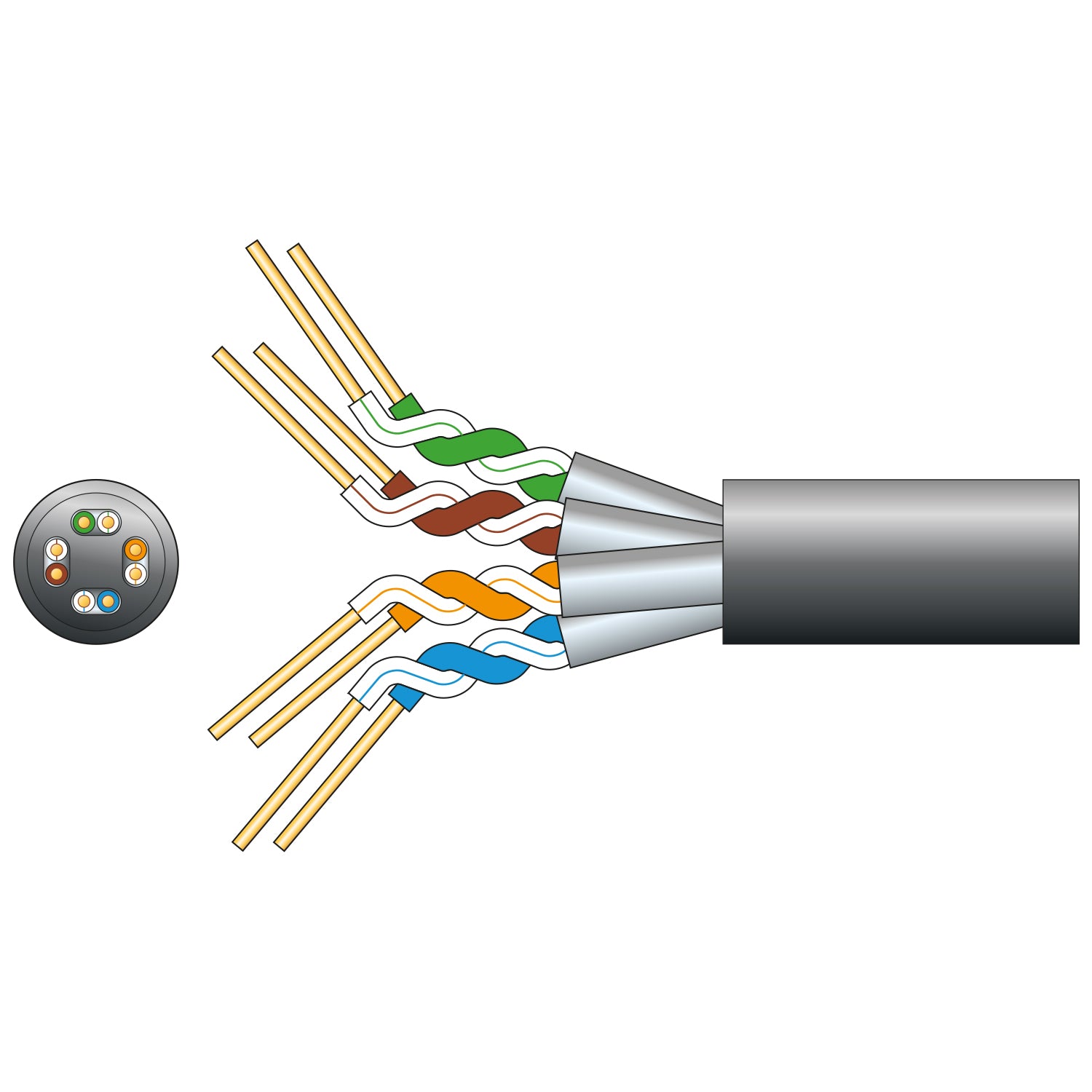

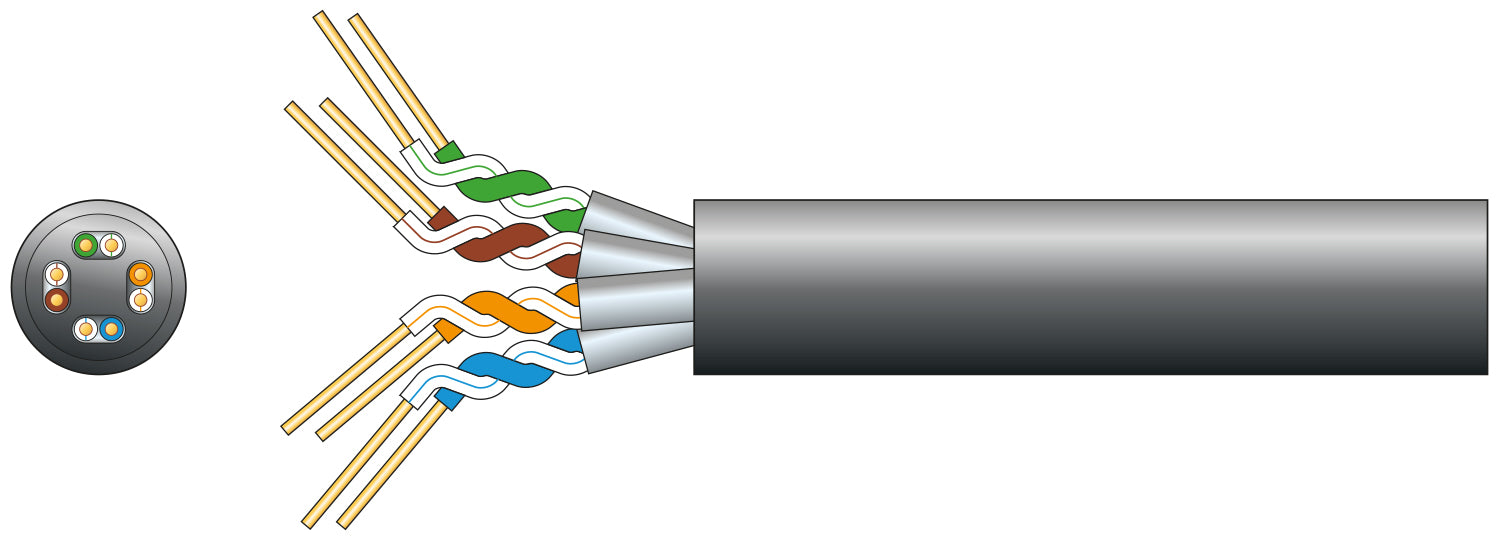

Mercury Cat6a U/FTP Outdoor Network Cable 305m Black
Brand: Mercury
SKU: 808.034UK
Regular price
£259.99
Pickup available at Venutec
Usually ready in 24 hours
Mercury Cat6a U/FTP Outdoor Network Cable 305m Black
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
